Summary of Contents for Superb SBG2500-1

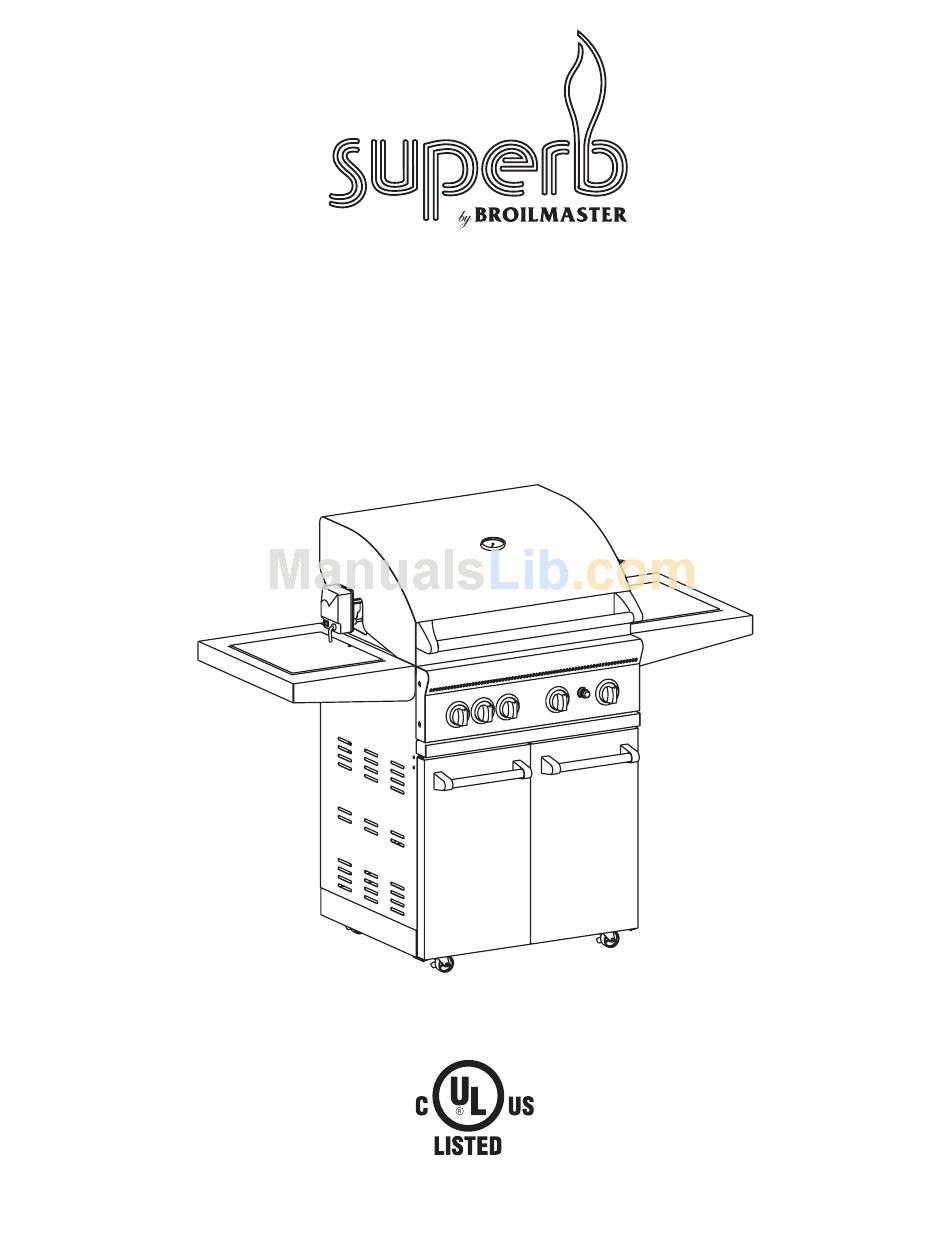

- Page 1 SBG2500-1, SBG2501-1 and SBG2801-1 Gas Grill Owner’s Manual GAS-FIRED Page 1...
- Page 2 Parts may have sharp edges. Wear leather work gloves and handle parts carefully during the unpacking, assembly and installation. WARNING Superb by Broilmaster Gas Grills must ONLY use propane cylinders equipped with an Overfill Protec- ® tion Device (OPD). Use only a reputable propane dealer when exchanging or filling cylinders. An over- filled or improperly filled propane cylinder can be dangerous.
-
Page 3: Thank You
At Broilmaster, we continually strive to enhance the performance and quality of our products for your grilling enjoyment. Every ef- fort will be made to ensure that Broilmaster continues to be your choice as the grill of the future. Whether you are at the lake or in the privacy of your own back-... -
Page 4: Table Of Contents
Warranty Terms ...20 Service Notes ... 21-23 Your Superb by Broilmaster type. This information is provided on a product identification label located on the grill’s right side of the cart. For your convenience, complete this section for future reference when contact- ing your dealer. -
Page 5: Hardware Package
HARDWARE PACKAGE Lock Washer (48) 3/4” Screw (16) “AA” Battery (1) 1/2” Screw (34) 1/4” Scew (2) SBB00101-1-1007 Page 5... -
Page 6: Parts View
All repair part orders should be placed through your local Broilmaster tomer Service at 800-851-3153 or www.broilmaster.com. To ensure prompt and accurate service, please provide the following informa- tion when placing a repair part order: Model Number, Serial Number, Part Name, Part Number, and Quantity of parts needed. -
Page 7: Parts List
Index No. Part Number SBG2500 SBG2501 SBB00014 SBB00014 SBB00011 SBB00011 SBB00013 SBB00013 SBB00076 SBB00077 SBB00064 SBB00065 SBB00066 SBB00068 SBB00069 SBB00092 SBB00071 SBB00070 SBB00054 SBB00055 SBB00052 SBB00102 SBB00057 SBB00063 SBB00072 SBB00074 SBB00059 SBB00060 SBB00061 SBB00044 SBB00045 SBB00042 SBB00043 SBB00046 SBB00046 SBB00050 SBB00050 SBB00051 SBB00051... -
Page 8: Grill Assembly
This grill requires some assembly and installation. Follow all instructions. If you purchased an accessory with your Superb by Broilmaster Gas Grill, follow the instructions provided with the accessory for assembly and installation. If an instruction refers to a step that is not required for your grill model, please continue to the next step. -
Page 9: Cart & Grill Assembly
CART AND GRILL ASSEMBLY Place cart bottom face-down on a non-abrasive surface. Attach two locking casters to front of cart bottom with four (4) lock washers, and 3/4” screws per locking caster. See Figure Attach two (2) non-lock casters to back of cart bottom with four (4) washers, and 3/4”... -
Page 10: Cart & Grill Assembly
CART AND GRILL ASSEMBLY (cont.) 10. Pull clips off the pin which attaches the side shelf mounting bracket to the side shelf and remove pin. Remove brackets from side shelves. Attach two side shelf brackets to each cart side with four (4) lock washers and 1/2” screws per side shelf bracket. -
Page 11: Rotisserie Installation For Sbg2501-1 And Sbg2801-1
ROTISSERIE INSTALLATION for SBG2501-1 & SBG2801-1 The Infrared burner (Rotisserie burner) is for rotisserie cooking only. Warning: Never use the main burners while using the Infrared Back Burner, as this could result in igniting the drip- pings, or overheating your grill. Remove warming rack and cooking grids. - Page 12 ROTISSERIE INSTALLATION for SBG2501-1 & SBG2801-1 Using the Ignitor Caution: If burner fails to light after 5 seconds, turn the burner OFF for 5 minutes, to allow the gas to clear, then try again. Attention: You must use the control knob that is second from the left side of grill to ignite the rotisserie.
-
Page 13: Propane Gas Grills
Grill Location When choosing the ideal location for your Superb by Broilmaster Gas Grill, remember this grill is designed for outdoor use ONLY. You should never install or operate your grill in any building, garage, or other enclosed area. For your safety, this grill should not be installed or operated under any combustible materials, such as carports, covered porches, awnings, or overhangs. - Page 14 Note: Not all valve and cylinder combinations are compatible. Check warning tag on valve and cylinder as well as external fit- ting threads. All Broilmaster pressure regulators and hose assemblies require Propane cylinders with a Type 1 connection device as illustrated. See Figure 16.
-
Page 15: Gas Conversion To Natural Gas
GAS CONVERSION TO NATURAL GAS A conversion kit to natural gas is included with your grill. Remove cooking grids and flame tamer from grill. Use allen wrench supplied in conversion kit to remove control knobs. Remove control panel (4 Phillips screws). Figure 18 Use a 7mm socket or wrench to remove all LP gas orifices marked 1.02 from gas valves. -
Page 16: Operation
Checking for Gas Leaks Check for gas leaks every time you connect your Superb by Broilmaster propane gas grill to a Propane gas cylinder, when a ® connected cylinder has not been used recently, or when either a natural or propane grill is being used for the first time. -
Page 17: Operation
Before Cooking Before cooking on a grill for the first time, it should be “burned off” to remove any oil residue from the manufacturing process. Raise the grill lid. Light grill burners. Burn on HI for ten minutes. Close the lid and burn on HI for an additional ten minutes. Turn OFF gas. -
Page 18: Maintenance
Grease Tray Empty periodically. Exterior Clean regularly with a solution of mild detergent and hot water. Superb by Broilmaster less steel components can be easily cleaned with a spray-on stainless steel cleaner found in most hardware stores. Venturi Tubes The venturi tubes allow air and gas to mix prior to burning, thus ensuring an efficient flame. -
Page 19: Troubleshooting
Although the manufacturer has attempted to ensure that your grill will operate properly and satisfactorily, sometimes problems do arise. The following troubleshooting guide lists several possible problems and their probable cause and solution. Problem Burner will not light. Inadequate grill temperature. Flames blow out Yellow flames. -
Page 20: Warranty Terms
What Is Covered And For How Long From the date this Superb by Broilmaster Gas Grill is first purchased, we will make available at our factory a free replacement for any defective part covered by this warranty on the following basis. Proof of purchase required. -
Page 21: Service Notes
SERVICE NOTES SBB00101-1-1007 Page 21... - Page 22 SERVICE NOTES Page 22 SBB00101-1-1007...
-
Page 23: Service Notes
SERVICE NOTES SBB00101-1-1007 Page 23... - Page 24 URABLE RILL NOWN BROILMASTER ® A Division of Empire Comfort Systems, Inc. 918 Freeburg Ave. Belleville, Illinois 62220 Phone: 1-800-851-3153 FAX: 1-800-443-8648 .broilmaster.com ISIT OUR WEB SITE AT WWW Page 24 SBB00101-1-1007...
