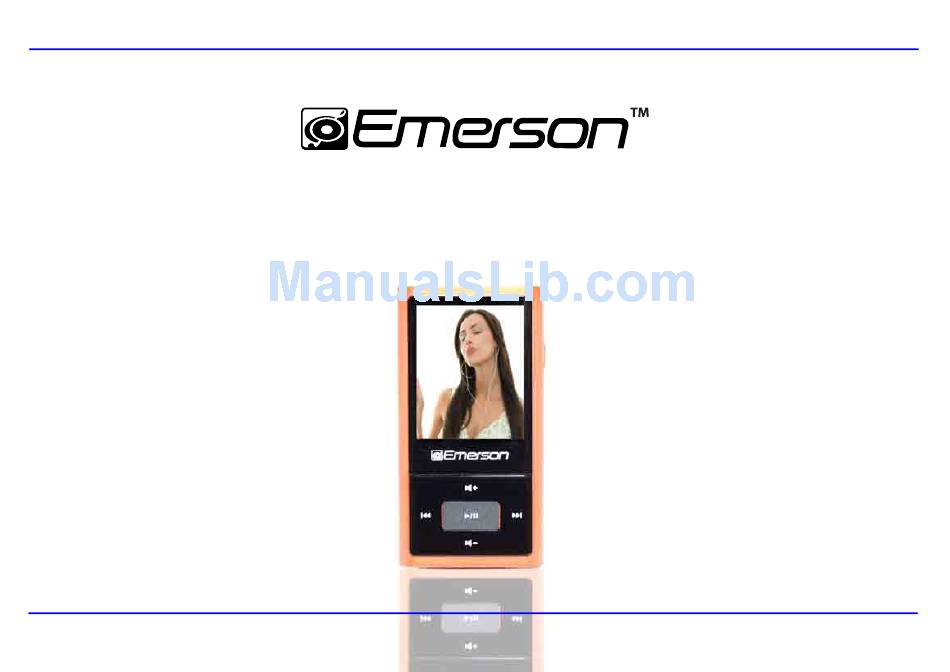

MP3 Music & Video Player
User Guide
4 GB
EMP513-4
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMP513-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Emerson EMP513-4

Summary of Contents for Emerson EMP513-4

  • Page 1 MP3 Music & Video Player User Guide 4 GB EMP513-4...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Notice for USA ..............................................1 Introduction ............................................... 2 Important Safety Precautions........................................... 3 Features ................................................4 Location of Controls ............................................5 Connecting with the Computer ........................................6 System requirements............................................6 Installing the driver for windows 98 SE ......................................6 Connecting the player to a computer......................................
  • Page 3 Skipping tracks ............................................. Searching backward or forward within a track ....................................Using the music menu ..........................................Displaying lyric synchronously........................................Voice Recording and Playing ..........................................Recording the voice ............................................. Listening to the recordings..........................................Setting the recording quality ......................................... Viewing Pictures.............................................. Using the picture menu ..........................................Watching Video ..............................................
  • Page 4 Setting display ............................................. 27 System tools ............................................... Hold time ..............................................Converting Video to MTV Format........................................Troubleshooting .............................................. Specifications ..............................................Warranty................................................

  • Page 5: Notice For Usa

    Notice for U S A - "Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment." - "NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 6: Introduction

    Introduction Congratulations on purchasing the Emerson mp3 Music & Video Player. Before using the player, read this manual thoroughly and keep it for future reference. This manual contains important safety information and correct operation instructions. Read the manual carefully before you use the player in order to avoid any confusion.

  • Page 7: Important Safety Precautions

    Important Safety Precautions Always follow these basic safety precautions when using your player. This will reduce the risk of product damage and personal injury. Do not disassemble, repair or modify the player by yourself. Refer servicing to qualified personnel. This device contains a built- in battery, do not dispose of in fire. In the event that the battery is leaking, do not handle the device with your bare hands.

  • Page 8: Features

    Features 4 GB Memory  1.8 inch CSTN color LCD (65K color, 128x160 pixel)  Built-in rechargeable Li-polymer battery  USB 2.0 high speed transmission  Supports playback of MP3, WMA music files  Supports multiple equalizer (EQ) and 3D sound effects ...

  • Page 9: Location Of Controls

    Location of Controls MIC - Microphone for voice recording - Power on/off; Record; Stop playback/recording. Screen - Screen Display Area - Start/Pause playback; Enter main menu; Confirm selection in the main menu - Next track; Fast forward search; Navigate right; Confirm and enter next screen.

  • Page 10: Connecting With The Computer

    Connecting to a computer System requirements You computer system must meet the following specifications: Pentium 200MHz or above Microsoft Windows 98SE/2000/ME/XP/Vista 120MB of available hard disk space USB port supported CD-ROM drive Installing the drive for windows 98 SE DO NOT INSTALL THIS DRIVER If your computer is running Windows ME/2000/XP/Vista, If your computer is running Windows 98 SE, you must install the driver provided on the CD before connecting the player to your computer.

  • Page 11: Connecting The Player To A Computer

    Open Windows Explorer or My Computer, and locate “Emerson MP3” Select the files on your computer and simply move it into “Emerson MP3” in the usual way (drag-and-drop, copy-and-paste). After copying is completed, the data will be available on the MP3 player.

  • Page 12: Disconnecting The Usb Cable

    Disconnecting the USB cable After completing the file transfer, please disconnect the USB cable the following way: Double click the green arrow “Safely Remove Hardware” in the taskbar on the bottom right of the window. Select “USB Device” and click “Stop”. When the “Stop a Hardware device”...

  • Page 13: Charging The Battery

    Charging the battery The battery of the player charges automatically when the player is connected to the computer. Note: The computer must be turned on. The battery of the player is 80-percent charged in about two hours, and fully charged in about four hours. If you charge the player while loading files, it may take longer.

  • Page 14: Basic Operation

    Basic Operation Turning on/off To turn on the player on or off, press and hold the [ ] button for 3 seconds. Adjusting the volume Press the [ ] button to inctease the volume. Press the [ ] button to decrease the volume. Resetting the player If a malfunction of the player occurs, take a metal pin, e.g.
  • Page 15 Music Music playback & music settings Voice Voice recording and playback Photo Photo playback and photo settings Movie Voice playback Delete Delete files Settings Adjust Time Time zone Power Auto off:15 minutes | 30 minutes | 60 minutes | 90 minutes | 120 minutes | Disable Always on: Yes | No Language English | German | Italian | Spanish | French | Dutch | Portuguese...

  • Page 16: Listening To Music

    Listening to Music - Refer to the Quick Start Guide for information regarding Windows Media Player Turning on and playing Make sure that the battery is charged, and that your earphones are properly connected. Press and hold the [ ] button to turn on the player. The DISPLAY lights up and the MP3 player enters the Main menu with the Music option selected by default.

  • Page 17: Pausing Playback

    Pausing playback While a song is playing, press the [ ] button to pause the playback. To resume the playback, press the [ ] button once again. Skipping tracks Press the [ ] button to skip to the previous track. ...

  • Page 18: Using The Music Menu

    Using the music menu The music menu allows you to manage all factors of listening, such as repeating tracks, selecting equalizers, and so on. Note: To exit the menu, press the [ FUNC] or [ ] button. To set play mode The play mode setting enables you to select a play mode to enjoy the music in a desired order.
  • Page 19 To set the equalizer The equalizer setting enables you to select an equalizer from the six preset equalizer settings to suit the type of audio output or customize your personal equalizer effect. Press the [FUNC ] button while listening to music. The music menu appears on the screen. Use the [ ] or [ ] button to select Equalizer, and press the [...
  • Page 20 To set 3D effect Press the [FUNC ] button while listening to music. The music menu appears on the screen. Use the [ ] or [ ] button to select 3D, and press the [ ] button. The 3D menu appears on the screen.

  • Page 21: Displaying Lyric Synchronously

    To navigate music files Press the [FUNC ] button while listening to music. The music menu appears on the screen Use the [ ] or [ ] button to select File, and press the [ ] button. The music file list appears on the screen.

  • Page 22: Voice Recording And Playing

    Voice Recording and Playing In Voice mode, you can activate the voice recording with integrated microphone and play back the recorded files. Recording the voice 1 .Press and hold the [ ] button to open the main menu. ] button to select Voice and press the [ 2.

  • Page 23: Listening To The Recordings

    Listening to the recordings All recordings can be played in the voice mode. Press and hold the [ ] button to open the main menu. Use the [ ] or [ ] button to select Voice and press the [ ] button.

  • Page 24: Viewing Pictures

    Viewing Pictures This player supports the playback of pictures in formats of JPG and BMP. Press and hold the [ ] button to enter the main menu. ] button to select Photo and press the [ Use the [ ] or [ ] button.

  • Page 25: Watching Video

    Watching Videos This player supports the playback of videos in MTV format. Press and hold the [ ] button to enter the main menu. ] button to select Movie and press the [ Use the [ ] or [ ] button. The video list appears on the screen.

  • Page 26: Deleting Files

    Deleting Files In the Delete mode, you can delete the files and folders stored on your player without a computer. Press and hold the [ ] button to enter the main menu. ] button to select Delete and press the [ Use the [ ] or [ ] button.

  • Page 27: Reading E-Book

    Reading E-book This player only supports the playback of files in TXT fo rmat. Other formats must be saved as TXT format before transfer. Press and hold the [ ] button to enter the main menu. ] button to select E-BOOK and press the [ Use the [ ] or [ ] button.

  • Page 28: Settings

    Settings The unit settings can be customized by accessing the Settings Menu. The Settings Menu consists of several items where various functions can be selected concerning time, power, language, display, recording, system, etc. Navigating the settings menu This section describes how to access and change various features through the MP3 player settings menu. Press and hold the [ ] button to open the main menu.

  • Page 29: Setting Time

    Setting time Adjust: To change the current time.  Press the [ ] or [ ] button to change the setting value. Press the [ ] or [ ] button to navigate between setting options. Press the [ ] button to confirm the setting and exit. Time Zone: To change the time zone.

  • Page 30: Setting Language

    Setting language To select a desired menu language.  Setting display Backlight: To set the LCD off time. The backlight will be off after the set time if no button is pressed.  Note: The backlight will never turn off when viewing pictures , reading E-book or watching a video.

  • Page 31: System Tools

    System tools Delete: To delete a file in the file list.  Format: To format the player quickly or completely. After formatting, all the data on the player will be erased.  Reset: To restore all settings of the player to factory default settings. ...

  • Page 32: Converting Video To Mtv Format

    Click on Output Video to select the destination for the converted video. You can send it directly to your player by selecting “Emerson MP3 ”, and clicking OK, or the default setting will save the video to the MTV output folder on your computer.

  • Page 33: Troubleshooting

    Troubleshooting If you have problems while operating your player, please check the points below before sending it to the service center. Can not power on The battery may be exhausted. Please recharge the battery.  Files can not be downloaded Check if the driver is installed correctly in the computer.

  • Page 34: Specifications

    Specifications Audio Format MP3/WMA/WAV Size 77 x 40 x 11.5 mm Photo Format JPEG/BMP weight < 35g (without accessories) Video Format Frequency response 20Hz~20KHz MP3 bit Rate 8Kbps–320Kbps Dynamic current ≤ 40mA (Play Mp3, backlight off) WMA bit rate 5Kbps-320Kbps Power of current ≤...

  • Page 35: Warranty

    Warranty LIMITED WARRANTY In the unlikely event that this product is defective, or does not perform properly, you may within ninety (90) days from your original date of purchase return it to the authorized service center for repair or exchange. TO OBTAIN WARRANTY SERVICE: - Provide proof of the date of purchase within the package (Dated bill of sale) - Prepay all shipping costs to the authorized service center, and remember to insure your return.
  • Page 36 The shipping address of the authorized service center is: Southern Telecom Inc. ATTENTION: Returns Department 14-C 53rd Street Brooklyn, NY 11232 Should you have any questions or problems concerning this product, please contact our customer service department at: 1-877-768-8483 Mon – Fri: 9AM – 5PM (EST) via e-mail at cs@southerntelecom.com...
  • Page 37 To obtain service after the warranty period, please e-mail cs@southerntelecom.com with product information, date of purchase and nature of the problem. Customer service will reply to the e-mail with service instructions. Warranty service not provided: This warranty does not cover damage resulting from accident, misuse, abuse, improper installation or operation, lack of reasonable care, and unauthorized modification.
  • Page 38 • REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, SOUTHERN TELECOM INC. SHALL NOT BE LIABLE FOR INCIDETAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT.
  • Page 39 Manufactured by: AIT Inc. Brooklyn, NY 11232 Emerson and the G-Clef logo are registered trademarks of Emerson Radio Corp. Parsippany, New Jersey USA © 2008 AIT Inc. All rights reserved Microsoft, the Window s logo, and Windows Media are either registered trademarks of Microsoft Corporation...
