CAUTION
:
Read these instructions carefully before operating or serving and retain for future
reference.
MAIN FEATURES
DC operated Wireless carbon monoxide alarm
Insect proof
Test / Hush button
High and stable sensitivity
Quick fix mounting bracket for easy installation
Fitting and battery tamper-resist feature
LED operation indicator
Low-battery and battery missing warning indicator
Auto reset after the Carbon Monoxide is clear
SPECIFICATION
Model Number:
Detection Type:
Power Source:
Working frequency
Emission distance
Standby Current:
Alarm Current:
Alarm Level:
Alarm Sound Level
Operation Temperature:
Ambient Humidity:
IMPORTANT INFORMATION ABOUT CARBON MONOXIDE ALARM
1. WHAT IS CARBON MONOXIDE?
Carbon monoxide is a colorless, odorless and tasteless poison gas that can be fatal when inhaled. CO binds to the hemoglobin
in the blood and inhibits its capacity to carry oxygen. CO kills hundreds of people each year and injures many more because it
is difficult to be detected with the human senses. In high concentrations, CO can kill in minutes.
2. SOURCES OF CARBON MONOXIDE
Inside your home, appliances used for heating and cooking are the most likely sources of CO. Vehicles running in attached

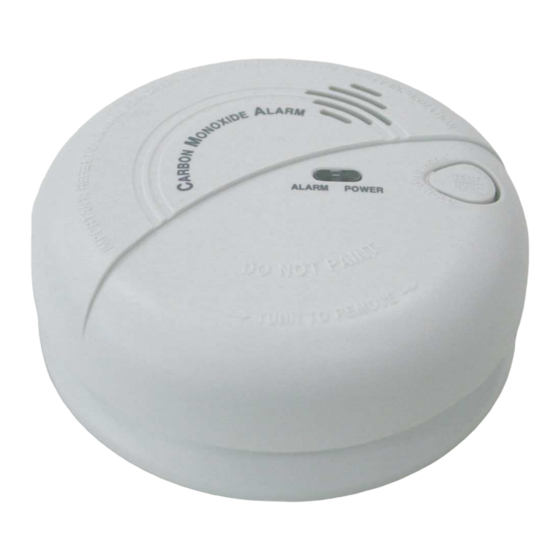

Carbon Monoxide Alarm User's Manual
MODEL: WC588P-AF2/ WC588P-V3E
WC588P-AF2/ WC588P-V3E
Electrochemical
9V DC Battery
433/868MHz（open space）
>150m
<18uA
<20mA
50ppm (Between 60-90 min)
100ppm (between 10-40 min)
300ppm (Between<3min.)
85 Decibels at 3 meters
5℃ to 38 ℃
15% to 90% Relative Humidity
Advertisement
Table of Contents
Related Manuals for Orientalert WC588P-AF2
Summary of Contents for Orientalert WC588P-AF2
- Page 1 Carbon Monoxide Alarm User’s Manual MODEL: WC588P-AF2/ WC588P-V3E CAUTION Read these instructions carefully before operating or serving and retain for future reference. MAIN FEATURES DC operated Wireless carbon monoxide alarm Insect proof Test / Hush button High and stable sensitivity...
- Page 2 garages can also produce dangerous levels of CO. CO can be produced when burning any fossil fuel, such as gasoline, propane, natural gas, oil and wood. It can be produced by any fuel-burning appliance that is malfunctioning, improperly installed, or not ventilated correctly, such as: Automobiles, furnaces, gas ranges/stoves, gas clothes dryers, water heaters, portable fuel burning space heaters, generators, fireplaces, wood-burning stoves and certain swimming pool heaters.
- Page 3 Have installations done by professionals Have your appliances checked regularly by a qualified serviceman Clean chimneys and flues yearly Make regular visual inspections of all-fuel-burning appliances Check appliances for excessive rust and scaling Do not barbecue indoors, or in attached garage Open windows when a fireplace or wood burning stove is in use Be aware of CO poisoning symptoms DO NOT:...
- Page 4 Areas where high levels of dust, dirt, or greasy emissions, these conditions could contaminate or clog the sensor. 5. Behind drapes or furniture. 6. In the path of air discharged from a furnace/air conditioning vent or ceiling fan. 7. Outside of a building. 8.
- Page 5 CO LEVEL (PPM) RESPONSE TIME (MIN) 60-90 10-40 <3 WARNING: This product may not alarm at low carbon monoxide levels. Individuals with medical problems may consider using warning devices which provide audible concentrations under 30 ppm. Hush Feature WARNING: • The Hush Feature is for your convenience only and will not correct a CO problem. Always check your home for a potential problem after any alarm.
- Page 6 are designed to alert you to the presence of carbon monoxide before an emergency, before most people would experience symptoms of carbon monoxide poisoning, giving you time to resolve the problem calmly. HOW TO SET THE CO ALARM INTERCONNECT WITH CONTROL PANEL 1.
-
Page 7: Battery Replacement
1. Test your alarm at least once a week. 2. Clean your CO alarm regularly to prevent dust build up. See “CLEAN THE CO ALARM” BATTERY REPLACEMENT Replace battery at least once a year or immediately when the low battery signal sounds once a minute. This low voltage warning will be given for at least 30 days. -
Page 8: Troubleshooting
CO are “CO ALARM PLACEMENT.” experiencing an intermittent CO problem. revealed in an investigation. Manufacturer: Xiamen Vs-Top Electronics Co., Ltd. 6th floor, Jinzhongda Park, No-666 Yangguang Road, Xinyang Industrial District, Haicang ,Xiamen, China. Tel: 0086-592-6017700 Fax: 0086-592-6017711 E-mail: info@vs-top.com Website: www.orientalert.com...
