Smart I Duo User Manual

Vehicle accident camera with 120 wide angle lens and additional rear view internal camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

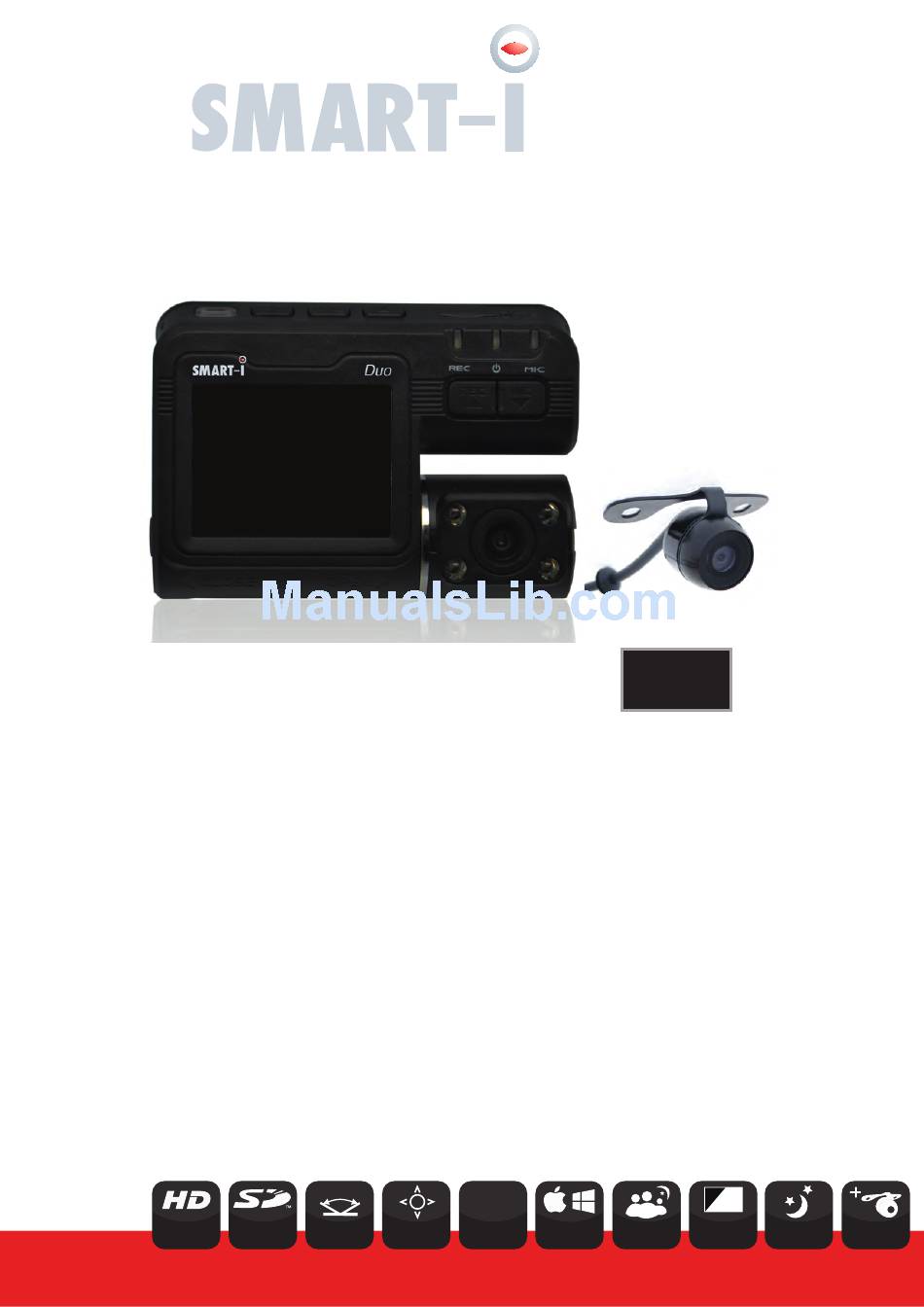

Duo
HD
Vehicle Accident Camera
with 120° Wide Angle Lens and Additional
Rear View Internal Camera
User Manual
120º
USB
16.9
G
Version 1
Video
Supports
Wide-Angle
Mac/Windows
Night
2" TFT LCD
IR Night
150° Second
G-Sensor
2.0 Interface
1280x720
up to 32GB
Lens
Compatible
Operation
HD Screen
Vision
Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Duo and is the answer not in the manual?

Questions and answers

Related Manuals for Smart I Duo

Summary of Contents for Smart I Duo

  • Page 1 Vehicle Accident Camera with 120° Wide Angle Lens and Additional Rear View Internal Camera User Manual 120º 16.9 Version 1 Video Supports Wide-Angle Mac/Windows Night 2” TFT LCD IR Night 150° Second G-Sensor 2.0 Interface 1280x720 up to 32GB Lens Compatible Operation HD Screen...

  • Page 2: Table Of Contents

    Contents 1. Product Overview ................ 1.1. Product Features ............. 1.2. What’s in the Box ............1.3. Button Functions ............. 1.4. Installation ............... 2. Installation ................... 2.1. Rear View Camera Installation ........3. Operation Instructions ..............3.1. Automatic Recording ............3.2. Manual Record ..............3.3.

  • Page 3: Product Overview

    The camera features a 120° wide-angle lens to capture the driver’s view and evidence of what really happened. The Smart-i Duo records road events in HD (720P) to help drivers provide clear evidence and protect against false claims. The unit also includes a Rear View Internal Camera for help when reversing and to watch the rear area of the vehicle.

  • Page 4: Button Functions

    1.3 Button Functions System Working Indicator Charge Indicator REC Indicator MIC Button External Camera Input AV-OUT REC Button Display Reset Button Power Button Camera Direction Indication Mounting Frame Speaker Camera Micro SD Card Slot Video Lock Button Camera Button / Playback Mode Menu Button...
  • Page 5 Power Button • To power the device, press the Power Button for 3 seconds. Video recording will be automatically activated after the device is switched on if there is a Micro SD card present. • To turn the device off, press the Power Button for 3 seconds. The last video will have been saved before device is switched off.

  • Page 6: Installation

    6. Take out the ‘USB to Cigarette Lighter Adaptor’ 7. Connect the USB end of the Cigarette Lighter Adaptor to the Smart-i Duo and the other end to the Cigarette Lighter Power Socket.
  • Page 7 Emergency Video Lock Button • Function 1: Video Locking If there is an incident during recording, press the video lock button to protect valuable video evidence. Previous footage will be saved and extended for an extra 3 minutes recording. To unlock the video, press the video lock button again.
  • Page 8 • Function 2: Page Down MIC button functions as page-down button under the menu and the playback interface. • Function 3: Invert Display To invert the display, press the MIC button under power on status for 3 seconds. Reset Button If you experience any issues with your device, please restart device by pressing the reset button.

  • Page 9: Installation

    Place the external camera at the back of the car. The cable can be laid across the seats to the recorder at the front. Connect the external camera by plugging the camera AV cable into the AV-IN port on the Smart-i Duo. Adjust camera position; ensure the line of sight is perpendicular to the ground.

  • Page 10: Rear View Camera Installation

    Once plugged in, the cameras image will show on the Duo LCD along with the main image from the Duo. Please note that the AV OUT on the Duo is only used for playback on a larger screen. However, you can playback on the Duo itself rather than through an external monitor.

  • Page 11: Operation Instructions

    3. Operation Instructions 3.1 Automatic Recording Video recording will start automatically when the engine turns on. The video recording indicator and audio recording indicator will start to flash when recording has started. After the engine has been turned off, video recording will also stop automatically after 12 seconds. The recorder will save the latest video and then power off.

  • Page 12: Display Invert & Non-Invert

    3.5 Display Invert & Non-Invert The camera on the DVR can be rotated 300° and the screen displays upside down if the camera has been rotated 180°. To display correctly, press the MIC button/REC button for 3 seconds for invert display and non-invert display.

  • Page 13: Audioon/Off By One Button

    3.9 AudioOn/Off by One Button To record without sound, press the MIC button under video recording. When the microphone sign at the bottom of the display is white, the MIC has been switched off. Press the MIC button again and the microphone will turn blue. This means the MIC has been switched on. The MIC setting will be automatically saved, so there is no need to edit again after the device has been restarted.

  • Page 14: Osd Functions

    4. OSD Functions Video 720P / VGA Settings Resolution O / 1 Min / 2 Mins / 5 Mins Recording Time Image Settings 1280x720 / 1600x1200 / 2048x1536 Resolution Auto / Sunlight / Flourescent / Cloudy sky / Thungsten Brightness -3, -2, -1, 0, 1, 2, 3.

  • Page 15: Resolution

    4.1.1 Resolution The resolution option allows you to set the resolution of the recorded video. The Smart-I Duo has 2 resolution options HD 720P and VGA. 4.1.2 Recording Time The Recording Time option allows you to set the length of the recorded video. So, if the recorder has been set to 1 minute, it will record a minute file and will start again for another minute and so The options for the length of video are;...

  • Page 16: Resolution

    4.2 Picture Settings 4.2.1 Resolution To enter into the picture resolution menu, press the mode key and enter into picture mode and then press the menu button. In this menu, the user can set the resolution of the images that are taken. The resolutions available are: 1280x720, 1600x1200 or 2047x1536.

  • Page 17: Exposure

    4.3.2 Exposure The exposure levels of the camera will determine how much light will reach the camera. The higher the levels, the more light will enter the camera and the picture will be brighter, lighter and whiter. The exposure levels available are -3, -2, -1, 0, 1, 2 and 3. The default exposure level will be 0. 4.3.3 Colour The colour option allows the user to set a colour effect on any image that is taken.

  • Page 18: Watermark

    4.3.3 Auto Detect By the turning this function on, when a moving object is detected, the recorder will begin to record. If the object stops moving the recorder will stop, and being again once any object moves again. 4.3.4 Watermark This option allows you to set the date and display the date on the recorded video in playback mode.

  • Page 19: Auto Record

    4.3.6 Auto Record By turning on the auto record function, the unit will start recording immediately once the recorder has been powered and has a Memory Card. If the charge video option is selected, the recorder will start recording automatically when the recorder is being charged.

  • Page 20: Ir Led

    4.3.9 IR LED This option allows you to turn the IR LED’s on or off. Alternatively, you can choose auto and the LED’s will come on automatically when light levels are low. 4.3.10 Shutdown Time The shutdown time feature allows you to delay when the unit shuts down after the power off button is pressed.

  • Page 21: Auto Backlight Off

    4.3.13 G-Sensor The G-sensor function will set the Smart-i Duo to record when impact is detected in the vehicle. There are 3 G-sensor sensitivity levels to choose from and the default setting is ‘Middle’.

  • Page 22: Date Set

    4.3.15 Date & Time Set the Date and Time by using the ‘Rec’ or ‘Mic’ button to adjust the time/date and the ‘Menu’ button to toggle between each digit. 4.3.16 Format This option allows the user to format the Micro SD Card. Please note that all information on the memory will be removed if you select the ‘Format’...

  • Page 23: Specifications

    5 Specifications Smart-i Duo Specifications Dimensions (WxHxD) 90x64x28mm Weight (Kg) 0.09 Display 2” TFT Colour Display Screen USB Interface USB 2.0 Battery Capacity 10 Minute Memory Micro SD Card: Up to 32GB Video Format Frame Rate 30 fps Video Resolution...
  • Page 24 Smart Witness, Unit 2 Valley Point, Beddington Farm Road, Croydon Surrey CR0 4WP...
