Installation and Operation Manual
PowerMax
Wireless Amplifier/Repeater System
Read Instructions before installing!
If you do not understand instructions,
D IGITA L
AN TEN N A
TM
40dB Gain Dual Band
seek professional installation.
Digital Antenna, Inc.
>
www.digitalantenna.com
>
4KMR-30U
5325 NW 108th Avenue
>
Sunrise, FL 33351
>
t 954.747.7022
>
f 954.747.7088
>
Advertisement
Table of Contents
Related Manuals for Digital Antenna PowerMax 4KMR-30U
Summary of Contents for Digital Antenna PowerMax 4KMR-30U

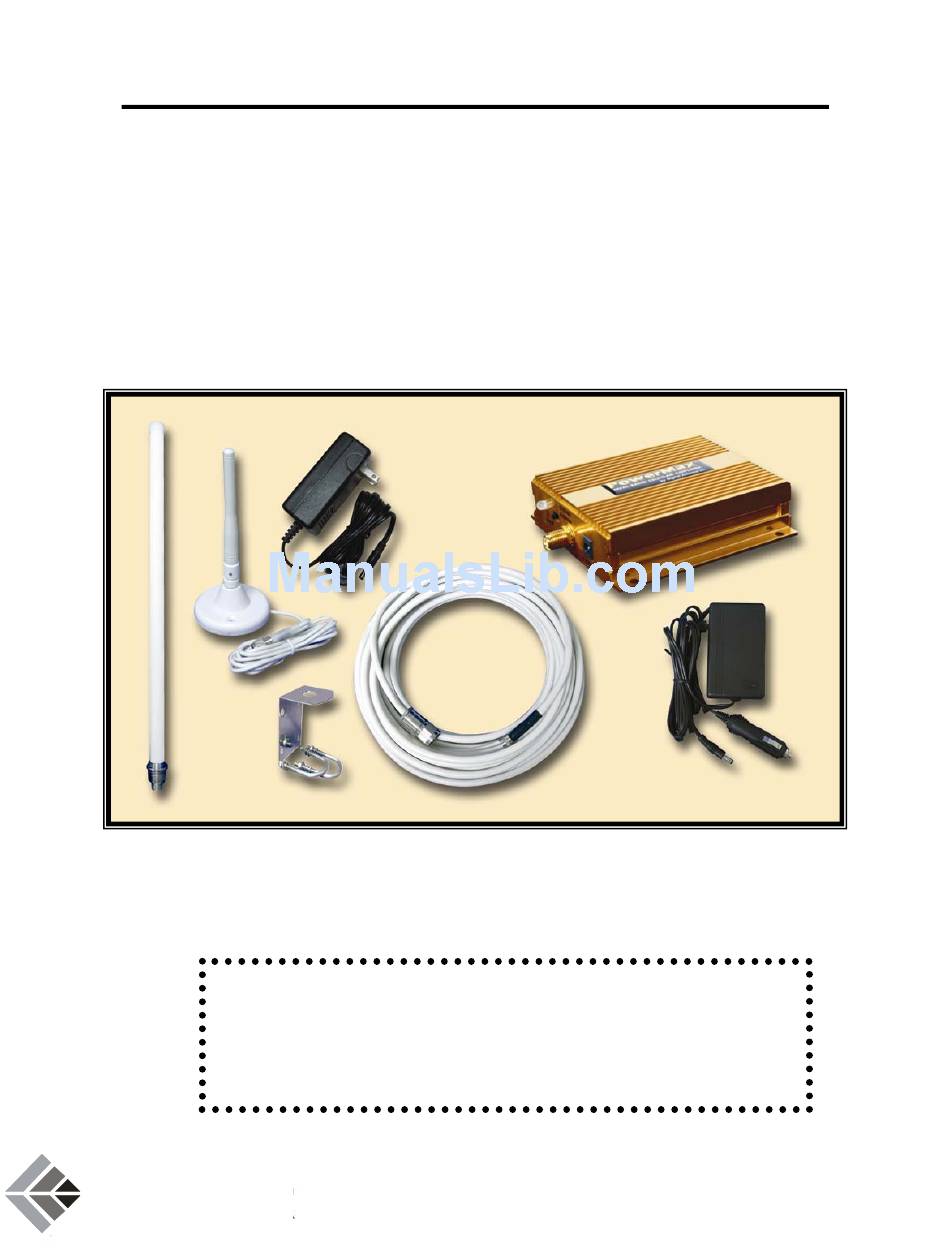

- Page 1 4KMR-30U 40dB Gain Dual Band Wireless Amplifier/Repeater System Read Instructions before installing! If you do not understand instructions, seek professional installation. D IGITA L Digital Antenna, Inc. 5325 NW 108th Avenue t 954.747.7022 > > > AN TEN N A www.digitalantenna.com...
-
Page 2: Table Of Contents
INSTALLATION AND OPERATION MANUAL Model #4KMR-30U 1. Package Contents……………………………………………………………….………3 2. Important Safety Information…………………………………………………………..3 a. Limited Warranty………………………………………………….……..4 b. Limitation on Liability…………………………………………….………4 c. FCC Regulations…………………………………………………………..4 3. Pre-installation Guidelines……………………………………………………………...5 a. Installation Tools…………………………………………………...……..5 b. Installation Procedure………………………………………….……..…...5 c. Electrical Power…………………………………….…………………..6 d. Amplifier/Repeater Status………………………….……………………...7 e. Interior Coverage Problems……..………………………………………...8 f. -
Page 3: Package Contents
WARNING! Only Digital Antenna authorized products may be used with the 4KMR- 30U system. Using unauthorized equipment with the 4KMR-30U system will harm the system, voids the warranty and can be detected in the event of a failure. -
Page 4: Limited Warranty
Digital Antenna in writing. If products sold hereunder are not as warranted, Digital Antenna shall, at its option repair or replace the product, provided proof of purchase and written notice of nonconformance are received by Digital Antenna within five (5) or one (1) years of date of purchase and provided said nonconforming Products are, with Digital Antenna’s written... -
Page 5: Pre-Installation Guidelines
3. Pre-Installation Guidelines a. INSTALLATION TOOLS The following tools are required for installation: • Standard wrench and Phillips head screwdriver • Standard drill with ½” bit (optional) • Cellular device operating on 800 or 1900 MHz bands (any USA or Canadian cellular device except Nextel) •... -
Page 6: Electrical Power
Typically the 4KMR-30U system will NOT penetrate an interior wall or floor. To increase interior coverage area, use one of Digital Antenna’s high gain outside and/or inside directional antennas. (pg 15). Pre-installation Considerations Establish a site installation plan based upon desired interior coverage area •... -
Page 7: Amplifier/Repeater Status
To plug into a standard 110 VAC receptacle use PN DP255, a 110 VAC to 5VDC Power Supply. For use on a boat or RV, plug PN DP515, a 12 VDC to 5 VDC Power Cable, into a 12 VDC cigarette style power receptacle. The 12 VDC power supply has a micro-processor controller to turn the repeater off if not properly installed. -
Page 8: Interior Coverage Problems
20’ apart or more and separated by an exterior wall. • Weak Outside Signal – If the outside signal is very weak, the interior coverage area will be small. To increase coverage area, use one of Digital Antenna’s high gain outside and/or inside antennas (pg 15). -
Page 9: Coaxial Cable Recommendations
Unauthorized cable usage can be detected and voids the warranty. Digital Antenna’s DA440 cable may be used for cable runs less than 150’, LMR600 by Times Microwave may be used for runs less than 250’. For cable runs... -
Page 10: Home/Office Installation
20’ or greater distance with as much vertical separation as possible. Vertical separation is better than horizontal. WARNING! Only Digital Antenna authorized products may be used with the 4KMR-30U system. Using unauthorized equipment will harm the 4KMR-30U system, can be detected and voids the warranty. -
Page 11: Marine Installation
Use PN F114 (sold separately) to mount 288- PW to 1”-14 threaded base. Outside antenna must be mounted in a vertical position. The 4KMR-30U system may also be used with one of Digital Antenna’s marine 9dB gain dual band cellular antennas (pg 15). (Follow minimum 20’... -
Page 12: Rv Installation
20’ or greater distance with as much vertical separation as possible. Vertical separation is better than horizontal. WARNING! Only Digital Antenna authorized products may be used with the 4KMR-30U system. Using unauthorized equipment with the 4KMR-30U system will harm the system, can be detected and voids the warranty. -
Page 13: Specifications
7. Specifications Amplifier/Repeater Unit PN DA4000MR • Frequency: Uplink: 824-849 MHz and 1850-1910 MHz Downlink: 869-895 MHz and 1930-1990 MHz • Modulations: ALL • Max Output Power: 3W (824-849 MHz), 2W (1850-1910 MHz) • Dynamic Variable Gain: 44dB Max • Impedance: 50 ohms •... - Page 14 Cable PN 240-30NM • Length: 30’ • Impedance: 50 Ohm • RF connectors: Type N male and mini-UHF male factory attached • Attenuation at 800 MHz: 2.8dB per 30’ • Attenuation at 1900 MHz: 4.4dB per 30’ Power Supply PN DP255 •...
-
Page 15: Antenna & Accessory Options
2-way Cellular Combiner w/ mini-UHF female connectors DA-2100 Digital Antenna manufactures cellular amplifiers, repeaters and antennas to enhance communication on land or sea. All products are designed, engineered and manufactured by Digital Antenna in the USA. Visit www.DigitalAntenna.com to view our complete product line. -
Page 16: Technical Support
For answers to most questions access Digital Antenna’s knowledgebase and Troubleshooter section on Digital Antenna’s website www.DigitalAntenna.com. When contacting Digital Antenna regarding your repeater, locate the product’s serial number on the DA4000MR unit before calling. The serial number is located on the bottom of the DA4000MR unit.
