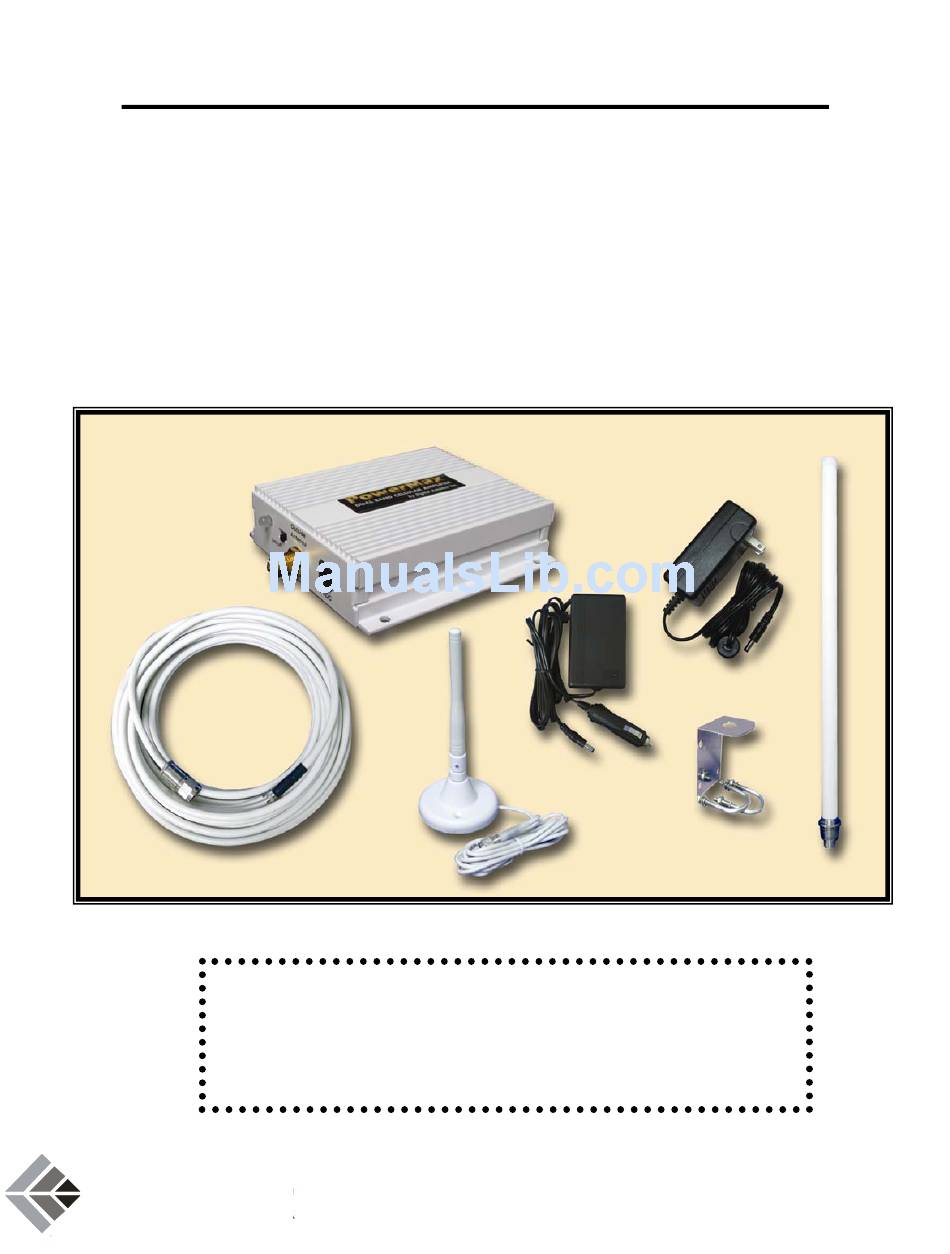

Installation and Operation Manual
PowerMax
Wireless Amplifier/Repeater System
Read Instructions before installing!
If you do not understand instructions,
D IGITA L
AN TEN N A
TM
60 dB Gain Dual Band
seek professional installation.
Digital Antenna, Inc.
>
www.digitalantenna.com
>
KSBR-50U
4
5325 NW 108th Avenue
>
Sunrise, FL 33351
>
t 954.747.7022
>
f 954.747.7088
>
Advertisement
Table of Contents
Related Manuals for Digital Antenna POWERMAX 4KSBR-50U
Summary of Contents for Digital Antenna POWERMAX 4KSBR-50U
- Page 1 PowerMax 60 dB Gain Dual Band Wireless Amplifier/Repeater System Read Instructions before installing! If you do not understand instructions, seek professional installation. D IGITA L Digital Antenna, Inc. > AN TEN N A www.digitalantenna.com > KSBR-50U 5325 NW 108th Avenue >...
-
Page 2: Table Of Contents
INSTALLATION AND OPERATION MANUAL Model #4KSBR-50U 1. Package Contents……………………………………………………………….…….. 3 2. Important Safety Information………………………………………………………… 3 a. Limited Warranty………………………………………………….……. 4 b. Limitation on Liability…………………………………………….…….. 4 c. FCC Regulations………………………………………………………… 4 3. Pre-installation Guidelines……………………………………………………………. 5 a. Installation Tools…………………………………………………...…… 5 b. Installation Procedure………………………………………….……..…. 5 c. -
Page 3: Package Contents
WARNING! Only Digital Antenna authorized products may be used with the 4KSBR- 50U system. Using unauthorized equipment with the 4KSBR-50U system will harm the system, voids the warranty and can be detected in the event of a failure. -
Page 4: Limited Warranty
LIMITED WARRANTY Digital Antenna, Inc. warrants marine antennas for five (5) years and cellular antennas and amplifiers for one (1) year that its Products sold hereunder will at the time of shipment be free from defects in material and workmanship and will conform to Digital Antenna’s applicable specifications or, if appropriate, to Customer’s specifications previously... -
Page 5: Pre-Installation Guidelines
3. Pre-Installation Guidelines a. INSTALLATION TOOLS The following tools are required for installation: • Standard wrench and philips head screwdriver • Standard drill with ½” bit (optional) • Cellular phone operating on 800 or 1900 MHz bands (any USA or Canadian cellular phone except Nextel) •... -
Page 6: Electrical Power
Typically the 4KSBR-50U system will penetrate 1-2 interior walls and 1 floor based upon construction material. To increase interior coverage area, use one of Digital Antenna’s high gain outside and/or inside directional antennas or use a cellular combiner and multiple inside antennas. (pg 15). -
Page 7: Amplifier/Repeater Status
To plug into a standard 110 VAC receptacle use PN DP255, a 110 VAC to 5VDC Power Supply. For use on a boat or RV, plug PN DP515, a 12 VDC to 5 VDC Power Cable, into a 12 VDC cigarette style power receptacle. The 12 VDC power supply has a micro-processor controller to turn the repeater off if not properly installed. -
Page 8: Interior Coverage Problems
40’ apart or more and separated by an exterior wall. • Weak Outside Signal – If the outside signal is very weak, the interior coverage area will be small. To increase coverage area, use one of Digital Antenna’s high gain outside and/or inside antennas (pg 15). -
Page 9: Coaxial Cable Recommendations
PowerMax DA340 ULTRA low loss 25’ extension cable and 75’ replacement cable are available. Only Digital Antenna authorized cable can be used to complete the installation. Unauthorized cable usage can be detected and voids the warranty. LMR400 cable by Times Microwave may be used for cable runs less than 150’, LMR600 may be used for runs less than 200’. -
Page 10: Home/Office Installation
40’ or greater distance with as much vertical separation as possible. Vertical separation is better than horizontal. WARNING! Only Digital Antenna authorized products may be used with the 4KSBR-50U system. Using unauthorized equipment will harm the 4KSBR-50U system, can be detected and voids the warranty. -
Page 11: Marine Installation
Use PN F114 to mount 288-PW to 1”-14 threaded basse. Outside antenna must be mounted in a vertical position. The 4KSBR-50U system may also be used with one of Digital Antenna’s marine 9dB gain dual band cellular antennas (pg 15). (Follow minimum 40’ inside and outside antenna separation guideline) Antennas must be separated by a structure and a 40’... -
Page 12: Rv Installation
40’ or greater distance with as much vertical separation as possible. Vertical separation is better than horizontal. WARNING! Only Digital Antenna authorized products may be used with the 4KSBR-50U system. Using unauthorized equipment with the 4KSBR-50U system will harm the system, can be detected and voids the warranty. -
Page 13: Electrical Specifications
7. Specifications Amplifier/Repeater Unit PN DA4000SBR • Frequency: Uplink: 824-849 MHz and 1850-1910 MHz Downlink: 869-895 MHz and 1930-1990 MHz • Modulations: ALL • Max Output Power: 3W (824-849 MHz), 2W (1850-1910 MHz) • Dynamic Variable Gain: 64dB Max • Impedance: 50 ohms •... - Page 14 Cable PN 340-50NM • Length: 50’ • Impedance: 50 Ohm • RF connectors: Type N male and mini-UHF male factory attached • Attenuation at 800 MHz: 5.7dB per 100’ • Attenuation at 1900 MHz: 8.5dB per 100’ Power Supply PN DP255 •...
-
Page 15: Antenna & Accessory Options
2-way Cellular Combiner w/ mini-UHF female connectors Digital Antenna manufactures cellular amplifiers, repeaters and antennas to enhance communication on land or sea. All products are designed, engineered and manufactured by Digital Antenna in the USA. Visit www.DigitalAntenna.com to view our complete product line. White 854-CW w/ male 1"-14... -
Page 16: Technical Support
For answers to most questions access Digital Antenna’s knowledgebase and Troubleshooter section on Digital Antenna’s website www.DigitalAntenna.com. When contacting Digital antenna regarding your repeater, locate the product’s serial number on the DA4000SBR unit before calling. The serial number is located on the bottom of the DA4000SBR unit.
