Related Manuals for Details The Walkstation
Summary of Contents for Details The Walkstation

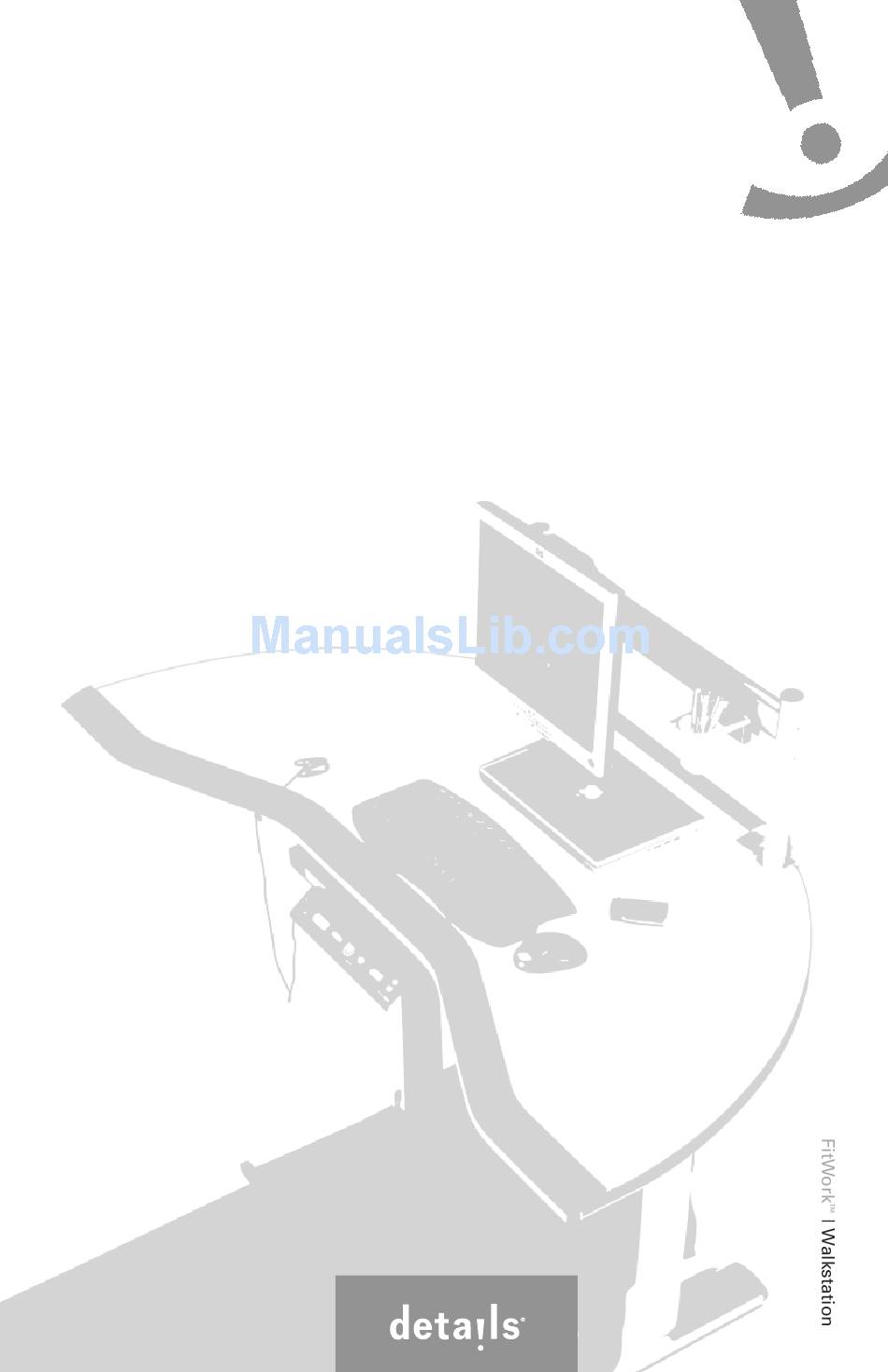

- Page 1 The Walkstation User Instructions...
-
Page 3: Table Of Contents
Index Description Page Safety Instructions 2- 3 Features Ergonomic Tips Display Console Specifics User Instructions Treadmill Maintenance 10-11 AdjusTables Maintenance 12-13 Troubleshooting 14-15 his user instruction manual is applicable to all Walkstation style numbers. w w w . d e t a i l s - w o r k t o o l s . c o m... -
Page 4: Safety Instructions
• If you are pregnant or have any medical condition that could make you dizzy or off-balance, do not use the Walkstation. • Obtain proper instruction prior to use. • Inspect the treadmill for incorrect, worn, or loose components and do not use until corrected, replaced, or tightened prior to use. - Page 5 • While treadmill is in operation, user is multi-tasking. Avoid distraction. • Do not exceed maximum user weight of 350 lbs. • Keep the top side of the moving surface clean and dry. • Keep treadmill feet securely nested in openings in the treadmill receiver. •...
-
Page 6: Features
Walkstation Features 1 Commercial grade treadmill with maximum speed of 2 mph in 0.1 mph increments and no incline adjustability 2 Patented Soft System ® surface with Neoprene shock absorbers in front third of the deck 3 Stowable digital display and touch pad controller 4 Urethane high profile soft edge –... -
Page 7: Ergonomic Tips
• Thoroughly stretch and warm up before operating the Walkstation; • Follow a training / ramp-up schedule. Most people utilize the Walkstation at 1 mph (range of 0.3 – 2 mph). It is about comfort, NOT speed. -
Page 8: Display Console Specifics
Walkstation Display Console Specifics Walkstation Display: • Speed: Miles per hour in 0.10 increments (2 mph maximum) • Calories: Estimated total calories burned based on user input of weight • Time: Time elapsed in your session • Distance: Miles traveled in 0.01 mile increments •... -
Page 9: User Instructions
W A R N I N G THIS IS NOT AN EXERCISE MACHINE. Read and follow all manufacturer’s instructions for the proper use and operation of the Walkstation and adjustable height worksurface before initial use of this worksurface. Failure to follow these instructions at any time could result in serious personal injury. - Page 10 • Pause – Press STOP to stop belt moving & hold session information on display. • Reset – Press and hold STOP for at least 3 seconds at any time during operation or pause. • Emergency Stop – Pull off magnet on end of Magnetic Safety Clip from its indicated connection on keypad.
- Page 11 • Normal Accumulation in the Display: While you are walking, the display shows distance and calories. If you pull the Magnetic Safety Clip or press and hold the STOP key to reset the Walkstation, the distance and calories will reset.
-
Page 12: Treadmill Maintenance
Walkstation Treadmill Maintenance Maintaining your Treadmill: Your treadmill is constructed of quality materials and manufactured to provide many years of faithful service. Simple routine cleaning and a preventive maintenance program will extend the life of your treadmill. To prevent electrical shock, be certain the treadmill is turned off and unplugged from the electrical outlet before performing any cleaning or routine maintenance. - Page 13 Treadbelt Adjustment: Your treadmill's running belt has been properly aligned at the factory. However, when the treadmill is used on an uneven surface, please follow these instructions: 1 Stand beside the treadmill, place the Magnetic Safety Clip onto the display console &...
-
Page 14: Adjustables Maintenance
Walkstation AdjusTables Maintenance Maintaining the Height-AdjusTable Table: Regularly clean dust and dirt from the lifting columns. To insure all surfaces are thoroughly cleaned, make sure the lifting columns are fully telescoped to their maximum height. Also, be sure to inspect for damage. Check the connections, cables and plugs for both correct function and secure mounting. - Page 15 Care & Cleaning Instructions for Urethane High Profile Edge: Urethane High Profile edges are generally stain resistant to most compounds or staining agents found in the office, food and health care industries. Most food condiments such as ketchup, mustard, steak sauce, etc. will clean up easily.
-
Page 16: Troubleshooting
Walkstation Troubleshooting Symptom Cause Solution Circuit breaker A Damaged motor A Service required B Damage or defective B Service required on treadmill trips motor power supply board C Service required when the power cord C Damaged motor D Check and remove control circuit board obstruction or call dealer is plugged into wall. -
Page 17: Error Message
Cause Solution LUBE Indicates that the accumulated Lube deck with liquid silicone distance is such that the deck lubricant available from Details needs to be lubed Inspect wax bar assembly on commercial models, if worn to less than ⁄ "... - Page 20 For further information, please go to the Details website www.details-worktools.com or call 800.833.0411 P.O. ox 1967 / CD-5E Grand Rapids, MI 49501-1967 www.details-worktools.com ©2009 Office Details Inc. ll rights reserved. 005734D Rev. C 3/09 For a better day at work. ™...
