TURKEY FRYER
TM

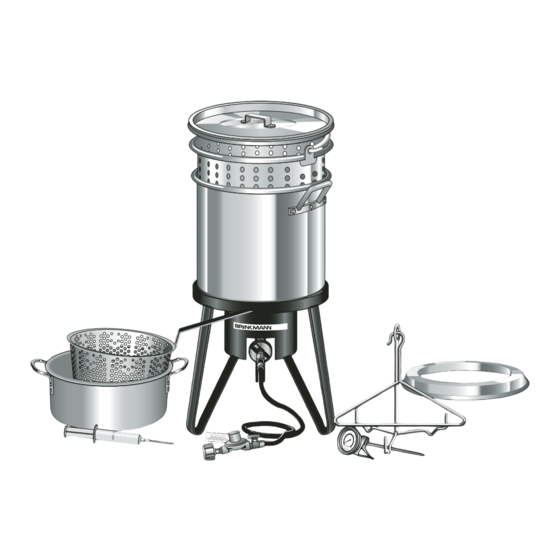

Gas Cooker with 42-Qt. Boiling Pot, Double-Handled Deep
Fry Pan & Basket Set, Strainer Basket & Support Ring,
Turkey Stand & Hanger, Marinade Injector and
„
12
Deep Fry Thermometer
OWNER'S MANUAL
ASSEMBLY AND OPERATING INSTRUCTIONS
This instruction manual
contains important
WARNING
information necessary for
FAILURE TO FOLLOW ALL
the proper assembly and
WARNINGS AND INSTRUCTIONS
safe use of the appliance.
IN THIS MANUAL COULD RESULT
Read and follow all
IN PROPERTY DAMAGE,
warnings and instructions
PERSONAL INJURY OR DEATH.
before assembling and
using the appliance.
Follow all warnings and
instructions when using
the appliance.
Advertisement
Table of Contents
Related Manuals for Brinkmann Turkey Fryer
Summary of Contents for Brinkmann Turkey Fryer
- Page 1 INSTR_815-3786-9_42qtFryer.qxd 7/28/04 4:31 PM Page 1 TURKEY FRYER Gas Cooker with 42-Qt. Boiling Pot, Double-Handled Deep Fry Pan & Basket Set, Strainer Basket & Support Ring, Turkey Stand & Hanger, Marinade Injector and „ Deep Fry Thermometer OWNER’S MANUAL ASSEMBLY AND OPERATING INSTRUCTIONS...
-
Page 2: If You Smell Gas
INSTR_815-3786-9_42qtFryer.qxd 7/28/04 4:31 PM Page 2 DANGER IF YOU SMELL GAS: 1. Shut off gas to the appliance at the LP cylinder. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call your Fire Department. - Page 3 Use only replacement thermometer # 072-0012-0. This thermometer can be obtained by contacting The Brinkmann Corporation at 1-800-527-0717. • If the temperature exceeds 400°F (200°C) or if oil begins to smoke, immediately turn the burner or gas supply OFF and wait for the temperature to decrease to less than 350°F...
- Page 4 • Clean and inspect the hose before each use of the appliance. If there is evidence of abrasion, wear, cuts or leaks, the hose must be replaced prior to the appliance being used. This hose can be obtained by contacting The Brinkmann Corporation at 1-800-527-0717. Replace hose at least every two years.
-
Page 5: Installation Information
INSTR_815-3786-9_42qtFryer.qxd 7/28/04 4:31 PM Page 5 INSTALLATION INFORMATION: The installation of this appliance must be in accordance with: All applicable local codes, or in the absence of local codes, either: • National Fuel Gas Code/ANSI Z223.1/NFPA 54 • Storage and Handling of Liquefied Petroleum Gases, ANSI/NFPA 58 •... -
Page 6: Filling The Lp Cylinder
INSTR_815-3786-9_42qtFryer.qxd 7/28/04 4:31 PM Page 6 WARNING • Turn off the cylinder valve when your fryer is not in use. • Handle the tank with care. • Always secure the cylinder in an upright position. • Never connect an unregulated LP cylinder to your fryer. •... -
Page 7: Hose And Regulator
• DO NOT attempt to adjust or repair the regulator. A replacement regulator can be supplied by contacting Brinkmann. The regulator is designed to operate at a maximum output pressure of 15 psi ( pounds/square inch). During assembly and/or replacement of the LP cylinder, keep the gas supply hose free of kinks and/or damage. -
Page 8: Leak Testing
INSTR_815-3786-9_42qtFryer.qxd 7/28/04 4:31 PM Page 8 WARNING CONNECTING HOSE AND REGULATOR TO AN LP CYLINDER • Insure the cylinder valve is CLOSED prior to connecting the LP cylinder to your fryer. Turn the “T” valve clockwise to properly close the valve. Read and follow all instructions and warnings on the supply hose safety tags. -
Page 9: Gas Leak Testing
INSTR_815-3786-9_42qtFryer.qxd 7/28/04 4:31 PM Page 9 GAS LEAK TESTING: Watch For Bubbles Create a mixture of 50% water and 50% liquid dishwashing soap. To turn “ON” the fuel supply, turn the cylinder valve knob one turn counter-clockwise. Turn “T” valve counter-clockwise to the open position. -
Page 10: Pre-Start Checklist
INSTR_815-3786-9_42qtFryer.qxd 7/28/04 4:31 PM Page 10 WARNING PRE-START CHECK LIST: Property damage, bodily harm, severe burns, and death could result from failure to follow these safety steps. These steps should be performed after the fryer has been assembled, stored, moved, cleaned, or repaired. DO NOT operate this fryer until you have read and understand ALL of the warnings and instructions in this manual. -
Page 11: Burner Flame Check
INSTR_815-3786-9_42qtFryer.qxd 7/28/04 4:31 PM Page 11 Strike and place match through lighting hole to approximately 1/2" (2 to 3 cm) from the burner. We recommend the use of a long wooden match. Slowly turn “T” valve counter-clockwise until burner lights. If burner does NOT ignite immediately, turn the “T”... -
Page 12: How To Determine Proper Amount Of Oil
INSTR_815-3786-9_42qtFryer.qxd 7/28/04 4:31 PM Page 12 OPERATING INSTRUCTIONS WARNING Read, understand and follow all warnings and instructions contained in this manual. DO NOT skip any of the warnings and instructions contained in the preceding sections of this manual. • Never leave heating oil unattended - it can ignite. •... - Page 13 20-30 minutes. Never leave heating oil unattended. It can ignite. Carefully monitor temperature and never allow oil to reach “Fire Hazard” zone on thermometer. Step 3: Pat the turkey dry and sprinkle Brinkmann Fried Turkey Rub’N Spice or other seasoning between skin and meat of the turkey. Step 4: Place seasoned turkey with the neck cavity pointing up on Turkey Stand or place turkey in basket.
-
Page 14: Burner Assembly/Maintenance
Clean appliance with mild dishwashing detergent, hot water and sponge. A soft bristle brush can also be used. • Inspect entire appliance including hose & regulator and replace any damaged or worn parts. Use only parts specified by The Brinkmann Corporation. -
Page 15: Parts List
Inspect contents of the box to ensure all parts are included and undamaged. FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 1-800-527-0717. (Proof of purchase will be required.) 42-Qt. Boiling Tools required to assemble your cooker: Pot, Strainer Turkey Fryer Turkey Stand Double-Handled Basket & Basket 2 Adjustable wrenches Gas Cooker &... - Page 16 INSTR_815-3786-9_42qtFryer.qxd 7/28/04 4:31 PM Page 16 ASSEMBLING PAN AND BASKET SET Step 1 Attach handle to strainer basket by inserting bolts (rounded head to INSIDE of basket) into holes indicated in black. Step 2 Insert bolt (rounded head to INSIDE of basket) into hole insert last indicated with an X in the illustration.
- Page 17 INSTR_815-3786-9_42qtFryer.qxd 7/28/04 4:31 PM Page 17 USING MARINADE INJECTOR WARNING READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE USING THE MARINADE INJECTOR. • Always use caution and common sense when handling or using this product. • Store this product in a safe place away from the reach of children. Never allow children to handle or use this product. •...
-
Page 18: After-Use Safety
Dishwasher safe. Model 812-5058-0 Fryer Cover Durable, weather-resistant vinyl cover protects your fryer from the elements all year long. Designed to fit Brinkmann Turkey Fryers and All-Purpose Gas Cookers & Fryers. Model 812-3680-0... - Page 19 Includes our Deep Fried Whole Turkey recipe on label. Contains 9.25 oz. (269.3 grams). Model 812-3325-7 LOOK FOR THESE AND OTHER BRINKMANN ACCESSORIES AT YOUR LOCAL RETAILER WHERE COOKERS ARE SOLD, OR ORDER DIRECT BY CALLING 1-800-468-5252.
-
Page 20: 90-Day Limited Warranty
90 DAY LIMITED WARRANTY For 90 days from date of purchase, The Brinkmann Corporation warrants the Boiling Pot with Turkey Stand and Hanger against defects due to workmanship or materials to the original purchaser. The Brinkmann Corporation’s obligations under this warranty are limited to the following guidelines: •...
