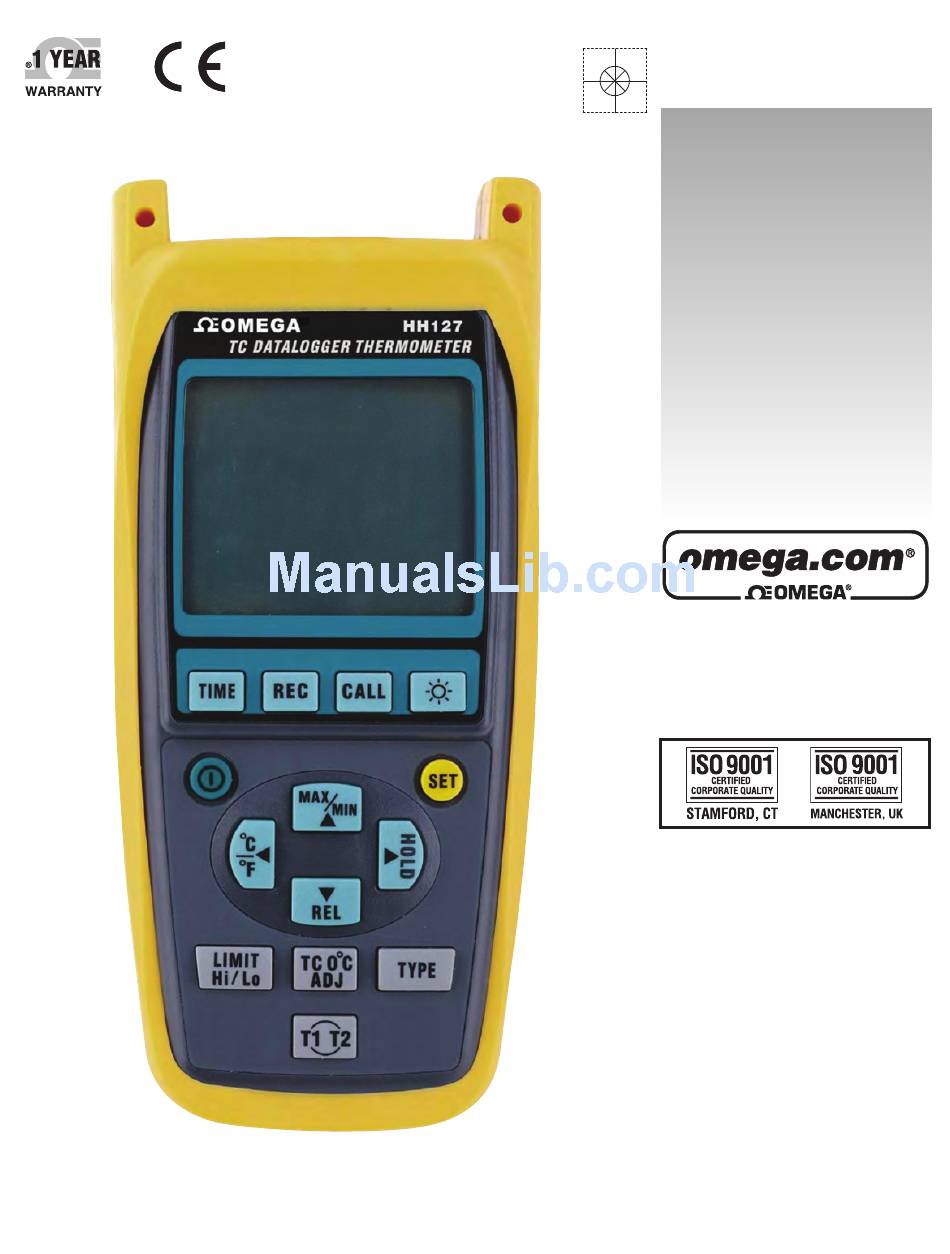

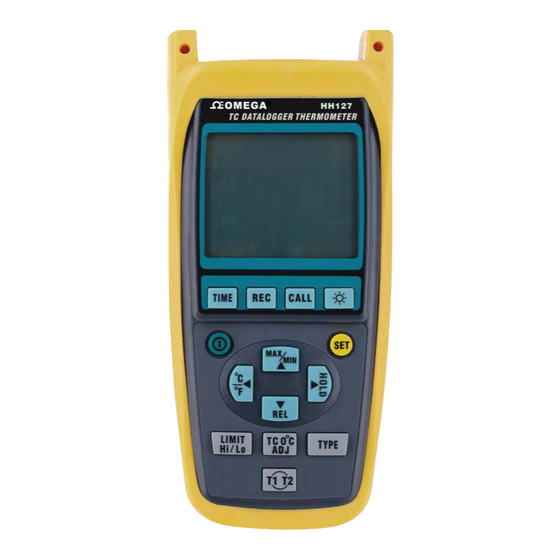

- Page 1 User’ s Guide Shop online at omega.com e-mail: info@omega.com For latest product manuals: omegamanual.info MADE IN TAIWAN HH127 TC Data Logger Thermometer...
- Page 2 Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification. The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
- Page 3 Introduction: HH-127 is a hand held digital thermometer which uses a microprocessor. The HH-127 has USB and RS232 ports. Accessories: DC-1.5V/4 AAA batteries Rubber boot K-type thermocouple x 2 pcs Users manual PC on-line accessories: Temp Monitor software users manual IrDA-USB and IrDA-RE232 transmission cable Temp Monitor software CD...
- Page 4 Warning To avoid electrical shock or personal injury, follow these gui delines: • Before using the thermometer inspect the case. Do not use the thermometer if it appears damaged. Look for cracks or missing plastic. Pay particular attention to the insulation around the connectors. •...
-
Page 5: Names Of Parts
Names of parts: Housing IrDA output port LCD display T1- thermocouple input Function control keys T2- thermocouple input Battery seat Screw hole Reset key Battery cover... -
Page 6: Display Elements
Display Elements: K J T E R S N T1-T2 Choose T1.T2 thermocouple types Carry out record function Main display 20 minutes auto power off Main, secondary display reading is T1 or T2 Examine recorded reading Secondary display Five sections of battery power instruction Carry out TC- 0°C calibration function Temperature unit Main, secondary display maximum reading... - Page 7 Keys: Power key: turn on/off thermometer. When not canceling auto power off function, after 20 minutes the meter will auto power off. Initial temperature unit is (°C), when you power on meter next it will keep the last power off state. secondary display shows T2 dual inputs: measuring value and third display shows T1-T2...
- Page 8 Hold LCD display readings. Hold readings key: Cancels hold readings function. Press once: Cancels hold readings Press for 2 seconds: function and cancels auto power off function. Relative readings key: Main display shows (T1 or T2 readings - relative readings), third display shows relative readings.
- Page 9 Adjustment key of thermocouple 0°C: Main display shows (T1 or T2) readings, use and main display TC O C (T1 or T2) thermocouple of the same type, imports input of main display 0°C (32°F) of standard temperature value, adjust the cold junction compensation of third display, enables main display to show 0°C (32°F), then press TC O C...
- Page 10 Choose types key of thermocouple: To choose types of thermocouple. Press button. Press to move right one -figure that thermocouple types chosen. Press to move left one -figure that thermocouple types chosen. Press to enter. Main, secondary displays are exchanged (T1, T2) measurement readings. T1 T2 exchange key T1 T2 T1 T2...
- Page 11 The data record is divided into real time recording and scheduled recording on The data record key: page 13. Set up the recording interval time from instructions on page 16. To start recording in real time press the button. Data logging starts at the interval set quantity of data points appears in the third display.
- Page 12 Press buton to review recorded data: Main, secondary display shows recorded data. Record data on (T1, T2), third display shows the log of recorded data, if it shows OU the memory MI N is already full. press once to look over each logged data, press and hold to look over the recorded data forward fast.
- Page 13 Set up the options function key: To enter the choice of the set up function required, carry out the set up function. °C °F Press once to move right one-figure of the set up function chosen. Press once to move left one-figure of the set up function °C chosen.
- Page 14 When setting up relative value the third display will show 0 at beginning of set up. Press Set up relative value: and highlight , then use , keys to select value then press Set up range is limited to the highest and lowest temperature range that each thermocouple can be measured.
- Page 15 Set up critical value of alarm: Set up main display shows (T1 or T2) critical value level of the alarm, secondary display shows high critical value of the alarm and third display shows low critical value of the alarm. Begun from the set up value directly when there is set up critical value the alarm.
- Page 16 The order setting of circulation of every day: A day 24 hours from (00: 00: 00) 0 hour 0 minute 0 second to (23: 59: 59) 23 hours 59 minutes 59 seconds, at most can set up 9 sections from 1 to 9 that shows in main display.
- Page 17 Inquire about set up sections of circulation of Press every day: then press key, main display glimmers shows sections of order setting MI N inquired, wish to leave the inquire function, press key then press key. Press once to inquire the set up sections will add 1, , there is no function when the last one set up section.
- Page 18 Scheduled Data Logging The order setting of circulation of every year: One year is divided into 12 months, A day 24 hours from (00: 00: 00) 0 hour 0 minute 0 second to (23: 59: 59) 23 hours 59 minutes 59 seconds, at most can set up 9 sections from 1 to 9 that shows in main display.
- Page 19 Inquire about set up sections of circulation of Press every year: then press key, main display glimmers shows sections of order setting inquired, wish to leave the inquire function, press key then press key. Press once to inquire the set up sections MI N will add 1, there is no function when the last one...
-
Page 20: General Specification
The time to set up of perpetual calendar: Main display shows year, the adjust range is from 2000 to 2099, secondary display shows date. month (xx. xx), Third display shows hour: minute(24 hours system). The adjust range from (00: 00) 0 hour 0 minute to (23: 59) 23 hours 59 minutes. -
Page 21: Electrical Specification
Electrical specification: K-TYPE -200 ~ 1372°C (-328 ~ 2502°F) J-TYPE -210 ~ 1200°C (-346 ~ 2192°F) Measurement T-TYPE -250 ~ 400°C (-418 ~ 752°F) range E-TYPE -210 ~ 1000°C (-346 ~ 1832°F) R S-TYPE 0 ~ 1767°C (32 ~ 3212°F) N-TYPE -150 ~ 1300°C (-238 ~ 2372°F) K J T E N... - Page 22 NOTES:...
- Page 23 Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
- Page 24 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course! Shop online at omega.com TEMPERATURE Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies Wire: Thermocouple, RTD & Thermistor Calibrators & Ice Point References Recorders, Controllers & Process Monitors...
