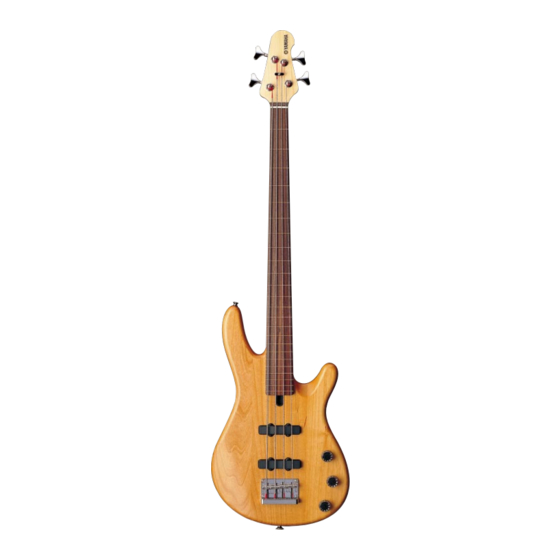

ELECTRIC BASS
BB404F
SERVICE MANUAL
BB404F (YNS)
CONTENTS
............................................ 2
.................................................. 4
.................................................................... 4
................................................. 5
EG
011658
HAMAMATSU, JAPAN
Copyright (c) Yamaha Corporation. All rights reserved. PDF-K47
'02.11
Advertisement
Table of Contents
Related Manuals for Yamaha BB404F
Summary of Contents for Yamaha BB404F
-
Page 1: Electric Bass
ELECTRIC BASS BB404F SERVICE MANUAL BB404F (YNS) CONTENTS OVERALL ASSEMBLY ..........2 CIRCUIT DIAGRAM ..........4 WIRING ..............4 SPECIFICATIONS ..........5 011658 HAMAMATSU, JAPAN Copyright (c) Yamaha Corporation. All rights reserved. PDF-K47 ’02.11... -
Page 2: Overall Assembly
BB404F OVERALL ASSEMBLY A01a A seal is attached on the rear of the neck. BB 404F E01 E04 E02 E04 Bridge Assembly: Diecast (QC347700) E05 E06 Jack Installation F11a F11c F11b E28 F01a F09 F10 FRONT VOLUME: 15A 500KΩ F01a F09 F10 REAR VOLUME: 15A 500KΩ... - Page 3 BB404F PART NO. DESCRIPTION REMARKS REF NO. QTY RANK OVERALL ASSEMBLY BB404F AAX43800 Neck Assembly AAX43810 Neck Assembly A01a Seal (QC73710) Body QC207000 Tuning Machine Assembly RM1243C (Chrome) RIGHT QC236900 Tuning Machine Assembly RM1243CL (Chrome) LEFT EA620040 Round Head Wood Screw 2.4X10 FCM33G...
-
Page 4: Circuit Diagram
BB404F CIRCUIT DIAGRAM FRONT PICKUP FRONT VOLUME MASTER TONE OUTPUT REAR PICKUP REAR VOLUME BPJJ-03 WIRING FRONT PICKUP REAR PICKUP Upper side: S Upper side: N to bridge ground MASTER TONE 05A 250KΩ 0.047uF FRONT VOLUME 15A 500KΩ REAR VOLUME 15A 500KΩ... -
Page 5: Specifications
BB404F SPECIFICATIONS STANDARD SPECIFICATIONS Scale Length ......863.6mm Body-Neck Construction ..Bolt On Length ........1141.0mm Width ......... 318.5mm Net Weight ........ 3.9kg COLOR Body YNS ......... Yellow Natural Satin BL ..........Black Neck YNS ......... Yellow Natural Satin BL ..........Black BODY Material ........
