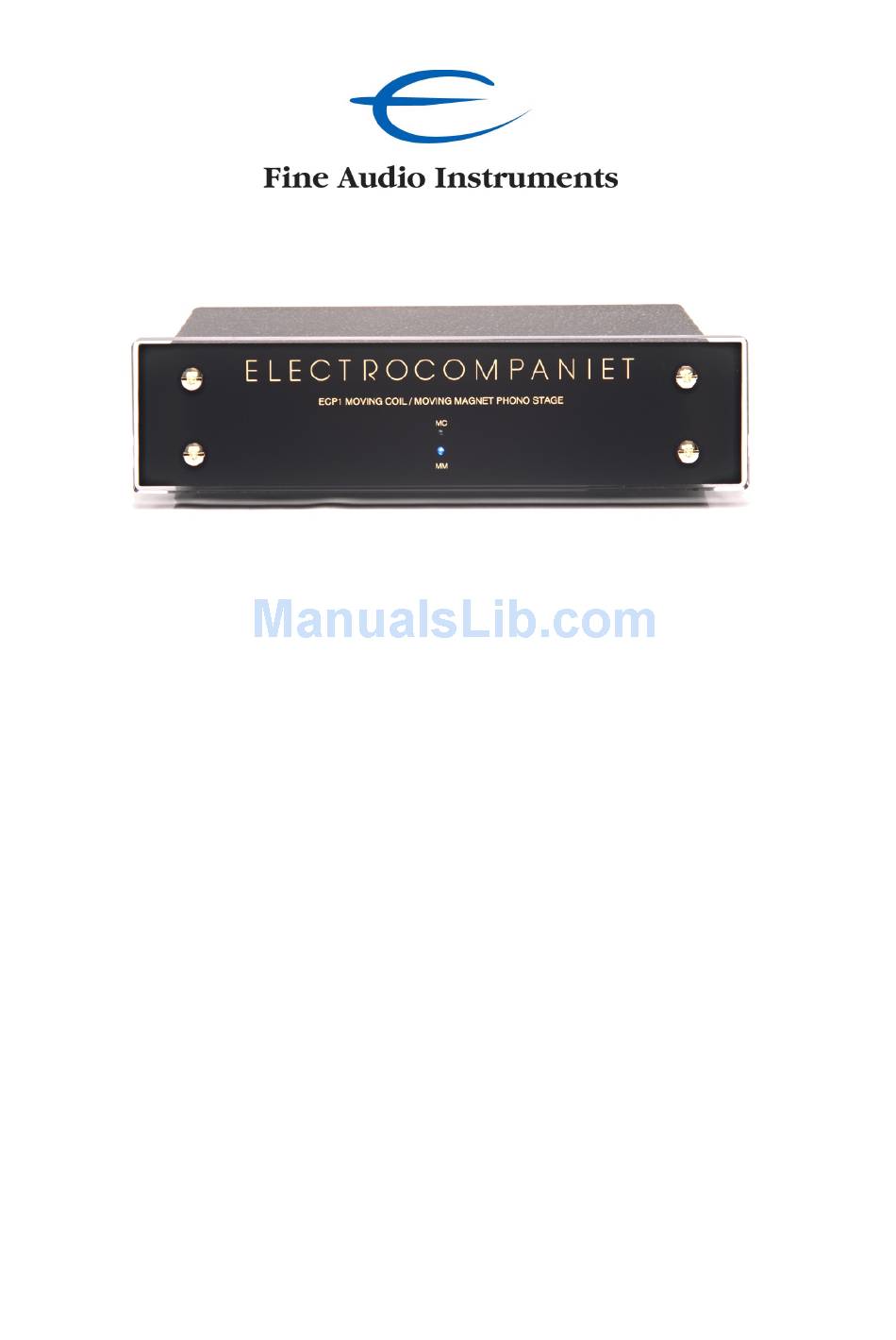

Page 1: Owners Manual
ECP1 MC / MM PHONO PREAMPLIFIER OWNERS MANUAL WARNING: To reduce risk of fire or electric shock, do not expose this appliance to rain or moisture. Do not remove cover. No user serviceable parts inside. Refer to qualified service personell. - Page 2 Thank you for selecting Electrocompaniet We sincerely thank you for selecting an amplifier from Electrocompaniet. We hope you will enjoy years of listening pleasure and true high-end musical performance with your audio system. Kindly read this owners manual in order to familiarize you with the set before operation.
- Page 3 The design features of ECP1 PHONO Preamplifier After the Electrocompaniet 25 waft amplifier had established a new standard for transistor amplifiers, research was undertaken to find ways to make the amplifier even better, and to extend its highly musical sound quality to more powerful amplifier designs. Only reducing the commonly recognized types of distortion to low levels did not satisfy the engineers of Electrocompaniet.
- Page 4 Connecting ECP1 Phono preamplifier Connecting to mains Check that the mains voltage printed on the AC adapter corresponds with the line voltage in the territory were you intend to connect your preamplifier. The rear panel The rear panel of the ECP1 contains all input- and output connectors. The printed rear panel clearly indicates the function of each connector.
- Page 5 Warning: The preamplifier will be warm. Due to the high class A operating point used in the Electrocompaniet design, it is normal that the preamplifier feels warm. Proper ventilation will be needed, and the preamplifier should not be covered up. A good rule is to allow 1 - 2 inches of space sidewise, and 2 - 3 inches above the preamplifier.
- Page 6 Technical Specifications: ECP1 The following technical data were measured on randomized test objects and were typical data. All measurements are made with the following equipment: Distortion analyzer: Tektronix M50 1 Oscilloscope: Tektronix 468 Oscillator: Tektronix 5G505 Frequency counter: Rascal 9838 Phase meter: Hewlett Packard 3575A Phono stage...
