- Page 1 Broadcast Microwave CLIP ON POWER AMPLIFIER PAC-2G3 User’s Guide...
- Page 2 Dear customer, We would like to thank you for choosing this equipment and welcome you to the SVP’s products user’s growing family. We are sure that the addition of this equipment to your existing installation will cause you nothing but satisfaction.
-
Page 3: Important Notes
3. In some transmitters, increasing the output power implies output signal quality degradation due to intermodulation. Normally, at low powers a better shoulder level is obtained. SVP Broadcast Microwave recommends to configure the transmitters with low output power. 4. Use high quality, low loss cables and connectors to ensure proper performance of the equipment. -
Page 4: Table Of Contents
Main Index Description ................. 4 Technical Features ..............5 Main Characteristics ..............5 Connections ................5 2.2.1 Power supply ..............6 2.2.2 RF Input ................7 2.2.3 RF output ................7 Amplifier Operation Tips ............9 PAC-2G3 Clip-On Power Amplifier User’s Manual... -
Page 5: Description
1 Description The new PAC-2G3 is a clip-on amplifier which works in the 2GHz band. It is used together with SVP Broadcast Microwave’s camera transmitters, allowing the coverage of wider areas. It can be used with neatly all camera transmitters as it can have V or AB battery adapter plates. -
Page 6: Technical Features
2 Technical Features 2.1 Main Characteristics Frequency range: 2,0 to 2,5 GHz (Other frequency bands upon request) Output Power: PAC-2G3: 1 or 3 Watt (Selectable) PAC-3G3: 0.5 or 1 Watt (Selectable) Input level: 10 to 100 mWatt (10 to 20 dBm) ALC: 10 dB Gain flatness:... -
Page 7: Power Supply

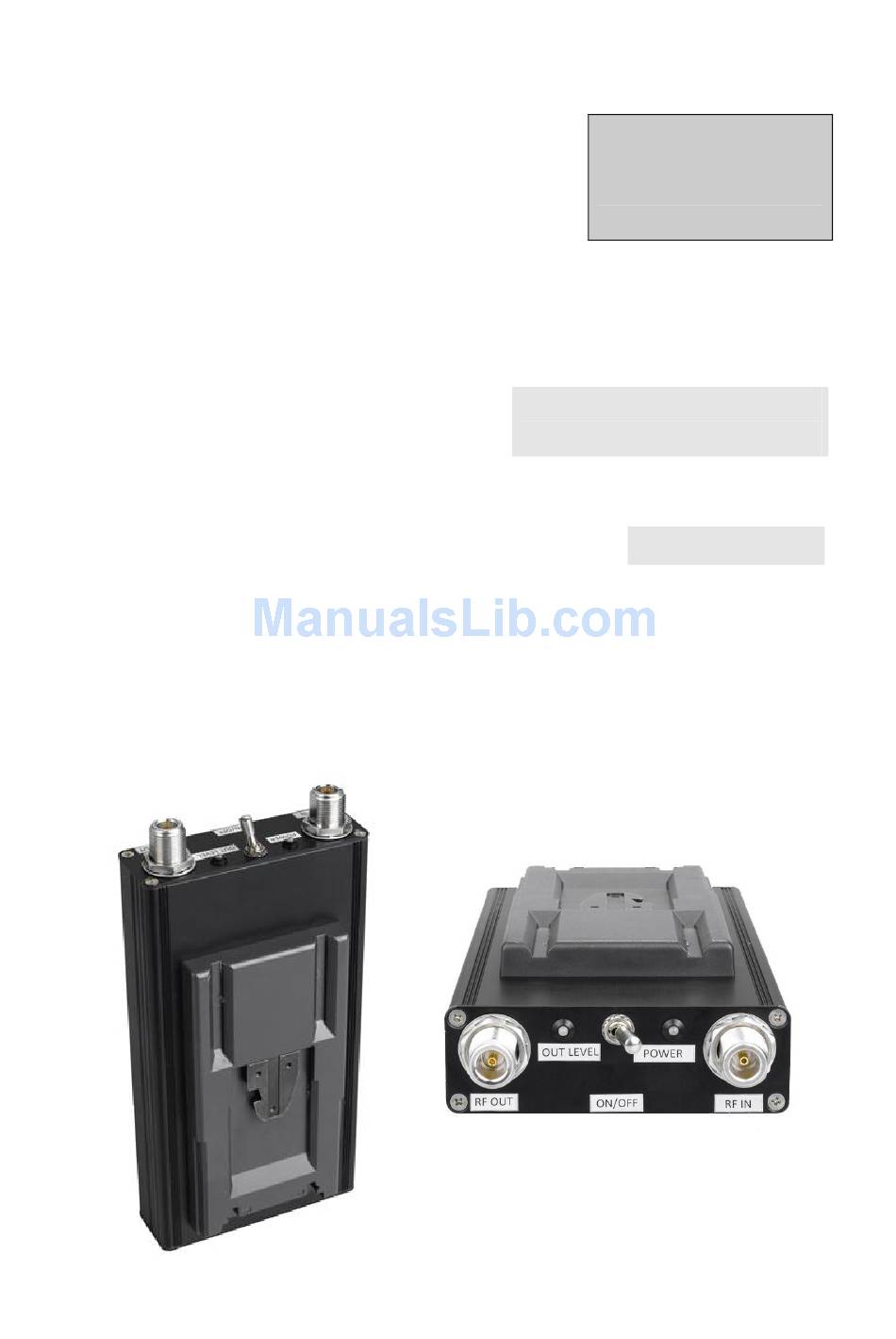

The following figures show the PAC-2G3 front and rear panels. Connections mentioned in the upper figure are shown below. Figure 2.2 Front panel of the PAC-2G3 Amplifier Figure 2.3 Rear panel of the PAC-2G3 Amplifier Technical features of each connection are described in the following sections. -
Page 8: Rf Input
Note: In some transmitters, increasing the output power implies output signal quality degradation due to intermodulation. Normally, at low powers a better shoulder level is obtained. SVP Broadcast Microwave recommends using the transmitters configured with lowest output power. 2.2.3 RF output The antenna is directly connected to the RF output of the amplifier. - Page 9 Table 2.3 RF output characteristics Item Features Connector label RF OUT Output frequency range 2,0 to 2,5 GHz (Other frequency bands upon request) Connector type N female Impedance 50Ω Output power PAC-2G3: 1 or 3 Watt PAC-3G3: 0.5 or 1 Watt PAC-2G3 Clip-On Power Amplifier User’s Manual...
-
Page 10: Amplifier Operation Tips
3 Amplifier Operation Tips This third chapter provides the user with all necessary information to operate the equipment properly. 1. If the amplifier will be powered by a battery, make sure that you have the right battery for the equipment to operate. 2. - Page 11 Notes: PAC-2G3 Clip-On Power Amplifier User’s Manual...
- Page 12 Final note SVP Broadcast Microwave S.L. is constantly striving to improve all of its products. Therefore, we ask you to understand that modifications may occur in designs, equipment and technology. Consequently, no responsibility can be derived from the information, illustrations or descriptions contained in this manual.
