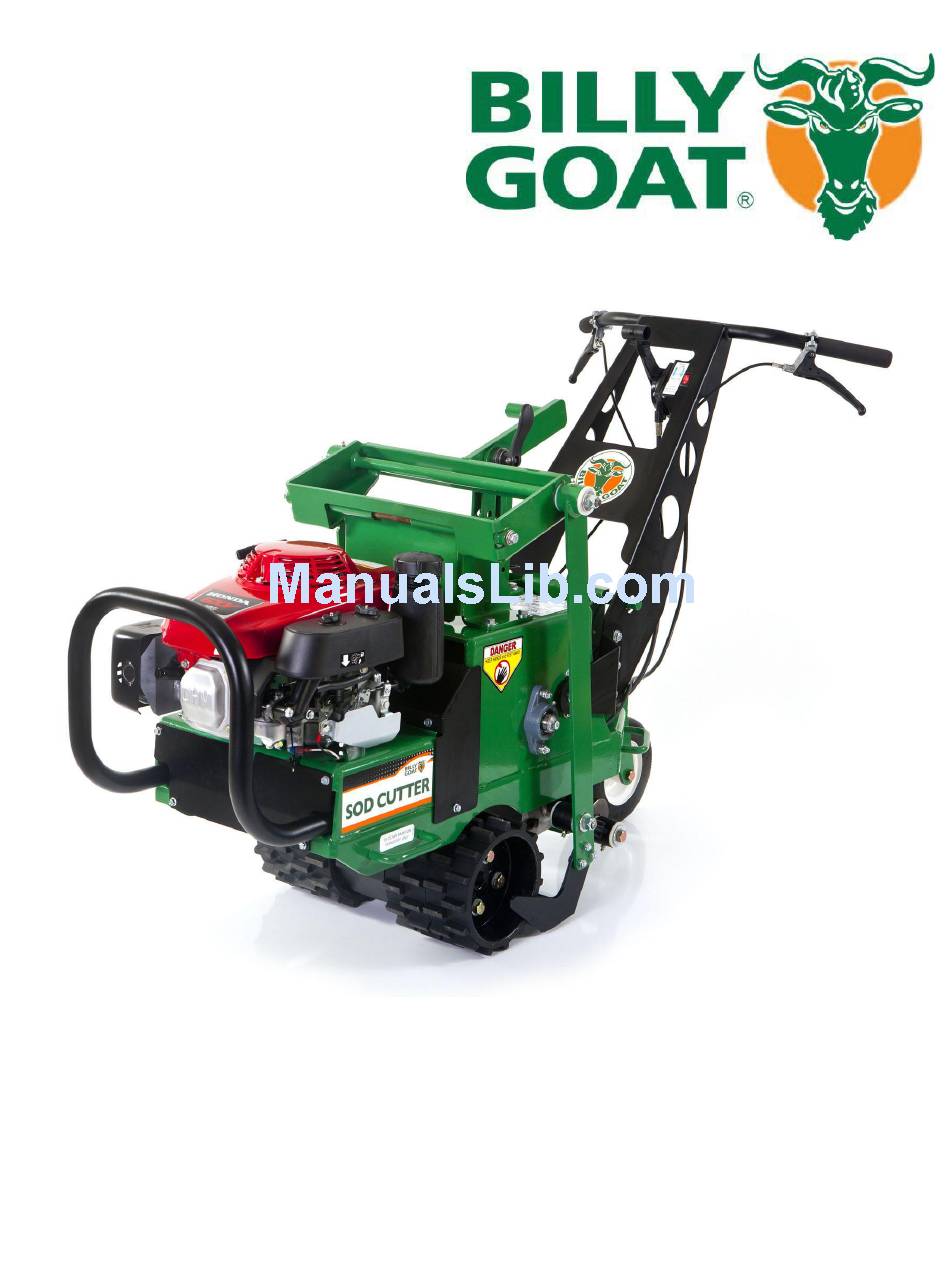

- Page 1 SC180H Owner’s Manual BILLY GOAT SOD CUTTER Owner's Manual SC180H Part No 371508 Form No F091113A...
-
Page 2: Table Of Contents
SC180H Owner’s Manual ABOUT THIS MANUAL ® THANK YOU for purchasing a BILLY GOAT Sod Cutter. Your new machine has been carefully designed and manufactured to provide years of reliable and productive service. This manual provides complete operating and maintenance instructions that will help to maintain your machine in top running order. Read this manual carefully before assembling, operating, or servicing your equipment. -
Page 3: Serial Plate Data And Specifications
SC180H Owner’s Manual SERIAL PLATE DATA Record the model number, serial number, date of purchase, and where purchased. Purchase Date: Purchased From: Specifications SC180H Engine: HP 5.5 HP (4.1 kw) Engine: Model GXV160UH2N1AH Engine: Type Honda Engine: Fuel Capacity 1.6 qt. (1.5 L) Engine: Oil Capacity 0.69 qt. -
Page 4: General Safety
This symbol indicates that this manual and the engine manufacturer’s manual should be read carefully before assembling, operation, or servicing this equipment. ® This symbol indicates important information that will prevent damage to your BILLY GOAT Sod Cutter. This symbol indicates the engine oil level should be checked before operating this equipment. - Page 5 SC180H Owner’s Manual WARNING: IMPORTANT! This cutting machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death. DO NOT run this equipment indoors or in any poorly ventilated area. Refueling outdoors is recommended.
-
Page 6: Sound And Vibration
SC180H Owner’s Manual SOUND SOUND LEVEL 84 dB(a) at Operator Position 104 dB(a) Sound tests were conducted in accordance with 2000/14/EEC, and were performed on 7-11-13 under the conditions listed below. Sound power level listed is the highest value for any model covered in this manual. Please refer to serial plate on the unit for the sound power level for your model. -
Page 7: Instruction Labels
INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT Sod Cutter. If any labels are damaged or missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels. The correct position for each label may be determined by referring to the Figure and Item numbers shown. -
Page 8: Packing Checklist & Assembly
SC180H Owner’s Manual PACKING CHECKLIST Your Billy Goat Sod Cutter is shipped from the factory in one crate, completely assembled. READ all safety instructions before assembling unit. TAKE CAUTION when removing the unit from the box. PUT OIL IN ENGINE BEFORE STARTING PARTS BAG &... -
Page 9: Operation Controls/Operation
SC180H Owner’s Manual OPERATION Like all mechanical tools, reasonable care must be used when operating machine. Inspect machine work area and machine before operating. Make sure that all operators of this equipment are trained in general machine use and safety. - Page 10 SC180H Owner’s Manual CUTTING OPERATION The unit performs best when the ground is wet. If possible sprinkle the work area several hours before starting. CAUTION: Shut off the blades when crossing gravel drives, walks or roads and under all conditions where thrown objects might be a hazard.
-
Page 11: Maintenance
Replace blade and traction belts Note: Blade, and drive belts and chains are normal wear items. These should be inspected on a regular basis and replaced if worn. Also see your Billy Goat Dealer for servicing your machine. BELT REPLACEMENT Switch off the engine and disconnect the spark plug wire before carrying out any maintenance or repair work on the machine. - Page 12 SC180H Owner’s Manual CHECKING AND REPLACING THE BLADE Always check the state of the blade (item 44) before commencing work. Do not forget to switch the engine off! -Remove the sparkplug wire. -During work operations if the blade strikes stones or stumps stop straightaway and make sure that it has not become bent or broken.
-
Page 13: Troubleshooting And Warranty Procedure
Warranty Claim. The distributor service manager will sign off on the claim and submit it to BILLY GOAT for consideration. The Technical Service Department at BILLY GOAT will study the claim and may request parts to be returned for examination. -
Page 14: Illustrated Parts & Parts Lists
SC180H Owner’s Manual PARTS DRAWING ENGINE ASSEMBLY 124 127 Part No 371508 Form No F091113A... - Page 15 SC180H Owner’s Manual PARTS LIST ENGINE ASSEMBLY Item no. Part no. Description 371100 FRAME WA SC 900615 ENGINE GXV 160 371400 TUBE BUMPER SC 371101 CASTER MOUNT WA 371264 CLUTCH SC 371102 CASTER RIG WA 520061 PULLEY IDLER 5L INSIDE 4"...
- Page 16 SC180H Owner’s Manual PARTS DRAWING BLADE ASSEMBLY NOTE: When installing seals, make sure spring side of seal is away from bearing 54 55 Part No 371508 Form No F091113A...
- Page 17 SC180H Owner’s Manual PARTS LIST BLADE ASSEMBLY Item no. Part no. Description 371100 FRAME WA 371107 PIVOT DEPTH WA 371106 BLADE DEPTH WA 371108 BLADE ARM 371221 HEIGHT DEPTH BRACKET LH 371205 GEAR BOX "T" 2:1 REDUCTION 371219 LEVER CAM LOCK...
- Page 18 SC180H Owner’s Manual PARTS DRAWING HANDLE ASSEMBLY TO IDLER ARM 23 28 TO TRANS TO ENGINE TO CLUTCH Part No 371508 Form No F091113A...
- Page 19 SC180H Owner’s Manual PARTS LIST HANDLE ASSEMBLY Item no. Part no. Description 371100 FRAME WA 371104 HANDLE SC WA 371209 HANDLE BRACKET MOUNT 371207 GUARD FRONT 371242 GUARD MID RIGHT 371103 GUARD REAR WA 371233 GUARD MID LEFT 371204 SPEED CONTROL SC...
- Page 20 SC180H Owner’s Manual PARTS DRAWING TRANSMISSION ASSEMBLY 67 95 Part No 371508 Form No F091113A...
- Page 21 SC180H Owner’s Manual PARTS LIST TRANSMISSION ASSEMBLY Item no. Part no. Description 371100 FRAME WA SC 371201 TRANSMISSION RT310 371200 WHEEL DRIVE SOD CUTTER 371211 GUARD AXLE 371105 IDLER ARM WA 371204 SPEED CONTROL SC 810700 PILLOW BLOCK 1" 371213...
- Page 22 SC180H Owner’s Manual PARTS DRAWING BELT AND CHAIN ASSEMBLY ON LOWER GROOVE ON UPPER GROOVE OF CLUTCH OF CLUTCH Part No 371508 Form No F091113A...
- Page 23 SC180H Owner’s Manual PARTS LIST BELT AND CHAIN ASSEMBLY Item no. Part no. Description 371270 BELT GATES 6732 371214 CHAIN #40 X 41P 371246 BELT GATES 6958 371236 CHAIN #40 X 60P Part No 371508 Form No F091113A...
