QuickSpecs

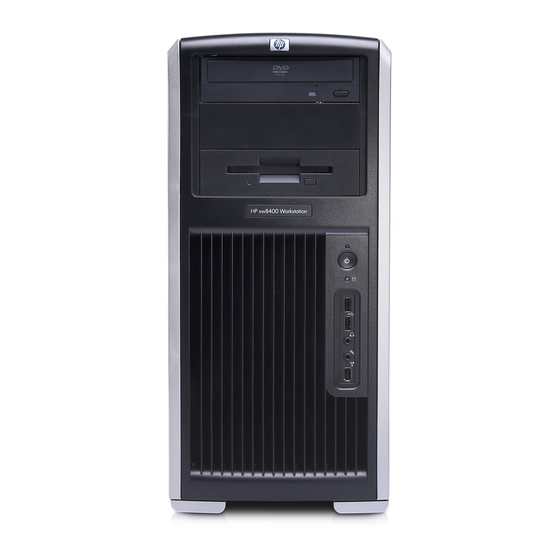

Overview
1. Monitor (sold separately)
2. Standard Keyboard (USB or PS/2)
3. Mouse (USB or PS/2)
4. Front IO: 2 USB 2.0, 1 IEEE-1394a (standard), headphone
and microphone
5. 5.25"" external bay for optional diskette drive, optical drive or
other 5.25"/3.5" device
6. 5 internal 3.5" bays, 3 external 5.25" bays
DA - 12522
Canada — Version 26 — February 22, 2008
HP recommends Windows Vista
HP recommends Windows Vista
HP recommends Windows Vista
HP recommends Windows Vista
Business
Business
Business
Business
7. 1 PCI slot, 3 PCI-X slots, 1 PCIe x8 (4x electrically), 1 PCIe 16
(4x electrically)
8. 1 PCI Express x16 Graphics Bus
9. Dual-Core or Quad-Core Intel® Xeon® Processors
10. 8 DIMM slots for DDR2 FB-DIMM memory
11. 5 USB 2.0, 1 standard serial port, 1 parallel port, 2 PS/2, 1
RJ-45, audio in/out, microphone, 1 IEEE-1394b
12. 800 watt power supply
HP xw8400 Workstation
HP xw8400 Workstation
HP xw8400 Workstation
HP xw8400 Workstation
® ® ® ®
Page 1
