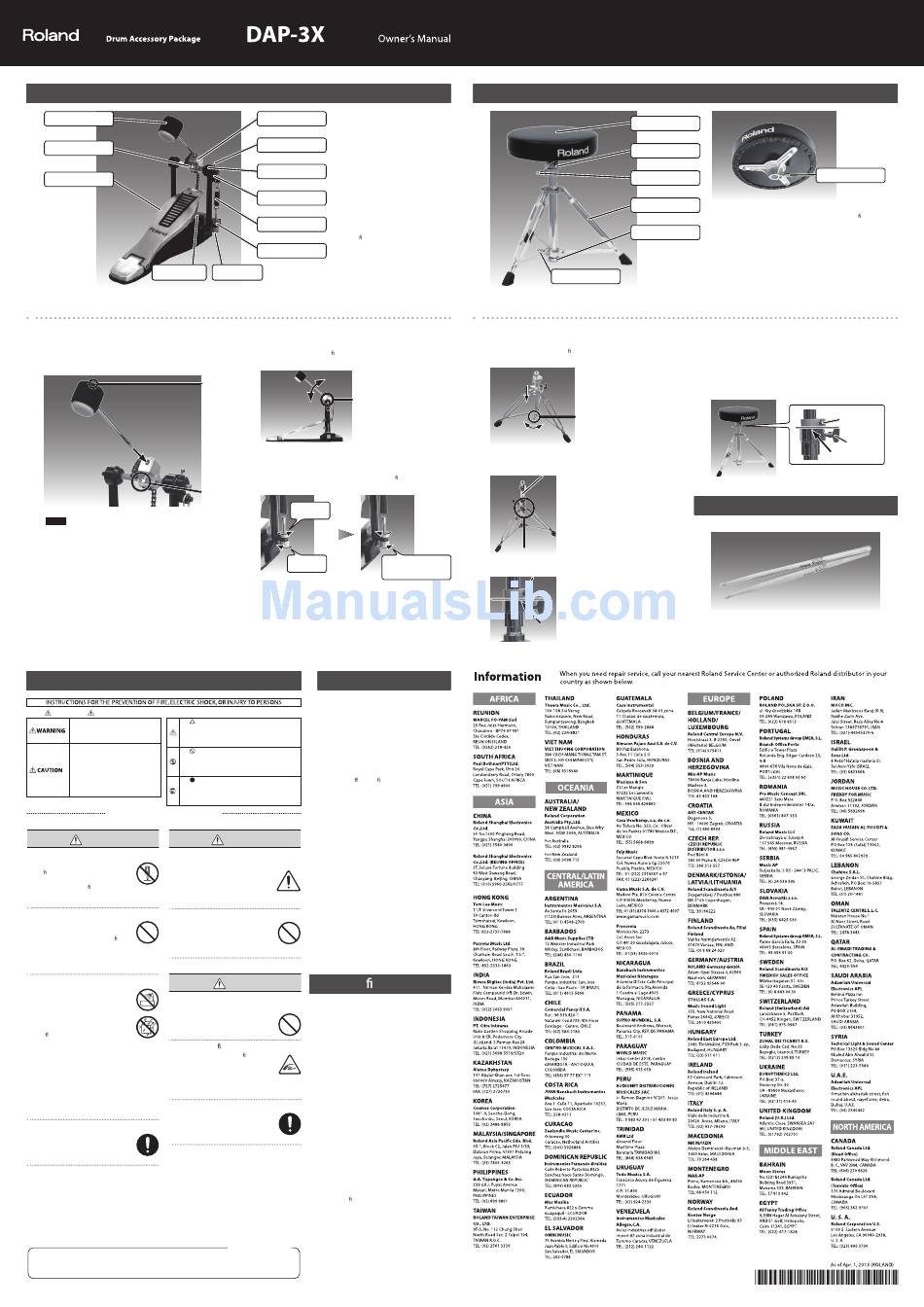

Kick pedal

Advertisement

Quick Links

Kick Pedal
Beater
Square-Head bolt "A"
Foot board
Hoop clamp

Assembling the Kick Pedal

1.

Attach the beater

Use the drum key to loosen square-head bolt "A. " Next, insert the beater
into the beater holder with the prastic beater facing the head, as shown
in the illustration below. Then, secure it by tightening square-head bolt
"A, " which you loosened earlier.
NOTE
The mesh head can wear down a felt beater. We recommend using a
plastic beater.
2.

Attach to the V-Drums kick pad

Insert the kick pad's pedal attachment plate into the hoop clamp of the
kick pedal, and fasten it.
* For details, refer to the owner's manual of the V-Drums kick pad.
USING THE UNIT SAFELY
About
WARNING and
CAUTION Notices
About the Symbols
The
symbol alerts the user to important instructions or
Used for instructions intended to alert the
warnings.The specific meaning of the symbol is
user to the risk of death or severe injury
determined by the design contained within the triangle. In
should the unit be used improperly.
the case of the symbol at left, it is used for general
cautions, warnings, or alerts to danger.
Used for instructions intended to alert the
The
symbol alerts the user to items that must never be
user to the risk of injury or material
carried out (are forbidden). The specific thing that must
damage should the unit be used
not be done is indicated by the design contained within
improperly.
the circle. In the case of the symbol at left, it means that
* Material damage refers to damage or
the unit must never be disassembled.
other adverse effects caused with
The
symbol alerts the user to things that must be
respect to the home and all its
carried out. The specific thing that must be done is
furnishings, as well to domestic animals
indicated by the design contained within the circle. In the
or pets.
case of the symbol at left, it means that the power-cord
plug must be unplugged from the outlet.
ALWAYS OBSERVE THE FOLLOWING
WARNING
Adults must provide supervision in places where
Do not disassemble or modify by yourself
children are present
Do not open or perform any internal
modi cations on the product. (The
When using the product in locations
only exception would be where this
where children are present, be careful
manual provides speci c instructions
so no mishandling of the product can
which should be followed in order to put in place
take place. An adult should always be
user-installable options.)
on hand to provide supervision and guidance.
Do not repair or replace parts by yourself
Do not drop or subject to strong impact
Do not attempt to repair the product,
Protect the product from strong
or replace parts within it (except
impact.
when this manual provides speci c
(Do not drop it!)
instructions directing you to do so).
Refer all servicing to your retailer, the nearest
Roland Service Center, or an authorized Roland
distributor, as listed on the "Information. "
Do not use or store in the following types of locations
• Subject to temperature extremes
Avoid climbing on top of the product, or placing heavy
(e.g., direct sunlight in an enclosed
objects on it
vehicle, near a heating duct, on top of
heat-generating equipment); or are
Never climb on top of, nor place heavy
objects on the product.
• Damp (e.g., baths, washrooms, on
wet oors); or are
Take care not to get ngers pinched by moving parts
• Exposed to steam or smoke; or are
Take care not to pinch your ngers
• Subject to salt exposure; or are
or other parts of your body when
• Humid; or are
operating the moving parts of the
pedal or drum throne. If small children
• Exposed to rain; or are
use this equipment, make sure they have adult
supervision and guidance.
• Dusty or sandy; or are
Keep small items out of the reach of children
• Subject to high levels of vibration and
shakiness.
Keep removable parts (screws, nuts,
memory lock) out of the reach of small
Do not place in an unstable location
children to prevent them from being
Make sure you always have the product
swallowed accidentally.
placed so it is level and sure to remain
stable. Never place it on stands that
could wobble, or on inclined surfaces.
WARNING
This product contains chemicals known to cause cancer, birth defects and other reproductive harm, including lead.
Beater holder
Square-Head bolt "B"
Angle adjuster
Roller
Spring
* Take care not to pinch your
ngers during assembly.
* There is a risk of injury if the kick
Lock nut
pedal is used barefoot. Please
wear suitable footwear.
Adjusting nut
3.

Adjust the angle of the beater

Loosen square-head bolt "B" and adjust the beater to the desired angle.
When you've set the angle, rmly tighten square-head bolt "B" to secure
it.
Plastic beater
Square-Head
bolt "B"
4.

Adjust the spring

Loosen the adjusting nut to adjust the tension of the spring.
Once you've got the tension adjusted to your liking, rmly secure the lock
nut against the adjusting nut.
Square-Head
bolt "A"
Loosen
Adjust

IMPORTANT NOTES

Placement

• Do not expose the product to direct sunlight,
place it near devices that radiate heat, leave it
inside an enclosed vehicle, or otherwise subject
it to temperature extremes. Excessive heat can
deform or discolor the product.
• Do not allow rubber, vinyl, or similar materials
to remain on this product for long periods of
time. Such objects can discolor or otherwise
harmfully a ect the nish.
• Depending on the material and temperature of
the surface on which you place the product, its
rubber feet may discolor or mar the surface.
As a precautionary measure, we recommend
the use of a drum mat.
• Do not put anything that contains water on
WARNING
this product. Also, avoid the use of insecticides,
perfumes, alcohol, nail polish, spray cans, etc.,
near the product. Swiftly wipe away any liquid
that spills on the product using a dry, soft cloth.
Maintenance
• For everyday cleaning wipe the product with
a soft, dry cloth or one that has been slightly
dampened with water. To remove stubborn
dirt, use a cloth impregnated with a mild, non-
abrasive detergent. Afterwards, be sure to wipe
the product thoroughly with a soft, dry cloth.
• Never use benzine, thinners, alcohol or
solvents of any kind, to avoid the possibility of
discoloration and/or deformation.
Main Speci cations
CAUTION
Roland DAP-3X: Drum Accessory Package
<Kick Pedal>
 Weight
2.2 kg (4 lbs 14 oz)
 Beater
Plastic/felt
<Drum Throne>
 Seat
Diameter: 305 mm (12-1/16 inches)
 Height
490–670 mm (19-5/16–26-7/16 inches)
 Weight
4.3 kg (9 lbs 8 oz)
<Drumsticks>
 Length
406 mm (16 inches)
 Material
Ash
* In the interest of product improvement, the
speci cations and/or appearance of this
product are subject to change without prior
notice.
For C.A. US (Proposition 65)
Before using this product, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT NOTES".
These sections provide important information concerning the proper operation of the product. Additionally, in order to feel assured that you have gained a good grasp of
every feature provided by your new product, Owner's manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.
Copyright © 2012 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
Roland and V-Drums are either registered trademarks or trademarks of Roland Corporation in the United States and/or other countries.
Drum Throne
Wing bolt "B"

Assembling the Drum Throne

1.

Open the tripod

Loosen wing bolt "B" and open the tripod all the way to the stopper.
When the tripod is fully open, rmly fasten wing bolt "B, " which you
loosened earlier.
2.

Attach the seat

Upper pipe
Wing bolt "A"
Secure the lock nut
Square-head bolt of
against the adjusting nut
the memory lock
Seat
Memory lock
Wing bolt "A"
Tripod
Stopper
3.

Adjust the height of the seat

Loosen wing bolt "A" and adjust the throne to the desired height.
When you've adjusted the height as desired, securely tighten wing bolt
"A. " Next, align the memory lock to the position shown in the illustration
below, and securely tighten the square-head bolt of the memory lock
to fasten it.
* Using the memory lock will prevent the seat from descending
during performance.
Wing bolt "B"
Loosen wing bolt "A, " raise the upper
pipe to the desired height, and
provisionally tighten wing bolt "A, " so
that the upper pipe does not drop.
Drumsticks
Use the drumsticks to play the V-Drums.
Next, use the drum key to loosen
the square-head bolt of the memory
lock, and lower the memory lock to
the position shown in the illustration
below.
Attach the seat, and tighten the T-bolt
to fasten it securely.
T-bolt
* Take care not to pinch your ngers
during assembly.
* Use the memory lock correctly, so
the seat doesn't descend while you're
performing.
* Never tilt the throne while seated on
it, and try to avoid unnatural postures
while using the throne; doing so may
cause malfunction or deformation.
Square-head
bolt of the
memory lock
Wing bolt
"A"
*
5
1
0
0
0
2
5
6
5
3
-
0
3
*
