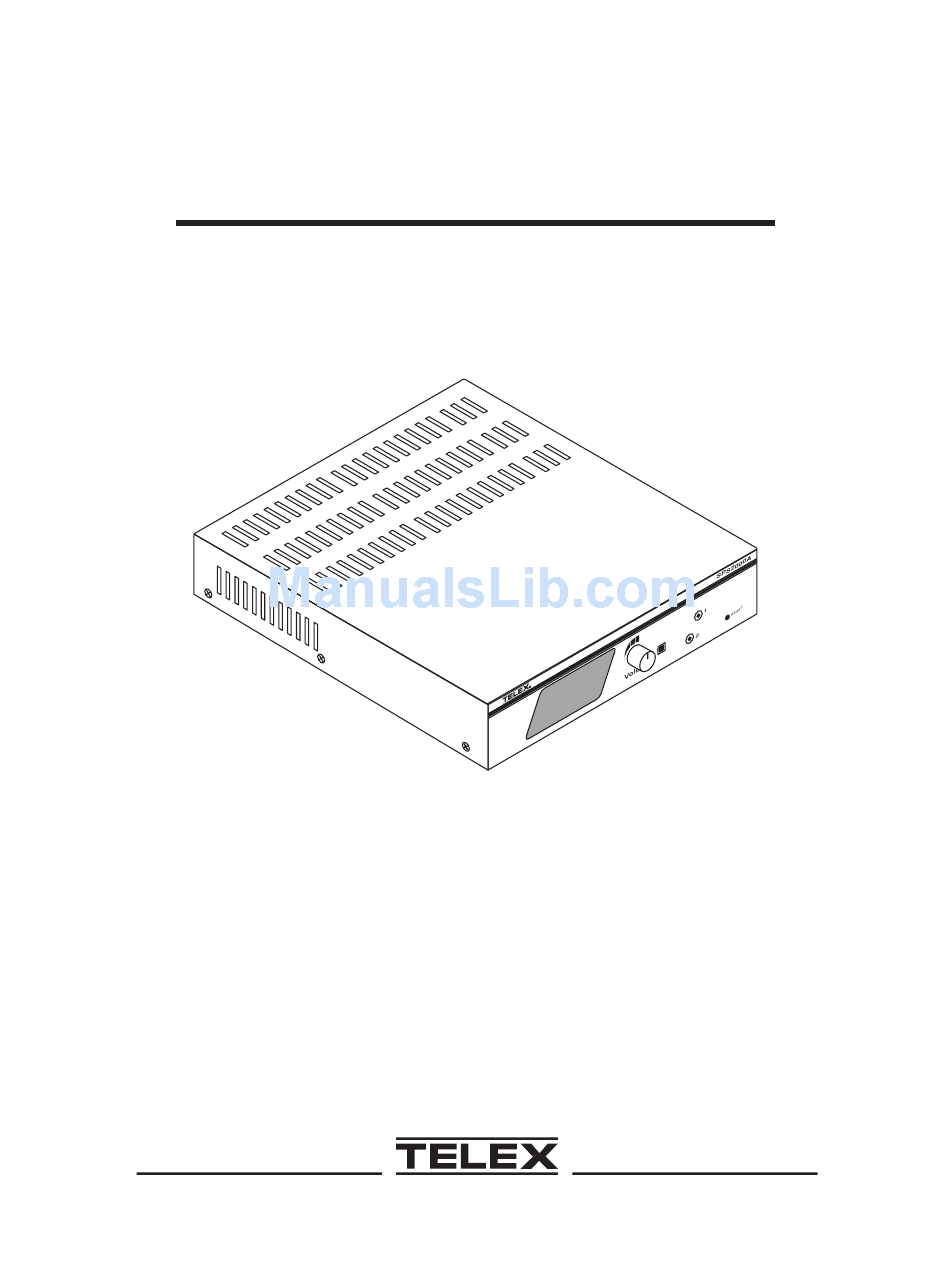

  • Page 1 ® T elex User Instructions Model SPS2000A Power Supply ® Audiocom Intercom Systems ®...
  • Page 2 This product meets Electromagnetic Compatibility Directive 89/336/EEC. Introduction Thank you for purchasing the Audiocom® SPS2000A Power Supply. We hope that this power supply, used together with your Audiocom User Stations, will satisfy your intercommunication requirements for many years to come. To get the most out of your new power supply, please take a few moments to look through this booklet before using the SPS2000A for the first time.
  • Page 3: Table Of Contents

    Table of Contents Description Installation Unpacking Configuration Switches . Intercom Channel and Program Connections Power-Up Check . Specifications Factory Service and Parts Information...
  • Page 4: Description

    Aud iocom ® Description The SPS2000A is a versatile power supply that can be used in a variety of Audiocom® intercom system applications. It is ideal for applications where it is desirable to use a master station with a panel mic / speaker combination. The SPS2000A directly accepts...
  • Page 5 4. Universal AC Power Input: The SPS2000A accepts any input power in the range of 100-240 VAC, 50/60 Hz. 5. Intercom Channel Connectors: When the Combine / Isolate switch is set to the Isolate position, each channel connector is powered separately and has com- pletely separate intercom audio.
  • Page 6: Installation

    Channel Capacity: When connecting intercom stations to the SPS2000A, determine the total current for all stations on each channel. The total per channel should not ex- ceed 2A. If you exceed this limit, the SPS2000A will provide an overload indication.
  • Page 7 Figure 2. Audiocom / Clear-Com Selector Switch (Top Cover Removed) Note that if you are using DC wallpacks with some intercom stations, you do not need to add the current consumption of those stations to the total current. Audiocom Connections: Intercom cable wiring details are shown in Figure 3. Speaker interconnect cables are standard RCA phono types.
  • Page 8 Aud iocom ® TYPICAL 1-CHANNEL CABLE WIRING Pair 1 1 (Both wires) Pair 2 Shield Shield Cable Type: 22AWG Stranded, 2-Pair Twisted-wire, with Shield Connector Type: 3-Pin XLR Audio (Neutrik or Switchcraft) Pin 1: Common Denotes twisted pair. Pin 2: Channel Audio / Power Pin 3: Channel Audio / Power Denotes shield.
  • Page 9 Figure 4. Typical connections using one SPS2000A Power Supply for two intercom channels. The two program sources are monitored independently by the intercom channels. All audio (program and intercom) is monitored as a monaural mix in the SPS2000A speaker. The US2000A is set for monaural speaker output (default).
  • Page 10 Figure 5. Adding an SPK1000 to the example in Figure 4. The two program sources are monitored independently by the intercom channels. The SPS2000A monitors intercom channel 1 and program 1. The SPK1000 monitors intercom channel 2 and program 2. The US2000A is set for...
  • Page 11: Power-Up Check

    Power-Up Check 1. Plug in any DC wallpacks that are being used with individual intercom stations. If you plug in DC wallpacks after applying power to the SPS2000A, you may get an overload indication at the SPS2000A. This is because the stations that are being powered by wallpacks will draw current from the SPS2000A until their own DC supplies are connected.
  • Page 12 If a channel status indicator turns red during operation, try correcting the prob- lem by pressing the reset button on the front of the SPS2000A. If the problem persists, unplug the SPS2000A and locate the short or overload that is causing...
  • Page 13: Specifications

    Specifications General Input Power Requirements: 100 to 240 VAC, 50 / 60 Hz Output Power (each channel) 21 ± 1 VDC, 2A Dimensions: 1.75" (44.5 mm) high x 8.25" (209.5 mm) wide x 10.31" (261.9 mm) deep Weight: approximately 2.5 lb (1.13 kg) Environmental Requirements: Storage: -20°C to 80°C;...
  • Page 14: Factory Service And Parts Information

    Non-Warranty Repairs - Equipment that is not under warranty must be sent prepaid to Telex. If requested, an estimate of repair costs will be issued prior to service. After your approval and completion of the repairs, the equipment will be returned on a col- lect basis.
  • Page 15 Notes...
  • Page 16 ® TELEX COMMUNICATIONS, INC. 9600 Aldrich Ave. So., Minneapolis, MN 55420 U.S.A. 9350-7333-010 Rev. A , 8/97...
