Summary of Contents for danew E135

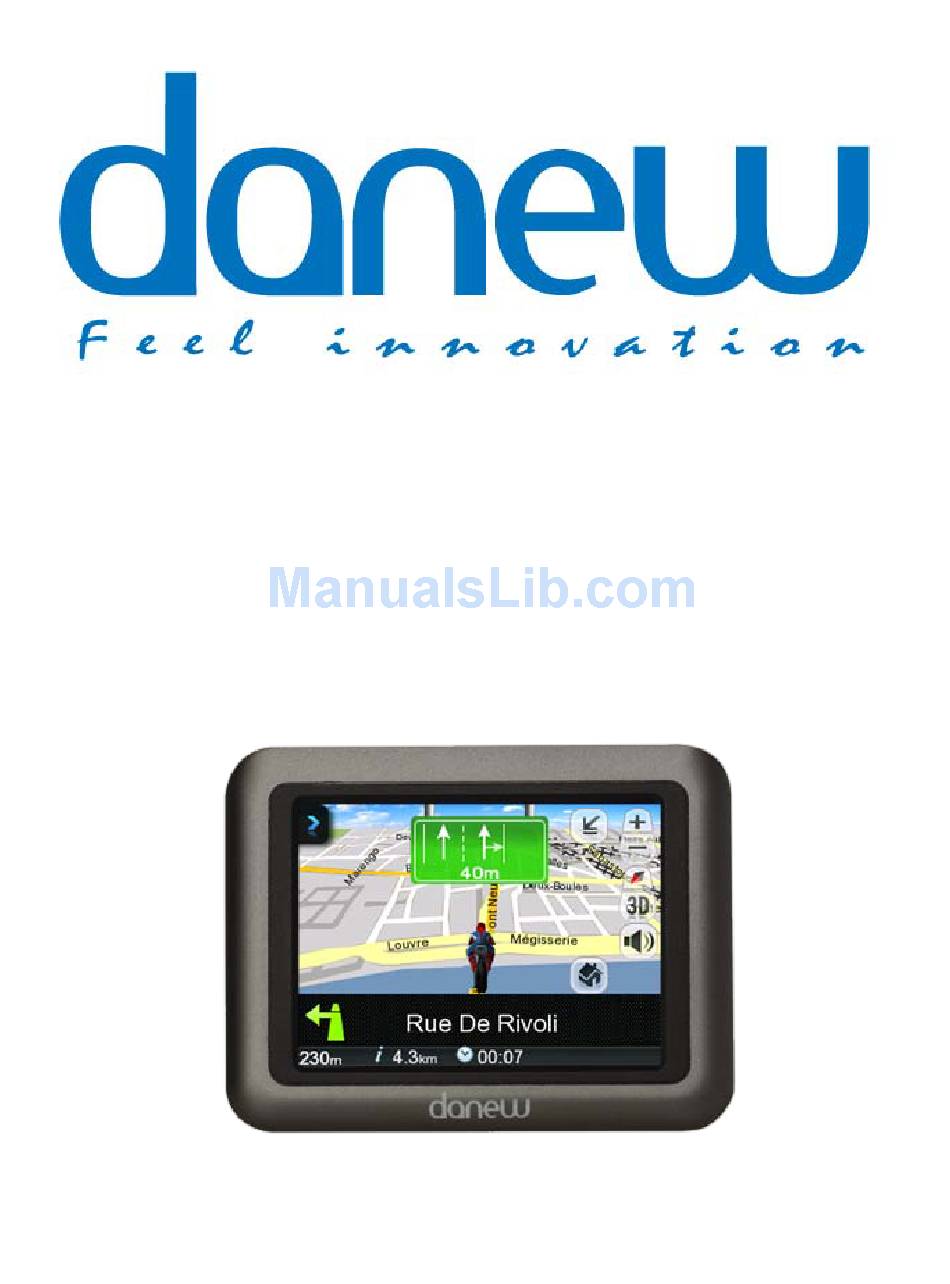

- Page 1 USER MANUAL E135 ALL ROAD GPS...
- Page 2 Warnings and Notices For your safety, do not operate the controls of the product while driving. GPS satellite signals cannot typically pass through solid materials (except glass). GPS location information is not typically available inside buildings, tunnels, or underground parking lots. A minimum of 4 GPS satellite signals is needed to calculate your GPS position.
-
Page 3: Table Of Contents
Installation on a Motorcycle..................7 Installation in a Car ....................9 Charging your E135 device .................. 10 Chapter 3 Using the E135 ......................10 E135 Operating Basics ..................10 Reset ........................12 Set the Quick menu bar: ..................13 Chapter 4 E-compass ........................ -
Page 4: Chapter 1 Features And Specifications
Chapter 1: Features and Specifications E135 PND features The E135 Portable Navigation Device is a powerful multifunction GPS/multimedia navigation and entertainment device. • 3.5”with TSP (Touch Screen Panel) • Sun light readable • High sensitivity Broadcom GPS • Bluetooth audio communication •... -
Page 5: Chapter 2 Getting Started
Bluetooth 2.0 Application Connect with Bluetooth headset to make a Stereo/Mono audio communication Chapter 2 : Getting Started Hardware overview Packaging standard Device, E135 Cradle USB cable AC adapter Car mounting kit Car Charger Quick Start Guide User Manual CD... - Page 6 Assembly your E135: 1. Put the battery on your E135 2. Insert the Battery in your E135 (Photo 1-1) 3. Put on the rear cover on your E135 (Photo 1-2) 4. Fix the lock button by turning the ring. Photo 1-1...
-
Page 7: Installation On A Motorcycle
(Photo 3-1) 2. Tighten the bolts to secure the base. Do not over tighten. Photo 3-3 Photo 3-1 Fix the double–socket arm to knob: Attach the Base Plate to the E135 Mount Photo 3-4... - Page 8 Attach the Base Plate to the Handlebar Base Photo 3-5 Install the E135 in the Cradle 1. Flip the lever up 2. Place the E135 in to the cradle, and flip the lever down. 3. Tighten the security screw. Photo 3-6...
-
Page 9: Installation In A Car
Installation in a Car Install the car mount on the selected area. 1. Press the suction cup of the car mount firmly against to the windshield.(Photo 4-1) Photo 4-2 Photo 4-1 Install the E135 in the Cradle Photo 4-4 Photo 4-3 Photo 4-5... -
Page 10: Charging Your E135 Device
Chapter 3: Using the E135 E135 Operating Basics After fully charging the E135 it is ready to be used. You can now turn it on and proceed to system settings configuration. After turn on the device, main page will display. This is also referred to the Favorite page. - Page 11 To configure system settings: If you intend to start using your E135 at once, we recommend that you configure the language and time zone settings first. The rest of the user preferences can be set up later. Tap “System” in the right category bar Tap “Language”...
-
Page 12: Reset
• GPS Reset:：When user wonder if GPS receiver perform properly or not .( ex : Change the region) • Factory Reset：The factory reset function not only resets the operating system settings to default factory values, but also reset the GPS settings. •... -
Page 13: Set The Quick Menu Bar
“YES” to delete. Chapter 4: E-compass E135 has integrated 3D E-compass, a Barometer and an Altimeter to let you know not only your direction but also the altitude. NOTE：Altitude is calculated by barometer, accuracy will depend on pressure environment. - Page 14 Name Description Elevation Current elevation Location Current location Return Back to main menu Battery Battery Level GPS signal GPS signal level Compass need to calibrate. (please do ∞ circle to Compass calibrate) Icon will disappear once finishing calibration Setting Altimeter calibration and About You can caliber the Altimeter.
-
Page 15: Chapter 5 Multimedia
The E135 is a fully capable multimedia player that can enhance your portable entertainment. In addition to its navigating function, the E135 is also a mobile entertainment tool to let you enjoy digital music, view photos. These functions make the E135 a true multimedia device. -
Page 16: Photo Viewer
Current play list 5.2. Photo Viewer The E135 has a great photo viewing option that makes it easy to share and view digital photos anywhere on the go. The program features: • Support for JPEG files (Support Max. 500 photos) •... -
Page 17: Chapter 6 Bluetooth
2. Once the choice is made and the connection established, the name of the connected device is displayed on the title bar of the “communications” screen. NOTE ： Bluetooth function has a limited range. If the connection is lost, E135 will try to re-connect within 10 seconds. -
Page 18: Chapter 7 Troubleshooting And Maintenance
Chapter 7: Troubleshooting and Maintenance If your device does not respond, do a “hard reset.” To do a “hard reset,” Disconnect all cables, including the AC adapter, from your device. By sliding the hard reset switch on the primary ON/OFF switch on the right side of the device form OFF to ON position then tap the power button. -
Page 19: Gps Speedcamera Locator
• The use of unauthorized accessories will also void your warranty. • Never attempt to disassemble, repair or make any modification to your device. GPS SpeedCamera locator Turn your GPS into a speed camera locator. Please visit our website www.danew.com...
