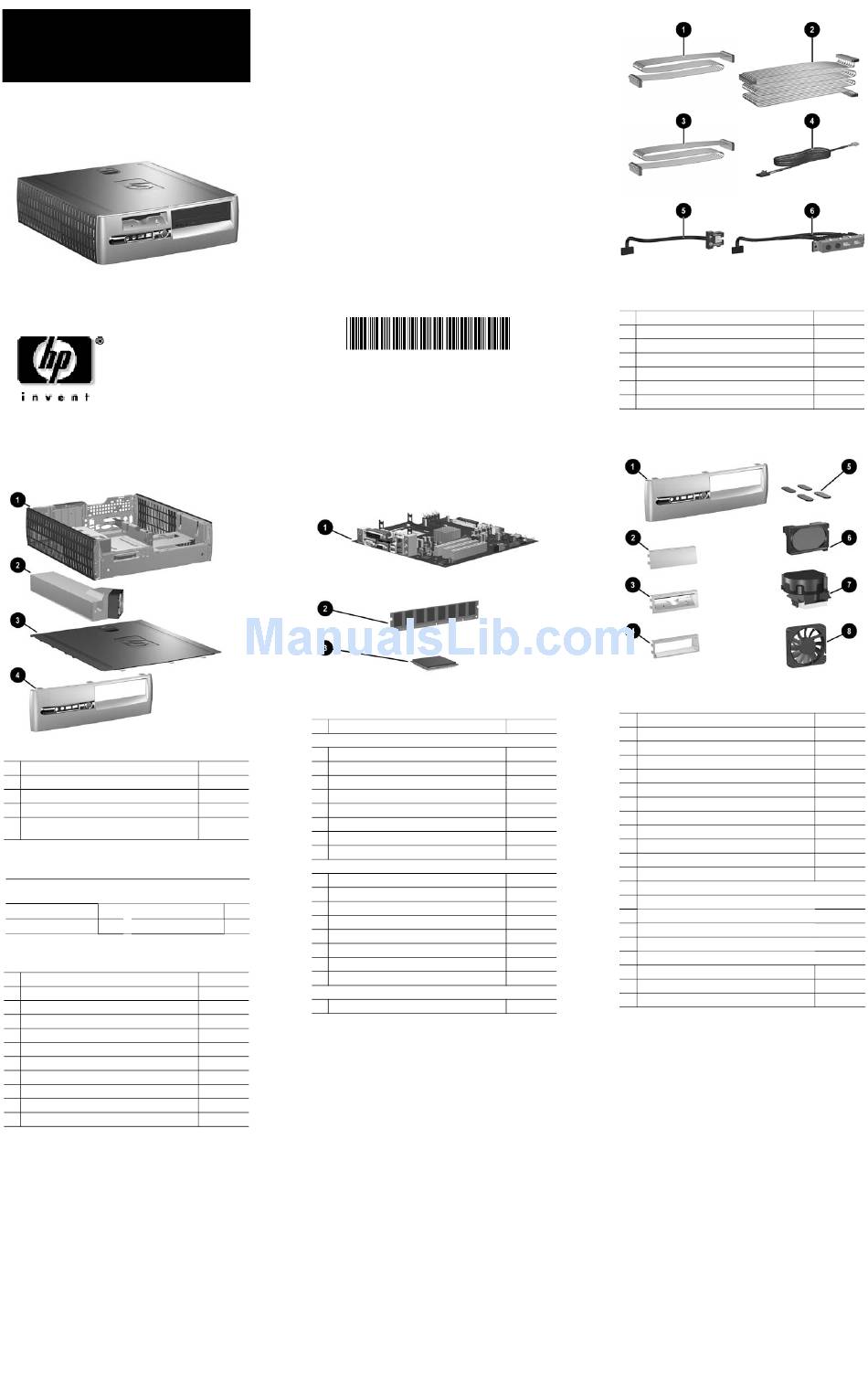

HP Compaq dc5000 series Illustrated Parts List

HP Compaq Business Desktop
dc5000 series personal computer
illustrated parts map
small form factor
System Unit
1 Chassis assembly
2 Power supply, PFC
3 Computer access panel
* Front bezel assembly with diskette drive bezel
4 Front bezel assembly with diskette drive bezel blank
(as illustrated)
Standard Keyboards (not illustrated)
PS/2 355630-xxx
USB 355631-xxx
French Canadian -121 U.S.
LA Spanish -161
Mass Storage Devices (not illustrated)
40 GB/7200 RPM Hard drive
80 GB/7200 RPM Hard drive
160 GB/7200 RPM Hard drive
Diskette drive with mounting screws
48X CD-ROM drive with mounting screws
48X/32X/48X CD-RW
48X/24X/48X +16X DVD/CD-RW
8X DVD+R/RW
16/40X DVD ROM Drive
Zip 250 Drive with mounting bracket
Zip 250 drive without mounting bracket
© 2004 Hewlett-Packard Development Company, L.P.
HP and the HP logo are trademarks of Hewlett-Packard
All other product names mentioned herein may be
trademarks of their respective companies.
HP shall not be liable for technical or editorial errors or
omissions contained herein. The information in this
document is provided "as is" without warranty of any kind
and is subject to change without notice. The warranties for
HP products are set forth in the express limited warranty
statements accompanying such products. Nothing herein
should be construed as constituting an additional
Standard and Optional Boards
1 System board with alcohol pad and thermal grease
Memory Modules
2 128 MB/400 MHz FSB
not spared * 256 MB/400 MHz FSB
308617-001 * 512 MB/400 MHz FSB
337238-001 * 1.0 GB/400 MHz FSB
337241-001 * 128 MB/333 MHz FSB
364345-001 * 256 MB/333 MHz FSB
* 512 MB/333 MHz FSB
* 1.0 GB/333 MHz FSB
Intel Processors with alcohol pad and thermal grease
3 Celeron 2.6 GHz/128 K cache/400 MHz FSB
* Celeron 2.8 GHz/128 K cache/400 MHz FSB
* Pentium 2.8 GHz/512 K cache/533 MHz FSB
-001
* Pentium 3.06 GHz/512 K cache/533 MHz FSB
* Pentium 2.8 GHz/1 MB cache/533 MHz FSB
* Pentium 2.8 GHz/1 MB cache/800 MHz FSB
* Pentium 3.0 GHz/1MB cache/800 MHz FSB
* Pentium 3.2 GHz/1 MB cache/800 MHz FSB
286692-001
Other Cards
250185-001
* Lucent V92, 56k modem with low profile bkt
325306-001
333505-001
*Not shown
326773-001
346788-001
359493-001
358688-001
325313-001
333504-001
326772-001
Development Company, L.P.
warranty.
Product of the United States.
4th Edition, November 2005
Document Number
360204-004
360427-001
335697-001
335698-001
335699-001
335700-001
314795-001
314793-001
314796-001
314794-001
344057-001
355399-001
305051-001
315637-001
359573-001
348617-001
359574-001
364837-001
277918-001
Cables
1 Diskette drive cable (168999-005)
2 UATA data cable, 13.5" (108950-045)
3 UATA data cable, 8.6" (108950-044)
4 Audio cable (CD to system board) (387527-001)
5 Power switch/LED cable with switch holder
6 Front I/O device with cable
* Flying serial cable
*Not shown
Miscellaneous Parts
1 Front bezel assembly with diskette drive bezel blank 364345-001
2 Diskette drive bay bezel blank
3 Diskette drive bezel
4 3.5" Drive bay bezel for Zip drive
5 Rubber foot (4 ea)
6 Speaker with housing
7 Heatsink with thermal grease and alcohol pad
8 Chassis fan
* Mouse, 2-Button, PS/2 with scroll wheel
* Mouse, 2-Button, USB, optical with scroll wheel
* Mouse, 2-Button, USB, with scroll wheel
* Misc screw kit, includes:
* M3 x 5mm, hitop (263585-001) 4 ea
* #6-32 x .250, hitop (262508-001) 8 ea
* #6-32 x .250, pan head (101517-037) 3 ea
* #6-32 x .312, hitop (262508-002) 4 ea
* #6-19 x .312, pan head (101346-068) 2 ea
* #6-19 x .315, T15 head (331310-001) 2 ea
* Drive Key, 128 MB
* Return kit with buns
* Real-time-clock battery
*Not shown
337244-001
337247-001
337246-001
149806-001
337243-001
337242-001
341899-001
337019-001
364508-001
337021-001
337545-001
337249-001
360327-001
342685-001
323614-001
323617-001
323615-001
337237-001
349988-001
337911-001
153099-001
