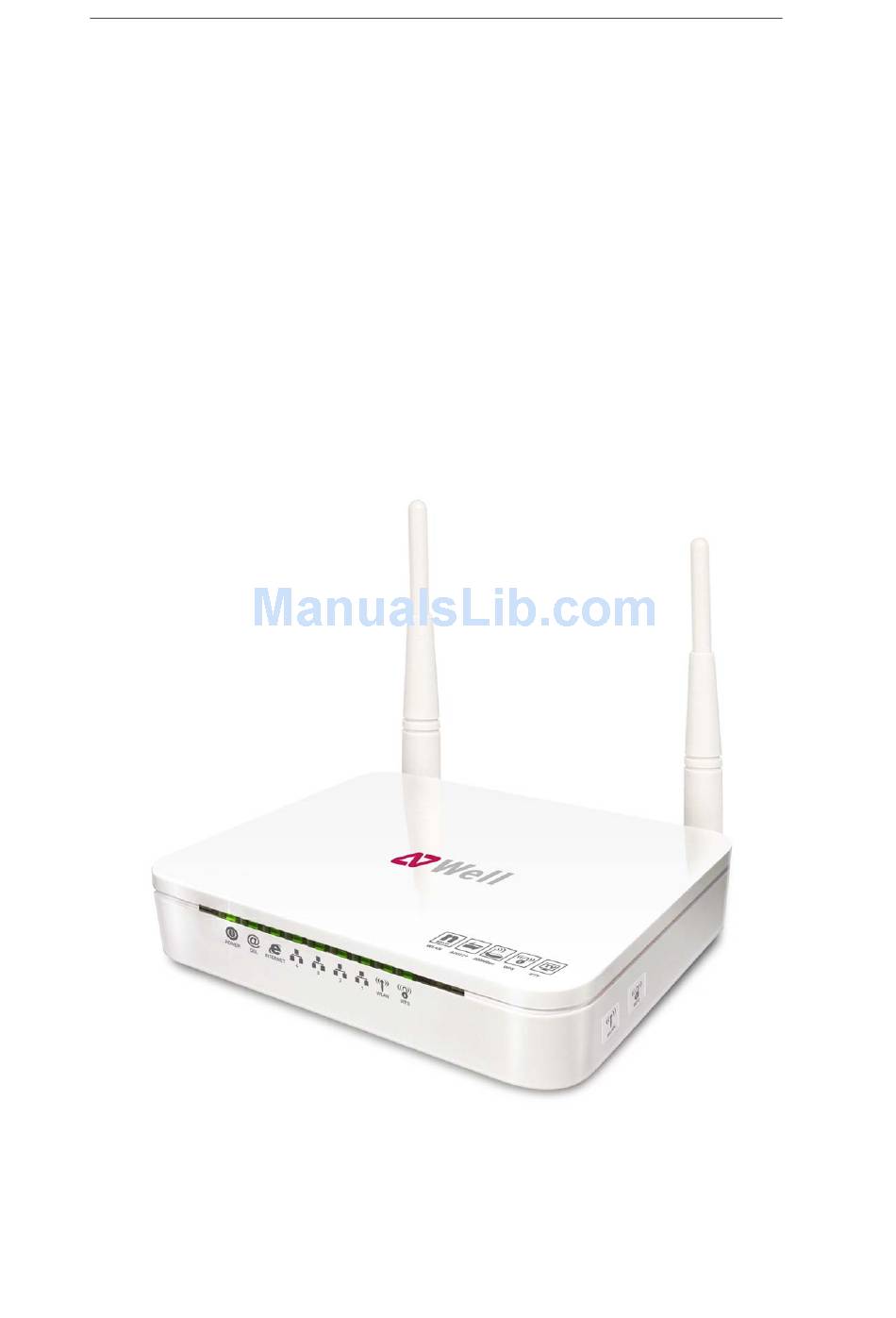

Wireless ADSL2+ Router User's Guide
WELL DA-300N
Wireless ADSL2+ Router
User's Manual
1

Advertisement

Table of Contents
loading

Related Manuals for Well DA-300N

Summary of Contents for Well DA-300N

  • Page 1 Wireless ADSL2+ Router User’s Guide WELL DA-300N Wireless ADSL2+ Router User’s Manual...

  • Page 2: Table Of Contents

    Wireless ADSL2+ Router User’s Guide Table of Contents Introduction ............8 Features ................8 Device Requirements ............8 Using this Document.............9 Notational conventions ..........9 Typographical conventions..........9 Special messages............9 Getting Support..............9 Getting to know the device ........10 Computer / System requirements ........10 Package Contents ..............10 For Annex-B 802.11n WLAN ADSL2+ Router ...............10 For Annex-A 802.11n WLAN ADSL2+...
  • Page 3 Wireless ADSL2+ Router User’s Guide Configuring your PPPoE DSL connection ......46 Configuring your PPPoA DSL connection ......48 Configuring your Bridged DSL connection......50 Configuring your 1483 MER by DHCP ......51 Configuring your 1483 MER by Fixed IP ......52 ATM Settings...............54 ADSL Settings..............56 Local Network Configuration ......59 Changing the LAN IP address and subnet...
  • Page 4 Wireless ADSL2+ Router User’s Guide AP as Proxy ..............90 Infrastructure-Client mode ...........90 Instructions of AP’s and Client’s operations ..............91 Operations of AP - AP being an enrollee ......93 Operations of AP - AP being a registrar......104 AP mode..............104 Push Button method ..........108 Routing ............112 Static Route...............112...
  • Page 5 Wireless ADSL2+ Router User’s Guide Bridging ............141 Bridging ................141 Client Limit ............142 Client Limit.................142 Others ..............142 Others................142 IGMP Proxy .............143 IGMP Proxy...............143 UPnP ...............144 Configuring UPnP .............145 UPnP Control Point Software on Windows ME..................146 UPnP Control Point Software on Windows XP with Firewall .............146 SSDP requirements ...........147 SNMP...
  • Page 6 Wireless ADSL2+ Router User’s Guide Manually updating firmware..........168 Backup/Restore ..........173 Backup settings..............173 Restore settings ..............174 Password ............175 Setting your username and password ......175 Commit/Reboot ..........177 Commit ................177 Reboot................178 Resetting to Defaults............178 Time Zone ............180 SNTP Server and SNTP Client Configuration settings............180 ..............186 Log..................186 Diagnostic...
  • Page 7 Wireless ADSL2+ Router User’s Guide Troubleshooting Suggestions...........202 Diagnosing Problem using IP Utilities ......204 ping................204 nslookup ..............205 Glossary ............206...

  • Page 8: Introduction

    Wireless ADSL2+ Router User’s Guide Introduction Congratulations on becoming the owner of the Wireless ADSL2+ Router. You will now be able to access the Internet using your high-speed DSL connection. This User Guide will show you how to connect your Wireless ADSL2+ Router, and how to customize its configuration to get the most out of your new product.

  • Page 9: Using This Document

    Wireless ADSL2+ Router User’s Guide You do not need to use a hub or switch in order to connect more than one Ethernet PC to your device. Instead, you can connect Note up to four Ethernet PCs directly to your device using the ports labeled Ethernet on the rear panel.

  • Page 10: Getting To Know The Device

    Wireless ADSL2+ Router User’s Guide Getting to know the device Computer / System requirements  1. Pentium 200MHZ processor or above  2. Windows 98SE, Windows Me, Windows 2000, Windows XP, Windows Vista and Windows 7  3. 64MB of RAM or above ...

  • Page 11: Installation & Setup

    Wireless ADSL2+ Router User’s Guide Installation & Setup Follow each STEP carefully and only go to the next step once you have complete the previous STEP. Connection of 802.11n WLAN ADSL2+ Router If you have an ISDN telephone line connect the modem router as shown below: 1.
  • Page 12 Wireless ADSL2+ Router User’s Guide If you have a PSTN telephone line (normal analog line) connect the router as shown below: 1. Connect the supplied RJ45 Ethernet cable from your PC's Ethernet port to any of the 4 802.11n WLAN ADSL2+ Router's LAN Ports. 2.

  • Page 13: Led Meanings & Activations

    Wireless ADSL2+ Router User’s Guide LED meanings & activations Your 802.11n WLAN ADSL2+ Router has indicator lights on the front side. Please see below for an explanation of the function of each indicator light. Power indicator Internet Active indicator Ethernet Active indicator WPS Active indicator Wireless Active indicator ADSL Link indicator...

  • Page 14: Back Panel Connectors

    Wireless ADSL2+ Router User’s Guide Back Panel Connectors Table 2 shows the function of each connector and switch of the device. Table 2. Function / Description of Connectors Connector Description Connects to your 802.11n WLAN ADSL2+ router 12Vac power adaptor POWER Power Switch SWITCH...
  • Page 15 Wireless ADSL2+ Router User’s Guide Figure3. RESET button...

  • Page 16: Computer Configurations Under Different Os, To Obtain Ip Address Automatically

    Wireless ADSL2+ Router User’s Guide Computer configurations under different OS, to obtain IP address automatically Before starting the 802.11n WLAN ADSL2+ Router configuration, please kindly configure the PC computer as below, to have automatic IP address / DNS Server. For Windows 98SE / ME / 2000 / XP 1.
  • Page 17 Wireless ADSL2+ Router User’s Guide 3. Double click on "Internet Protocol (TCP/ IP)". 4. Check "Obtain an IP address automatically" and “Obtain DNS server address automatically” then click on "OK" to continue. 5. Click "Show icon in notification area when connected" (see screen image in 3.
  • Page 18 Wireless ADSL2+ Router User’s Guide For Windows Vista-32/64 1. Click on “Start” -> “Control Panel” -> “View network status and tasks”. 2. In the Manage network connections, click on “Manage network connections” to continue.
  • Page 19 Wireless ADSL2+ Router User’s Guide 3. Single RIGHT click on “Local Area connection", then click "Properties". 4. The screen will display the information “User Account Control” and click “Continue” to continue. 5. Double click on "Internet Protocol Version 4 (TCP/IPv4)".
  • Page 20 Wireless ADSL2+ Router User’s Guide 6. Check "Obtain an IP address automatically" and “Obtain DNS server address automatically” then click on "OK" to continue. For Windows 7-32/64 1. Click on “Start” -> “Control Panel” (in Category View) -> “View network status and tasks”.
  • Page 21 Wireless ADSL2+ Router User’s Guide 2. In the Control Panel Home, click on “Change adapter settings” to continue. 3. Single RIGHT click on “Local Area connection", then click "Properties".
  • Page 22 Wireless ADSL2+ Router User’s Guide 4. Double click on "Internet Protocol Version 4 (TCP/IPv4)".
  • Page 23 Wireless ADSL2+ Router User’s Guide 5. Check "Obtain an IP address automatically" and “Obtain DNS server address automatically” then click on "OK" to continue.

  • Page 24: Utility Cd Execution

    Wireless ADSL2+ Router User’s Guide Utility CD execution Connecting the Hardware This section describes how to connect the device to the wall phone port, the power outlet and your computer(s) or network. 1. Before you begin to execute utility CD Installations, please ensure the 802.11n WLAN ADSL2+ Router has been powered on.
  • Page 25 Wireless ADSL2+ Router User’s Guide 5. Select Protocol mode and enter the VPI, VCI, Username and Password your ISP (Internet Services Provider) provided. 6. Please click “ Wireless Configuration ” button.
  • Page 26 Wireless ADSL2+ Router User’s Guide 7. Please configure the Wireless Network, Default Channel, ESSID if you want to change (Recommended to use default settings, Wireless Network = Enable, Default Channel = Auto, ESSID = RN243R4). 8. Choose the Encryption type if necessary, as Off – No Encryption / 64 Bit Encryption / 64 Bit Encryption / Wi-Fi Protected Access2 (AES-CCMP) and WPA2 Mixed Mode.
  • Page 27 Wireless ADSL2+ Router User’s Guide 10. Please click “ Setup ” button, when the procedure is completed, it will start to configure the device for a while.
  • Page 28 Wireless ADSL2+ Router User’s Guide 11. Now, checking 802.11n WLAN ADSL 2+ Router hardware connection, ADSL2+ settings, WLAN settings, and ADSL2+ Line connection status. 12. Easy setup configuration completed. Click on " Exit " to exit this program.
  • Page 29 Wireless ADSL2+ Router User’s Guide 13. Click on " Exit " to exit this program. 14. Now, the 802.11n WLAN ADSL2+ Router has been configured completely, and suitable for Wireless and Internet Connections.

  • Page 30: Wireless Connection

    Wireless ADSL2+ Router User’s Guide Wireless Connection For easy installation it is saved to keep the settings. You can later change the wireless settings via the wireless configuration menu. (see user manual on the CD – Chapter 13 and other). 1.
  • Page 31 Wireless ADSL2+ Router User’s Guide 3. If the wireless network isn’t encrypted, click on "Connect Anyway" to connect. 4. If the wireless network is encrypted, enter the network key that belongs to your authentication type and key. You can later change this network key via the wireless configuration menu.

  • Page 32: Getting Started With The Web Pages

    Wireless ADSL2+ Router User’s Guide Getting Started with the Web pages The Wireless ADSL2+ Router includes a series of Web pages that provide an interface to the software installed on the device. It enables you to configure the device settings to meet the needs of your network.
  • Page 33 Wireless ADSL2+ Router User’s Guide Figure 1: Homepage...
  • Page 34 Wireless ADSL2+ Router User’s Guide The first time that you click on an entry from the left- hand menu, a login box is displayed. You must enter your username and password to access the pages. A login screen is displayed: Figure 2: Login screen 1.

  • Page 35: Testing Your Setup

    Wireless ADSL2+ Router User’s Guide Testing your Setup Once you have connected your hardware and configured your PCs, any computer on your LAN should be able to use the device’s DSL connection to access the Internet. To test the connection, turn on the device, wait for 30 seconds and then verify that the LEDs are illuminated as follows: Table 1.
  • Page 36 Wireless ADSL2+ Router User’s Guide Option Default Setting Explanation/Instructions This is the temporary public IP address of the WAN Unnumbered interface: LINE Port IP port on the device. It is an unnumbered interface that Address 192.168.1.1 is replaced as soon as your ISP assigns a ‘real’ IP address.

  • Page 37: Overview

    Wireless ADSL2+ Router User’s Guide Overview The Overview page displays useful information about the setup of your device, including:  details of the device’s Internet access settings  version information about your device To display this page: From the head menu, click on Status. The following page is displayed:...
  • Page 38 Wireless ADSL2+ Router User’s Guide...

  • Page 39: Internet Access Settings

    Wireless ADSL2+ Router User’s Guide Figure 3: Overview page The information displayed on this page is explained in detail in the following sections. Internet access settings This section displays details of the settings that allow your device to access the Internet. These details include: IP address and The IP address and subnet mask subnet mask:...

  • Page 40: Status

    Wireless ADSL2+ Router User’s Guide Status You can view statistics on the processing of IP packets on the networking interfaces. You will not typically need to view this data, but you may find it helpful when working with your ISP to diagnose network and Internet data transmission problems.
  • Page 41 Wireless ADSL2+ Router User’s Guide...

  • Page 42: Adsl

    Wireless ADSL2+ Router User’s Guide ADSL This page shows the ADSL line statistic information. 1. From the head Status menu, click on ADSL The following page is displayed: 2. To display updated statistics showing any new data since you opened this page, click Refresh.

  • Page 43: Statistics

    Wireless ADSL2+ Router User’s Guide Statistics This page shows the packet statistics for transmission and reception regarding to network interface. 1. From the head Status menu, click on Statistics The following page is displayed: 2. To display updated statistics showing any new data since you opened this page, click Refresh.

  • Page 44: Internet Access

    Wireless ADSL2+ Router User’s Guide Internet Access This chapter describes how to configure the way that your device connects to the Internet. Your ISP determines what type of Internet access you should use and provides you with any information that you need in order to configure the Internet access to your device.

  • Page 45: Types Of Internet Access

    Wireless ADSL2+ Router User’s Guide  Connect on demand. Enter the minutes after which the session must be disconnected, if no activity takes place.  Manual. Enter the minutes after which the session must be disconnected, if no activity takes place.

  • Page 46: Configuring Your Pppoe Dsl Connection

    Wireless ADSL2+ Router User’s Guide Configuring your PPPoE DSL connection If your ISP’s Internet service uses PPPoE you need to set up a PPP login account. The first time that you login to the Internet, your ISP will ask you to enter a username and password so they can check that you are a legitimate, registered Internet service user.
  • Page 47 Wireless ADSL2+ Router User’s Guide 1. From the head Setup menu, click on WAN. The following page is displayed: 2. Enter VCI and VPI setting determined by your ISP. 3. Select the Encapsulation determined by your ISP. 4. From the Channel Mode drop-down list, select PPPoE setting.

  • Page 48: Configuring Your Pppoa Dsl Connection

    Wireless ADSL2+ Router User’s Guide 10. Now you are ready to Surf the Internet !!! Configuring your PPPoA DSL connection If your ISP’s Internet service uses PPPoA you need to set up a PPP login account. The first time that you login to the Internet, your ISP will ask you to enter a username and password so they can check that you are a legitimate, registered Internet service user.
  • Page 49 Wireless ADSL2+ Router User’s Guide 1. From the head Setup menu, click on WAN. The following page is displayed: 2. Enter VCI and VPI setting determined by your ISP. 3. Select the Encapsulation determined by your ISP. 4. From the Channel Mode drop-down list, select PPPoA setting.

  • Page 50: Configuring Your Bridged Dsl Connection

    Wireless ADSL2+ Router User’s Guide 10. Now you are ready to Surf the Internet !!! Configuring your Bridged DSL connection 1. From the head Setup menu, click on WAN. The following page is displayed: 2. Enter VCI and VPI setting determined by your ISP. 3.

  • Page 51: Configuring Your 1483 Mer By Dhcp

    Wireless ADSL2+ Router User’s Guide Configuring your 1483 MER by DHCP 1. From the head Setup menu, click on WAN. The following page is displayed: 2. Enter VCI and VPI setting determined by your ISP. 3. Select the Encapsulation determined by your ISP. 4.

  • Page 52: Configuring Your 1483 Mer By Fixed Ip

    Wireless ADSL2+ Router User’s Guide 9. Your configuration is complete. 10. Now you are ready to Surf the Internet !!! Configuring your 1483 MER by Fixed IP 1. From the head Setup menu, click on WAN. The following page is displayed: 2.
  • Page 53 Wireless ADSL2+ Router User’s Guide...

  • Page 54: Atm Settings

    Wireless ADSL2+ Router User’s Guide 10. From the head Service menu, click on DNS. 11. Check on Set DNS Manually ratio. 12. Enter DNS setting determined by your ISP. 13. Click Apply Changes button. 14. Your configuration is complete. 15. Now you are ready to Surf the Internet !!! ATM Settings The page is for ATM PVC QoS parameters setting.
  • Page 55 Wireless ADSL2+ Router User’s Guide Field Description Virtual Path Identifier. This is read-only field and is selected on the Select column in the Current ATM VC Table. Virtual Channel Identifier. This is read-only field and is selected on the Select column in the Current ATM VC Table.

  • Page 56: Adsl Settings

    Wireless ADSL2+ Router User’s Guide ADSL Settings The ADSL setting page allows you to select any combination of DSL training modes. 1. From the left-hand WAN menu, click on ADSL Settings. The following page is displayed:...
  • Page 57 Wireless ADSL2+ Router User’s Guide Field Description ADSL modulation Choose prefered xdsl standard protocols. G.lite : G.992.2 Annex A G.dmt : G.992.1 Annex A T1.413 : T1.413 issue #2 ADSL2 : G.992.3 Annex A ADSL2+ : G.992.5 Annex A AnnexL Option Enable/Disable ADSL2/ADSL2+ Annex L capability.

  • Page 59: Local Network Configuration

    User’s Guide Configuring your Computers Local Network Configuration The Addressing page displays information about your LAN IP address and allows you to change the address and subnet mask assigned to your device. You should only change the addressing details if your ISP asks you to, or if you are familiar with network configuration.
  • Page 60 User’s Guide Configuring your Computers...
  • Page 61 User’s Guide Configuring your Computers 2. From the left-hand LAN menu, click on DHCP Settings.
  • Page 62 User’s Guide Configuring your Computers 3. Change the IP Pool Range and then click Apply Changes button. 4. Change setting successfully! Click OK button.
  • Page 63 User’s Guide Configuring your Computers 5. From the left-hand LAN menu, click on LAN. 6. Type a new IP Address and Subnet Mask. 7. Click Apply Changes. 8. Please click 10.0.0.2 to continue configuration. 9. The primary IP address is being changed to 10.0.0.2 netmask 255.255.255.0.

  • Page 64: Adding The Secondary Lan Ip Address And Subnet Mask

    User’s Guide Configuring your Computers b. Type pump -r to release the lease. c. Type pump to renew the lease. If you change the LAN IP address of the device while connected through your Web browser, you will be disconnected. You must open a new connection by entering your new LAN IP address as Note the URL.

  • Page 65: Dhcp Settings

    User’s Guide Configuring your Computers DHCP Settings You can configure your network and DSL device to use the Dynamic Host Configuration Protocol (DHCP). This page provides DHCP instructions for implementing it on your network by selecting the role of DHCP protocol that this device wants to play.
  • Page 66 User’s Guide Configuring your Computers Field Description IP Pool Range Specify the lowest and highest addresses in the pool. Max Lease Time The Lease Time is the amount of time that a network user is allowed to maintain a network connection to the device using the current dynamic IP address.

  • Page 67: Dhcp Relay Configuration

    User’s Guide Configuring your Computers DHCP Relay Configuration 1. From the left-hand LAN menu, click on DHCP Settings. 2. From Services check ratio, click on DHCP Relay Mode. 3. Type DHCP server IP Addresses for DHCP Relay. 4. Click on Apply Changes. Field Description DHCP Server...
  • Page 68 User’s Guide Configuring your Computers 6. You need to renew your DHCP lease: Windows 95/98 a. Select Run... from the Start menu. b. Enter winipcfg and click OK. c. Select your ethernet adaptor from the pull-down menu d. Click Release All and then Renew All. e.

  • Page 69: Dhcp None Configuration

    User’s Guide Configuring your Computers DHCP None Configuration 1. From the left-hand Services menu, click on DHCP Settings. 2. From Services check ratio, click on None Mode. 3. Click on Apply Changes. Function Button Description Apply Changes Set new DHCP server configuration. New parameters will take effect after save into flash memory and reboot the system.
  • Page 70 User’s Guide Configuring your Computers Windows NT/Windows 2000/Windows XP a. Bring up a command window. b. Type ipconfig /release in the command window. c. Type ipconfig /renew. d. Type exit to close the command window. Linux a. Bring up a shell. b.

  • Page 71: Dhcp Static Configuration

    User’s Guide Configuring your Computers DHCP Static Configuration This page lists the fixed IP/MAC address on your LAN. The device distributes the number configured to hosts on your network as they request Internet access. DHCP Static Configuration 1. From the left-hand LAN menu, click on DHCP Static. 2.

  • Page 72: Lan Ipv6 Configuration

    User’s Guide Configuring your Computers LAN IPv6 Configuration This page is used to configurate ipv6 lan setting. User can set lan RA server work mode and lan DHCPv6 server work mode. DHCP Static Configuration 1. From the left-hand LAN menu, click on LAN IPv6 Static. 2.

  • Page 73: Wireless Network

    User’s Guide Configuring your Computers Wireless Network This chapter assumes that you have already set up your Wireless PCs and installed a compatible Wireless card on your device. See Configuring Wireless PCs. Basic Settings This page contains all of the wireless basic settings. Most users will be able to configure the wireless portion and get it working properly using the setting on this screen.
  • Page 74 User’s Guide Configuring your Computers Field Description Disable Wireless Enable/Disable the Wireless LAN Interface. LAN Interface Band Select the appropriate band from the list provided to correspond with your network setting. Mode Configure the Wireless LAN Interface to AP or AP + WDS mode SSID Specify the network name.

  • Page 75: Security

    User’s Guide Configuring your Computers Security This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. To access the Wireless Network Security page: From the left-hand WLAN menu, click on Security. The following page is displayed:...
  • Page 76 User’s Guide Configuring your Computers Field Description SSID TYPE Select the SSID Encryption There are 4 types of security to be selected. To secure your WLAN, it’s strongly recommended to enable this feature. WEP: Make sure that all wireless devices on your network are using the same encryption level and key.

  • Page 77: Wep + Encryption Key

    User’s Guide Configuring your Computers Function Button Description Apply Changes Click to save the rule entry to the configuration. WEP + Encryption Key WEP aims to provide security by encrypting data over radio waves so that it is protected as it is transmitted from one end point to another.

  • Page 78: Wep + Use 802.1X Authentication

    User’s Guide Configuring your Computers  Wlan is restarting! Please wait... WEP + Use 802.1x Authentication WEP aims to provide security by encrypting data over radio waves so that it is protected as it is transmitted from one end point to another. However, it has been found that WEP is not as secure as once believed.
  • Page 79 User’s Guide Configuring your Computers  WPA/WPA2 must be enabled and chosen in preference to WEP. WEP is usually presented as the first security choice in most installation instructions.  In the "Personal" mode, the most likely choice for homes and small offices, a pass phrase is required that, for full security, must be longer than the typical 6 to 8 character passwords users are taught to employ.

  • Page 80: Wpa/Wpa2/Wpa2 Mixed + Enterprise (Radius)

    User’s Guide Configuring your Computers WPA/WPA2/WPA2 Mixed + Enterprise (RADIUS) Wi-Fi Protected Access (WPA) is a class of systems to secure wireless (Wi-Fi) computer networks. WPA/WPA2 implements the full standard, but will not work with some older network cards. Both provide good security, with two significant issues: ...

  • Page 81: Wireless Multiple Bssid Settings

    User’s Guide Configuring your Computers Wireless Multiple BSSID Settings This page allows you to set Virtual Access Points (VAP). Here you can enable/disable virtual APs and set the SSID and authentication type. Click "Apply Changes" for these settings to take effect. To access the MBSSID Settings page: From the left-hand WLAN menu, click on MBSSID.
  • Page 82 User’s Guide Configuring your Computers...

  • Page 83: Access Control

    User’s Guide Configuring your Computers Access Control For security reason, using MAC ACL's (MAC Address Access List) creates another level of difficulty to hacking a network. A MAC ACL is created and distributed to AP so that only authorized NIC's can connect to the network. While MAC address spoofing is a proven means to hacking a network this can be used in conjunction with additional security measures to increase the level of complexity of the network security...

  • Page 84: Allow Listed

    User’s Guide Configuring your Computers Allow Listed If you choose 'Allowed Listed', only those clients whose wireless MAC addresses are in the access control list will be able to connect to your Access Point. 10. From the Wireless Access Control Mode drop-down list, select Allowed Listed setting.
  • Page 85 User’s Guide Configuring your Computers 1. From the Wireless Access Control Mode drop-down list, select Deny Listed setting. 2. Wlan is restarting! Please wait... 3. Enter the MAC Address. 4. Click Add button. 5. Wlan is restarting! Please wait... 6. The MAC Address that you created has been added in the Current Access Control List.

  • Page 86: Advanced Settings

    User’s Guide Configuring your Computers Advanced Settings These settings are only for more technically advanced users who have a sufficient knowledge about wireless LAN. These settings should not be changed unless you know what effect the changes will have on your Access Point. To access the Wireless Network Advanced Settings page: From the left-hand WLAN menu, click on Advanced.
  • Page 87 User’s Guide Configuring your Computers Field Description Authentication Open System: Open System authentication is not Type required to be successful while a client may decline to authenticate with any particular other client. Shared Key: Shared Key is only available if the WEP option is implemented.
  • Page 88 User’s Guide Configuring your Computers Field Description Broadcast SSID Broadcast or Hide SSID to your Network. Default: Enabled Relay Blocking Disable or Enable Relay Blocking Ethernet to Disable or Enable Ethernet to Wireless Blocking Wireless Blocking Wifi Multicast to Disable or Enable Wifi Multicast to Unicast Unicast Aggregation Disable or Enable Aggregation...

  • Page 89: Wps

    User’s Guide Configuring your Computers Introduction of WPS Although home Wi-Fi networks have become more and more popular, users still have trouble with the initial set up of network. This obstacle forces users to use the open security and increases the risk of eavesdropping. Therefore, WPS is designed to ease set up of security-enabled Wi-Fi networks and subsequently network management (Wi-Fi Protected Setup Specification 1.0h.pdf, p.

  • Page 90: Ap Mode

    User’s Guide Configuring your Computers AP mode For AP mode, Wireless Gateway supports three roles, registrar, proxy, and enrollee in registration protocol. At different scenarios, Wireless Gateway will automatically switch to an appropriate role depending on the other device’s role or a specific configuration.

  • Page 91: Instructions Of Ap's And Client's Operations

    User’s Guide Configuring your Computers Instructions of AP’s and Client’s operations At this state, AP is transparent to users. If users want to configure a station or any device that is capable of being an enrollee, they have to enter device’s PIN into an external registrar and choose an appropriate wireless profile.
  • Page 92 User’s Guide Configuring your Computers Field Description Disable WPS Check to disable the Wi-Fi protected Setup. WPS Status When AP’s settings are factory default (out of box), it is set to open security and un-configured state. “WPS Status” will display it as “UnConfigured”. If it already shows “Configured”, some registrars such as Vista WCN will not configure AP.

  • Page 93: Operations Of Ap - Ap Being An Enrollee

    User’s Guide Configuring your Computers Operations of AP - AP being an enrollee In this case, AP will be configured by any registrar either through in-band EAP or UPnP. Here, users do not need to do any action on AP side. They just need AP’s device PIN and enter it into registrar.
  • Page 94 User’s Guide Configuring your Computers 3. Plug the Ethernet cable into AP’s LAN port and make sure the IP connection is valid with Vista. 4. Make sure WCN is enabled. Users may need to enable it at the first time. They could open the “Control Panel”, click “Classic View“, open “Administrative Tools”, double click “Services”, ”, a User Account Control pop up and click “Continue“, edit properties of “Windows Connect Now”,...
  • Page 95 User’s Guide Configuring your Computers 5. If the previous steps are done, open Windows Explorer. Go to the Network section. 6. Click on “Network discovery and file sharing are turned off. Network computers and devices are not visible. Click to Change…“...
  • Page 96 User’s Guide Configuring your Computers 7. Click on “Turn on network discovery and file sharing“ 8. Click on “No, make the network that I am connected to a private network“...
  • Page 97 User’s Guide Configuring your Computers 9. AP’s icon will show up. Double click on it. 10. Users could also Click “Add a wireless device” if the icon is not there. Click “next”.
  • Page 98 User’s Guide Configuring your Computers 11. Enter AP’s Self-PIN Number and click “next”.
  • Page 99 User’s Guide Configuring your Computers 12. Choose a name that people who connect to your network will recognize.
  • Page 100 User’s Guide Configuring your Computers 13. Enter the Passphrase and then click Next.
  • Page 101 User’s Guide Configuring your Computers 14. A User Account Control screen pops up, click Continue. 15. AP is successfully configured by WCN.
  • Page 102 User’s Guide Configuring your Computers 16. Finally, AP will become configured (see WPS Status). The authentication algorithm, encryption algorithm, and key assigned by WCN will be displayed below “Current Key Info”.
  • Page 103 User’s Guide Configuring your Computers 17. The SSID field of Wireless Basic Settings page will also be modified with the value assigned by WCN.

  • Page 104: Operations Of Ap - Ap Being A Registrar

    User’s Guide Configuring your Computers Operations of AP - AP being a registrar AP mode Whenever users enter station’s PIN into AP’s Wi-Fi Protected Setup page and click “Start PIN”, AP will become a registrar. Users must start the PIN method on the station side within two minutes.
  • Page 105 User’s Guide Configuring your Computers 5. Users must start the PIN method on the station side within two minutes. 6. Users must start the PIN method on the station side within two minutes.
  • Page 106 User’s Guide Configuring your Computers 7. If the device PIN is correct and the WPS handshake is successfully done on the station side, User’s Wi-Fi Protected status will be shown as below.
  • Page 107 User’s Guide Configuring your Computers 8. If the device PIN is correct and the WPS handshake is successfully done, AP’s Wi-Fi Protected Setup page will be shown as below. Other pages such as Wireless Basic Settings page and Wireless Security Setup page will also be updated appropriately as described in previous sections.

  • Page 108: Push Button Method

    User’s Guide Configuring your Computers Push Button method Wireless Gateway supports a virtual button “Start PBC” on the Wi-Fi Protected Setup page for Push Button method. If users push a virtual button “Start PBC”, AP will initiate a WPS session and wait for any station to join.
  • Page 109 User’s Guide Configuring your Computers 5. Users must start the PBC method on the station side within two minutes.
  • Page 110 User’s Guide Configuring your Computers 6. If the device PCB and the WPS handshake is successfully done on the station side, User’s Wi-Fi Protected status will be shown as below.
  • Page 111 User’s Guide Configuring your Computers 7. If the device PIN is correct and the WPS handshake is successfully done, AP’s Wi-Fi Protected Setup page will be shown as below. Other pages such as Wireless Basic Settings page and Wireless Security Setup page will also be updated appropriately as described in previous sections.

  • Page 112: Routing

    User’s Guide Configuring your Computers Routing The Routing page enables you to define specific route for your Internet and network data. Most users do not need to define routes. On a typical small home or office LAN, the existing routes that set up the default gateways for your LAN hosts and for the DSL device provide the most appropriate path for all your Internet traffic.
  • Page 113 User’s Guide Configuring your Computers Fields on the Description first setting block Enable Check to enable the selected route or route to be added. Destination The network IP address of the subnet. The destination can be specified as the IP address of a subnet or a specific host in the subnet.

  • Page 114: Ipv6 Static Route

    User’s Guide Configuring your Computers IPv6 Static Route This page is used to configure the ipv6 routing information. Here you can add/delete IPv6 routes. 2. From the head Advance menu, click on Route -> IPv6 Static Route. The following page is displayed: Fields on the Description first setting...

  • Page 115: Rip

    User’s Guide Configuring your Computers RIP is an Internet protocol you can set up to share routing table information with other routing devices on your LAN, at your ISP’s location, or on remote networks connected to your network via the ADSL line. Most small home or office networks do not need to use RIP;...
  • Page 116 User’s Guide Configuring your Computers Fields on the Description first setting block Enable/disable RIP feature. Fields on the Description second setting block: The name of the interface on which you want to enable Interface RIP. Receive Mode Indicate the RIP version in which information must be passed to the DSL device in order for it to be accepted into its routing table.

  • Page 117: Dmz

    User’s Guide Configuring your Computers A demilitarized zone (DMZ) is a host or small network that acts as neutral ground between the inside and outside network. It contains information that is useful to users of both the inside and outside network. For example, a company may wish to provide software patches to customers via an FTP server.
  • Page 118 User’s Guide Configuring your Computers 3. From the DMZ Host check ratio, check on Enable 4. Type the IP Address in the DMZ Host IP Address field. 5. Click Apply Changes 6. From the left-hand menu, click on Save.

  • Page 119: Virtual Server

    User’s Guide Configuring your Computers Virtual Server Your device has built in advanced Security features that protect your network by blocking unwanted traffic from the Internet. If you simply want to connect from your local network to the Internet, you do not need to make any changes to the default Security configuration.

  • Page 120: Configuring Custom Applications

    User’s Guide Configuring your Computers Application Trigger port port required? number number 51200 true 51201 false Telnet false Secure shell (SSH) false Windows Media Services 1755 1755 false Gnutella 6346 false Kazaa 1214 false Windows Terminal Server 3389 false false PPTP 1723 1723...

  • Page 121: Virtual Server For Ftp

    User’s Guide Configuring your Computers Virtual Server for FTP In this example configuration, a custom application called FTP Server using TCP port 21 is created. 1. From the head Setup -> NAT menu, click on Virtual Server. The following page is displayed:...
  • Page 122 User’s Guide Configuring your Computers 2. Select FTP from the Usual Service Name drop-down list. 3. Select TCP from the Protocol drop-down list. 4. Select Interface from the WAN Setting drop-down list. 5. Select proper Interface from the WAN Interface drop-down list.
  • Page 123 User’s Guide Configuring your Computers Function Button Description Click to change the setting of default actions to the Apply Changes configuration. Delete Delete the selected port forwarding rules from the forwarding table. You can click the checkbox at the Select column to select the forwarding rule. Disable Disable forwarding rules from the forwarding table.

  • Page 124: Port Forwarding For Http

    User’s Guide Configuring your Computers Port Forwarding for HTTP In this example configuration, a custom application called HTTP Server using TCP port 80 is created. 1. From the head Setup -> NAT menu, click on Virtual Server. The following page is displayed:...
  • Page 125 User’s Guide Configuring your Computers 2. Select WEB from the Usual Service Name drop-down list. 3. Select TCP from the Protocol drop-down list. 4. Select Interface from the WAN Setting drop-down list. 5. Select proper Interface from the WAN Interface drop-down list.

  • Page 126: Deleting Custom Applications

    User’s Guide Configuring your Computers Fields on the Description first setting block Usual Service The usual Service is listed here. Name User-defined To define the Service Name manually. Service Name Protocol There are 2 options available: TCP, UDP. WAN Setting Select the proper WAN Setting WAN Interface Select the proper WAN Interface...
  • Page 127 User’s Guide Configuring your Computers 12. The Port Forwarding setting has been deleted completely. 13. From the left-hand menu, click on Save.

  • Page 128: Nat Forwarding

    User’s Guide Configuring your Computers NAT Forwarding Entries in this table allow you to automatically redirect common network services to a specific machine behind the NAT firewall. These settings are only necessary if you wish to host some sort of server like a web server or mail server on the private local network behind your Gateway's NAT firewall.

  • Page 129: Alg

    User’s Guide Configuring your Computers To setup NAT ALG and Pass-Through configuration Configuring ALG 2. From the head Advanced menu, click on NAT -> ALG. The following page is displayed:...

  • Page 130: Nat Exclude Ip

    User’s Guide Configuring your Computers NAT Exclude IP This page is used to config some source ip address which use the purge route mode when access internet through the specified interface. Configuring NAT Exclude IP 1. From the head Advanced menu, click on NAT -> NAT Exclude IP.

  • Page 131: Port Trigger

    User’s Guide Configuring your Computers Port Trigger Entries in this table are used to restrict certain types of data packets from your local network to Internet through the Gateway. Use of such filters can be helpful in securing or restricting your local network. Configuring Port Trigger 2.

  • Page 132: Ftp Alg Portl

    User’s Guide Configuring your Computers FTP ALG Portl This page is used to configure FTP Server ALG and FTP Client ALG ports. Configuring Port Trigger 3. From the head Advanced menu, click on NAT -> FTP ALG Portl. The following page is displayed:...

  • Page 133: Nat Ip Mapping

    User’s Guide Configuring your Computers Nat IP Mapping Entries in this table allow you to config one IP pool for specified source ip address from lan,so one packet which's source ip is in range of the specified address will select one IP address from pool for NAT.

  • Page 134: Ip Qos

    User’s Guide Configuring your Computers IP QoS Entries in this table are used to assign the precedence for each incoming packet based on specified policy. Config Procedure: 1: set traffic rule. 2: assign the precedence or add marker for different stream. IP QoS 1.
  • Page 135 User’s Guide Configuring your Computers Fields on the Description first setting block IP QoS Enable/disable the IP QoS function. Source IP The IP address of the traffic source. Source Netmask The source IP netmask. This field is required if the source IP has been entered.

  • Page 136: Cwmp Config

    CWMP Config CWMP is a protocol for communication between a CPE and Auto-Configuration Server (ACS). The CPE TR-069 configuration should be well defined to be able to communicate with the remote ACS. CWMP Configuration 1. From the head Advanced menu, click on CWMP. The...
  • Page 137 User’s Guide Configuring your Computers ACS Field Description ACS URL. For example, http://10.0.0.1:80 https://10.0.0.1:443 User Name The username the DSL device should use when connecting to the ACS. Password The password the DSL device should use when connecting to the ACS. Periodic Inform When this field is enabled, the DSL device will send an Enable...

  • Page 138: Port Mapping

    User’s Guide Configuring your Computers Port Mapping The DSL device provides multiple interface groups. Up to five interface groups are supported including one default group. The LAN and WAN interfaces could be included. Traffic coming from one interface of a group can only be flowed to the interfaces in the same interface group.
  • Page 139 User’s Guide Configuring your Computers...
  • Page 140 User’s Guide Configuring your Computers Fields on the Description first setting block Enabled/Disabled Radio buttons to enable/disable the interface group feature. If disabled, all interfaces belong to the default group. Interface groups To manipulate a mapping group: 1.Select a group from the table. 2.Select interfaces from the available/grouped interface list and add it to the grouped/available interface list using the arrow buttons to manipulate the...

  • Page 141: Bridging

    User’s Guide Configuring your Computers Bridging You can enable/disable Spanning Tree Protocol and set MAC address aging time in this page. Bridging 2. From the head Advance menu, click on Others. The following page is displayed: Fields on the Description first setting block Set the Ethernet address ageing time, in seconds.

  • Page 142: Client Limit

    User’s Guide Configuring your Computers Client Limit This page is used to limit the number of clients that can access the Internet through the modem router. Client Limit 3. From the head Advance menu, click on Others -> Client Limit. The following page is displayed: Others Here you can set other miscellaneous advanced settings.

  • Page 143: Igmp Proxy

    User’s Guide Configuring your Computers IGMP Proxy IGMP proxy enables the system to issue IGMP host messages on behalf of hosts that the system discovered through standard IGMP interfaces. The system acts as a proxy for its hosts when you enable it by doing the follows: .

  • Page 144: Upnp

    User’s Guide Configuring your Computers UPnP UPnP is an architecture for pervasive peer-to-peer network connectivity of intelligent appliances, Wireless devices, and PCs of all form factors. It is designed to bring easy-to-use, flexible, standards-based connectivity to ad-hoc or unmanaged networks whether in the home, in a small business, public spaces, or attached to the Internet.

  • Page 145: Configuring Upnp

    User’s Guide Configuring your Computers From the web page you can enable or disable UPnP. Configuring UPnP 1. From the head Services menu, click on UPnP. The following page is displayed: Fields on the Description first setting block UPnP Daemon Enable/disable UPnP feature.

  • Page 146: Upnp Control Point Software On Windows Me

    User’s Guide Configuring your Computers UPnP Control Point Software on Windows ME To install the control point software on Windows ME: 1. In the Control Panel, select "Add/Remove Programs". 2. In the "Add/Remove Programs Properties" dialog box, select the "Windows Setup" tab. In the "Components" list, double click on the "Communications"...

  • Page 147: Ssdp Requirements

    User’s Guide Configuring your Computers SSDP requirements You must have SSDP Discovery Service enabled on your Windows XP system to use the UPnP Control point software. SSDP Discovery Service is enabled on a default installation of Windows XP. To check if it is enabled on your system, look in Control Panel >...
  • Page 148 User’s Guide Configuring your Computers Installation procedure To install the Control point software on Windows XP, follow the steps below: 1. In the Control Panel, select "Add/Remove Programs". 2. In the "Add or Remove Programs" dialog box, click the "Add / Remove Windows Components"...
  • Page 149 User’s Guide Configuring your Computers 5. Select the following entries from the “Networking Services” window and then click "OK": If you are using Windows XP, select: • "Universal Plug and Play". If you are using Windows XP SP1, select: • "Internet Gateway Device discovery and Control Client". •...

  • Page 150: Snmp

    User’s Guide Configuring your Computers SNMP Simple Network Management Protocol (SNMP) is a troubleshooting and management protocol that uses the UDP protocol on port 161 to communicate between clients and servers. The DSL device can be managed locally or remotely by SNMP protocol.

  • Page 151: Dns Configuration

    User’s Guide Configuring your Computers DNS Configuration This page is used to configure the DNS server ip addresses for DNS Relay. DHCP Server Configuration - Attain DNS Automatically 1. From the head Services menu, click on DNS. 2. From check ratio, click on Attain DNS Automatically. 3.

  • Page 152: Dhcp Server Configuration - Set Dns Manually

    User’s Guide Configuring your Computers DHCP Server Configuration - Set DNS Manually 1. From the head Services menu, click on DNS -> DNS Server. 2. From check ratio, click on Attain Set DNS Manually. 3. Enter the IP Address of DNS. 4.

  • Page 153: Ipv6 Dns

    User’s Guide Configuring your Computers IPv6 DNS This page is used to configure the DNS server ipv6 addresses.

  • Page 154: Dynamic Dns Configuration

    User’s Guide Configuring your Computers Dynamic DNS Configuration Overview of Dynamic DNS If some host has a dynamic IP address that keeps changing frequently, it is difficult to keep updating the IP record that is associated with the domain name of this host in the zone files. This will result in non-accessibility of this host on the Internet.
  • Page 155 User’s Guide Configuring your Computers update request is sent. However, when the system comes up there is no way of knowing what was the IP address on last successful update before the system went down. You need to give the command “system config save“ periodically to save this IP address on Flash.

  • Page 156: Dynamic Dns Configuration - Dyndns.org

    User’s Guide Configuring your Computers Dynamic DNS Configuration – DynDNS.org 1. From the head Services menu, click on DDNS. 2. From DDNS provider drop-down list, select DynDNS.org. 3. Enter the Hostname. 4. From Interface drop-down list, select proper one. 5. Check the Enable check box. 6.
  • Page 157 User’s Guide Configuring your Computers Click Add to add this registration into the configuration. Remove Select an existing DDNS registration by clicking the radio button at the Select column of the Dynamic DNS Table. Click Remove button to remove the selected registration from the configuration.

  • Page 158: Dynamic Dns Configuration - Tzo

    User’s Guide Configuring your Computers Dynamic DNS Configuration – TZO 1. From the left-hand Services menu, click on DNS -> Dynamic DNS. 2. From DDNS provider drop-down list, select TZO. 3. Enter the Hostname. 4. From Interface drop-down list, select proper one. 5.
  • Page 159 User’s Guide Configuring your Computers Click Add to add this registration into the configuration. Modify Click Modify to modify this registration into the configuration. Remove Select an existing DDNS registration by clicking the radio button at the Select column of the Dynamic DNS Table.

  • Page 160: Mac Filtering

    User’s Guide Configuring your Computers MAC Filtering The MAC filtering feature allows you to define rules to allow or deny frames through the device based on source MAC address, destination MAC address, and traffic direction. Configuring MAC filtering to Deny for outgoing access 1.
  • Page 161 User’s Guide Configuring your Computers Fields on the Description first setting block Outgoing Default Specify the default action on the LAN to WAN Action bridging/forwarding path. Incoming Default Specify the default action on the WAN to LAN Action bridging/forwarding path. Function Button Description Apply Changes Click to change the setting of default actions to the...

  • Page 162: Ip/Port Filtering

    User’s Guide Configuring your Computers IP/Port Filtering Firewall contains several features that are used to deny or allow traffic from passing through the device. The IP/Port filtering feature allows you to deny/allow specific services or applications in the forwarding path. IP/Port Filtering 1.
  • Page 163 User’s Guide Configuring your Computers Fields on the Description second setting block Rule Action Deny or allow traffic when matching this rule. Direction Traffic forwarding direction. Protocol There are 3 options available: TCP, UDP and ICMP. Source IP The source IP address assigned to the traffic on which Address filtering is applied.

  • Page 164: Url Filter

    User’s Guide Configuring your Computers URL Filter The URL Filter is the web filtering solution. The firewall includes the ability to block access to specific web URLs based on string matches. This can allow large numbers of URLs to be blocked by specifying a Keyword.
  • Page 165 User’s Guide Configuring your Computers 2. From the URL Blocking check ratio, check on Enable 3. Click Apply Changes 4. Type the Keyword in the Keyword field. 5. Click AddKeyword 6. Configure URL Blocking of Keyword setting successfully! 7. From the left-hand menu, click on Save.

  • Page 166: Acl Configuration

    User’s Guide Configuring your Computers ACL Configuration You can specify which services are accessable form LAN or WAN side. Entries in this ACL table are used to permit certain types of data packets from your local network or Internet network to the Gateway.

  • Page 167: Dos

    User’s Guide Configuring your Computers A "denial-of-service" (DoS) attack is characterized by an explicit attempt by hackers to prevent legitimate users of a service from using that service. DoS Config 1. From the head Firewall menu, click on DoS. The following page is displayed:...

  • Page 168: Firmware Update

    User’s Guide Configuring your Computers Firmware Update The Firmware Update page allows you to:  manually download the latest firmware version from Chyba! V dokumentu není žádný text v zadaném stylu.’s website and manually update your firmware. See Manually updating firmware. About firmware versions Firmware is a software program.
  • Page 169 User’s Guide Configuring your Computers 4. Once you have selected the file to be installed, click Open. The file’s directory path is d isplayed in the Select File: text box. 5. Click Upload. The device checks that the selected file contains an updated version of firmware.
  • Page 170 User’s Guide Configuring your Computers 7. Firmware update has been update complete and it will bring you to the home page of the device:...
  • Page 171 User’s Guide Configuring your Computers...
  • Page 172 User’s Guide Configuring your Computers 8. From the head Maintenance menu, click on Reboot. The following page is displayed: Factory Default 9. From the Reboot from drop-down list, select Configuration Commit Changes 10. Click on 11. Please wait for 64 seconds to let the system reboot.

  • Page 173: Backup/Restore

    User’s Guide Configuring your Computers kup/Restore You can save the current configuration of your Router to a file on your computer. This is highly recommended before you change any configuration settings on the Router or before you upgrade your firmware. Backup settings 1.

  • Page 174: Restore Settings

    User’s Guide Configuring your Computers Restore settings 1. From the head Maintenance menu, click on Update -> store. The following page is displayed: Backup/Re 2. Click Brow se... and browse to the location of your backup file 3. Click Upload Figure 9: Backup &...

  • Page 175: Password

    User’s Guide Configuring your Computers Password You can restrict access to your device’s web pages using password protection. With password protection enabled, users must enter a usern ame and password before gaining access to the web pages. By default, password protection is enabled on your device, and the username and password set are as follows: Username: admin Password: admin...
  • Page 176 User’s Guide Configuring your Computers 2. This page displays the current username and password settings. Change your own unique password in the relevant boxes. They can be any combination of letters or numbers with a maximum of 30 characters. The default setting uses admin for the username and admin for password.

  • Page 177: Commit/Reboot

    User’s Guide Configuring your Computers Comm it/Reboot Whenever you use the web console to change system settings, the changes are initially placed in temporary storage. To save your changes for future use, you can use the Commit/Reboo function. This function saves your changes from RAM to flash memory and reboot the system.

  • Page 178: Reboot

    User’s Guide Configuring your Computers Reboot 1. From the head Maintenance menu, click on Reboot. The following page is displayed: Reboot 2. Click on 3. The System is Restarting ... Resetting to Defaults This page allows you to reset your device to its default factory settings.
  • Page 179 User’s Guide Configuring your Computers Software Reset: 1. From the head Maintenance menu, click on Reboot. The following page is displayed: Factory Default 2. From the Reboot from drop-d own list, select Configuration Commit Changes 3. Click on 4. Please wait for 64 seconds to let the system reboot.

  • Page 180: Time Zone

    User’s Guide Configuring your Computers e Zone Certain systems m ay not have a date or time mechanism or may be using inaccurate time/day information. the Simple Network Time Protocol feature provides a way to synchronize the device’s own time of day setting with a remote time server as described in RFC 2030 (SNTP) and RFC 1305 (NTP).
  • Page 181 User’s Guide Configuring your Computers Fields Description System Time The current time of the specified time zone. You can set the current time by yourself or configured by SNTP. DayLight Select the Day Light State Enable the SNTP client to update the system clo ck. Server The IP address or the host name of the first SNT server.
  • Page 182 User’s Guide Configuring your Computers Sele ct DayLigh t from the Da yLight drop-down list. . Check on Enable of State. 4. Add NTP S er using IP Address. . Select proper T ime Zone from Time Zone drop-down list. 6.
  • Page 183 User’s Guide Configuring your Computers Time GMT +/- Description Daylight S aving Daylight Saving Start Zone offset IDLW -1200 International Date Line West Not applicable Not applicable -1100 Not applica Not applicable -1000 Hawaii Standard Not applicable Not applicable AKST -900 Alaska Standard First Sunday of April...
  • Page 184 User’s Guide Configuring your Computers Time GMT +/- Description Daylight Saving Daylight Saving Start Zone offset +100 Central European Last Sunday March at Last Sunday 2:00am October at 2:00 +100 Middle European Last Sunday March at Last Sunday 2:00am October at 2:00 MEWT +100 Middle European Winter...
  • Page 185 User’s Guide Configuring your Computers Time GMT +/- Description Daylight Saving Daylight Saving Start Zone offset +900 Korean Standard Not applicable Not applicable +900 Japan Standard Not appli cable Not applicable CAST +930 Central Australian Sta ndard Last Sunday October Last Sunday March at 2:00am at 2:00am...

  • Page 186: Log

    User’s Guide Configuring your Computers This ARP Table sh ows a list of lea rned MA C addresses. 1. From the he Maintenance menu, c lick on Log. The following pag is displayed:...

  • Page 187: Diagnostic

    User’s Guide Configuring your Computers Diagnostic The DSL device supports some useful diagnostic tools. Ping Once you have your DSL device configured, it is a good idea make sure you can ping the netw ork. A ping command sends a message to the host you specify.

  • Page 188: Ping6

    User’s Guide Configuring your Computers 5. Now you could see the result below: Ping6 Once you have your DSL device configured, it is a good idea t make sure you can ping the network. A ping command sends a message to the host you specify. If the host receives the message, it sends messages in reply.

  • Page 189: Tracert

    ATM Loopback In order to isolate the ATM interface problems, you can use ATM OAM loopback cells to verify connectivity between VP/VC endpoints, as well as segment endpoints with in the VP/VC. ATM uses F4 and F5 cell flows as follows: −F4: used in VPs...
  • Page 190 User’s Guide Configuring your Computers 1. From the head Maintenance menu, click on Diagnostic -> opback. The following page is displayed: OAM Lo...

  • Page 191: Adsl Diagnostic

    User’s Guide Configuring your Computers ADSL Diagnostic This page displays the ADSL Tone Diagnostic performance. Click Start button to start the ADSL diagnostic. 1. From the head Maintenance menu, click on Diagnostic -> ADSL Diagnostic. The following page is displayed: 2.

  • Page 192: Diagnostic Test

    User’s Guide Configuring your Computers Diagnostic Test The Diagnostic Test page shows the test results for the connectivity of the physical layer and protocol layer for both LA and WAN sides. 1. From the head Maintenance menu, click on Diagnostic -> Diag-Test.
  • Page 193 User’s Guide Configuring your Computers Fields Description Select the The available WAN side interfaces are listed. You Internet have to select one for the WAN side diagnostic. Connection Function Description buttons RUN Diagnostic To start the RUN Diagnostic Test Test...

  • Page 194: Configuring Your Computers

    User’s Guide Configuring your Computers Configuring your Computers his appen dix prov ides instructions for configuring the Internet ettings on yo ur computers to work with the Wireless ADSL2+ Router. Configur ing Ethernet PCs Before you begin y default, the Wireless ADSL2+ Router automatically assigns e required Internet settings to your PCs.
  • Page 195 User’s Guide Configuring your Computers 3. In the Network and Dial-up Connections window, right-click the Local Area Connection icon, and then select Properties. The Local Area Connection Properties dia log box is displayed with a list of currently installed n etwork components.

  • Page 196: Windows Me Pcs

    User’s Guide Configuring your Computers Windows Me PCs 1. In the Windows task bar, click the Start button, point to Settings, and then click Control Panel. Double-click the Network and Dial-up Connections icon. In the Network and Dial-up Connections window, right-click the N etwork icon, and then select Properties.

  • Page 197: Windows Nt 4.0 Workstations

    User’s Guide Configuring your Computers 5. Click on Microsoft in the Manufacturers list box, and then click TCP/IP in the Network Protocols list box. 6. Click OK to return to the Network dialog box, and then click OK again. You may be prompted to install files from your Windows 95/98 installation CD.

  • Page 198: Assigning Static Internet Information To Your Pcs

    User’s Guide Configuring your Computers 7. Open the Control Panel window, and then double-click the Network icon. 8. In the Network dialog box, click the Protocols tab. 9. In the Proto cols tab, select TCP/IP, and then click Properties. In the Microsoft TCP/IP Properties dialog box, click the radio button labeled Obtain an IP address from a DHCP server.

  • Page 199: Ip Addresses, Network Masks, And Subnets

    User’s Guide IP Addresses, Network Masks, and Subnets IP Addresses, Network Masks, and Subnets IP Addresses This section refers only to IP addresses for IPv4 (version 4 of the Internet Protocol). IPv6 addresses are not covered. his section assumes basic knowledge of binary numbers, bit Note d bytes.

  • Page 200: Subnet Masks

    User’s Guide IP Addresses, Network Masks, and Subnets scope of this discussion.) These classes have different uses and characteristics. Class A networks are the Internet's largest networks, each with room for o ver 16 million hosts. Up to 126 of these huge networks can exist, for a total of over 2 billion hosts.
  • Page 201 User’s Guide IP Addresses, Network Masks, and Subnets 255.255.255.192 or 11111111. 11111111. 11111111.11000000 The two extra bits in field4 can have four values (00, 01, 10, 11), so there are four subnets. Each subnet uses the remainin g six bits in field4 for its host IDs, ranging from 1 to 62. ometimes a subnet mask does not specify any additional network ID bits, and thus no subnets.

  • Page 202: Troubleshooting

    Chyba! Styl není definován. User’s Guide Troubleshooting Trou bleshooting This appendix suggests solutions for problems you may encounter in installing or using the Wireless ADSL2+ Router, and provides instructions for using several IP utilities to diagnose problems. Contact Customer Support if these suggestions do not resolv the problem.
  • Page 203 User’s Guide Troubleshooting Problem Troubleshooting Suggestion erify that the DNS server IP address My LAN PCs cannot pecified on the PCs is correct for your ISP, display web pages s discussed in the item above. If you on the Internet. specified that the DNS server be assi gned dynamically from a server, then verify with...

  • Page 204: Diagnosing Problem Using Ip Utilities

    User’s Guide Troubleshooting Diagnosing Problem using IP Utilities ping Ping is a command yo u can use to check whether your PC can recognize other comp uters on your network and the Internet. A ping command sends a message to the computer you specify. the computer receives the message, it sends messages in reply.

  • Page 205: Nslookup

    User’s Guide Troubleshooting nslookup You can use the nslookup command to determi ne the IP address associated with an Internet site name. You specify the comm on name, and the nslookup command looks up the name in on your DNS server (usually located with your ISP). If that name is not an entry in your ISP’s DNS table, the request is then referred to another higher-level server, and so on, until the entry is found.

  • Page 206: Glossary

    User’s Guide Glossary Glos sary A designation for the type of wiring used by Ethernet 10BASE-T networks with a data rate of 10 Mbps. Also known as Category 3 (CAT 3) wiring. See data rate, Ethernet. A designation for the type of wiring used by Ethernet 100BASE-T networks with a data rate of 100 Mbps.
  • Page 207 User’s Guide Glossary Dynamic Host Configuration Protocol DHCP DHCP automates address assignment and management. When a c omputer connects to the LAN, DHCP assigns it an IP addres s from a shared pool of IP addresses; after a specified time limit, DHCP returns the address to the p ool.
  • Page 208 User’s Guide Glossary Hyper-Text Transfer Protocol HTTP HTTP is the main protocol used to transfer data from web sites so that it can be displayed by web browsers. See web browser, web site. A hub is a place of convergence where data arrives from on or more directions and is forwarded out in on e or more directions.
  • Page 209 User’s Guide Glossary LAN know these addresses; th e outside world sees only the public IP address when talking to a computer on your LAN. A group of computers that are connected together, allowing network them to communica te with each other and share resources, such as software, files, etc.
  • Page 210 User’s Guide Glossary machines, modems, etc. to a telephone port. It is a 6-pin connector usually containing four wires. Registered Jack Standard-45 RJ-45 The 8-pin plug used in transmitting data over phone lines. Ethernet cabling usually uses this type of connector. Forwarding data between your network and the Internet on routing...
  • Page 211 Web page hyperlinks (cross-references) to the other pages on that web site, as well as to pages on other web sites. When a user accesses a web site, the first page that is displayed is called the home page. See hyperlink, web site.
  • Page 212 User’s Guide Glossary World Wide Web Also called (the) Web. Collective term for all web sites anywhere in the world that can be accessed via the Internet.

Table of Contents
