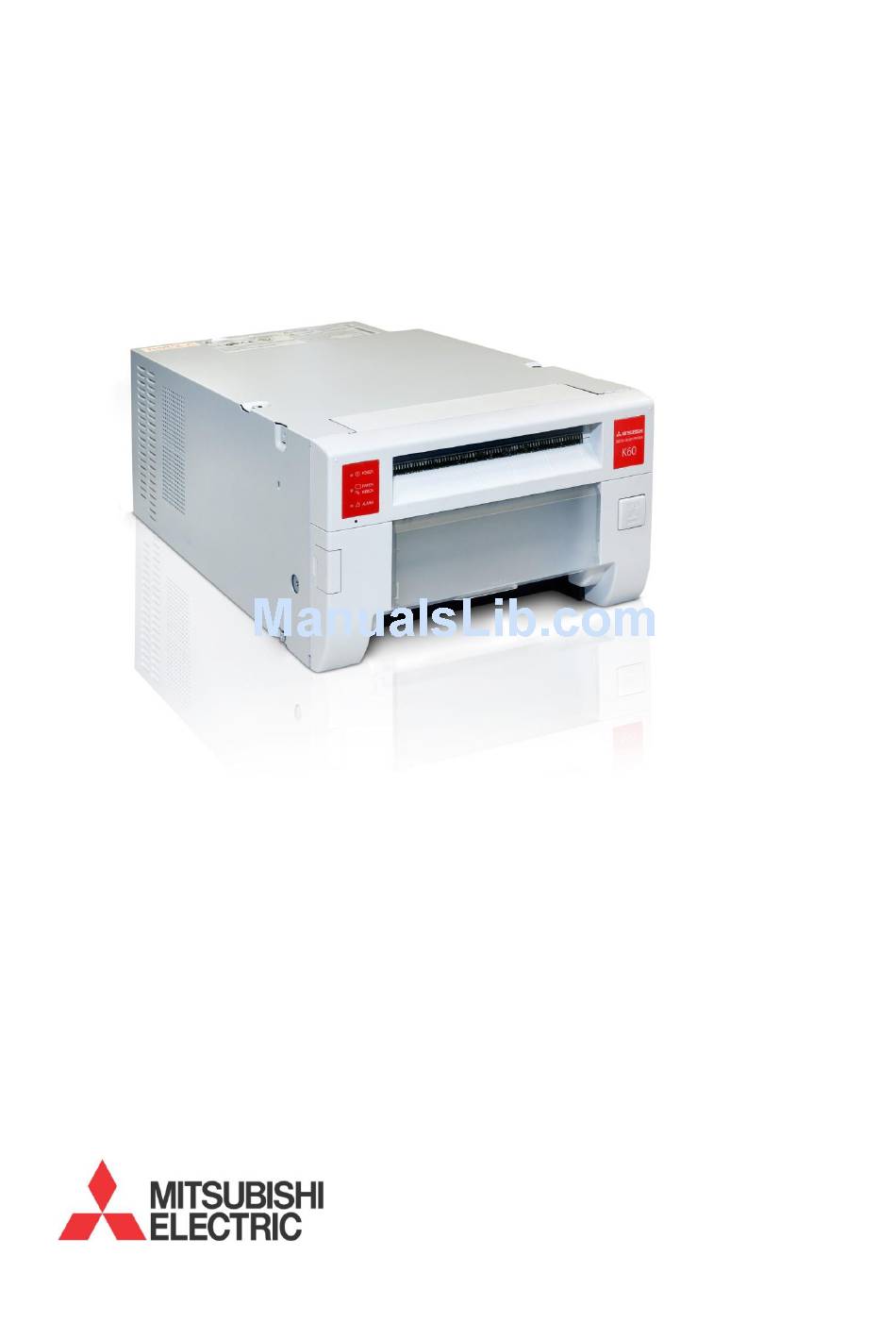

MITSUBISHI Photo Suite User Manual
CPK60 Printer
Version 1.1
1

Advertisement

   Related Manuals for Mitsubishi Electric CPK60

   Summary of Contents for Mitsubishi Electric CPK60

  • Page 1 MITSUBISHI Photo Suite User Manual CPK60 Printer Version 1.1...
  • Page 2: Table Of Contents

    Content MITSUBISHI Photo Suite ......................3 System requirements: ......................4 Printer specifications ....................... 5 Installation ..........................5 Printing of files......................... 9 Advanced colour settings...................... 11 Uninstalling..........................13...
  • Page 3: Mitsubishi Photo Suite

    1. MITSUBISHI Photo Suite MITSUBISHI Photo Suite is a solution that allows you to print directly to a Mitsubishi K60 printer from your computer. Once the solution has been installed, you can print from any application or from the operating system.
  • Page 4: System Requirements

    MITSUBISHI Photo Suite is compatible with the following operating systems: Windows XP Service Pack 3, Windows Vista, Windows 7. To install the MITSUBISHI Photo Suite software the user must be the machine administrator or have administrator permits. Minimum system Recommended system...
  • Page 5: Printer Specifications

    Before continuing to install the MITSUBISHI Photo Suite read the system requirements section carefully and uninstall any previous version. Starting with the Mitsubishi Photo Suite 1.1 version, use the same installer to uninstall the previous versions. During the installation process, the existence of previous versions will be verified and the uninstall process executed.
  • Page 6 32-bit operating systems. Execute the ‘MITSUBISHI Photo Suite’ installation assistant. Follow the steps indicated by the assistant. After completing the operation, connect the Mitsubishi K60 printer to a 2.0 USB port in your computer. If a message appears saying a New hardware device has been detected, please cancel it.
  • Page 7 64-bit operating systems. Execute the ‘MITSUBISHI Photo Suite’ installation assistant. Follow the steps indicated by the assistant. After completing the operation, connect the Mitsubishi K60 printer to a 2.0 USB port in your computer. If a message appears saying a "New hardware device" has been detected, please cancel it.
  • Page 8 If the controller is correctly installed, the printer will be displayed in the Windows devices administration panel as “MITSUBISHI USB Printer “. Once the above steps have been completed, the printer will now be installed and ready to use. You will find the application In the Windows home menu, in: If, once installed, you connect the printer to another 2.0 USB port in your computer,...
  • Page 9: Printing Of Files

    5. Printing of files. Once the “MITSUBISHI Photo Suite” has been installed, you can print from any application such as a conventional printer, selecting the “K60 Printer”. You can also print from other programmes such as Adobe Photoshop ®. To do this, adjust the output parameters in accordance with the printer specifications described above.
  • Page 10 Select the photographs to be printed Follow the steps indicated by the assistant to print the selected photographs.
  • Page 11: Advanced Colour Settings

    6. Advanced colour settings. In the “K60 Printer” panel in the section “Advanced printing characteristics” the following parameters can be defined. Paper size: Your can select from among the following formats: 10x15cm / 4x6”, 15x20cm / 6x8” and 13x18cm (centred on a 15x20cm) / 5x7” in 6x8”. Type of finish: You can select either a “Matte”...
  • Page 12 ICC provided by Mitsubishi Electric, select Gamma5.  Colour Chart: You can select one of two values, “Chart0” and “None”. To use the colour curve with the ICC provided by Mitsubishi Electric, select "None" To obtain the best results, combine “Chart0” and “Gamma1”...
  • Page 13: Uninstalling

    Once the process has been completed, the “MITSUBISHI Photo Suite” will be completely uninstalled from your computer. Starting with the Mitsubishi Photo Suite 1.1 version, use the same installer to uninstall the previous versions. During the installation process, the existence of previous...
  • Page 14 Thank you for purchasing Mitsubishi Electric® products Microsoft, Windows, Windows XP SP3, Windows Vista and Windows 7 are registered trademarks of Microsoft Corporation in the USA and/or in other countries. Adobe and Adobe Photoshop are registered trademarks of Adobe Systems.
