IPL M PDP-ES
Quick Start Guide —
After issuing this command, the unit will change to the new
address and start responding to the ping requests. The
interface card's IP address should now be updated to the new
address, and then you can reconnect using either Telnet or the
Web to verify that the update was successful.
5. After verifying that the change was successful, issue the
arp –d command at the DOS prompt. For example:
arp –d 10.13.170.15 will remove 10.13.170.15 from the arp
table
or
arp –d will remove all static IP addresses from the arp table.
Communication With the Interface Card
The on-board Web server has a set of built in, default Web pages
which can be accessed via a Web browser. If using Internet
Explorer, you must also have Microsoft Script (version 5.6 or
higher).
Accessing and using the Web server
Access the IPL M PDP-ES interface card through the built in Web
server pages as follows:
1. Launch your Web browser.
2. Click in the browser's Address field.
Enter your IPL M PDP-ES IP address in the browser's
3.
Address field. The browser's Address field should display
the address in the following format: http://xx.xx.xxx.xx.
For example:
http://10.13.170.15
If the local system administrators have not changed the value,
the factory-specified default, 192.168.254.254, is the correct
value for this field.
4. Press the keyboard Enter key.
5. The IPL M PDP-ES card's System Status page should appear.
If you are unable to access the Web server, see Troubleshooting in
chapter 4 of the IPL M PDP-ES User's Manual.
Navigating the Default Web pages
The IPL M PDP-ES default Web pages include four tabs (Status,
Configuration, File Management, and Pioneer).
4 IPL M PDP-ES • Quick Start
, cont'd Quick Start Guide —
The Pioneer plasma must have an ID set to 01 to obtain status and
control information.
System Status page

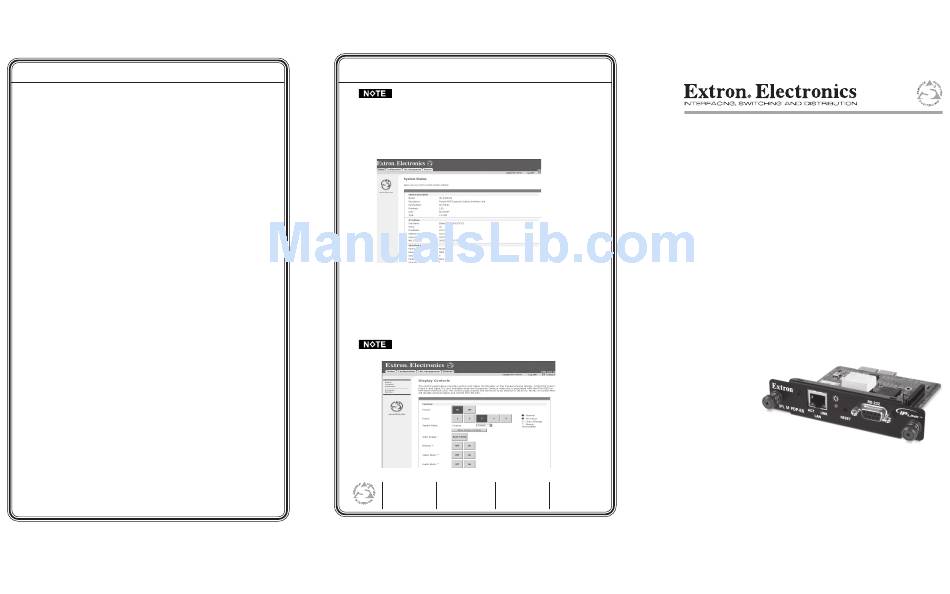

The System Status page (figure 6) is the default page of the on-board
Web server, and displays the IP settings and serial port settings for
the IPL M PDP-ES interface card.
Figure 6 — System Status page
Display Controls page
The Display Controls page (figure 7) is accessible from the Controls
link on the left side of the window. According to password level, the
buttons and fields on this page allow you to control and/or view the
status of the Pioneer plasma display.
For specific functionality details and supported commands for
your Pioneer plasma, refer to the Pioneer plasma documentation.
Figure 7 — Pioneer Display Controls screen
Extron Electronics, USA
1230 South Lewis Street
Anaheim, CA 92805
USA
714.491.1500
www.extron.com
Fax 714.491.1517
5 IPL M PDP-ES • Quick Start
IPL M PDP-ES
, cont'd
Extron Electronics, Europe Extron Electronics, Asia Extron Electronics, Japan
Beeldschermweg 6C 135 Joo Seng Road, #04-01 Daisan DMJ Building 6F
3821 AH Amersfoort PM Industrial Building 3-9-1 Kudan Minami
The Netherlands Singapore 368363 Chiyoda-ku, Tokyo 102-0074
+31.33.453.4040 +65.6383.4400 +81.3.3511.7655
Fax +31.33.453.4050 Fax +65.6383.4664 Fax +81.3.3511.7656
© 2004 Extron Electronics. All rights reserved.

Quick Start Guide

IPL M PDP-ES
IP Link Tools
68-1021-10 Rev. A
Printed in USA
11 04
