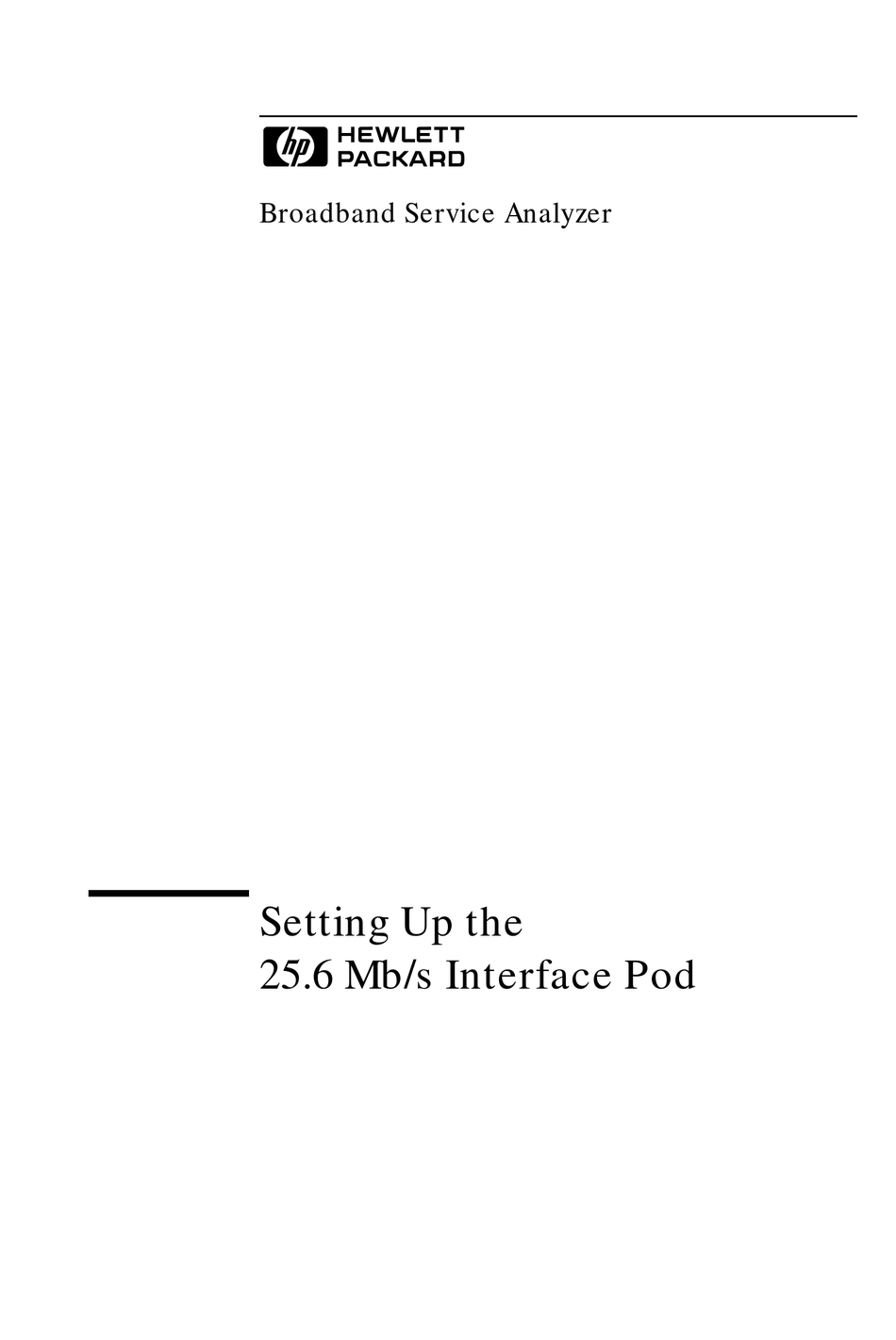

- Page 1 Broadband Service Analyzer Setting Up the 25.6 Mb/s Interface Pod...
- Page 2 Manual Name: Manual Part Number: Product Model Number: HP E5129A Edition Visit the Broadband Service Analyzer web site at http://www.hp.com/go/atmanalyzer Hewlett-Packard Australia Ltd Product support Communications Measurements Division Australia PO Box 221 Blackburn, 3130...
-
Page 3: Table Of Contents
Contents Guide to the Broadband Service Analyzer Documentation ...iv About the 25.6 Mb/s Interface Pod ... 1 Online Help ... 2 To Access User Online Help... 2 Front Panel at a Glance ... 3 Cable and Line Connector Details ... 4 Connector Cable Configurations ... -
Page 4: Guide To The Broadband Service Analyzer Documentation
Guide to the HP E5200A Broadband Service Analyzer Documentation Guide to the HP E5200A Broadband Service Analyzer Documentation The HP E5200A Broadband Service Analyzer comes with a comprehensive set of paper and online documentation. Use the following table to determine which documents you should use. -
Page 5: About The 25.6 Mb/S Interface Pod
Overview The HP E5129A 25.6 Mb/s Interface Pod is a self-contained, plug-in module. You use it in conjunction with the HP E5200A Broadband Service Analyzer to test and analyze a system under test (SUT). The interface pod generates and analyzes ATM cell streams in a 25.6 Mb/s 4B5B format, in accordance with ATM Forum ATM 25.6 Mb/s over Twisted... -
Page 6: Online Help
Online Help The Online Help provides all the information you need to use the analyzer. Refer to the HP Broadband Service Analyzer User’s Guide for information on the Monitor/Simulate help. Refer to theApplication Guide for the B-ISDN UNI Signaling Tests for information on the B-ISDN UNI Signaling Test help. -
Page 7: Front Panel At A Glance
Front Panel at a Glance (green LED) Lights each time the interface pod is accessed by the Access network. (yellow LED) Lights when a valid signal is present at the input connector. Signal (UTP) Accepts an electrical signal from and provides a signal to the SUT. I/O Concentrator Front Panel at a Glance... -
Page 8: Cable And Line Connector Details
Cable and Line Connector Details Cable and Line Connector Details The HP E5129A 25.6 Mb/s Interface Pod’s connector pin configuration adheres to the specification defined in the IBM Corporation’s ATM 25.6 Mb/s PHY Compatibility Specification, Version 2.0, 15 October, 1993. -
Page 9: Connector Cable Configurations
Connector Cable Configurations The interface pod comes with three cables: part number E1619-64300 connects a user device to the network (2 to 3 in the table below) part number E1619-64301 connects the interface pod to a user device (1 to 2 in the table below) part number E1619-64302 connects the interface pod to the network equipment (1 to 3 in the table below) The following table sets out the pin configurations for the three connector... -
Page 10: To Set Up The Interface Pod
To Set Up the Interface Pod To Set Up the Interface Pod Caution Handle the interface pod with care to avoid electrostatic discharge (ESD) damage during unpacking, installation, and operation. The connectors on the front and rear of the interface pod are susceptible to ESD. 1 Insert the interface pod into the analyzer. -
Page 11: To Insert The Interface Pod
Caution You must always have two interface pods inserted in the the HP E5200A Broadband Service Analyzer while it is operating. If your operations require only a single interface pod, insert the blank interface pod (provided with the analyzer) into the other port. -
Page 12: To Remove The Interface Pod
To Connect to the System Under Test Before you connect the interface pod to the system under test (SUT), ensure that you have connected the HP E5200A Broadband Service Analyzer to the controlling computer (workstation or notebook PC) inserted the HP E5129A 25.6 Mb/s Interface Pod Select the cable you need from the three provided. - Page 13 See the HP E5200A Broadband Service Analyzer User’s Guide or the Online Help for details about these system connections. The analyzer automatically sets the interface pod transmit and receive parameters and configures according to the signal it receives from the interface pod.
-
Page 14: Automatic Configuration Parameters
To Set Up the Interface Pod Automatic Configuration Parameters After you insert the interface pod and connect it to the SUT, the analyzer automatically configures to the 25.6 Mb/s electrical signal. The analyzer sets the remaining physical layer receive and transmit parameters to the following defaults: reference (internal) clock full duplex, transmit and receive... -
Page 15: To Manually Configure The Interface Pod
To Manually Configure the Interface Pod 1 From the Configure menu, select the appropriate port; then select Set Up. 2 Click the ATM25 tab. 3 Select the parameters you require. Note See the UNI Signaling Test Application’s Help for information on configuring the 25.6 Mb/s interface pod from the B-ISDN UNI Signaling Test Application. -
Page 16: What To Do Next
What to Do Next X8 Timing Marker Source Setting When you change the X8 timing marker source setting, the traffic generator settings are cleared. The analyzer does this because it has to re- calculate and re-adjust the total allowable transmit bandwidth to allow for the X8 marker when you enable X8 marker generation allocate all available bandwidth to transmit traffic when you disable X8 marker generation... -
Page 17: Standards And Specifications
Standards and Specifications Communications Standards af-phy-004.400 ATM 25.6 Mb/s over Twisted Pair Cable, ATM Forum ITU-T I.432.5 B-ISDN User Interface for Physical Layer ATM 25.6 PHY compatibility IBM Corporation specification Physical Specifications Weight 1.0 kg ( 2.2 lbs) (nominal) Dimensions Height: 44 mm (1.73 inches) Width:... -
Page 18: Environmental Specifications
Standards and Specifications Environmental Specifications Parameter Operating Temperature Storage Temperature Humidity Altitude Nominal Min. Max. Notes with two interface pods installed (113 –40 (–40 (158 at 40 4.6 km (2.86 miles) C (104... - Page 19 HP software and firmware products that are designated by HP for use with a hardware product, when properly installed on that hardware product are warranted not to fail to execute their programming instructions due to defects in materials and workmanship.
- Page 20 Warnings The following general safety precautions must be observed during all phases of operation, service, and repair of this product. Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture, and intended use of the product.
- Page 21 Avertissement Cet appareil répond aux normes de la “Classe de sécurité 1” et est muni d’un fil de mise à la terre pour votre protection. Pour prévenir les risques de choc électrique, la broche de mise à la terre du cordon d’alimentation ne doit pas être désactivée.
-
Page 22: Declaration Of Conformity
This product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC. The product meets the listed specifications when installed in an HP E5200A with interface pods installed in both ports. Bit error performance will be reduced under these conditions.
