Rear Panel Layout

1. SINGLE-ENDED input jack.
1. INPUT SELECT SWITCH: In the UP
position selects the RCA input. In the
DOWN position selects the XLR input.
3. BALANCED input jack.
3. BINDING POST (Cardas type). Connect
plus and minus speaker wires for one
speaker to appropriately marked termi-
nals of this post.
3. Second BINDING POST. This is used
when Bi-Wiring a speaker. When Bi-
Wiring, please be certain to remove the
jumper between the woofer and high-
frequency section of the loudspeaker.
6. STANDBY REMOTE TRIGGER jack.
When the rear panel STANDBY TRIG-
GER jack receives a 5-12 VDC signal
Prometheus will turn on. When the signal
is removed, the amplifier will turn off.
7. MAIN POWER switch. Master power
switch. Disconnects AC to all circuits. It is
recommended that this be left ON at all
times during regular use with the excep-
tion of whenever cables are connected/
disconnected or when the unit is not going
to be used for an extended period of time.
8. Main Power FUSE. If necessary, replace
with same type and rating only.
9. Amplifier AC POWER INPUT.
1
2
3
4
5

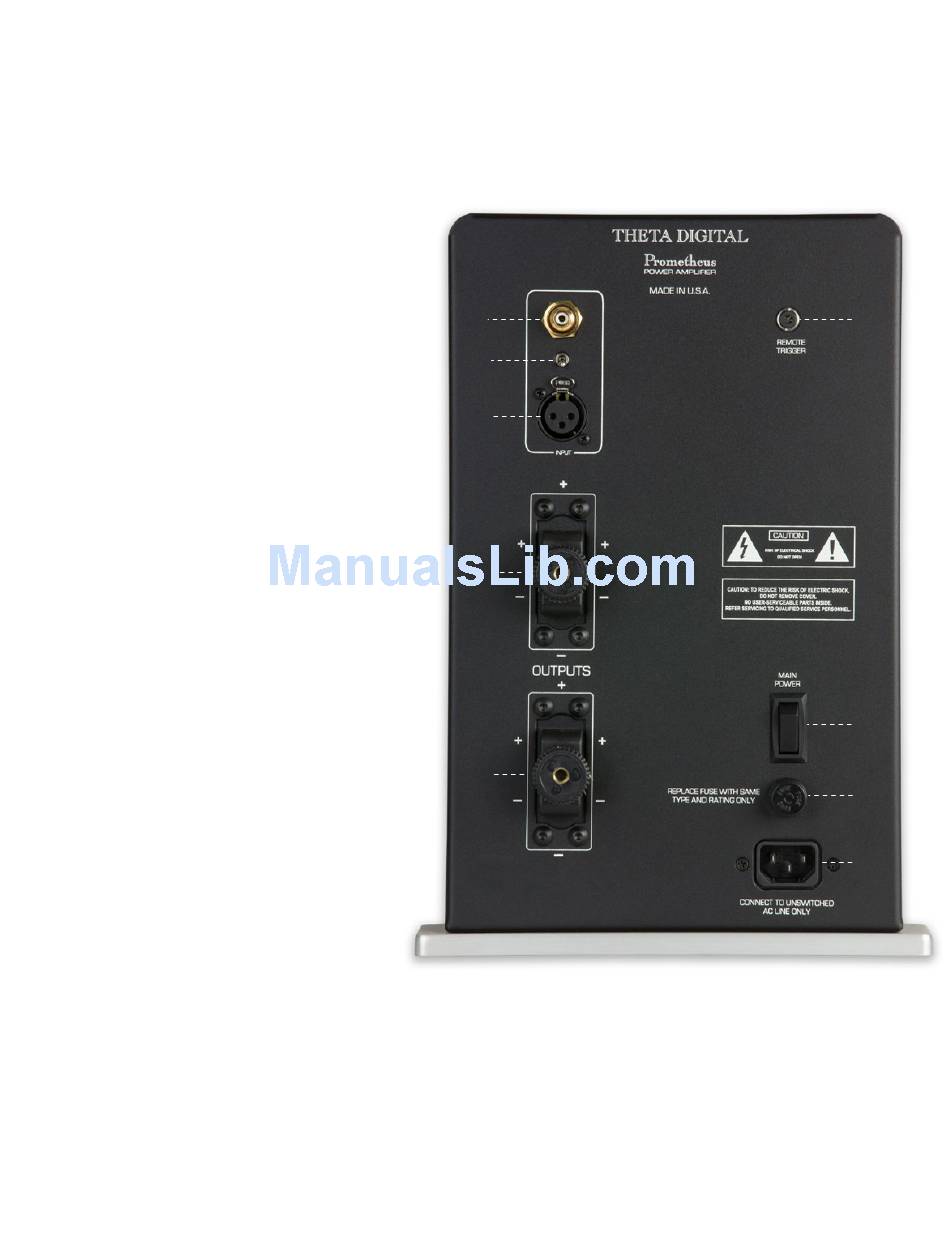

Figure 4 – Rear Panel Layout
6
7
8
9
