DR-520.WiFi
Portable HD DVR with Wi-Fi
User Manual

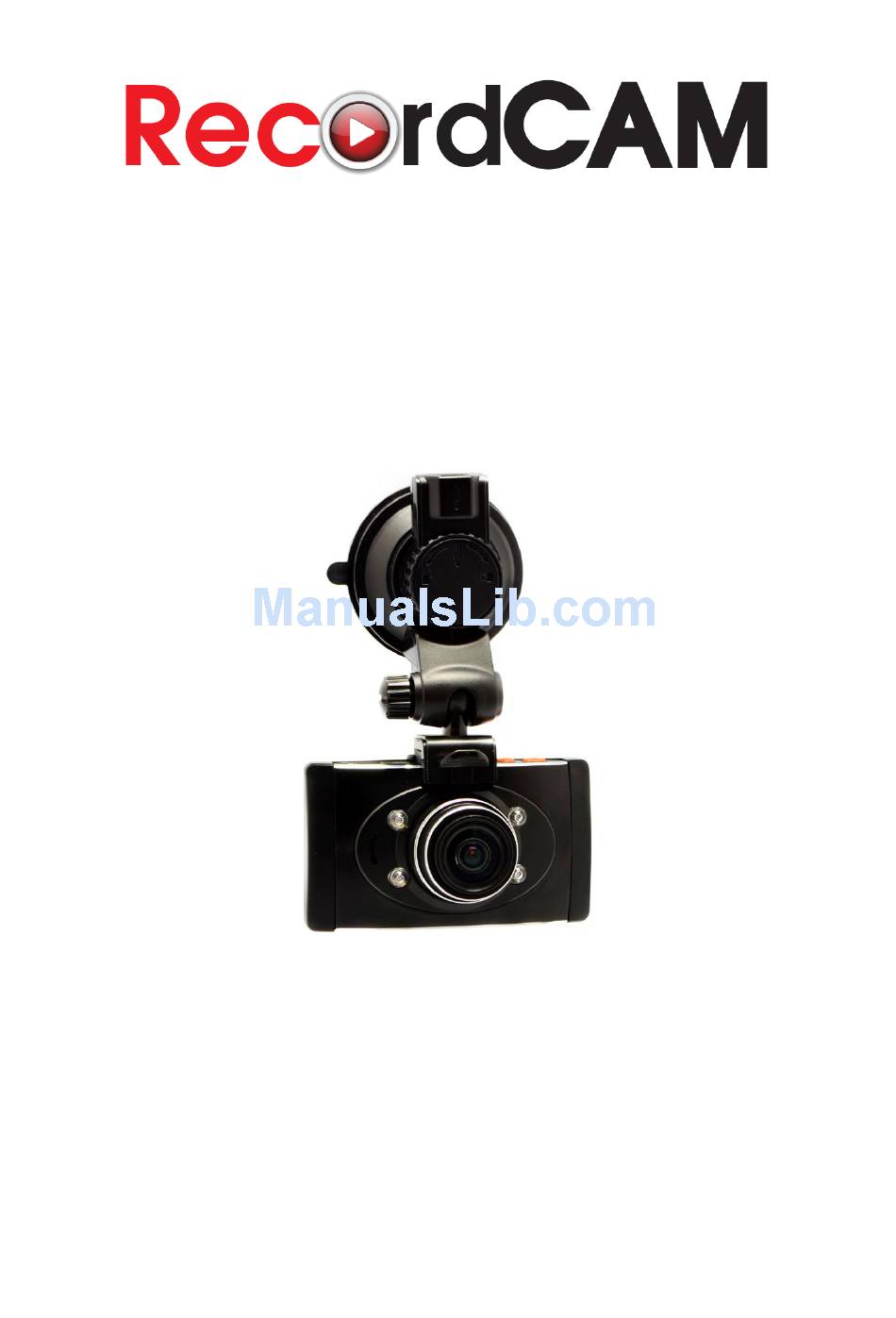

The DR-520.WiFi is a high definition Wi-Fi DVR system and is part of our RecordCam™ series of DVR products in our
SafetyPlus™ product line. It is designed to be mounted on the windshield of the vehicle and has a built-in 120° CMOS
camera with IR night vision. The system records in HD 1080P and the recordings are stored on a Micro SD card (32GM max)
which can be retrieved from the system or the unit itself to view the video files. The unit can have the time and date
programmed into it and will display the time and date of each recording. The system also has a built-in 2.7" color LCD screen
for on-site playback of the recordings and a built-in microphone for audio recording.
*PLEASE READ THROUGH THE MANUAL CAREFULLY*
Advertisement
Table of Contents
Related Manuals for RecordCam DR-520.WiFi
Summary of Contents for RecordCam DR-520.WiFi
-
Page 1: User Manual
User Manual The DR-520.WiFi is a high definition Wi-Fi DVR system and is part of our RecordCam™ series of DVR products in our SafetyPlus™ product line. It is designed to be mounted on the windshield of the vehicle and has a built-in 120° CMOS camera with IR night vision. -
Page 2: Product Features
PRODUCT FEATURES: 1. REC/OK 5.IR lights 9. Indicator 13. M icrophone 2. ON/OFF 6. Micro-SD card slot 10. SOS/WiFi 14. Speaker 3. Car charger port 7. Suction cup holder 11. RESET 15. Lens 4. USB port 8. Touch Screen 12. HDMI out What’s in the box: Pro-1701 DVR system, Suction Cup Mount, Car Charger, USB Cable and User Manual. - Page 3 Installation and Removal of Micro SD card 1. In the direction as indicated, insert the Micro SD card into the slot until it is held firmly. 2. To take the Micro SD card out, lightly press the Micro SD card to eject it out. [Note] - Before inserting or removing the SD card, please make sure to turn OFF DVR system.
- Page 4 [Note] - When the DVR is mounted on the windshield with car charger connected, it will power ON and start recording automatically once car ignition is turned on. 2. Set Video Options Press the Menu key on LCD screen to enter the setup mode for video options. - Resolution: 1080P (30fps) / 720P (60fps) - Seamless (Loop Recording): Off / 1min / 3min / 5min.
- Page 5 [NOTE] To watch recorded videos, please transfer videos from the SD card to the computer. This DVR is compatible with Windows XP, Windows 7 and Windows 8 Operating system as well as Apple OSX operating systems. PC-CAM Connect the DVR to your computer while the DVR system is powered off and the display will show 2 options: MSDC / PC-CAM.
- Page 6 phone. Use the buttons in the app to take videos/photos and download video files from SD card in the DVR to your smart phone. Note: - The WiFi connection between DVR and smart phone must be Point-to-Point. If you want to change to a different Smart Phone and still use the WiFi connection, please make sure to disconnect the current WiFi connection first.
