DR-170
Portable HD DVR System
User Manual
The DR-170 is a compact high definition DVR system and is part of our RecordCam™ series of Mobile DVR
systems. It is designed to be mounted on the windshield of the vehicle and has a built-in 120° CMOS camera.
The system records in HD 1080P and the recordings are stored on a Micro SD card (32GM max) which can be
retrieved from the system or the unit itself to view the video files. The unit can have the time and date
programmed into it and will display the time and date of each recording. The system also has a built-in 1.5" color
LCD screen for on-site playback of the recordings and a built-in microphone for audio recording
*PLEASE READ THROUGH THE MANUAL CAREFULLY*
Advertisement
Related Manuals for RecordCam DR-170
Summary of Contents for RecordCam DR-170
-

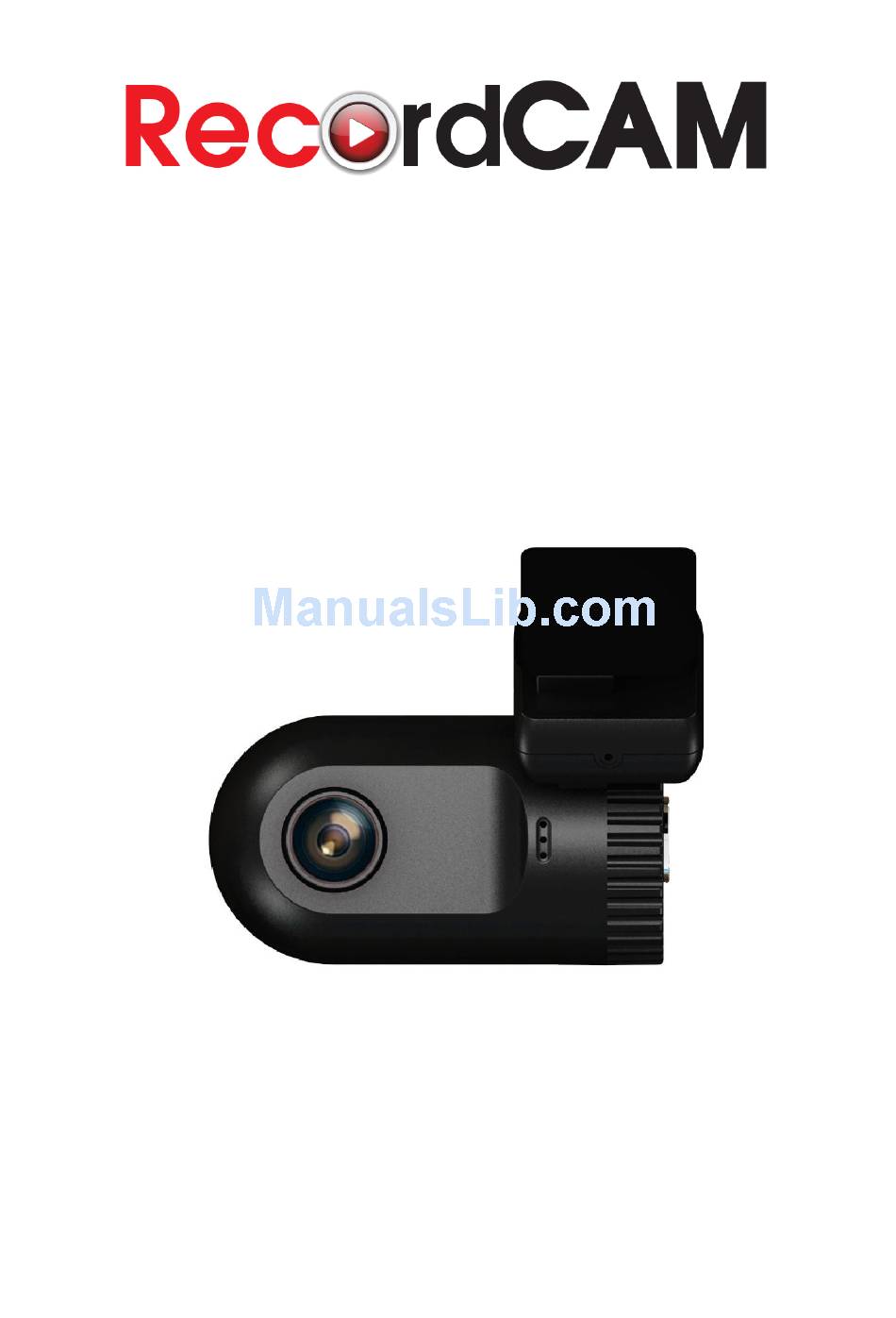

Page 1: User Manual
User Manual The DR-170 is a compact high definition DVR system and is part of our RecordCam™ series of Mobile DVR systems. It is designed to be mounted on the windshield of the vehicle and has a built-in 120° CMOS camera. -
Page 2: Product Features
15. Microphone 8. LCD Screen What’s In the box: DR-170 DVR, 3M Mount, Car Charger, USB Cable and User Manual. Charging the Battery: 1. Connect the DVR to car charger through Mini-USB port. The DVR will power on automatically and enter standby mode. - Page 3 Installation and Removal of Micro SD card 1. In the direction as indicated, insert the Micro SD card into the slot until it is held firmly. 2. To take the Micro SD card out, lightly press the Micro SD card to eject it out. [Note] - Before inserting or removing the SD card, please make sure to turn OFF DVR system.
- Page 4 Recording Video and Setting Video Recording Menu 1. Recording video After power is turned ON, the DVR enters Video Mode as default, with icon icon will be displayed in the upper-left corner of screen. Press the ‘REC/OK’ key to start video recording as long as the correct Micro SD card been inserted into the system.
- Page 5 Connection to computer via USB Cable USB Backup Mode (MSDC) You can upload your videos and pictures to your computer by using the provided mini-USB cable. Make the connection while DVR is powered off and the display will show 2 options: MSDC / PC-CAM. MSDC = upload to computer, Highlight the MSDC by using the UP/DOWN keys and press REC/OK key to enter your choice.
- Page 6 Technical Specifications Screen size 1.5″ 960x240 TFT-LCD Lens 120° A+ class Glass lens OSD language English/Russian/Chinese/etc Video resolution 1080P (30fps)/ 720P (60fps) Video format H.264 codec, AVI Photo size 12M/10M/8M/5M/2M Photo format JPEG Memory card Micro SD card, support from 4GB-32GB/C4-C10 Microphone/Speaker Built-in Power frequency...
