Motherboard User's Guide

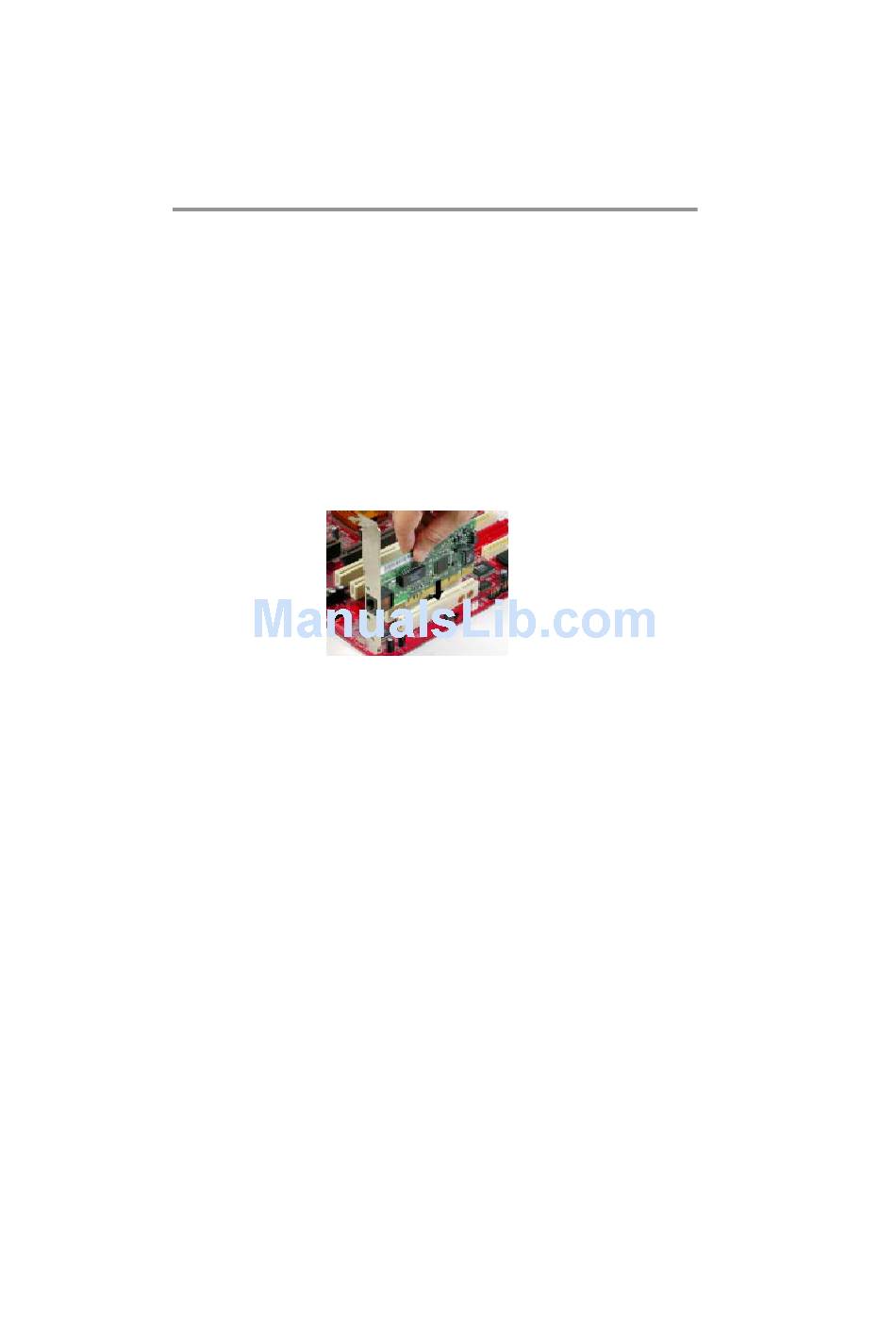

Follow the steps below to install an AGPro/PCI/PCI Express
expansion card.
1. Locate the AGPro, PCI and PCI Express slots on the
motherboard.
2. Remove the blanking plate of the slot from the system
chassis.
3. Install the edge connector of the expansion card into the
slot. Ensure the edge connector is correctly seated in the
slot.
4. Secure the metal bracket of the card to the system
chassis with a screw.
AGPro Slot (AGP-E1)
The AGPro slot is used to install AGP graphics card that emulates
the AGP function. In order to get better performance and compat-
ibility on our special design AGPro slot, we recommend you should
use one of the AGP graphics cards that have been tested by our
company. Please refer to the "VGA Card Support List for AGPro
Slot"on page 27.
PCI-E1 Slot(PCI-Express x16)/PCI-E2/E3(PCI-Express
x1) Slots
The PCI Express slots are used to install external PCI Express
graphics cards.
PCI1-3 Slots
You can install the 32-bit PCI interface expansion cards in the
slots.
