15-320

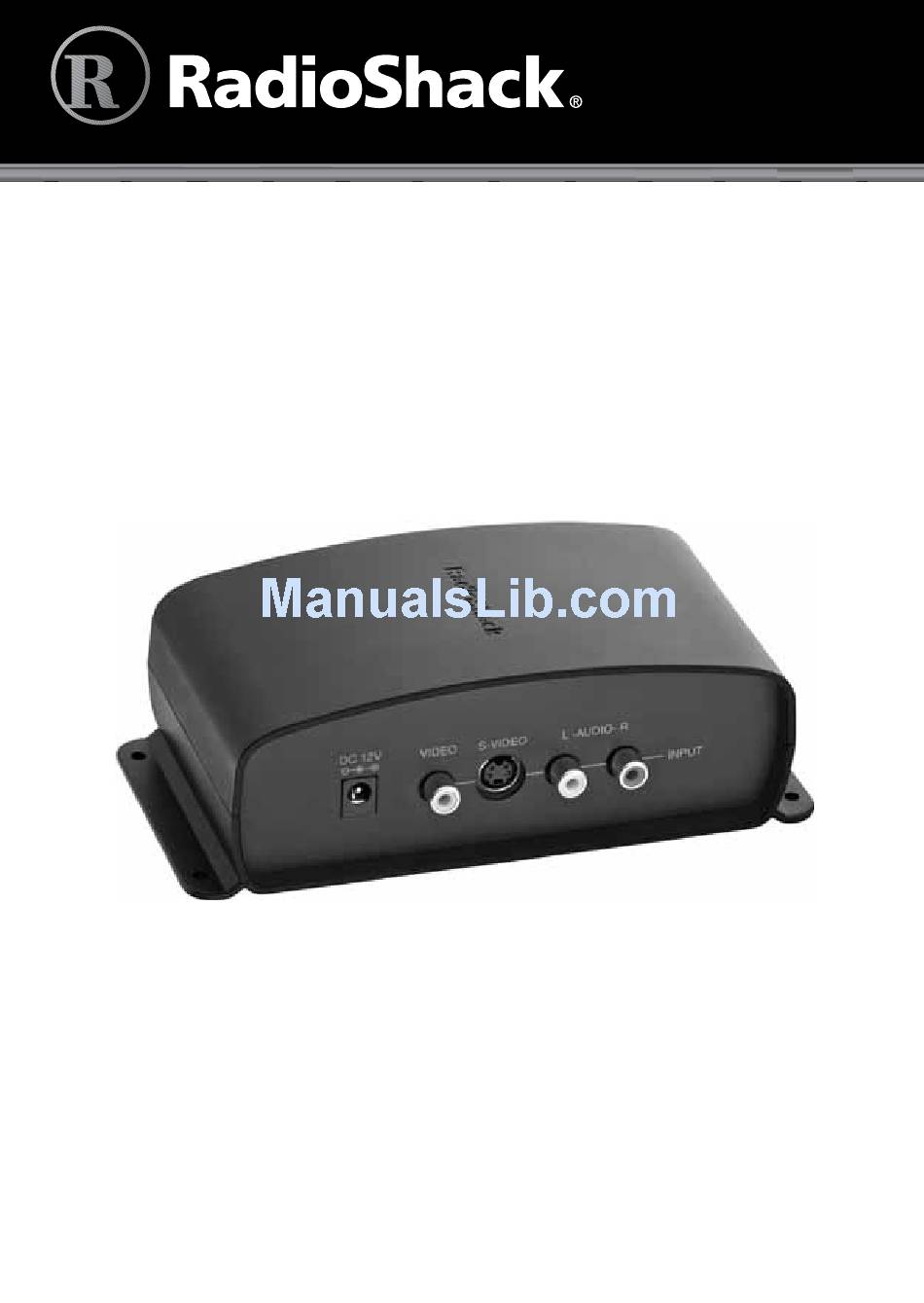

User's Guide
1-In/4-Out
A/V Distribution Amplifier
Thank you for purchasing your 1-In/4-Out A/V
Distribution Amplifier from RadioShack. Please read this
user's guide before installing, setting up, and using your
new amplifier.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 15-320 and is the answer not in the manual?

Questions and answers

Summary of Contents for Radio Shack 15-320

  • Page 1 15-320 User’s Guide 1-In/4-Out A/V Distribution Amplifier Thank you for purchasing your 1-In/4-Out A/V Distribution Amplifier from RadioShack. Please read this user’s guide before installing, setting up, and using your new amplifier.
  • Page 2: Making Connections

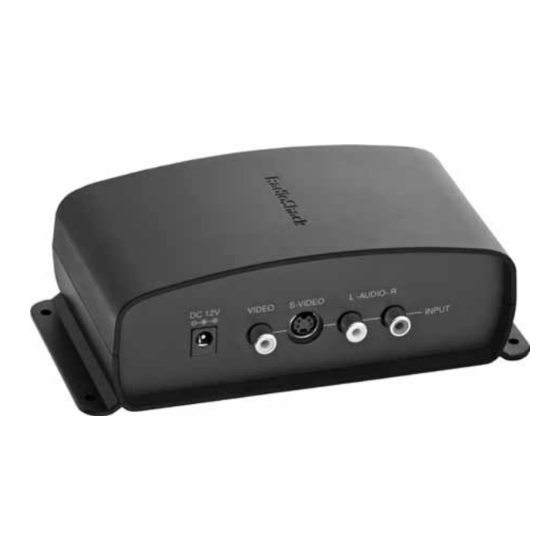

    Package contents • A/V Distribution Amplifier • AC Adapter • Screws (4) • User’s Guide • Quick Start Features • Distributes a single A/V signal to four devices • Converts composite video to S-Video • Maintains A/V signal strength Making Connections 1.
  • Page 3 Input Side DVD Player...
  • Page 4 Output Side...
  • Page 5 Mounting the Amplifier You can mount the amplifier to a wall with the four screws supplied. Note: You can place the amplifier near your TV, VCR, or computer, but do not mount on any other electronic device. Stacking components may cause overheating.
  • Page 6: Troubleshooting

    Troubleshooting • If you have poor or no reception on the devices connected to the output jacks, be sure the AC adapter is plugged into the amplifier and into a working outlet. • If you have poor or no reception on a single unit, check the connections to that unit.
  • Page 7 Protect the environment by recycling used electronics. Go to E-CyclingCentral.com to find an electronic recycling center near you. ©2009. RadioShack Corporation. All rights reserved. RadioShack and RadioShack.com Printed in China 12A09 are trademarks used by RadioShack Corporation. AO0429AAA1 15-320...
