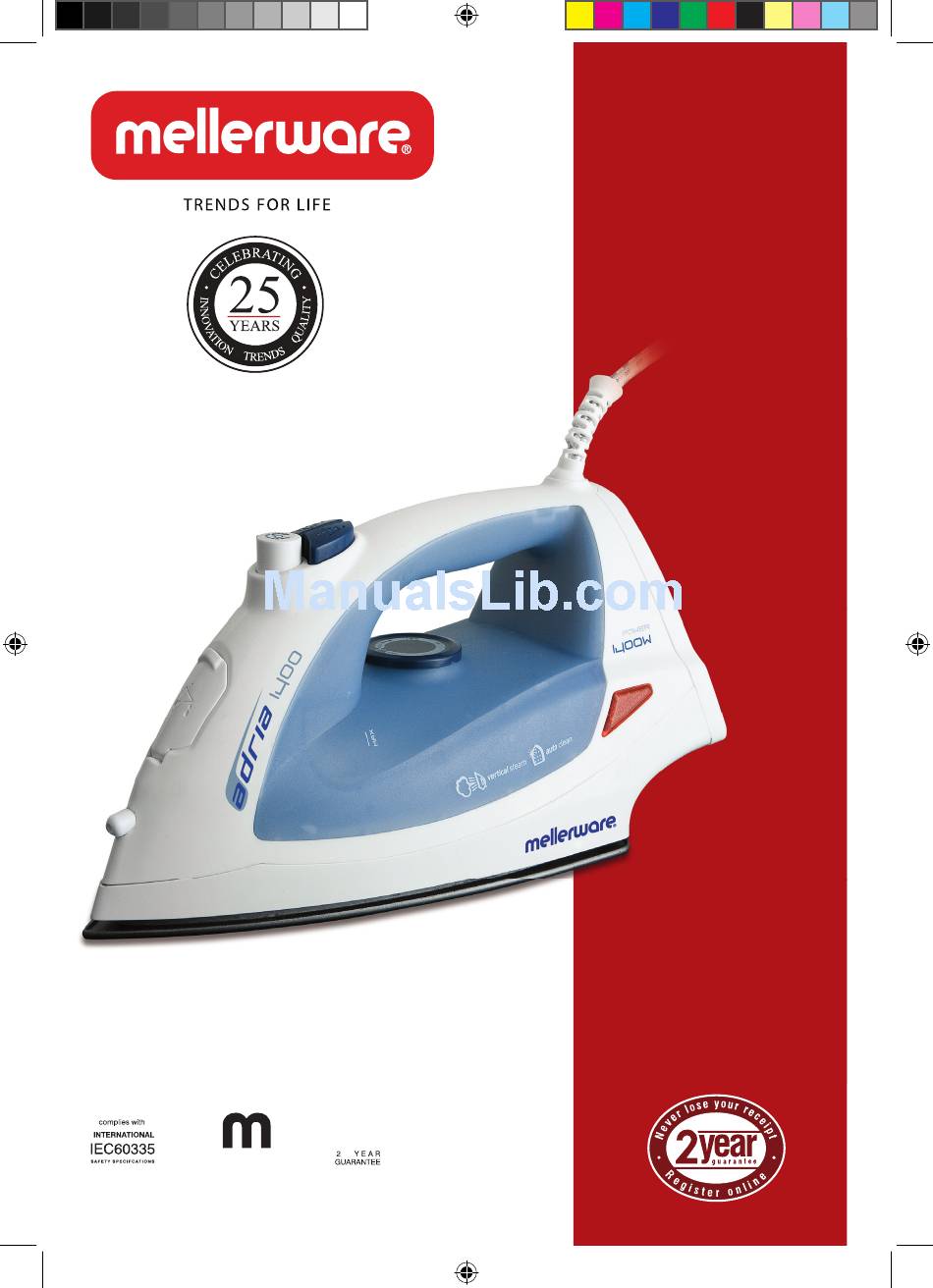

- Page 1 adria ver II steam iron M o d e l : 2 3 3 0 0 A 1400W PLEASE READ ALL INSTRUCTIONS BEFORE USE 23300A_IM.indd 1 2011/11/30 08:43:17...
- Page 2 IRONING TEMPERATURES WARNING! Always check the label on the article to be ironed for correct ironing instructions! • Sort the laundry separating different fabric types – wool with wool and cotton with cotton etc. Start ironing the fabrics requiring the lowest temperatures (synthetics) first and progress to a higher temperatures as the iron heats up quicker than it cools. If the fabric to be ironed has various fiber materials (e.g. cotton with polyester), use the lower/lowest ironing temperature. On label means: THIS ARTICLE CANNOT BE IRONED! NOTE: (eg: Chlorofibre, Elastodiene) LABEL KIND OF TEXTILE FIBRE MATERIAL TEMPERATURE KNOB POSITION Acrylic...
- Page 3 KEY and CHARACTERISTICS Description A Spray button B Steam blast button C Steam regulator knob / Self-cleaning function D Spray nozzle E Filling hole F Sole plate G Temperature control dial H Pilot light CHARACTERISTIC FUNCTION Temperature Dial Knob Adjust temperature according to fabric to be ironed.(see table below) Power Indicator Light Indicator light will go off when desired temperature is reached. The light will go on and off as the temperature is regulated by the adjustable thermostat. Soleplate Super smooth non stick ironing surface. If ironing surface is sticky ensure temperature setting is correct as per table below and item being ironed is clean. Water Filling Aperture Using the measuring cup only, fill the tank with clean water here. Use demineralized water in hard water areas or water with lime scale. Transparent Water Tank Do not overfill. Water level in tank is easily visible during ironing. Dry/Steam Iron Selector Choose desired level of steam or dry ironing by rotating the knob Depress for spraying water onto fabric for dry ironing or when required. Spray Button Strong Steam Depress the strong steam button for extra surge of steam for ironing out difficult creases or if steam is required when iron is in the vertical position. 23300A_IM.indd 3 2011/11/30 08:43:18...
- Page 4 IRONING INSTRUCTIONS - Set the temperature control dial to the correct temperature as indicated in the ironing instructions on the label or as per table above. Note: The iron may smoke slightly when - The correct temperature will be reached when switched on for the first time. This is normal and the indication light has switched off. The indication will soon cease. light will go on and off from time to time indicating that the selected temperature is being maintained. Please read these instructions carefully before use. Important!: have you read the section “Important Safe- guards”? CHOICE OF WATER - This iron can be used with normal tap water.
- Page 5 • Always store the iron in an upright position. DRY IRONING • Insert the plug into the wall socket. • Ensure that the dry/steam selector button (C) is in position“0”. • Select the setting on the temperature control dial best suited for the fabric to be ironed. • When the indication light has switched off, iron- ing may commence. STEAM-IRONING • As indicated on the temperature control dial and the temperature table, steam ironing is only possible at higher ironing temperature. • Ensure that there is enough water in the water tank. • Stand the iron upright. SAVE THESE INSTRUCTIONS FOR FUTURE • Insert the plug into the wall socket. REFERENCE • Set the temperature control dial to the steam Note: When using the iron for the first time, position. test on an old piece of fabric to ensure that • Wait a little while for the power indication light to the sole plate and water tank is completely switch off and to come on again. clean. • Set the dry/steam selector knob to the steam position. The steam will emerge from the vents in SAFETY PROTECTIVE CUT – OUT the sole plate when the iron is held in the horizon- In the unlikely event of the thermostat failing, the tal position.
- Page 6 hot water or steam, take caution when you turn a steam iron upside down: there may be hot water in the tank. • Do not allow the supply cord to come into contact with hot surfaces. Let the iron cool down completely before transporting, moving or storage. Wrap the power supply cord around the iron when storing. • Always disconnect the main plug from wall socket before filing the iron with water or pouring the remaining water out. • To avoid an overloaded circuit, do not operate another high voltage appliance in the same electric circuit. • If an extension cord is absolutely necessary, a 10-ampere (Europe) or 15 ampere (America) cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over. • This iron is for household use only. • Do not operate the iron with wet hands.
-
Page 7: Trouble Shooting
TROUBLE SHOOTING Problem Reason Action Pre-caution Iron is leaking water. Temperature is too low Set the temperature to steam setting (cotton) Check fabric type is suitable for high steam temperature Steam switch is on self clean Turn steam switch setting to steam or 0 Switch steam setting to 0 (off) after use or function position...
