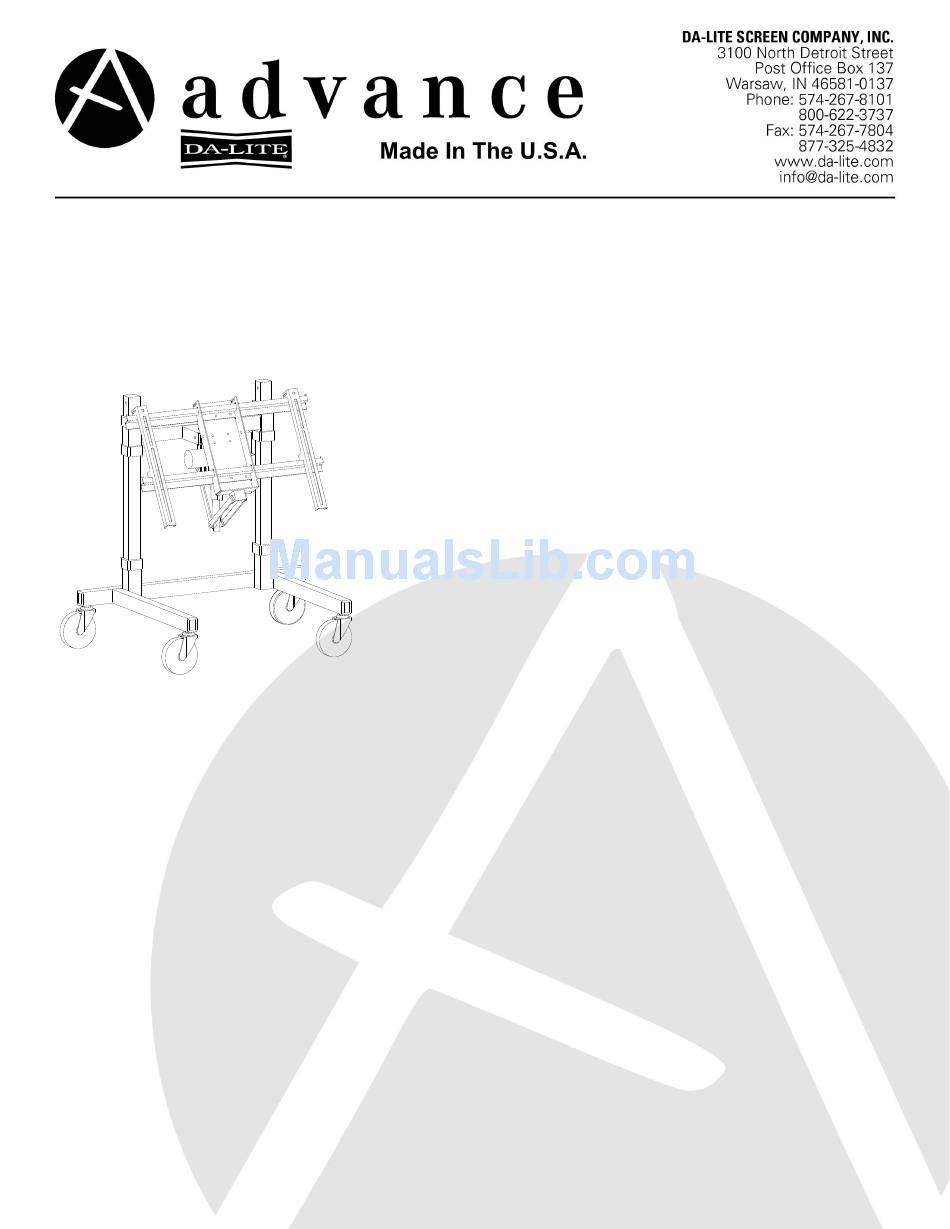

Mobile Plasma Stand Automated Confidence Monitor
Form E-443
Rev. 08 / 10
Procedure
1. Remove contents from carton and
examine for damaged or missing parts.
MPS-ACM
Caution:
The user of this product should exercise
caution when moving the Mobile Plasma Stand. Any
sudden stop could cause instability of the stand and could
cause serious injury and/or damage. The stand should
always be pushed, never pulled, by the user. Always push
from the side of the stand, never from the front or back of
the stand.
IMPORTANT SAFETY INSTRUCTIONS
When using your video equipment, basic safety
precautions should always be followed, including the
following:
1. Read and understand all instructions before
using.
2. Position the cord so that it will not be tripped
over, pulled, or contact hot surfaces.
3. If an extension cord is necessary, a cord with a
current rating at least equal to that of the
appliance should be used. Cords rated for less
amperage than the appliance may overheat.
4. To reduce the risk of electric shock, do not
disassemble this appliance. Contact an
authorized service dealer when repair work is
required. Incorrect reassembly can cause
electric shock when the appliance is used
subsequently.
5. The use of an accessory attachment not
recommended by the manufacturer may cause
a risk of fire, electric shock, or injury to
persons.
SAVE THESE INSTRUCTIONS
Required Tools:
7/16" wrench
-
9/16" wrench
-
-
3/16" allen wrench
Phillips screwdriver
-
Advertisement
Table of Contents
Related Manuals for Da-Lite MPS-ACM
Summary of Contents for Da-Lite MPS-ACM
-
Page 1: Important Safety Instructions
Mobile Plasma Stand Automated Confidence Monitor MPS-ACM Form E-443 Rev. 08 / 10 Caution: The user of this product should exercise caution when moving the Mobile Plasma Stand. Any sudden stop could cause instability of the stand and could cause serious injury and/or damage. The stand should always be pushed, never pulled, by the user. - Page 3 2. Insert the Caster stems or Glide stems into the Base. See Figure 1. Must go in straight. 3. Insert tube enclosures shown. 4. Insert two Columns into the Base and install the fasteners shown. Leave loose at this time. Figure 1 KNOBS TO HOLD POSITION...
- Page 4 10. Hang the plasma unit on the Zee-Bars making sure the top and bottom notches on each Hanging Bracket are placed over the upper and lower Zee- Bars. See Figure 5. 11. Slide the Security Bar through the slots in the Hanging Brackets, bolt one end to the Zee-Bar then secure the opposite end with the pad lock.
