ARX SPL 12 User Manual

Speaker System
Installation/Flying Details

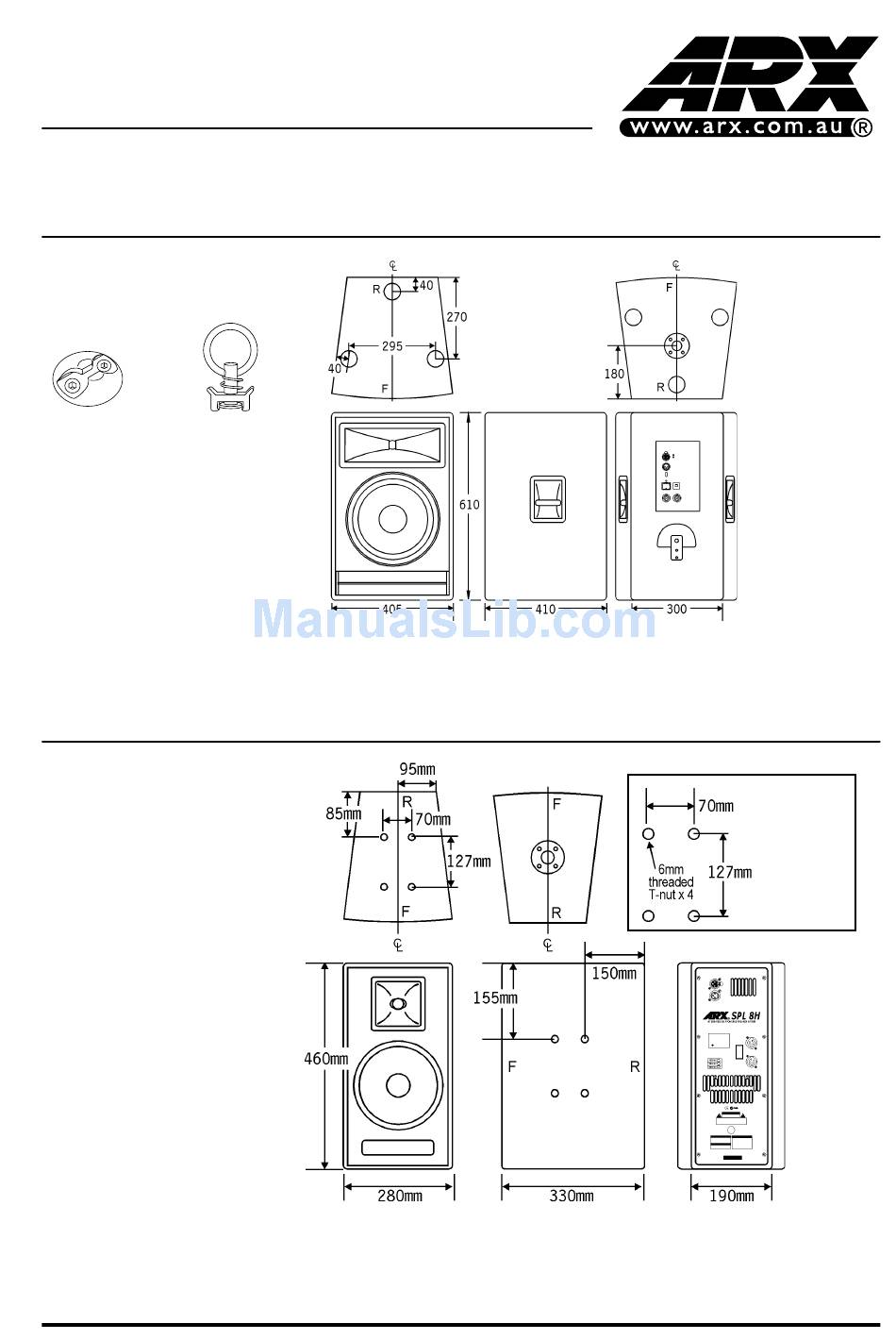

SPL 12 Cabinet Dimensions and Layout
TOP BOTTOM
The recessed flying points on the SPL
12 are designed to receive a single stud
spring-loaded track connector. See be-
Flying Point
low.
locations
Cabinet fitting Connector
Part # R1436 Part # R1434
Connectors are available from Penn Fab-
rications worldwide, or can be ordered
through ARX to be delivered with your
speaker system
Check www.penn-fabrication.com for
All dimensions
distributor details for your country
in millimetres
FRONT SIDE REAR
SPL 8H Cabinet Dimensions and Layout
TOP BOTTOM
The SPL 8H has 6m T-nuts pre-installed
on the Top and on the Right Hand Side
when looking from the front. These are
laid out ready to accept 6mm bolts to
Omnimount
mount an Omnimount Series 100 brack-
100 series
et/clamp assembly to the cabinet.
mounting
Mounting brackets are available from
Dimensions
Omnimount, or can be ordered through
ARX to be delivered with your speaker
system
Check www.omnimount.com for dis-
tributor details for your country
FRONT SIDE REAR
