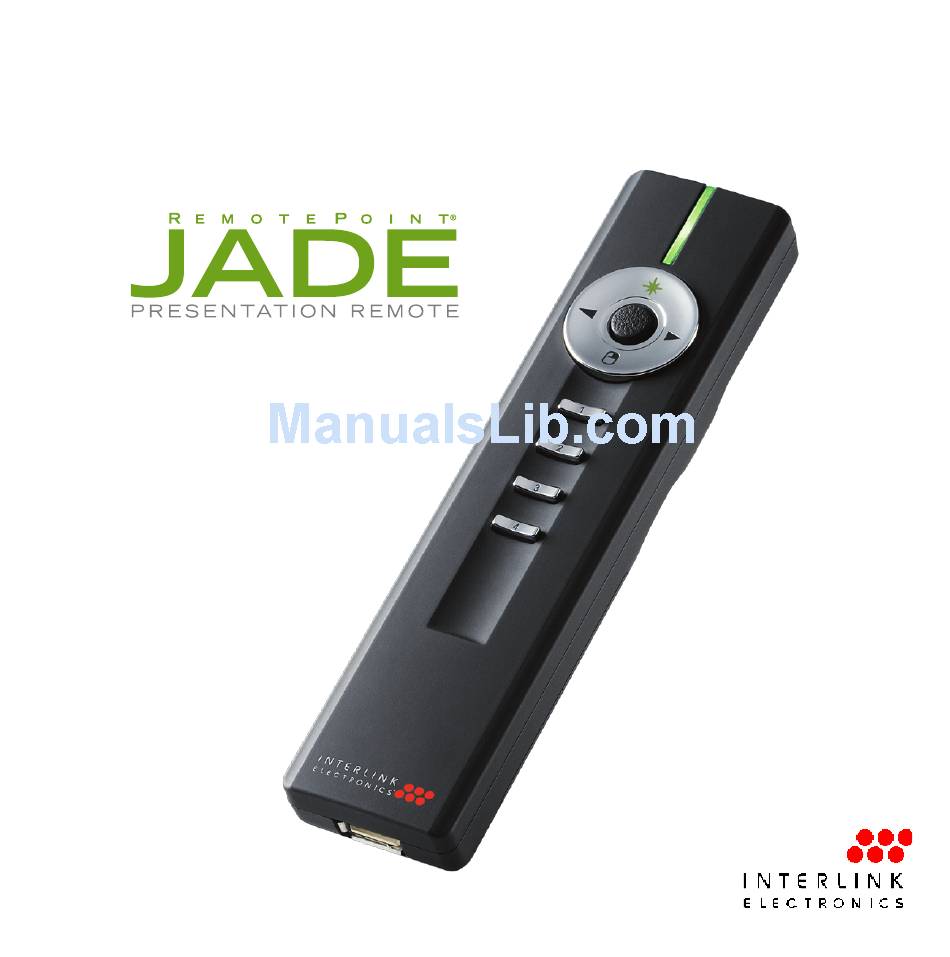

- Page 1 Users Manual VP4910...
- Page 2 Manufacturer: SMK-Link Electronics Corporation 3601-B Calle Tecate Camarillo, CA 93012 Hereby, SMK-Link. declares that the VP4910 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. EMC/EMI/Safety Standards: EN 300 440-2 V1.1.1 (2001-09) EN 301 489-1 V1.4.1 (2002-08) EN 301 489-3 V1.4.1 (2002-08)

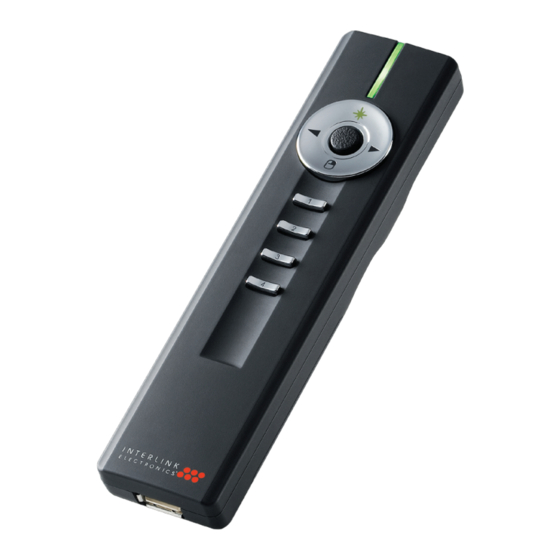

- Page 3 Introduction Overview Congratulations on your purchase of the VP4910 RemotePoint™ Jade Green Laser Presentation Remote. The VP4910 offers full 360 mouse control with patented click-trigger support, programmable buttons, and the brightest laser in its class. Page 1...
- Page 4 Installation Adding or Changing Batteries Open the battery compartment by pressing down on the latch. Insert the batteries per the diagram on the remote. Standard AA alkaline batteries are recommended. Use the Receiver Directly The receiver can also be plugged directly into any free USB port on your computer or laptop for immediate use.
- Page 5 Pairing the Receiver The receiver and remote come pre-paired at the factory. The remote will automatically adjust frequencies and channels to ensure reliable communication. Should you have any problem with communication, you can re-pair them by plugging the USB receiver into the AutoRF Port on the back of the remote.
- Page 6 Familiarizing Yourself with the Controls Click Trigger Navigation Ring Left Click Laser Prev Slide Next Slide Right Click Mouse Button 1 Button 2 Button 3 Button 4 Auto RF Pairing Port Page 4...
- Page 7 Default Control Mouse Control Move the 360 degree mouse by moving the mouse button in the center of the navigation ring in the direction you wish to move. Left Click: Use the button on the Click-Trigger on the bottom of the remote. Right Click: Use the bottom button on the navigation ring to right click.
-
Page 8: Using The Laser Pointer
Using the Base Station For permanent installations, the VP4910 comes with an optional base station. To use the base station, plug the USB cable into the USB port on your computer. The receiver plugs into the USB port in the center of the base station. - Page 9 Custom Programming VP4910 Remote The four buttons on the bottom of the VP4910 can be programmed to send a wide variety of keystrokes. The software is available online at http://www.smklink.com/support/downloads.html The remote can also be programmed to meet your own needs.
-
Page 10: Product Specifications
Product Specifications Laser: 532 nm Green Class II Laser Range: 150 ft Omni-Directional Range Frequency: Auto RF 64k unique addressess 2.4 GHz Radio Frequency Features: Full 360 Mouse PowerPoint Slide Control 4 Programmable Buttons Battery Type: 2 x AA Batteries Size: 38 mm (W) x 160 mm (L) x 27.4 mm (H) - Page 11 For Product Support Please Contact SMK-Link Electronics Corporation 3601-B Calle Tecate Camarillo, CA 93012 USA TEL 888 696 3500 FAX 805 987 6665 SMKLINK.COM...
-
Page 12: Warranty
Thank you for purchasing a VP4910 RemotePoint™ Jade Green Laser Presentation Remote. We know you had other choices and we appreciate that you chose Interlink Electronics by SMK-Link for your wireless needs. So that we may better serve you in the future, please register online at www.smklink.com/register.
