Jancy Engineering 17982 Operator's Manual

Slugger portable magnetic drilling machine

Advertisement

Slugger
2x2

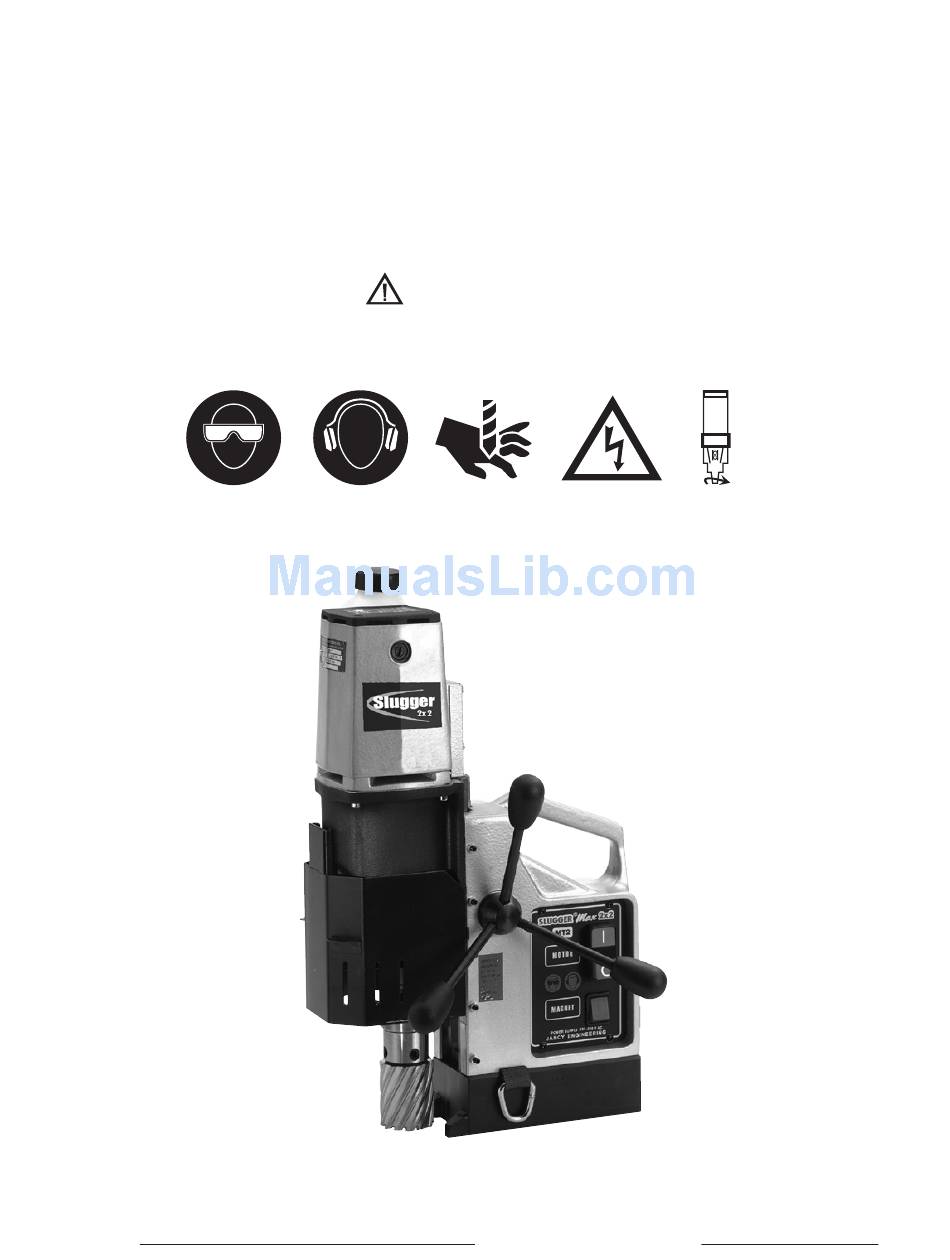

Slugger Portable Magnetic Drilling Machine
OPERATOR'S MANUAL
WARNING!
,
before use
be sure everyone using this machine reads and understands
.
all safety and operating instructions in this manual
EYE PROTECTION
HEARING PROTECTION
NEVER PLACE
LINE VOLTAGE
BEWARE OF
REQUIRED
REQUIRED
FINGERS NEAR
PRESENT
ROTATING
CUTTING AREA OR
MACHINE PARTS
MACHINE ARBOR
MOdEL #17980 (120V) OR #17982 (240V)
Serial #
Date of Purchase

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 17982 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jancy Engineering 17982

  • Page 1 EYE PROTECTION HEARING PROTECTION NEVER PLACE LINE VOLTAGE BEWARE OF REQUIRED REQUIRED FINGERS NEAR PRESENT ROTATING CUTTING AREA OR MACHINE PARTS MACHINE ARBOR MOdEL #17980 (120V) OR #17982 (240V) Serial # Date of Purchase...
  • Page 2: Table Of Contents

    In no event shall Jancy Engineering be liable for loss or damage resulting directly or indirectly from the use of merchandise or from any other cause. Jancy Engineering is not liable for any costs incurred on such goods or consequential damages.
  • Page 3: Important Safety Instructions

    important safety instructions WARNING! when using electric tools basic safety precautions should always be followed to reduce risk of fire electric shock and personal injury READ AND SAVE ALL INSTRUCTIONS FOR FUTURE REFERENCE. 1. keep work Area clean Cluttered areas and benches invite injuries. •...
  • Page 4: Guideline For Shift Lever Position

    important safety instructions 13. Maintain Tools with care Keep tools sharp and clean for better and safer performance. • Follow instructions for lubricating and changing accessories. • Inspect tool cords periodically and if damaged, have repaired by authorized service facility. •...
  • Page 5: Special Instructions

    1. If you require an additional manual, please contact Jancy Engineering at (563) 391-1300 for a fREE copy. 2. Never place hands, fingers, gloves or clothing near cutting area or rotating machine parts. 3. Always disconnect machine from power source before changing cutters, clearing chips, refilling lubricant or performing adjustments.
  • Page 6: Grounding Instructions And Extension Cords

    grounding instructions WARNING! Improperly connecting the grounding wire can result in electrical shock. Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with tool. Never remove the grounding prong from the plug.
  • Page 7: Contents Of Package

    3. Material that has been flame cut may have become heat-treated and therefore difficult to drill. Avoid drilling near such areas whenever possible. 4. Drilling with the 2x2 in horizontal positions requires a special lubrication for Slugger cutters. Consult Jancy Engineering for details.
  • Page 8: Machine Operation

    before the cut 1. Select correct pilot pin and place in cutter shank from the rear, align flats on cutter shank with arbor body set screws, insert cutter into arbor body. 2. Tighten set screws securely on cutter shank flats. NOTE: Set screws should be recessed in arbor body when tight. 3.
  • Page 9: Basic Troubleshooting

    basic troubleshooting 1. Magnetic base not holding securely Material is too thin to engage magnet. • Surface of material being drilled must be free of chips, debris, rust and mill scale. • Does size of cutter exceed machine’s rated capacity? •...
  • Page 10: Regular Maintenance

    regular maintenance 1. The motor slide may require adjustment after machine has been in service. Loosen jam nuts using provided wrench. Using feed handles, position motor/slide assembly in the full up position. Using supplied hex key, equally turn adjustment screws clockwise to increase slide tension or counterclockwise to decrease slide tension. Do not over tighten adjustment screws.
  • Page 11: Machine Breakdown And Parts List

    machine parts list Rev. C. REV. B item description part item description part POWER CORD 120V 06564 MOTOR ASSEMBLY 120V 07201 POWER CORD 220V CALL MOTOR ASSEMBLY 240V 07203 NUT, M4 0070133 FRAME 07205 WASHER, LOCK M4 06773 PRESSURE PLATE 07004 WASHER, SPLIT M4 080720...
  • Page 12: Arbor And Coolant Assembly Breakdown

    machine parts list 904.5 904.1 904.2 904.5 904.3 Rev. C REV. B item description part item description part CHIP GUARD ASSEMBLY 07026 PLUNGER 07530 GUIDE PLATE 07213 SPRING 07507 FLANGE PLATE 07214 904.1 COOLANT INDUCER 07508 SCR,FHSCS M6 x 12 054140 904.2 HOSE CONNECTION 07529...
  • Page 13: Motor Breakdown

    motor parts REV. C...
  • Page 14: Motor Parts List

    motor parts list item description part RETAINING RING, INTERNAL 55W 07128 SPINDLE 07129MT2 KEY, SQUARE 6 x 6 x 15 07127 BEARING, 6006 07126 RETAINING RING, ExTERNAL 30z 07125 SEAL, SPINDLE 28 x 47 x 7 07518 BEARING, 6005 07122 GEAR CASE 07259 SHCS, M5 x 30...
  • Page 15: Wiring Diagram

    wiring diagrams Rev. C...
  • Page 16: Other Available Slugger Drills

    2" JM101 120V WITH 3/8" SLIDE 19021 1-3/8" 2" BAR FEED HANDLE 2 x 2 120V 17980 2" 2" 2 x 2 240V 17982 2" 2" 4 x 4 120V 17985 4" 3" 4 x 4 240V 17987 4" 3"...

This manual is also suitable for:

17980Slugger 2x2 17982Slugger 2x2 17980
