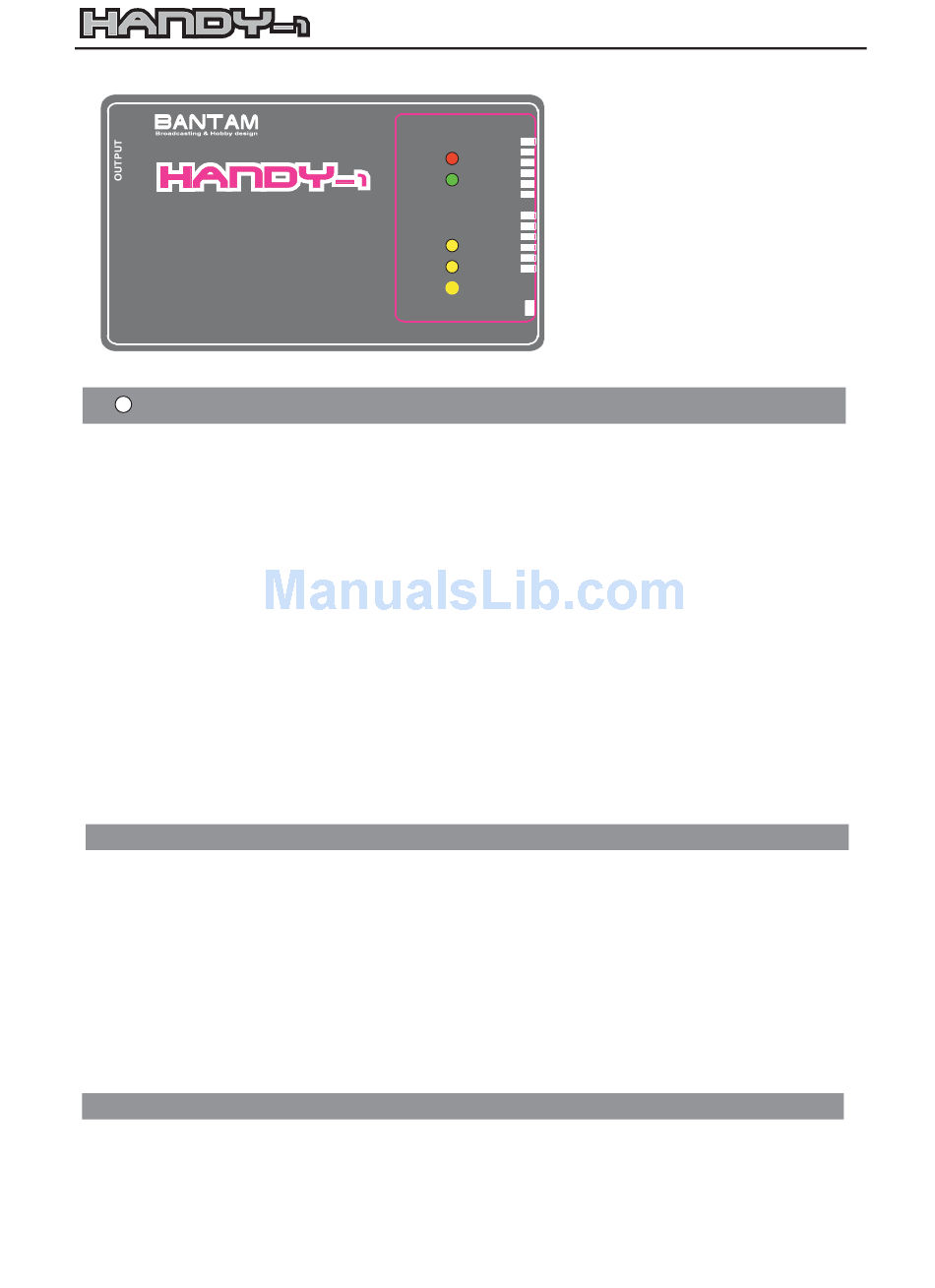

Bantam HANDY-1 User Manual

MULTI CHARGER MULTI CHARGER
Li-Poly : 3.7V~18.5V (1~5Series) Li-Poly : 3.7V~18.5V (1~5Series)
Ni-Cd/MH : 1~12Cells Ni-Cd/MH : 1~12Cells
Charging Rate : 0.1A~2.5A (50W) Charging Rate : 0.1A~2.5A (50W)
Micro Process Controlled Micro Process Controlled
Auto / Manual Voltage Selection Auto / Manual Voltage Selection
INPUT INPUT
DC11~15V
Made in Korea
Safety Note
* Read the instructions before using the charger for the first time
* Do not open the case, and do not modify the unit in any way
* Use the charger exclusively to recharge rapid-charge capable Li-Ion / Li-Ploymer, NiCd or NiMH
batteries
* Observe the battery manufacturers charging instructions
batteries !)
* Use the charger only to recharge packs consisting of cells of the same type and capacity
* Do not attempt to charge two battery packs simultaneously
* Do not recharge packs which are hot to the touch; allow them to cool down to ambient temperature
first
* Do not leave the charger operating unsupervised
* The charger may become hot when operating take care when touching the unit
=> Do not cover the charger; provide adequate cooling
=> Do not subject the charger to direct sunshine
* Keep the charger, battery and cables well away from flammable or temperature-sensitive objects
* Protect the charger from damp and dust
1. Operation Manual
1) Read these instructions completely and attentively, before you use this unit for the first time. Do not
discard the manual and please hand over the manual when you give the unit to other person at any
reason.
2) Please provide good ventilation to the charger and keep an eye on it during charging.
3) You should know about the battery to be charged to select 'Battery type' correctly.
4) Never charge Lithium polymer battery with the mode of 'Ni-Cd/Ni-MH'. It can be exploded and cause
a fire.
5) If your Li-Po battery pack has complex connections of parallel and serial you need to check the
voltage of each cell periodically. If the voltage of each cell is out of balance it also can be exploded.
2. LED Status
1) When you connect the charger to a power source(DC 12V), the LED of 'Battery Type' will be on. Now
it is waiting for charging.
2) If you select 'Auto Detection' the 'Auto' LED will be on.
3) When Li-Po battery is connected to the charge lead the 'C.C/C.V Charge' LED(Red) will be on for
C.C(constant current) mode. But the LED will blink continuously for C.V(constant voltage) after the CC
mode
User's Manual
CURRENT CURRENT
SELECT SELECT
0.1A
0.5A
C.C / C.V C.C / C.V
1.0A
CHARGE CHARGE
1.5A
FULL FULL
2.0A
2.5A
VOLTAGE VOLTAGE 3.7V
SELECT SELECT
7.4V
11.1V
Auto Auto
14.8V
18.5V
Li-POLY Li-POLY
AUTO
Detection
Ni-Cd/MH Ni-Cd/MH
Batt.Type Batt.Type
Select Select
Check the Batt.
Caution Caution
Type Select
Current Setting Current Setting
Manual Voltage Setting Manual Voltage Setting
Voltage Auto Detection Voltage Auto Detection
Battery Type (Li-poy / Ni-Cd/MH) Battery Type (Li-poy / Ni-Cd/MH)
(especially with Li-Ion and Li-Polymer
