Bantam e-STATION 902 Operating Manual

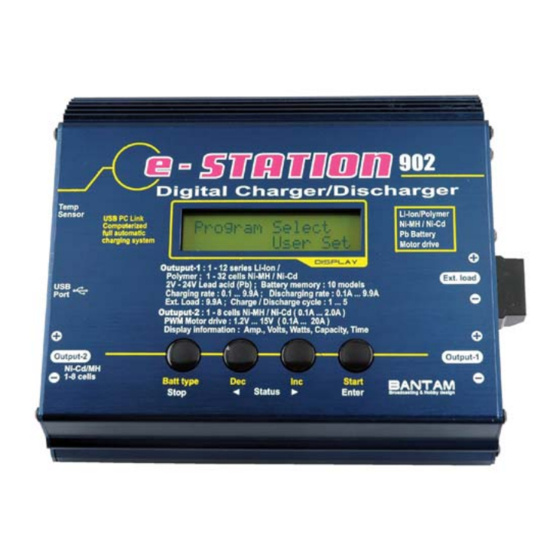

Microprocessor controlled high-performance and rapid charger/discharger for nicd/nimh, liio/lipo/life, and pb batteries, external discharge module link, usb communication port, temperature sensor, pwm motor driver
Hide thumbs

Advertisement

Table of Contents

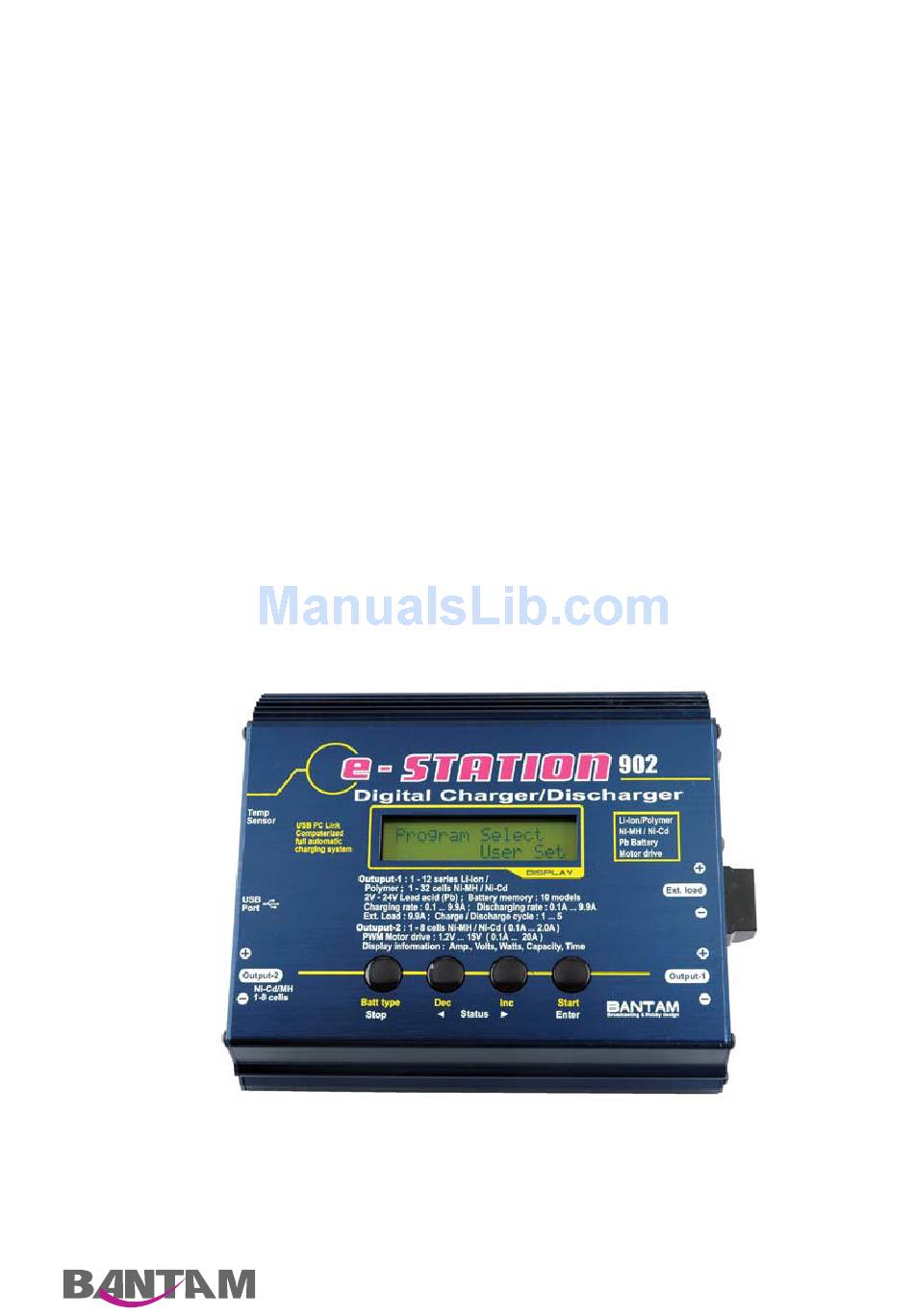

Operating Manual
e-STATION
Microprocessor controlled high-performance and rapid charger/discharger
for NiCd/NiMH, LiIo/LiPo/LiFe, and Pb batteries
External discharge module link, USB communication port, temperature
sensor, PWM motor driver
Charge current up to 9.9A, Discharge current up to 9.9A, 10
data memories, 1~12 series LiIo/LiPo/LiFe, 1~32 cells
NiCd/NiMH, 2 to 40V Pb batteries
* We reserve the right to commit modifications.
* Copyright reserved
902

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the e-STATION 902 and is the answer not in the manual?

Questions and answers

Related Manuals for Bantam e-STATION 902

Summary of Contents for Bantam e-STATION 902

  • Page 1 Operating Manual e-STATION Microprocessor controlled high-performance and rapid charger/discharger for NiCd/NiMH, LiIo/LiPo/LiFe, and Pb batteries External discharge module link, USB communication port, temperature sensor, PWM motor driver Charge current up to 9.9A, Discharge current up to 9.9A, 10 data memories, 1~12 series LiIo/LiPo/LiFe, 1~32 cells NiCd/NiMH, 2 to 40V Pb batteries * We reserve the right to commit modifications.

  • Page 2: Special Features

    Thank you for purchasing the e-STATION 902. You get a rapid charger/discharger that is computerised with a high performance microprocessor and specialised operating software. It can maintain your battery at its best condition and also control them safely. Please read this entire operating manual completely and attentively as it contains a wide variety of specific programming and safety information.

  • Page 3: Exterior Of The Unit

    Temperature limit(**) : The temperature of the battery on charging will rise by its internal chemical reaction. If the temperature increases too much the charging process cannot be accomplished properly and also the battery can be damaged. If you set the limit of temperature the process will be expired forcibly.

  • Page 4: Warnings And Safety Notes

    Warnings and safety notes Never leave the charge unsupervised when it is connected to its power supply. If any malfunction is observed immediately terminate the process and refer to the operation manual. Keep away the unit from dust, damp, rain, heat direct sunshine and vibration. Do not drop it. The circuit of the unit is designed to be powered by a 12V DC only.

  • Page 5: Program Flow

    Program flow Start ▶ ▶ ▶ ▶ Enter LiXX LiXX PROGRAM SELECT LiXX CHARGE FAST CHG Lithium battery STORAGE ◀ ◀ ◀ ◀ ◀ ◀ ▶ ▶ Batt type Batt type ▶ ▶ Stop Stop LiXX LiXX DISCHARGE CYCLE ◀ ◀...

  • Page 6: Initial Parameter Set Up (Users Set Up)

    Initial parameter set up (Users set up) 902 will be operated with the default value of the essential user settings when it is connected to a 12V DC power for the first time. The screen displays the following information in sequence and the user can change the value of parameter on each screen.
  • Page 7 ◀ INC ▶ The battery is on the cyclic process of charge and discharge can often become warm after charge or Waste time discharge period. The program can insert a time delay to occur after each charge and discharge process to allow CHG/DCHG 5min the battery adequate time to cool down before being Display...

  • Page 8: Lithium Battery (Liio/Lipo/Life) Program

    Lithium battery (LiIo/LiPo/LiFe) program These programs are only suitable for charging and discharging Lithium batteries with a nominal voltage of 3.3V, 3.6V and 3.7V per cell. These batteries need to adopt different charge technique is termed a constant voltage(CV) and constant current(CC) method. The charge current varies according to the battery capacity and performance.
  • Page 9 'FAST' charging the Lithium battery The charging current is getting smaller as the process goes to the near end term of Lithium battery charging. To finish charging process earlier, this program eliminate certain term of CV process. Actually, the charging current will goes to 1/5 from the initial value to end the process while the normal charging goes to 1/10 during CV term.
  • Page 10 Discharging the Lithium battery The value of discharge current on the left side of screen LiPo Dischg may not exceed 1C for a maximum safety and the final 2.0A 11.1V(3S) voltage on the right should not be under the voltage level that is recommended by the battery manufacturer Display to avoid deep discharging.

  • Page 11: Nimh/Nicd Battery Program

    NiMH/NiCd battery program These programs are for charge and discharge of NiMH (Nickel-Metal-Hydride) or NiCd (Nickel-Cadmium) battery commonly used for R/C model applications. Please check the trigger voltages of each type of batteries for automatic charge termination at 'NiMH sensitivity' and 'NiCd sensitivity' on user setting program.
  • Page 12 Discharging NiMH/NiCd battery Set discharge current on the left and final voltage on NiMH Discharge the right. The discharge current ranges from 0.1 to 9.9A and the final voltage ranges from 0.1 to 48.0V). 3.0A 11.5V Start To start the process, press key for more than 3 Enter Display...

  • Page 13: Pb (Lead-Acid) Battery Program

    Pb (lead-acid) battery program This is programmed for charging Pb (lead-acid) battery with nominal voltage from 2 to 40V. Pb batteries are totally different from NiCd or NiMH batteries. They can only deliver relatively lower current compare to their capacity, and similar restrictions definitely apply to charge. So the optimal charge current will be 1/10 of the capacity.
  • Page 14 Charging at 'OUTPUT-2' / Electric motor drive This program can charge the battery at 'OUTPUT-2' regardless of operating 'OUTPUT-1'. At 'OUTPUT-2', you can charge NiCd or NiMH battery up to 8 cells with the maximum charge current of 2.0A. This program also employs the delta-peak voltage detection method to terminate charging process.

  • Page 15: Save Data Program

    Save Data program 902 has a data storage and load program for your convenience. This feature can store up to 10 battery data by number that represent the individual specification of batteries you are using. They can be called back for the process of charging or discharging without setting up the program again. Start To set up the parameter value in the program, press key to make it blink then change the...

  • Page 16: Load Data Program

    Load Data program This program calls back the data that was stored at 'Save Data' program. Start To load the data, press key once to blink the data number field and select the number using Enter Start ◀ key then press key for more than 3 seconds.
  • Page 17 Various information during charge/discharge You can inquire various information on LCD screen display during charging or discharging process. When you press button the charger shows the establishment of user settings. And also you INC▶ can monitor the voltage of individual cell by pressing button on using the external balancer ◀...
  • Page 18 The state of temperature cut-off setting up. Temp cut-off Display ▶ The state of safety timer setting up. Safety Timer 120min Display ▶ The state of capacity cut-off setting up. Capacity cut-off 5000mAh Display Monitoring the voltage of individual cell using balance guard Using the external Lithium balancer PB5 or PB6, you can 4.20V 4.20V...

  • Page 19: Warning And Error Messages

    Warning and error messages 902 incorporates a various functions of protective and monitoring system programmed to verify functions and to monitor the state of its electronics. In any case of occurring error, the screen displays the cause of error that is self-explanatory with audible sound. The output is connected to a battery with incorrect polarity.

  • Page 20: Specifications

    The defective unit has to be sent to us by pre-paid delivery; we will pay for return shipping cost. This warranty does not cover the damage due to wear, overloading, incompetent handling or using of incorrect accessories. BANTAM Inc. #623 Unitech Ville 1141-2 Electrical equipment marked with...
