QuickSpecs
Overview
1.
Volume mute button with LED indicator
2.
Volume scroll zone with up/down LED indicators
3.
Pointstick
4.
HP Fingerprint Sensor
5.
Speaker
6.
Touchpad buttons
7.
Touchpad with scroll zone
8.
Pointstick buttons
9.
Hard drive / optical drive activity / HP 3D DriveGuard
LED
10.
Battery charging LED
11.
Power/standby LED
12.
Wireless on/off LED
DA - 12717
Worldwide QuickSpecs — Version 14 — 9.26.2007

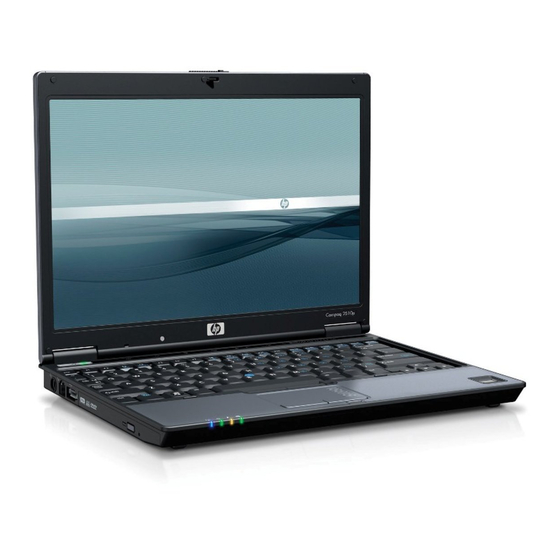

HP Compaq 2510p Notebook PC
HP recommends
Windows Vista
13.
Optical drive (select models)
14.
USB 2.0 Port (powered on select models)
15.
RJ-11/modem port
16.
Power connector
17.
Power button with LED
18.
HP Info / HP QuickLook button with LED indicator
19.
Integrated microphone
20.
Wireless on/off button with LED indicator
21.
Ambient Light Sensor
22.
HP Presentation button with LED indicator
23.
Touchpad on/off button
24.
Two WLAN/WWAN combo antennas
®
Business
Page 1

Advertisement

   Related Manuals for HP 2510p

   Summary of Contents for HP 2510p

  • Page 1

    Pointstick HP Fingerprint Sensor Speaker Touchpad buttons Touchpad with scroll zone Pointstick buttons Hard drive / optical drive activity / HP 3D DriveGuard Battery charging LED Power/standby LED Wireless on/off LED DA - 12717 HP Compaq 2510p Notebook PC HP recommends...

  • Page 2

    HP QuickLook on Windows Vista models for instant access to email, calendar, and contact information Up to 100-GB 4200 rpm, user-removable hard drive protected by HP 3D DriveGuard or 64-GB Solid State Drive Up to 2 GB of 667-MHz DDR2 SDRAM (runs at 533-MHz); one memory slot...

  • Page 3: Standard Features

    Mobile Intel GMA X3100, up to 384 MB of shared system memory Microsoft DirectX9 capable Display Internal External DA - 12717 HP Compaq 2510p Notebook PC Genuine Windows Vista Business Genuine Windows Vista Home Basic* Genuine Windows XP Professional FreeDOS Genuine Windows Vista Enterprise*...

  • Page 4

    * Operates at a maximum of 533-MHz with 667-MHz memory. NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.

  • Page 5

    19-mm x 19-mm key pitch (center-to-center spacing), 2.0-mm stroke, and comfort-dished keycaps. HP DuraKeys is a clear coating applied over the notebook keyboard that helps protect the finish and the printed characters on the keys. HP DuraFinish helps protect the finish on the keyboard deck, graphics, and icons from normal wear and tear.

  • Page 6

    One Type I/II PC Card slot Optional (replaces PC Card slot) One – VGA Two (including one powered USB 2.0 port to support HP External MultiBay II on units without an integrated optical drive) For HP 2400/2500 Ultra-Light Docking Station Seventeen Worldwide QuickSpecs —...

  • Page 7

    Manager can perform scheduled or manual backups of the entire drive or individual files and folders. Up to 10 GB of the hard drive is reserved for the system recovery software. HP Backup and Recovery Manager can also create software recovery CDs or DVDs (requires optional CD-RW or DVD+/-RW hardware).

  • Page 8

    Total length including external AC adapter is 12 feet (3.66 meter). HP Fast Charge* *HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. Fast Charge Technology does not apply to 9 cell primary batteries.

  • Page 9

    HP 2400/2500 Ultra-Light Docking Station Service and Support HP Services offers limited 3- year, 1-year and 90-day warranty options depending on country; 1-year limited warranty on primary battery. On-site service and warranty upgrades are also available. For HP Care Pack services see http://www.hp.com/go/lookuptool.

  • Page 10

    HP ev2210 1xEVDO-A Broadband Wireless Module (Verizon) (available Sept. 2007) HP ev2210 1xEVDO-A Broadband Wireless Module (Sprint) (available Oct. 2007) HP hs2300 HSDPA Broadband Wireless Module (AT&T) (available Sept. 2007) HP hs2300 HSDPA Broadband Wireless Module (Generic) (available Oct. 2007)

  • Page 11

    QuickSpecs Options Security HP PC Card Smart Card Reader with Java Card HP ProtectTools Java Card – 10 units HP/Kensington MicroSaver Security Lock HP Notebook Productivity Bundle Input/Output Devices HP USB Keyboard & Mouse Bundle HP USB/PS2 Optical 2-Button Scroll Mouse...

  • Page 12

    Upgrades Please refer to the Hardware and Software Guide for installation procedures. Memory slot is user- accessible. HP 512-MB (DDR2 667 MHz) SODIMM* HP 1024-MB (DDR2 667 MHz) SODIMM* HP 2048-MB (DDR2 667 MHz) SODIMM* * System runs at a maximum of 533-MHz.

  • Page 13

    Solid State Drive 64-GB Solid State Drive DA - 12717 Quantity Supported Quantity Supported Worldwide QuickSpecs — Version 14 — 9.26.2007 HP Compaq 2510p Notebook PC Drive Bay Fixed optical drive bay Fixed optical drive bay Fixed optical drive bay Drive Bay...

  • Page 14: Technical Specifications

    Altitude (unpressurized) Industry Standard Certifications For accessibility information on HP products, please visit http://www.hp.com/accessibility. DA - 12717 HP Compaq 2510p Notebook PC 0.97 in (at front) x 11.11 in x 8.38 in 24.7 mm (at front) x 282.3 mm x 212.8 mm Starting from 2.8 lb (1.29 kg)

  • Page 15

    Temperature Battery Re-Charge TimeSystem in OFF mode or Fuel Gauge DA - 12717 HP Compaq 2510p Notebook PC 4.17 x 1.85 x 1.1 in (10.6 x 4.7 x 2.8 cm) 0.62 lb (280 g) 100 to 240 VAC Input Efficiency...

  • Page 16

    Refresh Rate Brightness Pixel Resolution Backlight Viewing Angle Hard Drives DA - 12717 HP Compaq 2510p Notebook PC 0.8 x 2.3 x 8.1 in (2.1 x 5.9 x 20.6 cm) 0.73 lb (0.332 kg) 6-cell Lithium-Ion Watt-hour Capacity 55Wh Operating (Charging) 32°...

  • Page 17

    Rotational Speed Logical Blocks Operating Temperature41° to 140° F (5° to 60° C) [case temp] Features DA - 12717 HP Compaq 2510p Notebook PC 0.13 lb (59 g) 100 GB 0.31 in (8 mm) 2.12 in (54 mm) ATA-6...

  • Page 18

    Max Media Capacity (read) Max Media Capacity (write) Transport DA - 12717 HP Compaq 2510p Notebook PC 0.37 x 5.51 x 5.04 in (0.95 x 14.0 x 12.8 cm) 0.34 lb (155 g) Random <120 ms CD <200 ms DVD...

  • Page 19

    High-Rate Image Capture Up to 240 image frames /sec ESD Resistance Detection Matrix Audio DA - 12717 HP Compaq 2510p Notebook PC 0.37 x 5.51 x 5.04 in (0.95 x 14.0 x 12.8 cm) 0.45 lb (205 g) Random <150 ms CD <125 ms DVD...

  • Page 20

    Performance Features TCP/IP/UDP Checksum Offload (configurable) Manageability Interface NIC Device Driver Name Drivers Available DA - 12717 HP Compaq 2510p Notebook PC ADI1981HD High Definition CODEC Volume up, volume down, and mute Stereo Stereo 2 Watts 4 Ohms 10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14) 100 Mbit/s operation (100BASE-TX;...

  • Page 21

    Data Mode CapabilitiesV.92 data Fax Mode Capabilities TIA/EIA-578-B (Class 1) Command Set DA - 12717 HP Compaq 2510p Notebook PC MDC 1.5 Daughtercard APM Revision 1.2, ACPI UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark, Other Countries V.8bis...

  • Page 22

    HP hs2300 HSDPA Frequency Bands and Broadband Wireless Power Class Module DA - 12717 HP Compaq 2510p Notebook PC 1 (North American PCS) – Class II CDMA 1x Release A; IS-95A, IS-95B, IS-2000 Meets or exceeds TIA/EIA IS-98-D CDG 22 (TIA/EIA/IS-95-A) CDG 53(TIA/EIA/IS-95-B) C.S0031 (TIA/EIA/IS-2000)

  • Page 23

    Wireless LAN Standards IEEE 802.11b 3945BG Network Connection Interoperability Frequency Band DA - 12717 HP Compaq 2510p Notebook PC GSM power class 4 GPRS/EDGE: 3GPP R99 GERAN P1 WCDMA Release 5 (R5) High-Speed Downlink Packet Access (HSDPA) 3.6Mbps GSM Phase 2+ Complies with 3GPP specifications FCC parts 15/22/24, CE, Microsoft WHQL, R&TTE directive...

  • Page 24

    Operating Voltage Temperature Humidity Altitude DA - 12717 HP Compaq 2510p Notebook PC 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-...

  • Page 25

    Output Power (for OFDM; power varies by data rate) DA - 12717 HP Compaq 2510p Notebook PC Microsoft Windows 2000 or XP Choice of Configuration Utility: Microsoft Windows XP Wireless Network Connection Manager Intel PROSet for Microsoft Windows 2000 or XP (required for Cisco...

  • Page 26

    Intel Wireless WiFi Link Wireless LAN Standards IEEE 802.11a 4965AGN Interoperability DA - 12717 HP Compaq 2510p Notebook PC Transmit: 1.6 Watts (average) Receive: 1.1 Watts (average) Idle mode : 30 mW (average) Radio off: 20 mW (max) ACPI compliant power management 802.11 compliant power saving mode...

  • Page 27

    Form Factor Weight Dimensions Operating Voltage DA - 12717 HP Compaq 2510p Notebook PC Cisco Compatible Extensions Program compliant (802.11abg only) with Microsoft Windows 2000 and XP (details at http://www.hp.com/go/notebooks/WLAN) Tested with wireless access points from several major manufacturers (details at http://www.hp.com/go/notebooks/WLAN/draft-n) 2.4 GHz and 5 GHz...

  • Page 28

    Media Access Protocol CSMA/CA (Collision Avoidance) with ACK Network Architecture Models Roaming Output Power (for CKK) DA - 12717 HP Compaq 2510p Notebook PC Operating 32° to 176° F (0° to 80° C) Non-operating –40° to 176° F (–40° to 80° C) Operating...

  • Page 29

    Broadcom 4311AG Wireless LAN Standards IEEE 802.11a 802.11a/b/g WiFi Adapter DA - 12717 HP Compaq 2510p Notebook PC 15 dBm Transmit: 2.0 W (max) Receive: 1.5 W (max) Idle mode : 390 mW (nominal) Sleep mode: 20 mW (max) ACPI compliant power management 802.11 compliant power saving mode...

  • Page 30

    Dimensions Operating Voltage Temperature Humidity DA - 12717 HP Compaq 2510p Notebook PC Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 2000 and XP (details at http://www.hp.com/go/notebooks/WLAN) 2.4 GHz and 5 GHz 802.11b: 1, 2, 5.5, 11 Mbps 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps...

  • Page 31

    Frequency Band Data Rates Frequency Support Modulation Security Sub-channels DA - 12717 HP Compaq 2510p Notebook PC Operating 0 to 10,000 ft (3,048 m) Non-operating 0 to 50,000 ft (15,240 m) Microsoft Windows 2000 or XP Choice of Configuration Utility:...

  • Page 32

    Weight Dimensions Operating Voltage Temperature Humidity Altitude DA - 12717 HP Compaq 2510p Notebook PC Ad-hoc (Peer to Peer) Infrastructure (Access Point Required) IEEE 802.11 compliant roaming between access points 17 dBm 15 dBm Idle associated: 300 mW Idle unassociated: 150 mW Transmit/Receive 20 MHz channel: 2.6 W (max)

  • Page 33

    Supported Link Topology Security Power Management DA - 12717 HP Compaq 2510p Notebook PC Microsoft Windows 2000 or XP Choice of Configuration Utility: Microsoft Windows XP Wireless Network Connection Manager Broadcom Wireless Configuration Utility (required for Cisco Compatible Extensions support)

  • Page 34

    Sleep (Energy Star low power mode) Heat Dissipation* DA - 12717 HP Compaq 2510p Notebook PC All necessary regulatory approvals for supported countries, including: FCC (47 CFR) Part 15C, Section 15.247 & 15.249 ETS 300 328, ETS 300 826 Low Voltage Directive IEC950...

  • Page 35

    This product is in compliance with the EU Restrictions of Hazardous Substances (RoHS) Directive – 2002/95/EC. This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. Keyboard complies with ISO standard: ISO 9995, EN 29241-4, and ISO/IEC 15412 Input devices of this product comply with ISO 9241, part 9.

  • Page 36

    Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards. This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General Specification of the Environment (http://www.hp.com/hpinfo/globalcitizenship/ environment/supplychain/gen_specifications.html):...

  • Page 37

    HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
