SCOTTY
WOOD FURNACE
Model DB-102
OWNER'S MANUAL
IMPORTANT
READ OWNER'S MANUAL THOROUGHLY BEFORE
INSTALLING FURNACE OR LIGHTING FIRE.
CONSULT LOCAL AUTHORITIES IF IN DOUBT
ABOUT YOUR LOCAL FIRE SAFETY REGULATIONS.
ALL INSTALLATIONS MUST BE MADE IN ACCORDANCE
WITH LOCAL AND STATE OR PROVINCIAL CODES
WHICH MAY DIFFER FROM THIS MANUAL.
IMPROPER INSTALLATION WILL RESULT IN VOIDING
OF WARRANTY.

Advertisement

Table of Contents
loading

Related Manuals for KERR SCOTTY DB-102

Summary of Contents for KERR SCOTTY DB-102

  • Page 1 SCOTTY WOOD FURNACE Model DB-102 OWNER’S MANUAL IMPORTANT READ OWNER’S MANUAL THOROUGHLY BEFORE INSTALLING FURNACE OR LIGHTING FIRE. CONSULT LOCAL AUTHORITIES IF IN DOUBT ABOUT YOUR LOCAL FIRE SAFETY REGULATIONS. ALL INSTALLATIONS MUST BE MADE IN ACCORDANCE WITH LOCAL AND STATE OR PROVINCIAL CODES WHICH MAY DIFFER FROM THIS MANUAL.

  • Page 2: Table Of Contents

    SCOTTY WOOD FURNACE – INSTRUCTION MANUAL TABLE OF CONTENTS Specifications Operating Instructions Introduction Wood-Burning Storage of Wood Maximum Solid-Fuel Charge Maintenance 1.5.1 Cleaning 1.5.2 Servicing Safety Controls Electrical Power Failure Homeowner Checklist Installation Instructions Introduction to Installers Uncrating Locating the Furnace 2.4.1 Combustion Air Supply...

  • Page 3: Specifications

    CAUTION – Do not fire this unit until operating instructions have been read and fully understood. INSTALL WOOD FURNACE ONLY ON A FURNACE DUCT SYSTEM AND CHIMNEY THAT ARE IN GOOD CONDITION AND APPROVED FOR USE. SAVE THESE INSTRUCTIONS...

  • Page 4: Operating Instructions

    Congratulations on your purchase of the KERR SCOTTY Wood Furnace. Developed in Atlantic Canada, this KERR Furnace has been designed to allow you to heat your home with wood, one of North America’s most abundant fuels. Designed with you in mind, the KERR SCOTTY Wood Furnace will provide you with many years of safe, efficient central heating.

  • Page 5: Storage Of Wood

    To reduce creosote build-up during periods of low heat requirements (i.e. Spring and Fall) it is recommended to fuel the wood furnace with smaller quantities of smaller diameter logs. Matching fuel loads and heat requirements will generally result in cleaner combustion and higher efficiency.

  • Page 6: Maximum Solid-Fuel Charge

    Cleaning should be done whenever there is more than 1/4 inch of build-up on the heat exchanger or 3 inches of ash in the base. If the wood furnace is to be left unused for an extended period of time (more than one month) then the appliance should be cleaned of all ash and residual left from the burning of wood.

  • Page 7: Servicing

    4-6 drops of SAE-30 oil in each bearing. CAUTION: Failure to keep air filter clean will result in poor furnace performance and possible damage to wood furnace heat exchanger.

  • Page 8: Electrical Power Failure

    5) Refuel frequently with small load to maintain a small fire at 1/2 normal maximum volume. 6) Do not expect to maintain maximum comfort under no power conditions. 7) Do not allow anyone who is unfamiliar with the operation of the furnace to attend it during a power failure. Scotty...

  • Page 9: Homeowner Checklist

    Warranty does not cover misapplication of unit. Applicable Standards The KERR SCOTTY Wood Furnace must be installed in accordance with the requirements of the National Fire Protection Association codes, the Canadian Heating, Ventilation and Air Conditioning Code, The National Board of Fire Underwriters, and the CSA Standards for solid fuel burning equipment as outlined in B365.

  • Page 10: Uncrating

    It is important to provide adequate combustion air to the furnace. It may be necessary to add a ventilator to an exterior wall of a closed furnace room or an airtight basement. The furnace must be installed so that the clearances as shown in Figure S102-1, or those of local authorities are met.

  • Page 11: Combustion Air Supply

    These fresh air inlets must provide or allow free access of fresh outside air to the furnace. At no time or under any circumstances can a wood or oil-burning appliance be starved of combustion air.

  • Page 12: Clearances

    SCOTTY WOOD FURNACE – INSTRUCTION MANUAL We recommend that the KERR SCOTTY Wood Furnace be connected to its own chimney. However, two or more fuel fired appliances, other than fireplaces or incinerators, may be connected to the same chimney. The National Standard of Canada, Installation Code for Solid-Fuel-Burning Appliances and Equipment, CSA-B365-01 clause 5.2.9 states that:...

  • Page 13: Duct Connection

    Underwriters and in the US the NFPA codes. The KERR SCOTTY Wood Furnace warm air plenum and first 6 feet (1.8 m) of warm air supply duct in any direction must be installed observing a minimum of 6 inches (155 mm) clearance from the joists or combustible materials.

  • Page 14: Free Standing

    NOTE: This furnace is not to be connected to ductwork that is still connected to another furnace. The wiring diagram for the Scotty is shown in Fig. S102-4.

  • Page 15: Installers Checklist

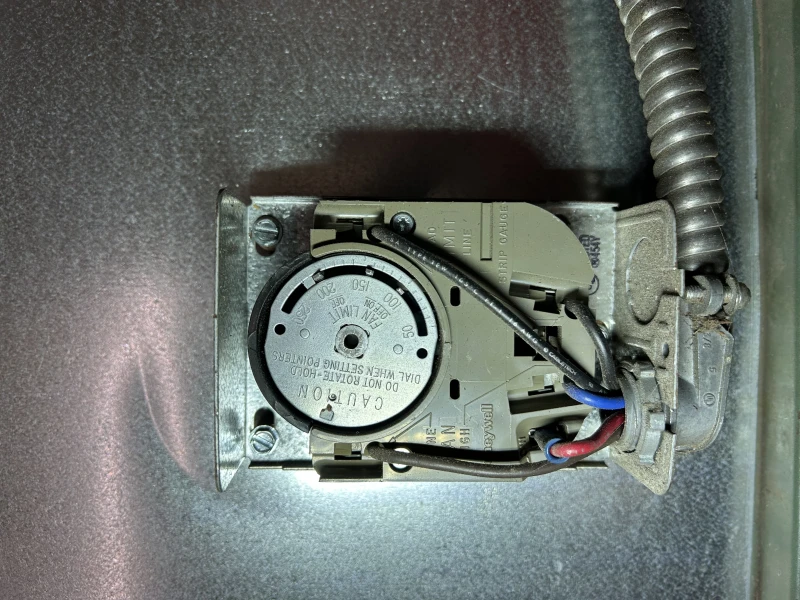

    DUCTWORK INSPECTION 1) Furnace ducted properly? 2) Proper duct clearances maintained? FURNACE INSPECTION 1) DO NOT use firebrick in the furnace 2) Check settings on fan limit controls. WIRING INSPECTION 1) Is main disconnect switch within view? 2) Wiring cables protected from heat and not touching hot surfaces? FLUE AND SMOKE PIPE INSPECTION 1) Flue inner size equivalent to 7”...
  • Page 23 Damage to the furnace or any part or accessory from abuse, misuse, overfiring or improper installation, or any furnace which...
  • Page 24 All other parts and accessories of the furnace in accordance with the warranty (if any) given by the respective supplier or manufacturer to Kerr.
