OPERATOR'S MANUAL
Cautions and Warnings ......................................................1
Assembly Instructions ........................................................2
Battery Charging ..................................................................3
Product Description ............................................................3
Operating Instructions ........................................................4
Care and Maintenance ........................................................6
Troubleshooting Guide ........................................................6
Parts Lists ............................................................................7
Warranty ................................................................................9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tanita 4500

Summary of Contents for Tanita 4500

  • Page 1: Table Of Contents

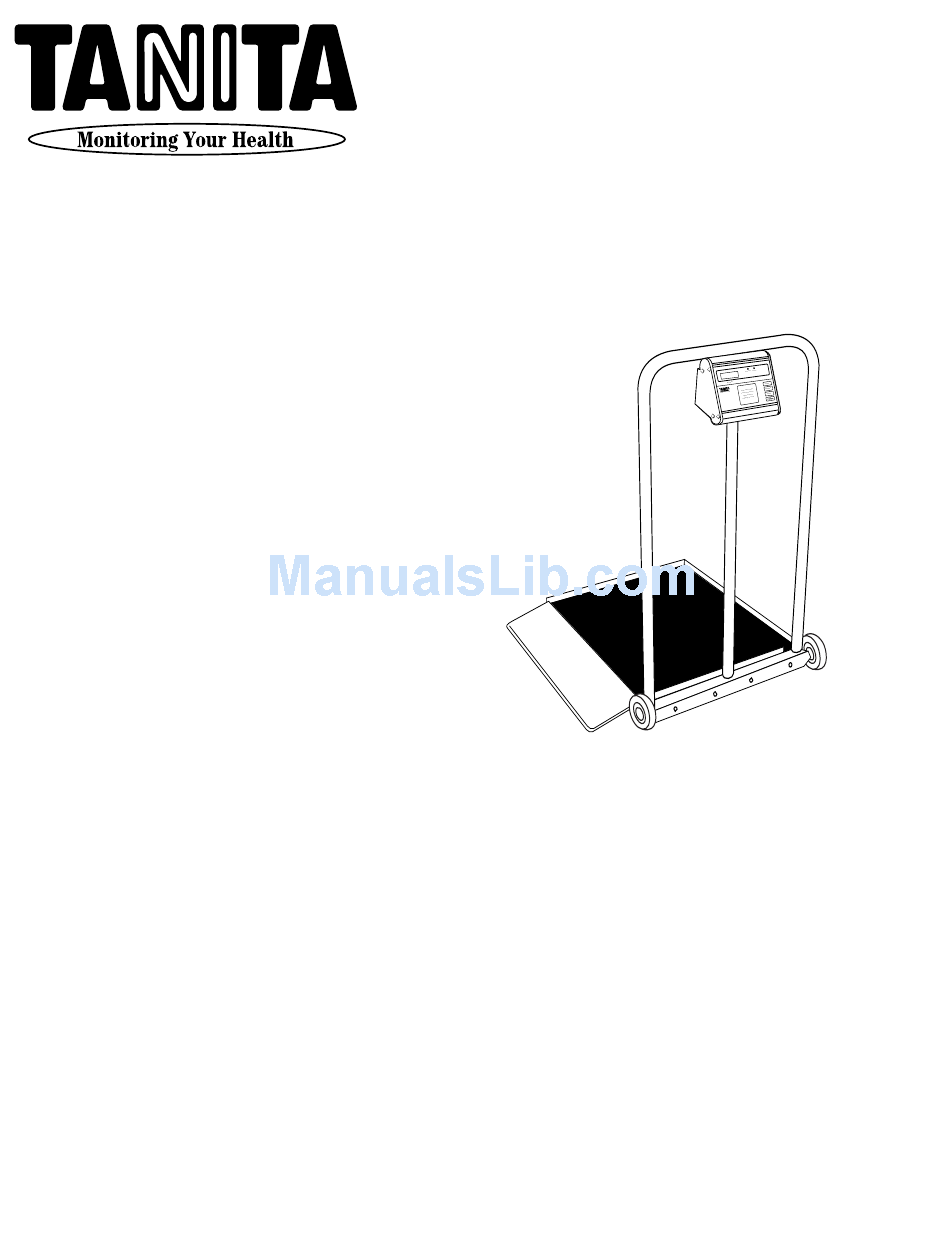

    Model 4500 Wheelchair Scale OPERATOR’S MANUAL Cautions and Warnings ............1 Assembly Instructions ............2 Before Assembly Assembling the Scale Attaching Control Box to Handrail Leveling the Platform Battery Charging ..............3 Charging the Battery Product Description ............3 Control Panel Box Special Features Specifications Operating Instructions ............4...

  • Page 2: Cautions And Warnings

    CAUTIONS AND WARNINGS Cautions • To ensure proper operation of the 4500 electronic scale, this operator’s manual should be reviewed carefully before operation. Keep this manual available for future reference, and also for use in the orientation of new personnel.

  • Page 3: Assembly Instructions

    One carton containing: Handlebar with wheels, platform, and 2 parts boxes. (Model 4500 only—separate insert with ramp and front and side rails.) One parts box containing: AC adaptor and storage bracket, C-clamp, twelve (12) locknuts, three (3) cable clamps, hex key, hex bolts, and sheet of adhesive labels.

  • Page 4: Attaching Control Box To Handrail

    Clamp 63935 PRODUCT DESCRIPTION Adapter Bracket 63925 Control Panel Box The 4500 control panel keypad has four membrane switches. The POUNDS, KILOS, and ZERO switches Leveling the Platform have both primary and secondary functions listed below. Only the primary functions are listed on the switch.

  • Page 5: Special Features

    If a foreign object is placed on the platform As a Wheelchair Scale before turning the scale on, it will automatically zero When using the 4500 Wheelchair Scale, the weight of out that object’s weight. the wheelchair must be taken into account. Weigh the 2.

  • Page 6: As A Chair Scale

    Taking a Weight Measurement Taking a Weight Measurement 1. Turn scale on. Wait for the display to show “0.” 1. Once the chair weight has been zeroed out and the display reads “0,” have the patient sit on the chair. 2.

  • Page 7: Care And Maintenance

    7. Remove weight and depress Zero switch. Wait for a display reading of “0.” Again add known weight to Proper care and cleaning of all Tanita Corporation scales platform. If reading is correct, no further adjustments and accessories is essential to ensure a long life of are necessary.

  • Page 8: Parts Lists

    PARTS LIST COMPUTER BOARD DISPLAY BOARD Part Description Qty Part Description Location Qty Part Description Location RES.CF 120 1/4W 5% RES. MOX .47 1W 5% CAP MONO CER .47UF 50V RES. CF 2.7 1/4W 5% CAP TANT 1UF 35V RES. CF 10K 1/4W 5% RES.

  • Page 9: Warranty

    AC adapter. The AC adapter is warrantied for one year. Tanita, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period.
