L
L
A L
A L
" B
" B
/ 1 6
/ 1 6
2 5
2 5
B33-01-0077
®
Model ET 5000W
Operation and Service Manual
SAFETY ............................................................... 2
SPECIAL FEATURES .......................................... 2
SPECIFICATIONS................................................. 3
WARRANTY .......................................................... 3
TRAILER HITCHING ........................................... 5
EQUIPMENT LOADING ...................................... 6
SERVICE .............................................................. 8
PARTS LIST ........................................................ 12
Patented

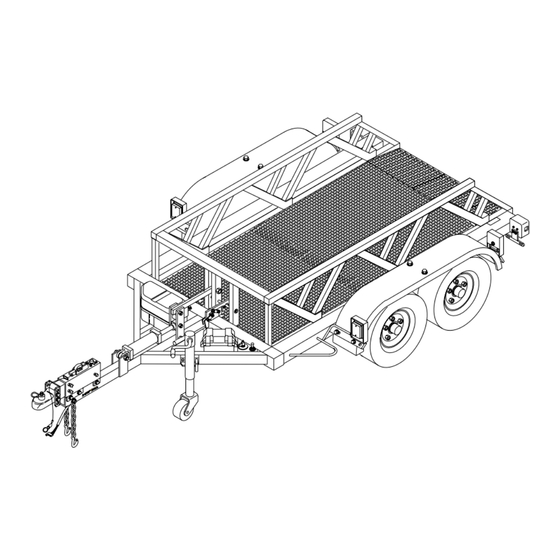

The ET 5000W E
level roll-on loading and roll-off unloading of
equipment with non-tilting lowering deck. The
hydraulic lift deck allows one person to load and
unload equipment.
Contents
Load Capacity: 5000 lbs
®
SCALATE
RAILER
T
offers ground
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Bil-Jax ESCALATE TRAILER ET 5000W
Summary of Contents for Bil-Jax ESCALATE TRAILER ET 5000W
-
Page 1: Table Of Contents
® Model ET 5000W Operation and Service Manual Patented ” B ” B / 1 6 / 1 6 Load Capacity: 5000 lbs ® SCALATE RAILER The ET 5000W E offers ground level roll-on loading and roll-off unloading of equipment with non-tilting lowering deck. The hydraulic lift deck allows one person to load and unload equipment. -
Page 2: Safety
Failure to comply with these instructions may result in serious personal injury or death as well as damage to cargo. SPECIAL FEATURES ® The Bil-Jax SCALATE RAILER includes all the features of a heavy duty trailer, plus: Escalator Deck and Hydraulic Lift... -
Page 3: Specifications
Bil-Jax. Bil-Jax shall not in any event be liable for the cost of any special, indirect or consequential damages to anyone, product, or thing. This warranty is in lieu of all other warranties expressed or implied. We neither assume nor authorize any representative, or other person, to assume for us any other liability in connection with the sale, rental, or use of this product. - Page 4 This page intentionally left blank...
-
Page 5: Trailer Hitching
TRAILER HITCHING Hook Up the Trailer 1. Raise trailer and loosen ball latch. 2. Line up ball with hitch. ” ” NOTE: The trailer hitch uses a 2 5/16 inch ball. 3. Lower hitch onto ball and tighten ball latch. 4. -
Page 6: Equipment Loading
EQUIPMENT LOADING Lower the Deck NOTE: Trailer must be hitched to vehicle according to page 5 before lowering or raising the deck. 1. Turn power switch to ON position. 2. Hold toggle switch in DOWN position. Lift latch handle and push handle back. NOTE: The trailer frame should be on a level surface when lowering the deck. - Page 7 EQUIPMENT LOADING Raise the Deck (trailer must be hitched to vehicle) 1. Turn power switch to ON position and hold 2. Verify that deck latch is on latch bar. Turn toggle switch in up position. Stop raising deck power switch to OFF position. when deck latch is on latch bar.
-
Page 8: Service
SERVICE Tire Maintenance Wheel Torque Requirements At least once each week, use an accurate tire It is extremely important to apply and maintain pressure gage to check the air pressure in all proper wheel mounting torque on your axle. four trailer tires. Inflate to the pressure Wheel nuts should be retorqued after 50 miles recommended by the tire manufacturer (located and 100 miles and periodically there after. - Page 9 SERVICE Hydraulic Fluid Levels 1. Remove cover from hydraulic pump. Check 2. Lower trailer deck. If oil level is below 3 inches fluid level in hydraulic reservoir. with deck down, add 1/2 quart of hydraulic oil. Use BP type HLP-46 or 10w hydraulic oil. NOTE: When trailer deck is raised, hydraulic fluid level should be at least 1/2 of reservoir volume.
- Page 10 SERVICE Replacing the Lift Rollers 1. On a paved, level surface, pull trailer onto 4x6 2. Lower the deck until the front or rear lift rollers blocks. Jack up and unhitch the trailer. can be removed from the roller access holes. 3-1/2 The deck must be supported by the paved surface or shoring before the lift rollers are...
- Page 11 SERVICE Adjusting the Hitch Height The trailer frame and deck should be level for equipment loading and unloading. If the trailer hitch is too high or too low when hitched to the towing vehicle, readjust the hitch height. 1. Unhitch trailer. Remove hitch mounting bolts 2.
-
Page 12: Parts List
PARTS LIST ® SCALATE RAILER Model ET 5000W E , Hitch Section Item No. Part No. Description B00-00-0114 Strap, Tie-Down, Battery Cover B01-10-0150 Box, Battery (includes lid & strap) 0090-0188 Nut, Nylon Lock, 3/8-16 B01-01-0027 Cable, Battery, 19” 0090-0160 Nut, Hex, 5/16-18 B01-04-0002 Battery, 12 Volt, Deep Cycle B01-02-0060... - Page 13 PARTS LIST ” B / 1 6 ® SCALATE RAILER Model ET 5000W E , Hitch Section...
- Page 14 PARTS LIST ® SCALATE RAILER Model ET 5000W E , Lift Section Item No. Part No. Description 0090-0428 Washer, SAE Flat, ¾ B07-06-1035 Bar, Deck Latch 0090-0147 Pin, Cotter, 1/8 x 1-¼ 0090-0689 Nut, Nylon Lock, 1-8 0090-0429 Washer, SAE Flat, 1 0090-0902 Screw, Cap, 1-8 x 7 B07-07-5010...
- Page 15 PARTS LIST 23, 23A ® SCALATE RAILER Model ET 5000W E , Lift Section...
- Page 16 PARTS LIST ® SCALATE RAILER Model ET 5000W E , Deck and Frame Section Item No. Part No. Description Item No. Part No. Description B12-00-0094 Deck Weldment 0090-0882 Washer, Wheel 0090-0060 Screw, Cap, 3/8-16 0090-0880 Nut, Castle x 5-1/2 0090-0881 Pin, Cotter, 5/32 x 2 0090-0422 Washer, SAE Flat, 3/8...
- Page 17 PARTS LIST 53,53A,53B 13,13A, 13B,13C 22,22A,22B,22C 51A, ® SCALATE RAILER Model ET 5000W E , Deck and Frame Section...
- Page 18 PARTS LIST Model DB-1343 Hydraulic Pump Assembly Item No. Part No. Description B02-15-0119 Coupling, SAE 9T-20/40 1.26 B02-15-0128 Ball, 0.375 Steel, G50 B02-15-0091 Seal, Shaft 0.500 x 1.00 x 0.25 B02-15-0201 Breather, Plastic B02-15-0093 Washer, 0.338 x 0.625 x 0.60 Steel B02-15-0166 Washer, Lock, 0.255 x 0.485 x 0.062 B02-15-0061...
- Page 19 PARTS LIST Model DB-1343 Hydraulic Pump Assembly...
- Page 20 125 Taylor Parkway Archbold, OH 43502 Phone 419-445-9675 Fax 419-445-0367...
