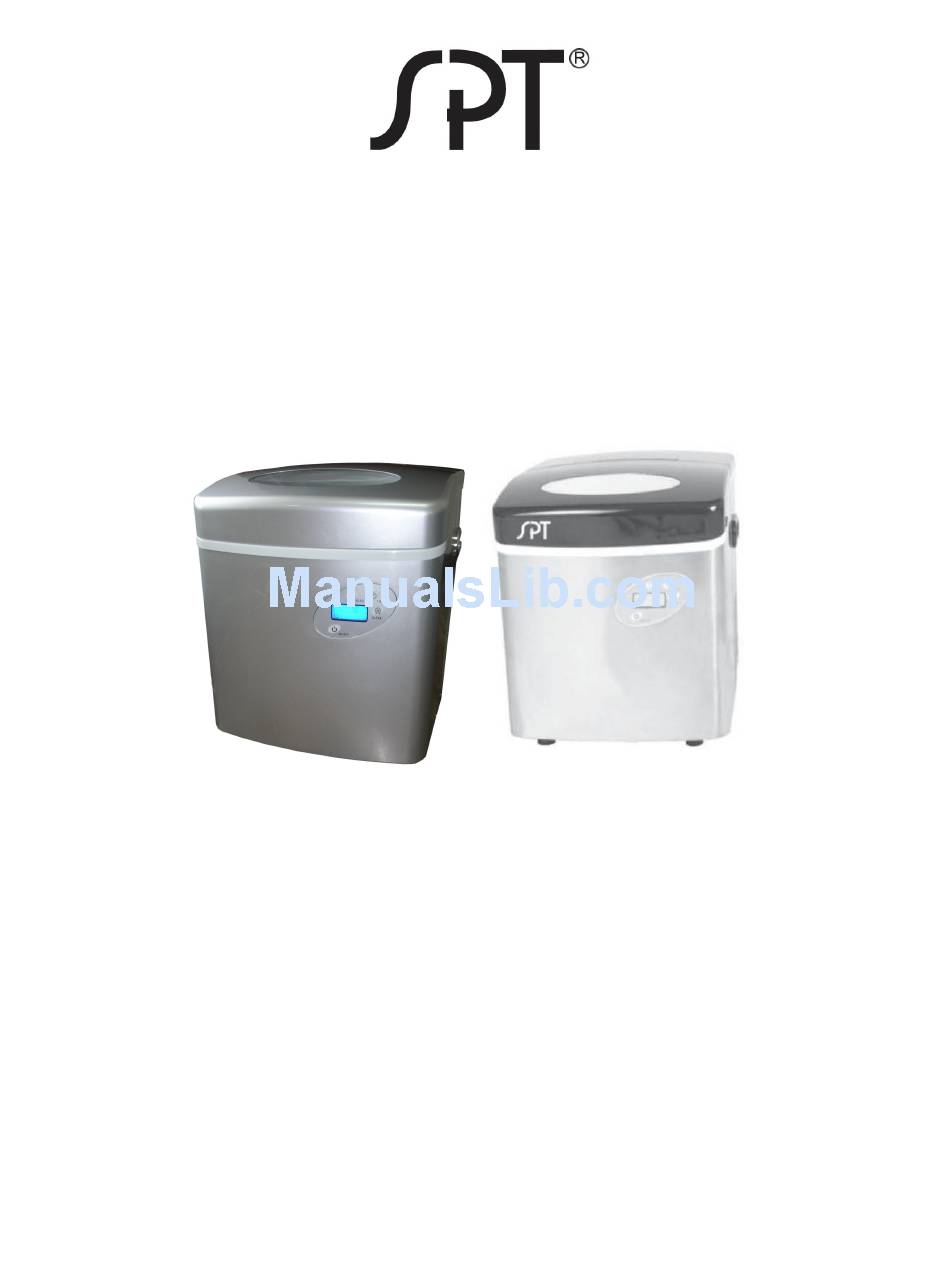

Page 1: Ice Maker

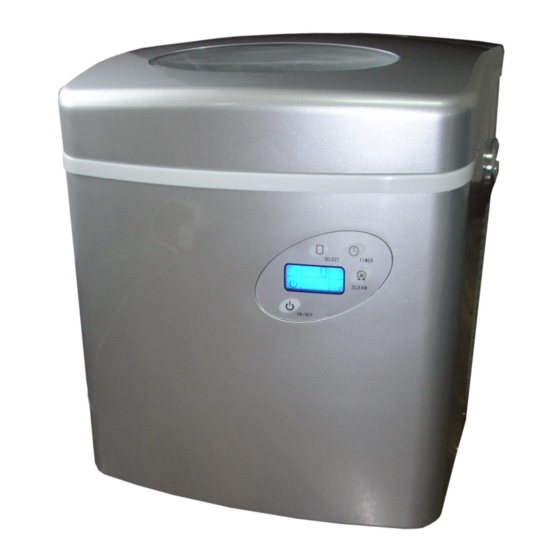

ICE MAKER Model: IM-101 / IM-101S INSTRUCTION MANUAL It is important that you read these instructions before using your portable ice maker and we strongly recommend that you keep them in a safe place for future reference. -
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS …………………………………….2 PREPARING YOUR ICE MAKER FOR USE ……………………………….3 GETTING TO KNOW YOUR UNIT PARTS IDENTIFICATION …………………………………………………4 CONTROL PANEL & LCD DISPLAY …………………………………….5 LCD DISPLAY SYMBOLS ………………………………………………...5 OPERATING PROCEDURES & MAINTENANCE UNPACKING YOUR ICE MAKER ……………………………………….6 ... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Your safety and the safety of others are very important. We have provided many important safety messages in this manual in regards to your appliance. Always read and obey all safety messages. This is the safety alert symbol: All safety messages will follow the safety alert symbol and the word “DANGER”... -
Page 4: Preparing Your Ice Maker For Use
PREPARING YOUR ICE MAKER FOR USE IMPORTANT SAFETY TIPS When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire, electric shock and injury to persons or property. Read all instructions before using any appliance. ... -
Page 5: Getting To Know Your Unit
GETTING TO KNOW YOUR UNIT PARTS IDENTIFICATION 1. COVER: with a transparent window to allow interior visibility 2. CONTROL PANEL: easy to use controls. LCD display with blue backlight 3. WATER DRAIN CAP: for draining water from water reservoir 4. ICE BASKET 5. -
Page 6: Control Panel & Lcd Display
CONTROL PANEL & LCD DISPLAY 1. POWER: to turn the unit ON or OFF 2. SELECT: press to select the size of the ice cube (Small, Medium or Large) 3. TIMER: to set or cancel ON or OFF timer (refer to page 9) 4. -
Page 7: Operating Procedures & Maintenance
OPERATING PROCEDURES UNPACKING YOUR ICE MAKER 1. Remove all exterior and interior packaging materials. Check that the ice basket and ice scoop is included. If any parts are missing, please contact our customer service. 2. Clean the interior with lukewarm water and a soft cloth or clean the unit using the Self-Clean function (see page 7). -
Page 8: Cleaning And Maintenance
CLEANING & MAINTENANCE Please thoroughly clean your ice maker before initial use. EXTERIOR: the outside of the ice maker should be cleaned regularly with a mild detergent solution and warm water. Always use a soft cloth to avoid scratching or damaging the housing. INTERIOR: please use the following Self-Clean function: 1. -
Page 9: Using Your Ice Maker
USING YOUR ICE MAKER OPERATING DETAILS 1. Open the cover, remove the ice basket and pour water into water reservoir. Keep water level below the level mark. 2. Plug the unit into an applicable power supply outlet. 3. Press POWER button on the control panel to start the ice making cycle. 4. -
Page 10: Timer Setting Procedure
TIMER SETTING PROCEDURE How to set ON-TIMER program When the unit is off, you can set the unit to start in x-number of hours: 1. Press the TIMER button on the control panel. Timer indicator, will flash in the Timer Set window. -
Page 11: Troubleshooting
Refrigerant liquid leakage. Contact Sunpentown Pipe in the cooling system is Contact Sunpentown blocked. TECHNICAL PARAMETERS MODEL IM-101 / IM-101S PROTECTION TYPE POWER 115V / 60Hz CURRENT 1.8 ~ 2.9A REFRIGERANT R134a / 97g NET WEIGHT 32.4/33.5 lbs... -
Page 12: Warranty
This guarantee is subject to the following terms: Sunpentown must be notified of the fault. Proof of purchase must be presented to Sunpentown’s nominated representative. The warranty will be void if the product if modified, misused or repaired by an unauthorized person.
