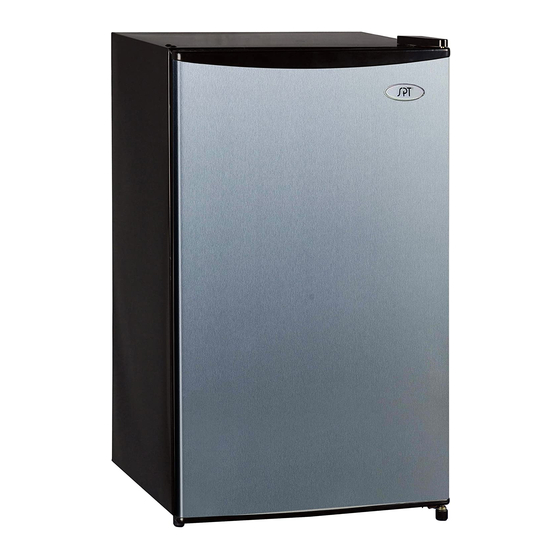

- Page 1 Instruction Manual 3.3 CU. FT. Refrigerator RF-334SS (STAINLESS STEEL)
-
Page 2: Table Of Contents
Contents SAFETY WARNINGS......................1 INSTALLTION........................2 PRODUCT OVERVIEW ......................4 OPERATION........................5 CLEANING .......................... 6 MAINTENANCE ........................6 Trouble shooting ....................... 7 TIPS FOR ENERGY SAVING ....................7 DISPOSAL ........................... 8... -
Page 3: Safety Warnings
1. SAFETY WARNINGS Caution: risk of fire 1) WARNING―Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. 2) WARNING―Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. 3) WARNING―Do not damage the refrigerant circuit. -
Page 4: Installtion
2. INSTALLTION 2.1 Location When selecting a position for your unit, please make sure the floor is flat and firm. The room should be well ventilated with an ambient room temperature between 61°F and 100°F. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. - Page 5 5) Slide the door downwards and off the top hinge pin. Lift and remove door, place to side. 6) Remove the two screws from top bracket and transfer to the other side. You will need to first remove the plastic caps on the other side.
-
Page 6: Product Overview
2.6 Before Using Your Unit Before placing any food in your unit, turn it on and wait for 24 hours to make sure it is working properly. This will also allow the unit to fall to the correct temperature. Your unit should not be overfilled. -
Page 7: Operation
4. OPERATION 4.1 Adjusting the Temperature • The temperature control knob is located on the right, below the freezer compartment. • OFF = power off • MIN = Least cool temperature setting • MED = Normal operation (suggested setting for most situations) •... -
Page 8: Cleaning
5. CLEANING 5.1 Defrosting Frost may accumulate on the inner rear surface of the appliance, which will automatically defrost during compressor cycle. Water is channeled via the drain hole to the collection tray above the compressor where it will evaporate. Please ensure the drain hole is checked and cleaned on a regular basis so water can exit the storage compartment. -
Page 9: Troubleshooting
7. Troubleshooting The following issues can be handled by the user. If problem persists, please contact Sunpentown Customer Service at 1-800-330-0388. Unit is not plugged in. Check outlet and circuit. No power Low voltage. Power failure power. Odorous foods should be closely wrapped. -
Page 10: Disposal
slowly may lose quality or spoil. • Wrap foods properly and wipe containers dry before placing them in the refrigerator. This cuts down on frost build-up inside the appliance. • Do not line the storage bin with aluminum foil, wax paper or paper towel. Liners interfere with cold air circulation, making the appliance less efficient. - Page 11 This guarantee is subject to the following terms: • Sunpentown must be notified of the fault. • Proof of purchase must be presented to Sunpentown’s nominated representative. • The warranty will be void if the product if modified, misused or repaired by an unauthorized person.
