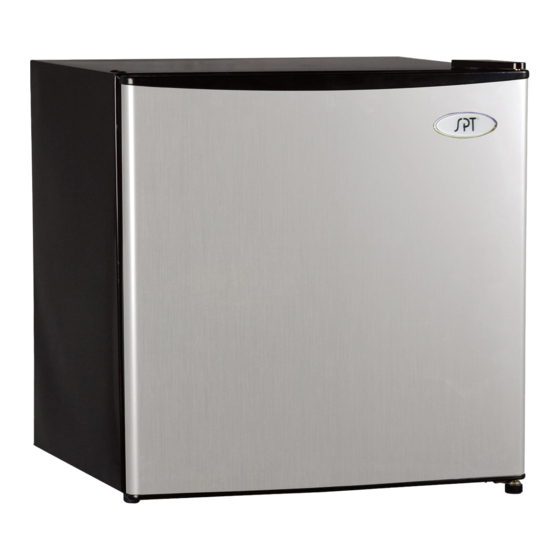

- Page 1 Instruction Manual 1.7 CU. FT. Refrigerator RF-172SS (STAINLESS STEEL)
-
Page 2: Table Of Contents
Contents SAFETY WARNINGS......................1 INSTALLTION........................2 PRODUCT OVERVIEW ......................4 OPERATION........................4 CLEANING .......................... 5 MAINTENANCE ........................6 Trouble shooting ....................... 7 TIPS FOR ENERGY SAVING ....................8... -
Page 3: Safety Warnings
1. SAFETY WARNINGS Caution: risk of fire 1) WARNING―Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. 2) WARNING―Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. 3) WARNING―Do not damage the refrigerant circuit. -
Page 4: Installtion
2. INSTALLTION 2.1 Location When selecting a position for your unit, please make sure the floor is flat and firm. The room should be well ventilated with an ambient room temperature between 61°F and 100°F. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. - Page 5 4) Place to one side. 5) Slide the door downwards and off the top hinge pin. Lift and remove door, place to side. 6) Remove the two screws from top bracket and transfer to the other side. You will need to first remove the plastic caps on the other side.
-
Page 6: Product Overview
2.5 Cleaning Before Use Wipe the inside of the unit with a weak solution of bicarbonate soda. Then wipe with a “wrung-out” sponge or cloth with warm water. Wash the shelves and door bin in warm soapy water and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth. -
Page 7: Operation
4. OPERATION 4.1 Adjusting the Temperature OFF = Power off • 1 = Least cool temperature setting • 3 = Normal operation (suggested setting for most situations) • 6 = Coldest temperature setting • During high ambient temperatures e.g. on hot summer days, it may be necessary to set •... -
Page 8: Cleaning
5. CLEANING Defrosting Defrost the unit when the frost accumulated on the evaporator is • about 5mm (1/5 inch) thick. Set the thermostat dial to “OFF” position. Remove frozen or perishable foods from the chiller compartment and place it in a cooler •... -
Page 9: Trouble Shooting
how to do so. Repairs carried out by inexperienced persons may cause injury or serious malfunction. 6.4 Vacation / Storage If the unit is not to be used for a long period of time, turn the thermostat to OFF position and unplug from power source. - Page 10 • Before loading the appliance with packages of fresh food, make sure they are cooled to ambient temperature. • Ice and frost layer increase energy consumption, so clean the appliance as soon as the layer is 3-5 mm thick. • Keep the rear (condenser) free of dust and impurities. •...
- Page 11 If this product is defective Or not working properly Please DO NOT return to your retail store Please contact us directly with any Service or Technical Assistance Contact us toll free at: 1-800-330-0388...
- Page 12 Your Guarantee If this product is found to be faulty as a result of faulty materials or workmanship within one year from date of purchase, it will be repaired free of charge. This guarantee is subject to the following terms: Sunpentown must be notified of the fault.
