Planet Z64 User Manual

Multifunction home/office alarm security system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Congratulations on purchasing this excellent multifunction home/office alarm security system. This system has a
clearly written English User Manual providing step by step instruction for set up.
STEP 1
Preparation of Sensors for Installation
Motion Detectors.
A. turn ON/OFF switch to OFF position
B. open motion detector and install battery
C. maintain ON/OFF switch in OFF position
Window/Door Sensor.
A. separate sensor from magnetic bar
B. opens the sensor and installs battery
C. keeps sensor and bar separate
Smoking Detector.
Install battery

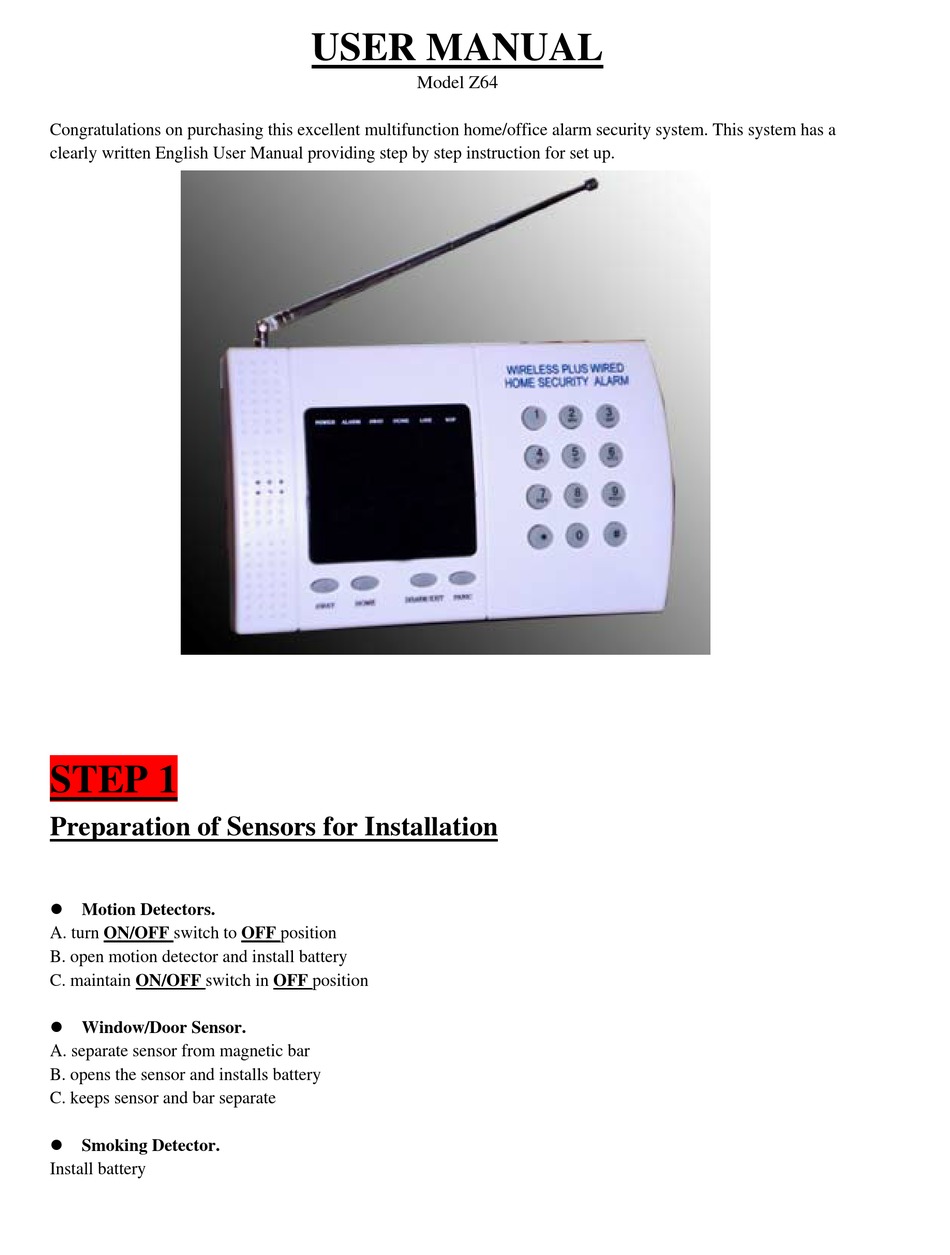

USER MANUAL

Model Z64

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z64 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planet Z64

Summary of Contents for Planet Z64

  • Page 1: User Manual

    USER MANUAL Model Z64 Congratulations on purchasing this excellent multifunction home/office alarm security system. This system has a clearly written English User Manual providing step by step instruction for set up. STEP 1 Preparation of Sensors for Installation  Motion Detectors.
  • Page 2  Gas Detector and Glass Break Detector. Plug power cord into wall outlet.  Wireless Portable Keypad. Open back cover. Install battery.  Attach Wired Siren Insert plug of your alarm siren into siren jack on keypad/dialer  Attaching telephone to keypad/controller. A.

  • Page 3: Changing The Password

     Activating Wireless Outdoor Siren. PANIC A. Turn keypad/controller power switch on. Depress the keypad “ ” button. B. Plug power cord of wireless outdoor siren into power receptacle and then into your wall outlet. Repeat this action until short sound long sound you hear “...
  • Page 4 3. Activating Your Keychain Remote /Panic button. With your system in programming status enter the number below. In word of the trigger, A. Push any of the four buttons on your keychain remote. You will hear double beeping sounds indicating that your keychain remote is now activated.
  • Page 5 5. Activating Wireless Range Bean Motion Detectors. Each sensor needs to be numbered Activating Wireless Bean Motion Detectors. Each sensor needs to be numbered For each wireless range bean motion detector/bean motion detector, choose a number from 09 to 32 (notice: must 2 digits), with your system in programming status, enter the number and symbol sequence below into your...

  • Page 6: Activating The Smoke Detector/Gas Detector/Glass Break Detector

    7. Activating the Smoke Detector/Gas Detector/Glass Break Detector. For each smoke detector/gas detector/glass break detector you use, choose a number from 01 to 08 (notice: must 2 digits). With your system in programming status, on your keypad enter the number sequence below. In the place of In the place of {01 to 08}, enter the number you have chosen for the sensor.

  • Page 7: Setting The Exit Delay Time/ Arm Delay Model

     Home arm function: A sensor programmed to the home arm function will not be operational when the system is home armed, this function is usually programmed for the motion detector. 7 => 2 =>*=> {01 to 08} =>3 => # Enter sensor zoon...

  • Page 8: Setting Siren Sounding Time/ Silent Alarm Model

    5 => 6 => * => {00 to 30} => # Enter minutes in two digits. 00 means no delay 01 means 1 minutes delay 30 means 30 minutes delay 11. Setting Siren Sounding Time/ Silent Alarm Model. This function allows you to set the length of time your siren will sound; you have a range from silent alarm (00) up to thirty (30) minutes.

  • Page 9: Phone Line Anti-Cut Monitoring

     Store first phone number: 4 => 1 => * => {enter phone number} => #  Store second phone number: 4 => 2 => * => {enter phone number} => #  Store third phone number: 4 => 3 => * => {enter phone number} => # ...

  • Page 10: Record Message

    14. Record Message. To record your outgoing message, (while in “programming status”), press: rec + # and record your message for a maximum of 10 seconds. Rec => # => Speak your message into the keypad 15. Play Back. To play back recorded message, enter the sequence code below and in place of the “pick up the phone receiver”, pick up the phone receiver to hear the message.

  • Page 11: Operating The System

    17. Professional Monitoring Service Function. This alarm system has a function which supports the use of professional monitoring service. To activate this function (with your system in programming status), enter the number sequence below into the keypad. In place of the {0000 to 9999}, enter the four digit (CONTACT ID) number.

  • Page 12: Key Chain Remote Operation

    2. Key Chain Remote Operation.  To arm system; press the “lock” button  To disarm system; press the “unlock” button.  To home arm system: press the “house” button.  For emergency; press the “alarm” button Notice: When you arm or disarm the system using the keychain, you will hear a confirmation double “beep” sound from the siren to confirm acceptance of the command, if you arm or disarm from the keypad/dialer, you will see a confirming light on the LCD screen instead of confirming siren beep.
  • Page 13 Activation will be confirmed by a double beeping sound  Change Portable Keypad PASSWORD. Press the follow button below on wireless portable keypad. Password (factory password is 1234) =>12=>new password (must 4 digits) =>12  To ARM the alarm system: Press the follow button below on wireless portable keypad. Password (factory password is 1234) =>12=>1=>12 ...
