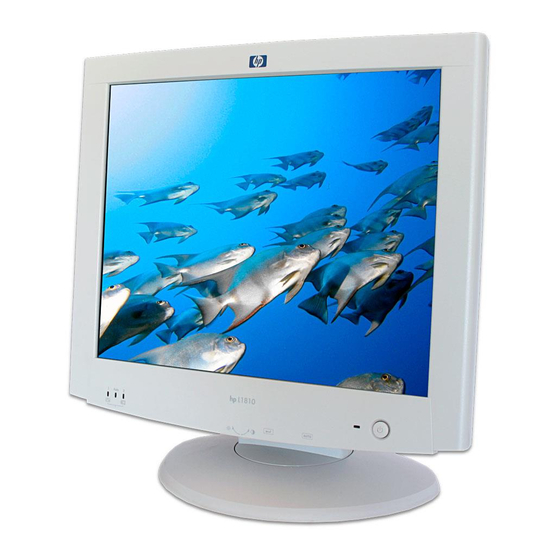

hp L1810
D5069
18.1-inch LCD Color Monitor
(18.1-inch Viewable Image)
User's Guide
Anti-glare, anti-static screen coating
Power Status indicator
On/off switch
Auto-adjustment button
Button to operate on-screen
menus
Advertisement
Table of Contents
Related Manuals for HP L1810
Summary of Contents for HP L1810
- Page 1 Full scan TFT screen that gives an edge-to-edge image Video Input LEDs Button to select Video Input hp L1810 D5069 18.1-inch LCD Color Monitor (18.1-inch Viewable Image) User’s Guide Anti-glare, anti-static screen coating Multi-function adjustment control and browser Power Status indicator...
- Page 2 This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company. HP France 38053 Grenoble Cedex 9 France© 2000 Hewlett-Packard Company...
-
Page 3: Important Safety Instructions
You can consult the online version of Working in Comfort preloaded on the hard disk of HP computers, or visit HP's Working in Comfort web site at: CAUTION The lightning flash with arrowhead symbol, situated within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... - Page 4 What Your New Monitor Offers Your HP monitor is a 18.1-inch (diagonal and viewable image), high resolution, liquid crystal multi-synchronous color monitor. Multi- synchronous means that the monitor supports a large range of video modes (see “Supported Video Modes” on page 21). It is optimized to be used with all Hewlett-Packard computers.
-
Page 5: Unpacking Your Monitor
HP 18.1 LCD ” Color Monitor User’s Guide Unpacking Your Monitor Unpacking Your Monitor 1 LCD monitor 1 power cord and adapter 1 VGA cable 1 DVI cable 1 USB cable 1 quick set-up card 1 warranty booklet 1 CD-ROM ENERGY STAR is a US registered service mark of the US EPA. -
Page 6: Setting Up Your Monitor
WARNING Before you connect any cables, or install your HP monitor, refer to the safety instructions at the beginning of this manual. Refer also to the user’s manual that accompanies your PC and video adapter to ensure this equipment is correctly installed. - Page 7 HP 18.1 LCD ” Color Monitor User’s Guide Setting Up Your Monitor Connecting the Cables continued. VGA Connector DVI Connector 6 EnglishEnglish...
- Page 8 Connecting Headphones/Speakers and a Microphone Your monitor has headphone/speaker and microphone sockets on the rear panel. HP 18.1 LCD” Color Monitor User’s Guide Connecting Additional Devices to Your Monitor Microphone In Jack Headphone/Speaker...
-
Page 9: How To Install The Drivers
Double click on Display. Click on the Settings tab. Click on Advanced Properties or Advanced... and select the Monitor tab. Click on Change... to select the model of the HP Monitor you are using. Click on Have Disk... Click on Browse... to find the Select your monitor type from the Models box and click on OK to install the selected monitor. -
Page 10: Adjusting Your Monitor
To exit the main menu select EXIT from the OSD main menu. You can NOTE exit all menus at any time by double clicking the button. HP 18.1 LCD” Color Monitor User’s Guide to enter the OSD main menu. to confirm your selection. -
Page 11: How To Adjust Your Monitor
HP 18.1 LCD ” Color Monitor User’s Guide Adjusting Your Monitor When to Adjust your Monitor Using the DVI interface (video input LED number 1 is on When the monitor is installed for the first time - The only adjustment you may need to perform concerns the contrast, brightness and color. -
Page 12: Using Your Monitor
OSD menu, then press LANGUAGE submenu. Select a language from the list using the to confirm your selection and return to the main menu. HP 18.1 LCD” Color Monitor User’s Guide USING Your Monitor to enter the control, then press... -
Page 13: Brightness And Contrast
CD-ROM. With auto-adjustment it is not necessary to adjust NOTE POSITION, unsatisfactory, follow the on-screen instructions in the HP Optimizer Utility to adjust these options manually. 12 EnglishEnglish to save your adjustments. BRIGHTNESS from the OSD main menu. Make your... -
Page 14: Restoring The Default Settings
5. then press to enter the MODE RECALL submenu. HP 18.1 LCD” Color Monitor User’s Guide USING Your Monitor control, then press controls, then press to return to the main menu. -
Page 15: Setting The Timer
HP 18.1 LCD ” Color Monitor User’s Guide USING Your Monitor Select YES using the selection. The monitor image will disappear for a few seconds while the monitor restores its default settings. Setting the Timer Your monitor has a time control function that can prolong the lifetime of your monitor. -
Page 16: Adjusting The Image Size
This is due to the approximations made in the scaling process. To display the image at the optimum quality: Select the IMAGE SIZE submenu. HP 18.1 LCD” Color Monitor User’s Guide Use to Action Set the current local 1. -
Page 17: Auto Selection
HP 18.1 LCD ” Color Monitor User’s Guide USING Your Monitor Select the feature you require using the to confirm your selection and return to the main menu. The following table describes the options available: Image Size Menu Item FULL SCREEN... - Page 18 OSD main menu. 1 AUTO 2 1 AUTO 2 1 : 2 from the main menu, then press HP 18.1 LCD” Color Monitor User’s Guide USING Your Monitor to enter the INPUT English...
-
Page 19: Obtaining Information
HP 18.1 LCD ” Color Monitor User’s Guide USING Your Monitor The displayed image will disappear for a few seconds. The message Auto Video Input Selection Priority to 1 (or 2 depending on your selection) appears while the monitor makes your selection. - Page 20 OSD H POSITION The horizontal position of the OSD Select EXIT, then press HP 18.1 LCD” Color Monitor User’s Guide USING Your Monitor Action Adjust the number of seconds using the adjustment control, then press to return the OSD MANAGER submenu.
- Page 21 HP 18.1 LCD ” Color Monitor User’s Guide USING Your Monitor Protected OSD When this mode is selected the user can adjust the brightness/ contrast and OSD Manager only. To enable or disable protected OSD mode: Select PROTECTED OSD to enter the PROTECTED OSD submenu.
-
Page 22: Supported Video Modes
Minimizing Energy Consumption If your computer supports VESA monitor power management (available on many HP computers), you can minimize the power consumed by the monitor. There are two power saving modes: Suspend mode Sleep mode When the monitor enters power saving mode the message POWER SAVING MODE is displayed for a few seconds before the screen blanks. - Page 23 Turn the key to lock the cable to the monitor. Remove the key and store it in a safe place. The Kensington lock is not an HP accessory. It cannot be ordered from HP. Contact your reseller for more information.
-
Page 24: Troubleshooting
“Color” on page 13.). The picture is not centered: Adjust your monitor using the Auto Adjustment function (Refer to “Auto-Adjustment” on page 12.). HP 18.1 LCD” Color Monitor User’s Guide is amber. When the monitor is on the Troubleshooting English... - Page 25 HP 18.1 LCD ” Color Monitor User’s Guide Troubleshooting All documents are also available on HP Monitors support web site at LCD Monitor Quality and Pixel Policy Your Hewlett-Packard TFT display uses high precision technology, manufactured according to HP standards, to guarantee trouble-free personal computing.
-
Page 26: Technical Specifications
CABINET WEIGHT Less Than: 12kg (24.25 lbs) Tilt Angle TILT/SWIVEL STAND Swivel Angle HP 18.1 LCD” Color Monitor User’s Guide 18.1-inch diagonal and viewable image TFT liquid crystal display SXGA 1280 0.7 Vp p analog RGB Separated H/V (TTL level) -
Page 27: Care And Cleaning
HP 18.1 LCD ” Color Monitor User’s Guide Care and Cleaning Care and Cleaning To maximize the screen life-span of this product and prevent damage to the liquid crystal display, it is recommended that you: Do not let liquid get on or into the monitor. -
Page 28: Environmental Information
HP can also take back your old monitor for recycling when it reaches the end of its useful life. HP has a product take-back program in several countries. The collected equipment is sent to one of HP’s recycling facilities in... - Page 29 HP 18.1 LCD ” Color Monitor User’s Guide Warranty PART I - HP General Hardware Warranty General Warranty repair or replacement Model Warranty Period Service Provided...
- Page 30 HP dealer or other HP designate. Unless otherwise stated or agreed upon in writing with HP, all hardware components must be returned for refund with the entire system process unit.
- Page 31 THEORY. The foregoing limitation of liability shall not apply in the event that any HP product sold hereunder is determined by a court of competent jurisdiction to be defective and to have directly caused bodily injury, death, or property damage. To the extent allowed by...
-
Page 32: Hp Software Product License Agreement And Software Product Limited Warranty
HP Software Product License Agreement and Software Product Limited Warranty PART II - General HP may provide one or more software programs for this monitor on a separate media. Please read the Software License Agreement before proceeding. CAREFULLY READ THIS LICENSE AGREEMENT AND LIMITED WARRANTY STATEMENT BEFORE PROCEEDING TO OPERATE THE USE OF THE SOFTWARE. - Page 33 HP Software Product License Agreement and Software Product Limited Warranty OWNERSHIP The software is owned and copyrighted by HP or its third party suppliers. Customer agrees that he/she does not have any title or ownership of the software, other than ownership of the physical media.
- Page 34 MONITOR PRODUCT PACKAGING. Ninety-Day Limited Software Warranty. HP warrants for a period of NINETY (90) DAYS from the date of the purchase that the software product will execute its programming instructions when all files are properly installed. HP does not warrant that the software will be uninterrupted or error free.
- Page 35 OBTAINING WARRANTY SERVICE Warranty service may be obtained from the nearest HP sales office or other location indicated in the owner's manual or service booklet. FOR CONSUMER TRANSACTIONS IN AUSTRALIA AND NEW ZEALAND:...
-
Page 36: Declaration Of Conformity
According to ISO/IEC Guide 22 and CEN/CENELEC EN 45014 Manufacturer's name: Manufacturer's address: Declares that the product(s): Product Name: HP 18” LCD Color Monitor Model Number: D5069** (where * can be any alphanumerical character including blank) Conform(s) to the following Product Specifications: SAFETY •... -
Page 37: Notice For Canada
Consult your dealer or an experienced radio/TV technician for help. Hewlett-Packard's FCC Compliance Tests were conducted using HP-supported peripheral devices and HP shielded cables, such as those you receive with your system. Changes or modifications not expressly approved by Hewlett-Packard could void the user's authority to operate the equipment. - Page 38 HP 18.1 LCD” Color Monitor User’s Guide Regulatory Information Notice for Japan English...
- Page 39 HP 18.1 LCD ” Color Monitor User’s Guide TCO 99 - Ecology Energy Emissions Ergonomics TCO 99 - Ecology Energy Emissions Ergonomics Congratulations! You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
-
Page 40: Environmental Requirements
Bio-accumulative is defined as substances which accommodate within living organisms. Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative HP 18.1 LCD” Color Monitor User’s Guide TCO 99 - Ecology Energy Emissions Ergonomics processes. Flame retardants have been found in...
