Spiegelberg:
IAP-Monitor
IAP 32.1
Operating-Instructions
Innovative
Measurement
Technology for
Medicine
Advertisement
Table of Contents
Related Manuals for Spiegelberg IAP 32.1
Summary of Contents for Spiegelberg IAP 32.1

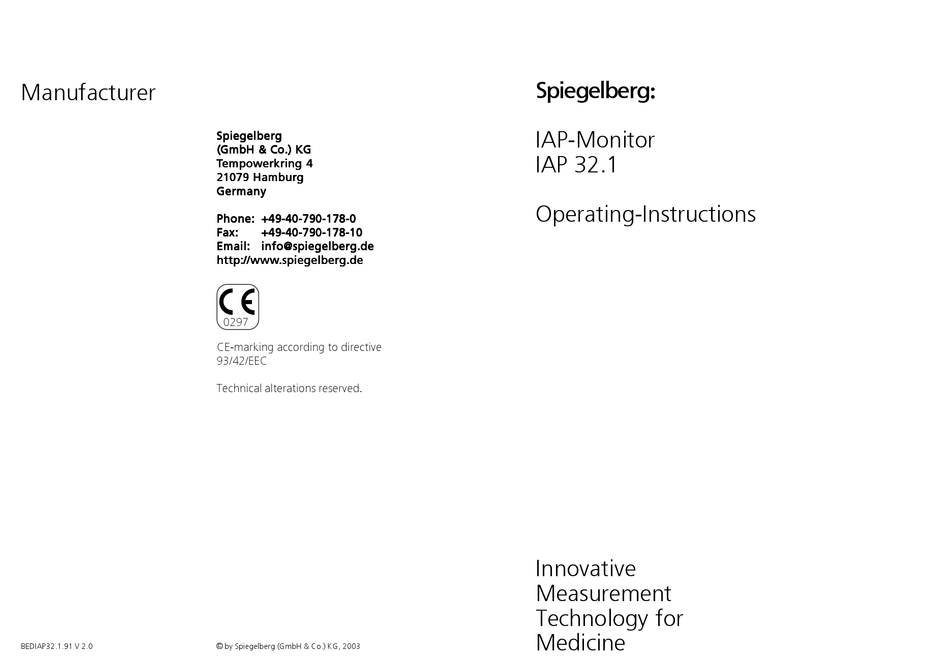

- Page 1 0297 CE-marking according to directive 93/42/EEC Technical alterations reserved. BEDIAP32.1.91 V 2.0 © by Spiegelberg (GmbH & Co.) KG, 2003 .spiegelberg.de .spiegelberg.de .spiegelberg.de .spiegelberg.de Spiegelberg: IAP-Monitor IAP 32.1 Operating-Instructions Innovative Measurement Technology for Medicine...
-
Page 2: Safety Instructions
Pinout of DB 9 Socket 1: Uref Input 6: Uref Output (2,5 V) 2: RxD 7: Digital Gnd 3: TxD 9: Analog Gnd. 5: Analog Output For use as a voltage output pins 1 and 6 are connected by a jumper. -
Page 3: Monitor Operation
Faults The air-tightness of the air-pouch system is checked regularly. If a leak is detected, the red warning indicator shows alarm. When the leak is removed the red warning indicator disappears and the measurement is continued. If the leak has not been removed after one minute, in addition to the alarm display a chirp sound is emitted. - Page 4 On the digital display the mean pressure is shown in mmHg. During the first ten minutes after switching on the pulse amplitude (i.e. systolic pressure minus diastolic pressure) is additionally displayed marked by an ´A´. During this time the mean pressure is displayed for three seconds, then the amplitude is displayed for one second.
-
Page 5: Indication And Method
The air-pouch is then filled with the exact air volume required for accurate pressure transmission. Technical specifications IAP 32.1 Measurement range Measurement range Measurement range Measurement range Measurement range -50 to +100 mmHg... - Page 6 1.9.2003 AS/az EG-Konformitätserklärung Declaration of Conformity Das Produkt IAP-Monitor HDM IAP 32.1 entspricht den grundlegenden Anforderungen gemäß Anhang I der Richtlinie 93/42/EWG. Es ist als Klasse IIa klas- sifiziert. Das Qualitätsmanagementsystem entspricht den Forderungen der Norm ISO 13485:2001 gemäß Zertifikat Nr. 18737 der DQS, benannte Stelle Nr.
