Liquid Chorus
(continued):
- Tone: This is a typical high-cut tone control, effecting the entire Chorus circuit.
- Intensity: This 3-position switch chooses between 3 levels of intensity in the Chorus
circuit. From left to right: Light – Medium – High.
- Detune: "Off" is normal Chorus. "On" allows the Liquid Chorus to go into ranges that
other chorus pedals never go, from relatively normal lush chorus to true noise effects.
- OUT 2: Use this jack in combination with OUT 1 for true stereo chorus. The Echo
channel will be parallel mono, not stereo, when using this jack in a normal setup.

Internal Buffer On/Off:

which allows you to turn on/off the Pure Tone buffer circuit. We recommend that you leave the
first channel buffer on. However, if you want pure true bypass switching, you may turn both
switches off.
(mono chorus)

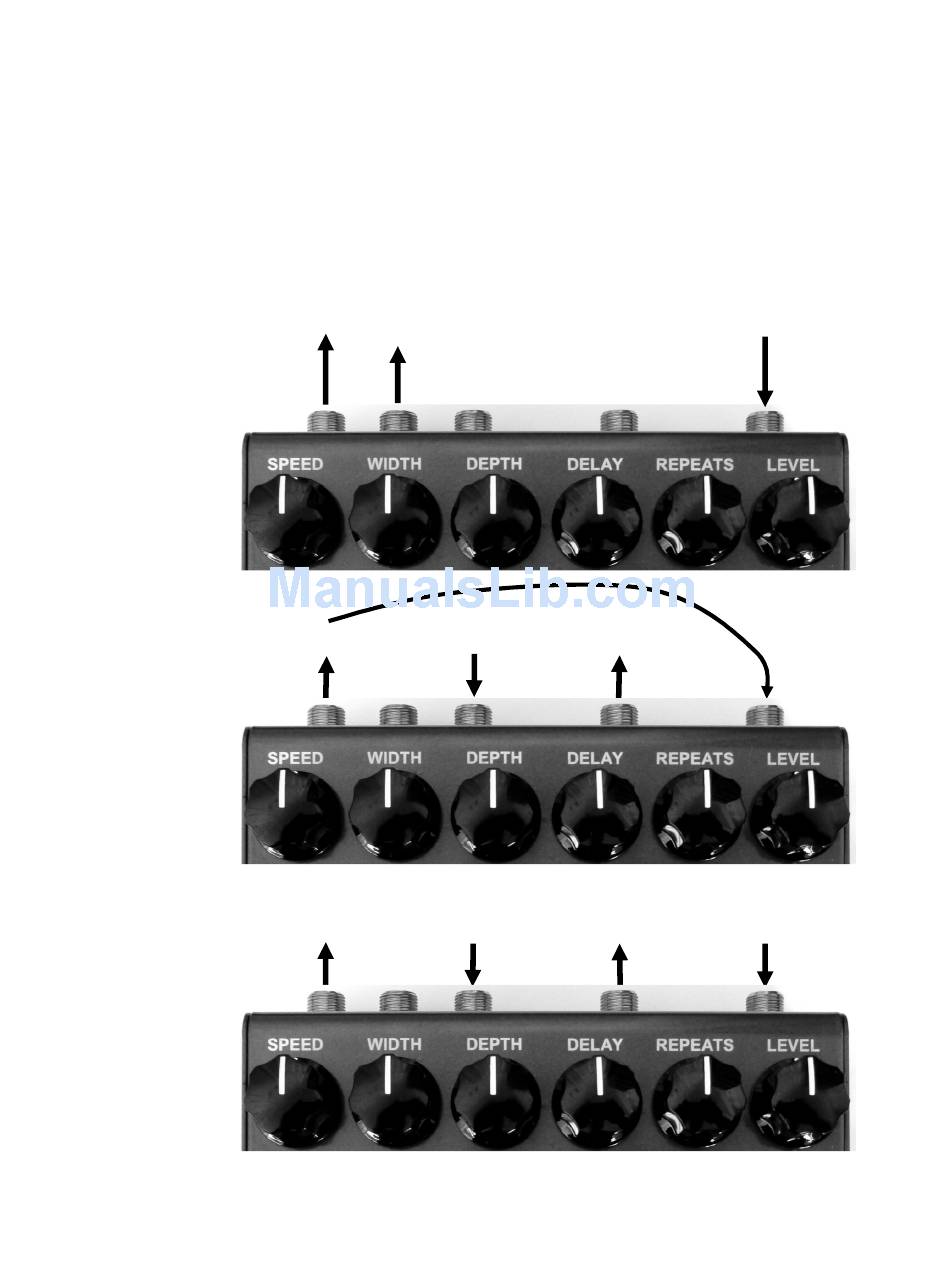

IN and OUT:

Normal
Change
Order
Separate
Pedals
If you open the pedal, you will see a slide switch for each channel
OUT 1
OUT 2
(stereo chorus)
INSTRUMENT
OUT #1
OUT
Chorus
For demos, sample settings and assistance, please go to:
www.VisualSound.net
OUT #2
INPUT
IN OUT
Chorus Echo
IN
IN #2
IN
Echo
