- Page 1 4922 Port Royal Road B-11 6 Spring Hill, Tennessee 37174 6 931-487-9001 www.visualsound.net 6 www.myspace.com/visualsoundusa...
- Page 2 It can be quite difficult to get to just the right BUFFER: The active mode of Visual Volume has the Pure Tone buffer circuit in it. Even when set at unity gain, the buffer makes level, then come back to that level by ear later in it sound like you are plugged directly into your amp even when you have other pedals and long cables after it.
-
Page 3: Top View
TOP VIEW FRONT VIEW INPUT 1 OUTPUT 1 INPUT 2 OUTPUT 2 TUNER OUT POWER IN INPUT 1 OUTPUT 1 INPUT 2 OUTPUT 2 TUNER OUT POWER IN... -
Page 4: Tuner Out
Output 1 and Output 2 as well. If you use active mode, the connected to Input 1, so you can rock the rocker fully sure to put Visual Volume after the distortion pedal. buffered signal comes out both Output 1 and Output 2 and can be back to get no output from the output jacks. -
Page 5: Battery Replacement
Over the years, guitar players have used their volume pedals enough to simply wear out the control pots. This leads to crackling, hiss, dropouts and similar problems. We wanted the Visual Volume pedal to be easy to service, so we made the control pot easy to remove and replace. - Page 6 INTERNAL PEDAL ADJUSTMENTS RACK AND PINION GEAR RACK TENSION ADJUSTER SCREW QUAD POT RETAINING NUT QUAD POT ASSEMBLY GAIN CONTROLS In active mode, these dial in a gain of between 1 and 5. Each is independent, so the gains may be different on each input. QUAD POT CONNECTOR ACTIVE/PASSIVE SWITCHES Both switches shown in active position.
- Page 7 JEKYLL & HYDE DOUBLE TROUBLE New noise reduction and improved Mid control on Hyde Visual Sound’s interpretation of the TS-808 channel. Additional low-drive range on Jekyll channel. (with bass boost and lots more volume), Same great overdrive and distortion tones that times 2! Use either overdrive by itself or Jekyll &...
- Page 8 The compressor channel of the new Route 66 octave up with the Anger Level knob and get crazy low octave overtones to Visual Sound’s interpretation of the TS-808 (with bass in a single pedal. boot! Octave tracking is flawless even with the fastest shredding imaginable.

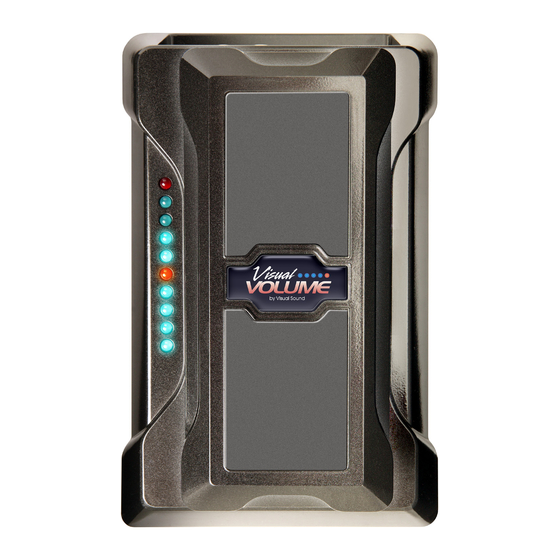

- Page 9 All new design with die-cast aluminum housing and blue LEDs! Originally released in 1995 and now Active and back by popular demand, the new Visual Passive modes Volume 10th Anniversary Edition is the Clean boost pre-amp in Active mode finest, most useful volume pedal Two inputs and ever created.
- Page 10 There are many amps with multiple channels, but few sound good on every channel and even fewer sound good with effects pedals. Finally, Visual Sound has designed a series of amps with just one great clean tube channel... perfect for effects pedals. And just to prove our point, we’ll give you our #1 selling pedal, the Jekyll & Hyde,...
- Page 11 Frustrated with powering only two or three effects pedals with a 6-outlet power strip? Pack Includes: 1SPOT Power Visual Sound has created the perfect alternative to awkward transformer-type adapters. The 1 SPOT ® ® Supply PLUS (1) MC8 Multi-Plug Cable, (2) 9VDC regulated power supply will work with virtually any pedal on the market today.
- Page 12 *Up to power rating of the MC5, MC8, or converter won’t unplug unless you want it to. 1 SPOT Adapter 1 SPOT Adapter ¤ ¤ **Brand names listed are trademarks of their respective companies and have no affiliation with Visual Sound.
