Quick Start Guide
C O P Y R I G H T © 2 0 0 7 L G E L E C T R O N I C S U S A I N C , A L L R I G H T S R E S E R V E D .

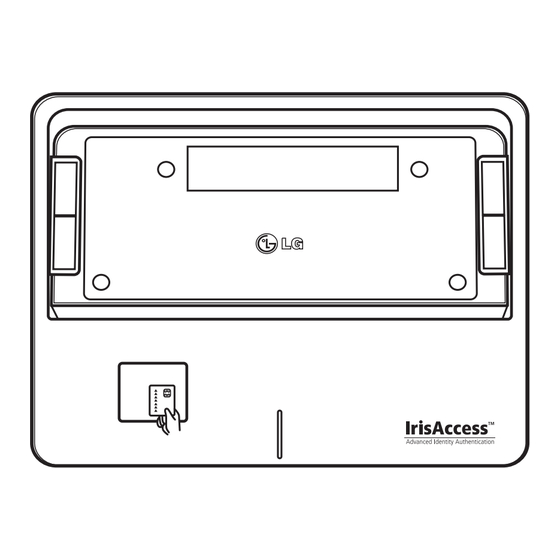

LG IrisAccess™ 4000: iCAM4000 Quick Start Guide
The content of this document is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by LG Electronics USA
Incorporated. LG Electronics USA Incorporated assumes no responsibility or liability for any errors or inaccuracies that may appear in the informational content contained in this document.
Please remember that existing images or drawings that you may want to include in your document may be protected under copyright law. The unauthorized incorporation of such material
into your work could be a violation of the rights of the copyright owner. Please be sure to obtain any permission required from the copyright owner.
LG, LG Iris, the LG logo, LG Iris logo and IrisAccess are either registered trademarks or trademarks of LG Electronics Incorporated in the United States and/or other countries.
LG Electronics USA Incorporated, Iris Technology Division. 7 Clarke Drive, Cranbury, New Jersey 08512, USA.
Document Number: DV002Q501 (07/07)
FOR MODEL NUMBERS:
iCAM4000
iCAM4000R
iCAM4010-E1
iCAM4010R-E1
iCAM4010-H1
iCAM4010R-H1

Advertisement

   Also See for LG iCAM4000

   Related Manuals for LG iCAM4000

   Summary of Contents for LG iCAM4000

  • Page 1: Quick Start Guide

    LG IrisAccess™ 4000: iCAM4000 Quick Start Guide The content of this document is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by LG Electronics USA Incorporated. LG Electronics USA Incorporated assumes no responsibility or liability for any errors or inaccuracies that may appear in the informational content contained in this document.

  • Page 2: Packing List

    Packing List What’s in the box • iCAM4000 - IrisCamera • Power Adapter Input: 110~240V AC - 1.5AMP 50/60Hz Output: 12V DC - 5.0AMP • Power Cable for 110V • CAT5 Ethernet Cable • Quick Start Guide • Security Screw Wrench Required Equipment (not included with iCAM4100) •...

  • Page 3

    IrisAccess System The iCAM4000 is a two-eye iris camera used to capture the iris images of the user. The iCAM includes an alignment indicator behind the mirror and voice prompts to assist the user. When used in a typical access control application, the iCAM will be placed near the secured portal and provides the means for the system to identify the user requesting entry.

  • Page 4

    • The recommended mounting height for the iCAM4000 is 142cm (56 inches) from the floor to the bottom of the unit. This mounting height can be adjusted to accommodate the height of the average user at the installed location.

  • Page 5

    206.4 181.6 HOLE HOLE HOLE HOLE HOLE HOLE HOLE Dimensions and Screw Holes on the Rear Enclosure Wall 68.5 43.5 42.9 Rotation Part with Front Enclosure Rear Enclosure Dimensions of iCAM4000 (mm unit)

  • Page 6

    Installation (cont’d) 4. When recessed mounting, leave 6mm (1/4”) of extra space above the marked hole so when mounting the back plate it allows the iCAM to slide down onto the installation plate tabs. 5. Route the power line, network line, and other necessary cables through the back plate hole.

  • Page 7

    2. Open the web browser and enter http://192.168.5.100 in the address bar then press ENTER. The iCAM login screen will appear. 3. Enter the default Username: iCAM4000 and Password: iris4000 (both are case sensitive) 4. The iCAM Configuration Main Menu will appear.

  • Page 8

    Configuration (cont’d) 5. Select Network Settings. 6. Enter the new IP address for the iCAM (default = 192.168.5.100) 7. Enter the new Subnet Mask for the iCAM (default = 255.255.255.0) 8. Enter the new Broadcast Address for the iCAM (default = 192.168.5.255) 9.

  • Page 9

    Configuration (cont’d) Once all iCAMs have been configured Once all iCAMs have been configured, the computer IP Address can then be changed back to its original IP Address or to the new IP Address as required to communicate to the rest of the IrisAccess™ system.

  • Page 10: Technical Support

    Technical Support Technical Support Additional information and Technical assistance is available on the LG Electronics – Iris Technology Division’s support web site at www.lgiris.com, click on Support & Service then Technical Support.
