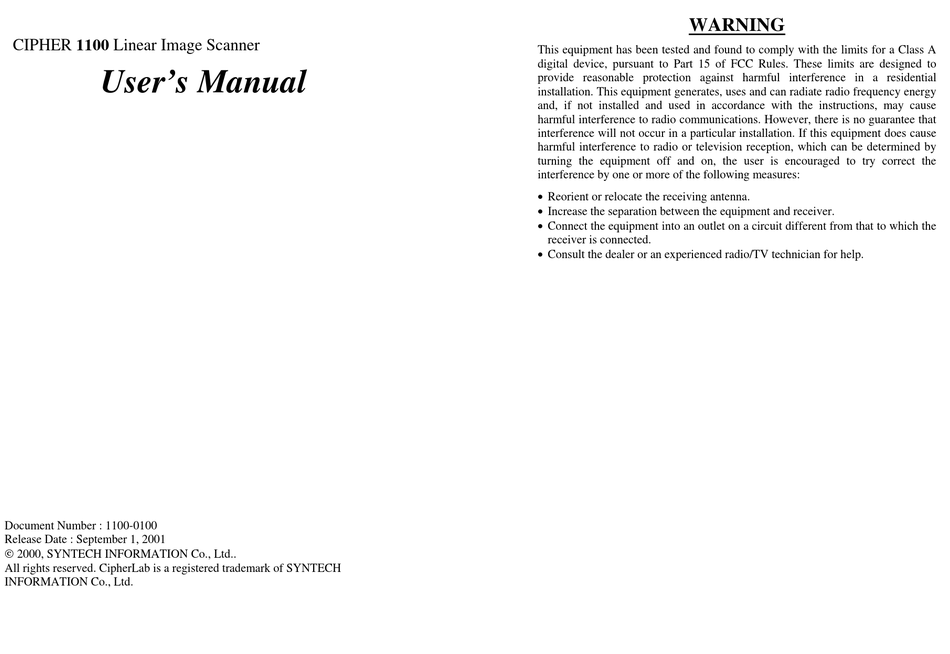

CIPHER 1100 Linear Image Scanner
User's Manual
Document Number : 1100-0100
Release Date : September 1, 2001
 2000, SYNTECH INFORMATION Co., Ltd..
All rights reserved. CipherLab is a registered trademark of SYNTECH
INFORMATION Co., Ltd.
WARNING
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CIPHER 1100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Syntech Information CIPHER 1100

  • Page 1 WARNING CIPHER 1100 Linear Image Scanner This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to User’s Manual provide reasonable protection against harmful interference in a residential installation.
  • Page 2: Table Of Contents

    Length Code ..................14 Table of Contents Data Editing....................15 Select Editing Format ............... 15 Introduction....................1 Restore Default Format..............15 General Features ..................2 Applicable Conditions ..............15 Buzzer ....................2 Total Number of Fields..............16 Indicator ....................2 Dividing Data into Fields..............16 Scan Modes..................2 Additional Fields ................
  • Page 3: Introduction

    1. Introduction 2. General Features This manual contains all the information needed to operate and configure the 1100 2.1 Buzzer Barcode Scanner. It is divided into two parts. The first part of this manual describes the operation and programmable features of the scanner. The second part The buzzer of the scanner beeps differently to indicate various operating of this manual contains the setup barcodes used to configure the scanner.
  • Page 4: Auto-Sense

    2.6 Scanner Time-out Duration Time-Out Duration) is expired. Unlike the Auto Off mode, the scanner will continue to scan and the scanning period is re-counted each time there is a This parameter is used to limit the maximum scanning period when the scan mode successful read.
  • Page 5: Output Interface

    3. Output Interface The spaces of the negative barcodes are printed with a color darker than that of the bars. The 1100 is a interface scanner. It can be used, with different cables, as a multi keyboard wedge scanner, an RS-232 scanner, or a USB scanner. The output interface can be programmed using the setup barcodes in this manual.
  • Page 6: Capital Lock Status

    3.2 RS232 Interface The user can select the desired, flow control, baud rate, parity, and data bits to be used in this output interface. Digits on Upper Row 3.2.1 Baud Rate / Parity / Data Bits The supported baud rate, parity, and data bit are listed below. •...
  • Page 7: Symbology Parameters

    4. Symbology Parameters read by qualifying the allowable code length. Code length parameters can be configured in two ways : Fixed Code Length or Max / Min code length. If This section describes user configurable parameters that are pertaining to barcode the fixed code length is selected, up to 2 fixed lengths can be specified.
  • Page 8: Upca

    4.7 UPCA • Checksum Transmission: If this parameter is enabled, the checksum characters (two characters) will be transmitted together with data. • Convert to EAN13: If this parameter is enabled, the UPCA read will be expanded into EAN13, and the following processing will follow the parameters configured for EAN13.
  • Page 9: Data Output Format

    5. Data Output Format Data read by the scanner will be processed in the following sequence (RS-232, Set 1 Set 2 Set 3 Set 4 Set 5 Keyboard Wedge and USB interfaces). Code 39 Italy Pharmacode 1) The character substitution is performed on the barcode data. French Pharmacode 2) The Code ID and the Length Code are inserted at the beginning of the data as Industrial 25...
  • Page 10: Data Editing

    6. Data Editing • Code Type: This parameter specifies the code type of the data eligible for data editing. Multiple code types can be specified for this parameter. The 1100 scanner provides advanced data editing functions for data formatting. • Data Length: This parameter specifies the length (character count) of the Data editing is performed according to user configured editing formats.
  • Page 11: Additional Fields

    6.6 Additional Fields 6th character is the date code. From the 7th character is the item number, its length is not fixed but is delimited by a ‘-’ character. After the ‘-’ character is the User can create up to five additional fields for each editing format. Each additional quantity information.
  • Page 12: Configuring Your 1100

    7. Configuring your 1100 For these kinds of parameters, the label of the parameter to be configured must be read first. Then the labels comprising the numeric value or character string are Configuring the 1100 Scanner is done by reading the setup labels contained in the read.
  • Page 13: Key Type/Status Setting

    • Add Control (R): The right Control key will be sent together with the Parameter Label character programmed. • Add Alternate (R): The right Alternate key will be sent together with the character programmed. Key Type / Status Label For example, to program the Prefix Code to be “Ctrl-Shift-B”, “C”, the programming sequence should be: 1) “Prefix Code”...
