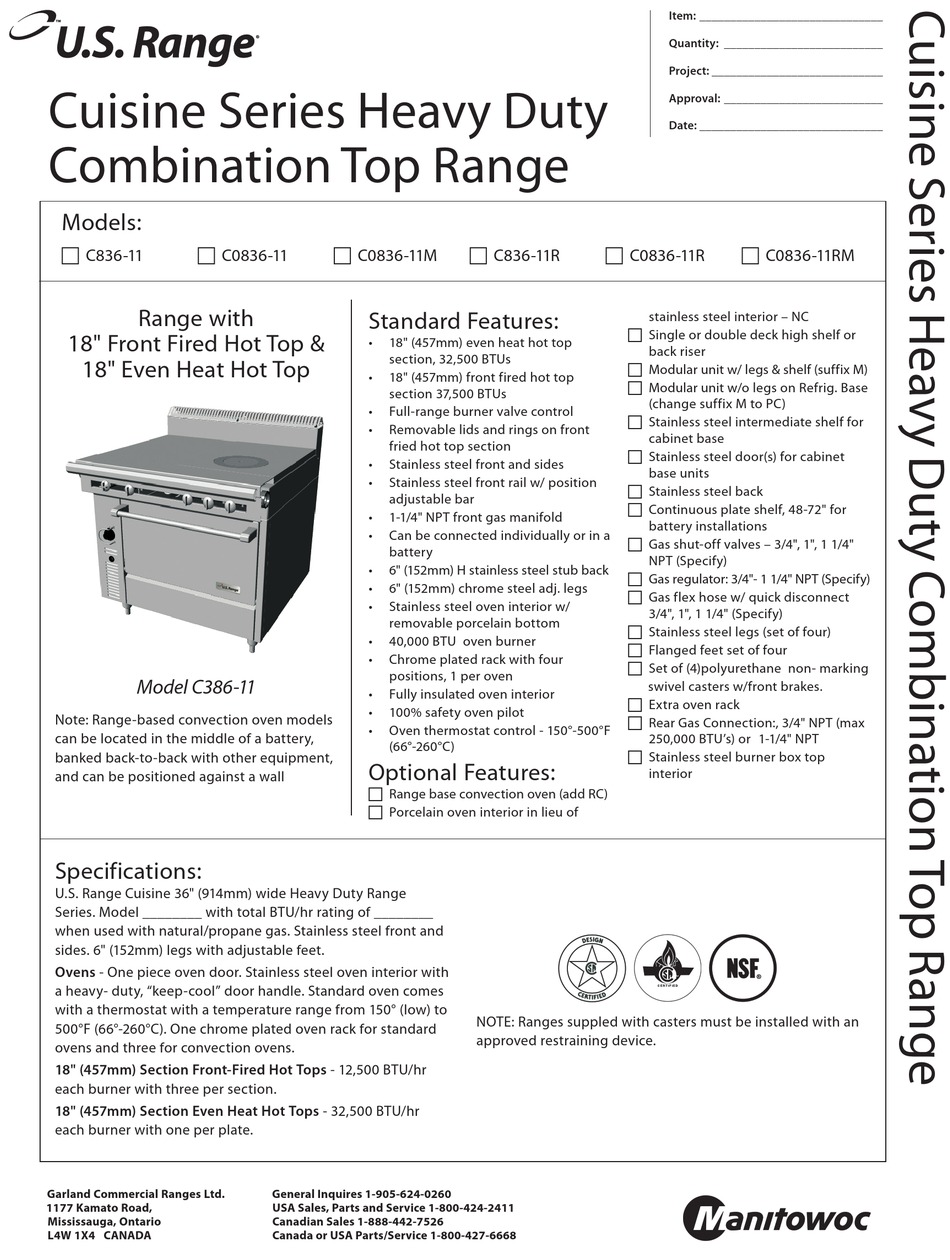

U.S. Range C836-11 Specifications

Cuisine Series Heavy Duty
Combination Top Range
Models:
 C836-11  C0836-11
Range with
18" Front Fired Hot Top &
18" Even Heat Hot Top
Model C386-11
Note: Range-based convection oven models
can be located in the middle of a battery,
banked back-to-back with other equipment,
and can be positioned against a wall

Specifications:

U.S. Range Cuisine 36" (914mm) wide Heavy Duty Range
Series. Model ________ with total BTU/hr rating of ________
when used with natural/propane gas. Stainless steel front and
sides. 6" (152mm) legs with adjustable feet.
Ovens - One piece oven door. Stainless steel oven interior with
a heavy- duty, "keep-cool" door handle. Standard oven comes
with a thermostat with a temperature range from 150° (low) to
500°F (66°-260°C). One chrome plated oven rack for standard
ovens and three for convection ovens.
18" (457mm) Section Front-Fired Hot Tops - 12,500 BTU/hr
each burner with three per section.
18" (457mm) Section Even Heat Hot Tops - 32,500 BTU/hr
each burner with one per plate.
Garland Commercial Ranges Ltd.
1177 Kamato Road,
Mississauga, Ontario
L4W 1X4 CANADA
 C0836-11M

Standard Features:

• 18" (457mm) even heat hot top
section, 32,500 BTUs
• 18" (457mm) front fired hot top
section 37,500 BTUs
• Full-range burner valve control
• Removable lids and rings on front
fried hot top section
• Stainless steel front and sides
• Stainless steel front rail w/ position
adjustable bar
• 1-1/4" NPT front gas manifold
• Can be connected individually or in a
battery
• 6" (152mm) H stainless steel stub back
• 6" (152mm) chrome steel adj. legs
• Stainless steel oven interior w/
removable porcelain bottom
• 40,000 BTU oven burner
• Chrome plated rack with four
positions, 1 per oven
• Fully insulated oven interior
• 100% safety oven pilot
• Oven thermostat control - 150°-500°F
(66°-260°C)

Optional Features:

 Range base convection oven (add RC)
 Porcelain oven interior in lieu of
General Inquires 1-905-624-0260
USA Sales, Parts and Service 1-800-424-2411
Canadian Sales 1-888-442-7526
Canada or USA Parts/Service 1-800-427-6668
 C836-11R  C0836-11R
 Single or double deck high shelf or
 Modular unit w/ legs & shelf (suffix M)
 Modular unit w/o legs on Refrig. Base
 Stainless steel intermediate shelf for
 Stainless steel door(s) for cabinet
 Stainless steel back
 Continuous plate shelf, 48-72" for
 Gas shut-off valves – 3/4", 1", 1 1/4"
 Gas regulator: 3/4"- 1 1/4" NPT (Specify)
 Gas flex hose w/ quick disconnect
 Stainless steel legs (set of four)
 Flanged feet set of four
 Set of (4)polyurethane non- marking
swivel casters w/front brakes.
 Extra oven rack
 Rear Gas Connection:, 3/4" NPT (max
 Stainless steel burner box top
NOTE: Ranges suppled with casters must be installed with an
approved restraining device.
Item: ______________________________
Quantity: __________________________
Project: ____________________________
Approval: __________________________
Date: ______________________________
 C0836-11RM
stainless steel interior – NC
back riser
(change suffix M to PC)
cabinet base
base units
battery installations
NPT (Specify)
3/4", 1", 1 1/4" (Specify)
250,000 BTU's) or 1-1/4" NPT
interior
