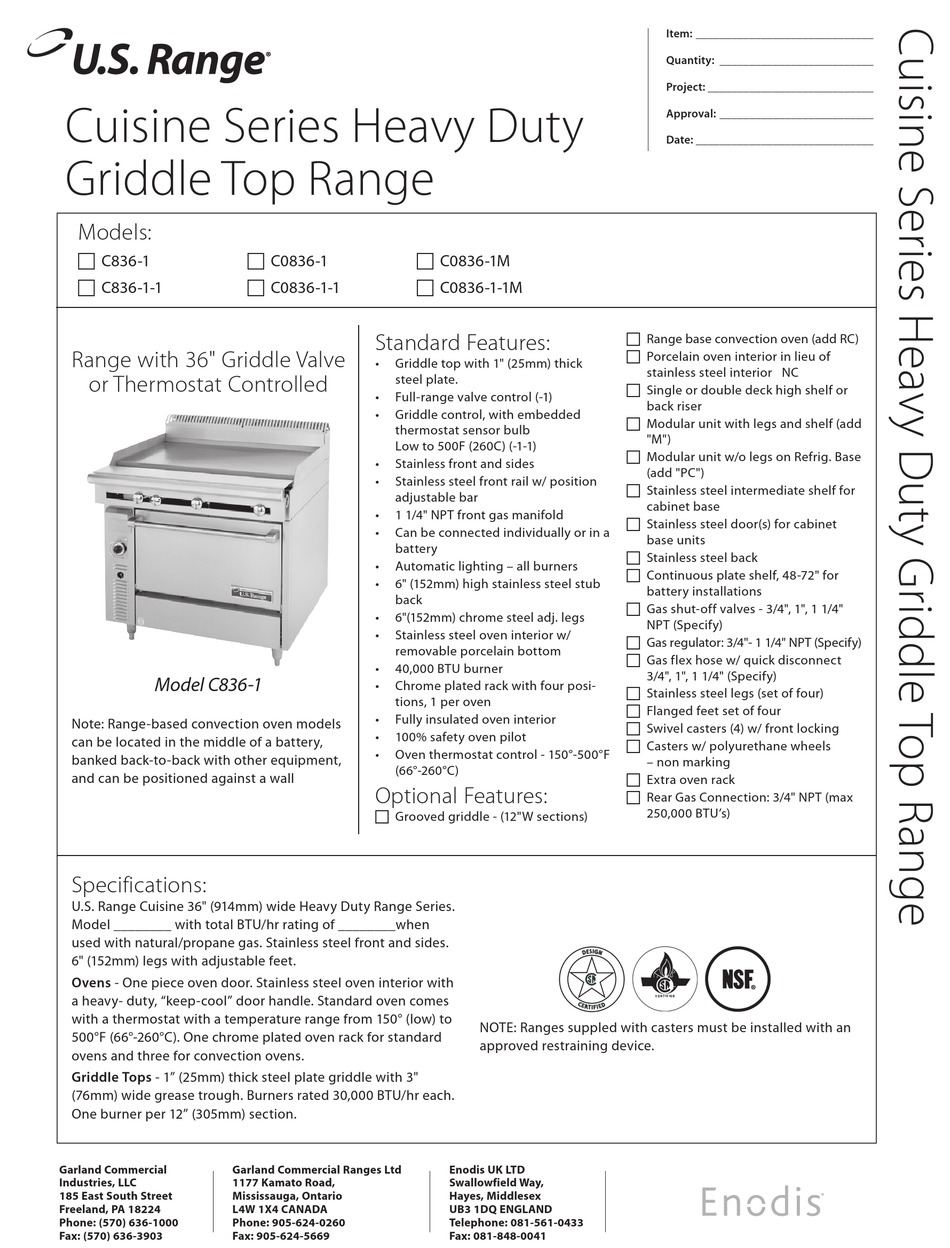

U.S. Range C0836-1 Specifications

Cuisine Series Heavy Duty
Griddle Top Range
Models:
 C836-1
 C836-1-1
Range with 36" Griddle Valve
or Thermostat Controlled
Model C836-1
Note: Range-based convection oven models
can be located in the middle of a battery,
banked back-to-back with other equipment,
and can be positioned against a wall

Specifications:

U.S. Range Cuisine 36" (914mm) wide Heavy Duty Range Series.
Model ________ with total BTU/hr rating of ________when
used with natural/propane gas. Stainless steel front and sides.
6" (152mm) legs with adjustable feet.
Ovens - One piece oven door. Stainless steel oven interior with
a heavy- duty, "keep-cool" door handle. Standard oven comes
with a thermostat with a temperature range from 150° (low) to
500°F (66°-260°C). One chrome plated oven rack for standard
ovens and three for convection ovens.
Griddle Tops - 1" (25mm) thick steel plate griddle with 3"
(76mm) wide grease trough. Burners rated 30,000 BTU/hr each.
One burner per 12" (305mm) section.
Garland Commercial Garland Commercial Ranges Ltd
Industries, LLC 1177 Kamato Road,
185 East South Street Mississauga, Ontario
Freeland, PA 18224 L4W 1X4 CANADA
Phone: (570) 636-1000 Phone: 905-624-0260
Fax: (570) 636-3903 Fax: 905-624-5669
 C0836-1  C0836-1M
 C0836-1-1  C0836-1-1M

Standard Features:

• Griddle top with 1" (25mm) thick
steel plate.
• Full-range valve control (-1)
• Griddle control, with embedded
thermostat sensor bulb
Low to 500F (260C) (-1-1)
• Stainless front and sides
• Stainless steel front rail w/ position
adjustable bar
• 1 1/4" NPT front gas manifold
• Can be connected individually or in a
battery
• Automatic lighting – all burners
• 6" (152mm) high stainless steel stub
back
• 6"(152mm) chrome steel adj. legs
• Stainless steel oven interior w/
removable porcelain bottom
• 40,000 BTU burner
• Chrome plated rack with four posi-
tions, 1 per oven
• Fully insulated oven interior
• 100% safety oven pilot
• Oven thermostat control - 150°-500°F
(66°-260°C)

Optional Features:

 Grooved griddle - (12"W sections)
 Range base convection oven (add RC)
 Porcelain oven interior in lieu of
 Single or double deck high shelf or
 Modular unit with legs and shelf (add
 Modular unit w/o legs on Refrig. Base
 Stainless steel intermediate shelf for
 Stainless steel door(s) for cabinet
 Stainless steel back
 Continuous plate shelf, 48-72" for
 Gas shut-off valves - 3/4", 1", 1 1/4"
 Gas regulator: 3/4"- 1 1/4" NPT (Specify)
 Gas flex hose w/ quick disconnect
 Stainless steel legs (set of four)
 Flanged feet set of four
 Swivel casters (4) w/ front locking
 Casters w/ polyurethane wheels
 Extra oven rack
 Rear Gas Connection: 3/4" NPT (max
NOTE: Ranges suppled with casters must be installed with an
approved restraining device.
Enodis UK LTD
Swallowfield Way,
Hayes, Middlesex
UB3 1DQ ENGLAND
Telephone: 081-561-0433
Fax: 081-848-0041
Item: ______________________________
Quantity: __________________________
Project: ____________________________
Approval: __________________________
Date: ______________________________
stainless steel interior NC
back riser
"M")
(add "PC")
cabinet base
base units
battery installations
NPT (Specify)
3/4", 1", 1 1/4" (Specify)
– non marking
250,000 BTU's)
